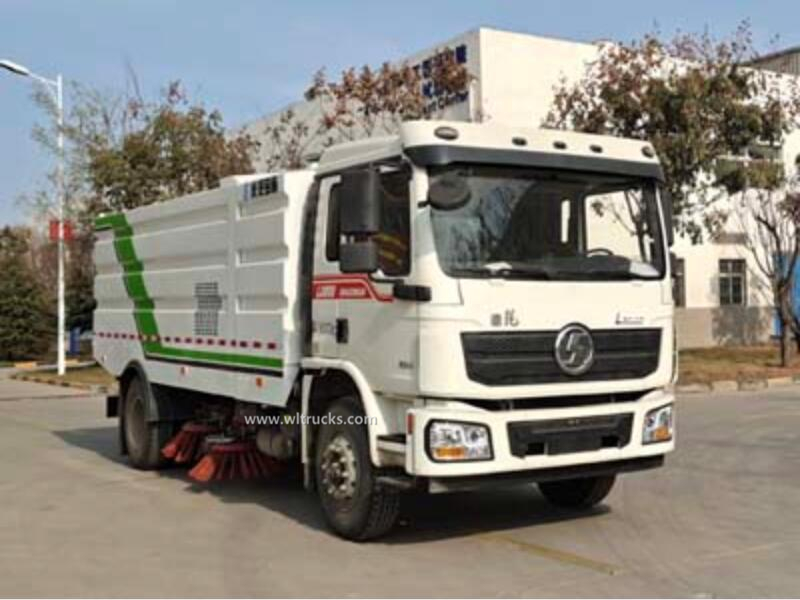

Shacman 12cbm pavement sweeper truck

Shacman 12cbm pavement sweeper truck
Shacman 12cbm pavement sweeper truck

[Technical parameters of the vehicle]

product name

CLW5186TSLLA1 pavement sweeper

Total mass (kg)

18000

Tank volume (m3)

12

Rated mass (kg)

7710

Dimensions (mm)

8000X2525X3070

Curb weight (kg)

10610

Cargo compartment size (mm)

XX

The number of passengers in the cab (person)

2

Maximum load of saddle (kg)

Approach angle/departure angle (°)

21/17

Front suspension/rear suspension (mm)

1340/1960

Axle load (kg)

6500/11500

Maximum speed (km/h)

89

Remarks:

Remarks: The special device for this car is the box body and the

cleaning device assembly, which is mainly used for road cleaning.

【Chassis technical parameters】

Chassis model

SX1189LA1F1C

Chassis name

Chassis

Trade name

Shacman

manufacturer

Shaanxi Automobile

Group Co., Ltd.

Number of axes

2

Number of tires

6

Wheelbase (mm)

4700

Tire specifications

10.00R20 18PR

Number of leaf spring

10/9+6

Front track (mm)

1935

Fuel type

Diesel oil

Rear track (mm)

1860

Emission standard

GB3847-2005, GB17691-2018 National Ⅵ

engine model

Engine manufacturer

engine capacity

Engine power

B6.2NS6B230

B6.2NS6B210

YCS06270-60

YCS06245-60

WP6H270E61

WP6H245E61

YCK05240-60

YCK05210-60

YCK05190-60

WP4.6NQ220E61

B6.2NS6B260

B6.2NS6B245

YCS04200-68

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Weichai Power Co., Ltd.

Weichai Power Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Weichai Power Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

6200

6200

6234

6234

6220

6220

5132

5132

5132

4580

6200

6200

4156

169

154

199

180

199

180

176

157

140

162

191

180

147

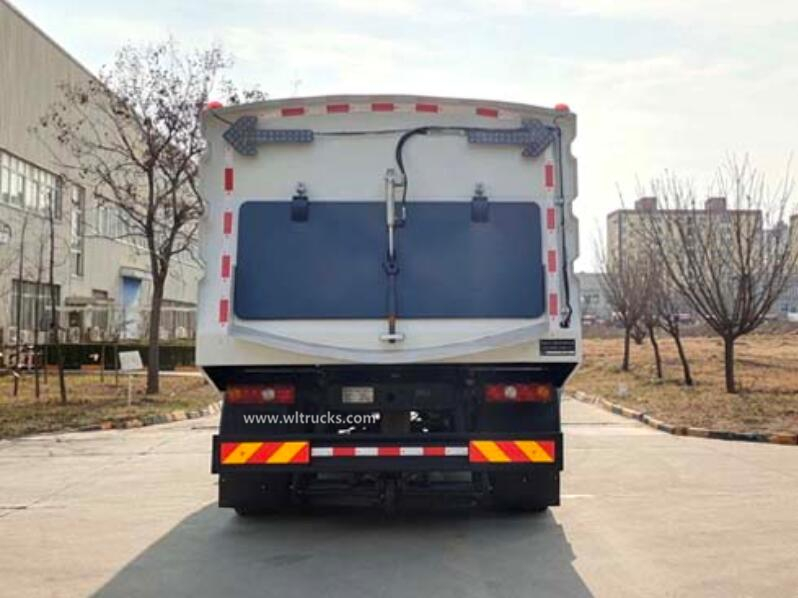

Shacman 12m3 vacuum pavement sweeper truck
