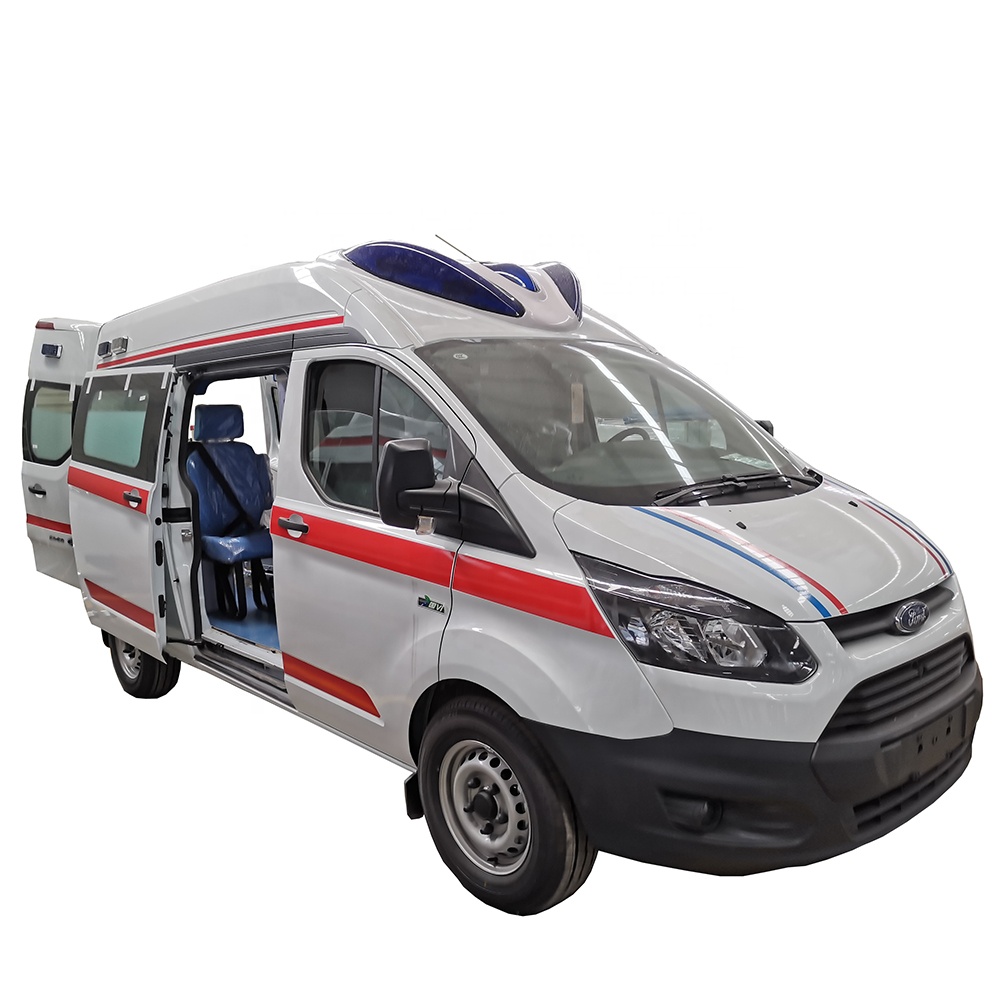

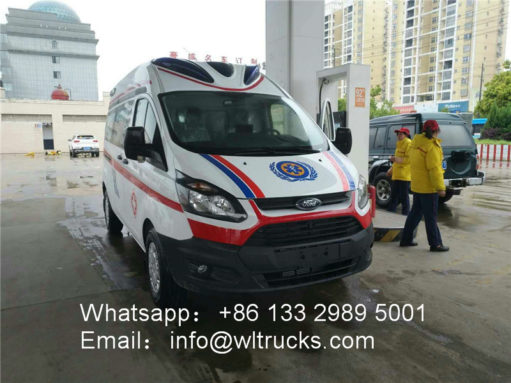

Transit V362 short axis transfer siren ambulance
Transit V362 short axis transfer siren ambulance Adopt Jiangling Ford joint venture brand “Transit” light passenger modification. The maximum output power of 2 0T gasoline engine is 203 horsepower (149kW), which adopts the latest design language and is more fashionable.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| The main technical parameters of Cheng Liwei CLW5035XJHJ5 siren ambulance | |||
| Vehicle model | CLW5035XJHJ5 | Emission Standards | Eruo 5 |
| manufacturer | Chengli Special Purpose Vehicle Co., Ltd. | Fuel type | gasoline |
| Total quality | 3300 kg | Curb quality | 2250 kg |
| Number of passengers | 3-7 people | Maximum speed | 156 km/h |
| Front track | 1736 mm | Rear track | 1720 mm |
| Wheelbase | 2933 mm | Tire specifications | 215/78R16LT |
| Dimensions | 4974×2032×2627, 2407, 2200 mm | ||
| other | The car is equipped with special equipment for medical equipment cabinets, oxygen bottles, stretchers, and disinfection lights; the height of the vehicle (mm): 2200 when the bottom is optional with the chassis: 2200, the flashing lights on both sides are optional, and the forehead position alarm is optional. Vehicle height (mm): 2407; ABS system controller model: EV5051, production plant: Bosch Automotive Parts (Suzhou) Co., Ltd., selection of tires: 215/75R16LT, level: 8PR, 10PR, 12PR. | ||
| Cheng Liwei CLW5035XJHJ5 ambulance engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| ECOBOOST4G20B5L | Jiangling Motors Co., Ltd. | 1997 | 149 |
Transport ambulance Configuration parameter:
| basic configuration | |||||
| 1 | Medical cabin air conditioner | 1 | |||
| 2 | Medical cabin heater | 1 | |||
| Circuits and electrical appliances | |||||
| Alarm and warning system | 1 | Long row of standard police lights, | 1 | ||
| 2 | 100W alarm and handheld control | 1 | |||
| Interior roof, interior, power supply | 3 | 500W power inverter | 1 | ||
| 4 | Medical cabin rocker control switch | 1 | |||
| 5 | 12V power port | 1 | |||
| 6 | 220V power port | 2 | |||
| 7 | Top LED lighting | 4 | |||
| 8 | Positive and negative ventilation fan | 1 | |||
| 9 | Long delay disinfection lamp | 1 | |||
| Oxygen circuit and oxygen | |||||
| Oxygen supply system | 1 | One 10-liter medical iron bottle and shock-absorbing clamp | 1 | ||
| 2 | One humidification bottle with oxygen pressure reducing valve, directly connected to the oxygen bottle | 1 | |||
| Medical cabin production | |||||
| Inside the medical cabin | 1 | Original car interior | 1 | ||
| 2 | Partition wall | 1 | |||
| 3 | Sliding window for partition wall | 1 | |||
| 4 | 1 medical cabinet behind the partition wall | 1 | |||
| 5 | Oxygen cylinder fixed beside the medicine cabinet | 1 | |||
| 6 | Wear-resistant non-slip blue medical floor leather | 1 | |||
| Seat | |||||
| Seat system | 1 | Independent left seat | 2 | ||
| 2 | Independent right seat | 2 | |||
| First aid | |||||
| medical system | 1 | Auto stretcher | 1 | ||
| 2 | Stretcher pad | 1 | |||
| 3 | 1 sliding infusion stand | 1 | |||
| 4 | 1KG fire extinguisher | 1 | |||
| Exterior | |||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | ||
| 2 | Translucent matte film on right and rear | 1 | |||
| 3 | Cross marks on the left and right doors | 1 | |||

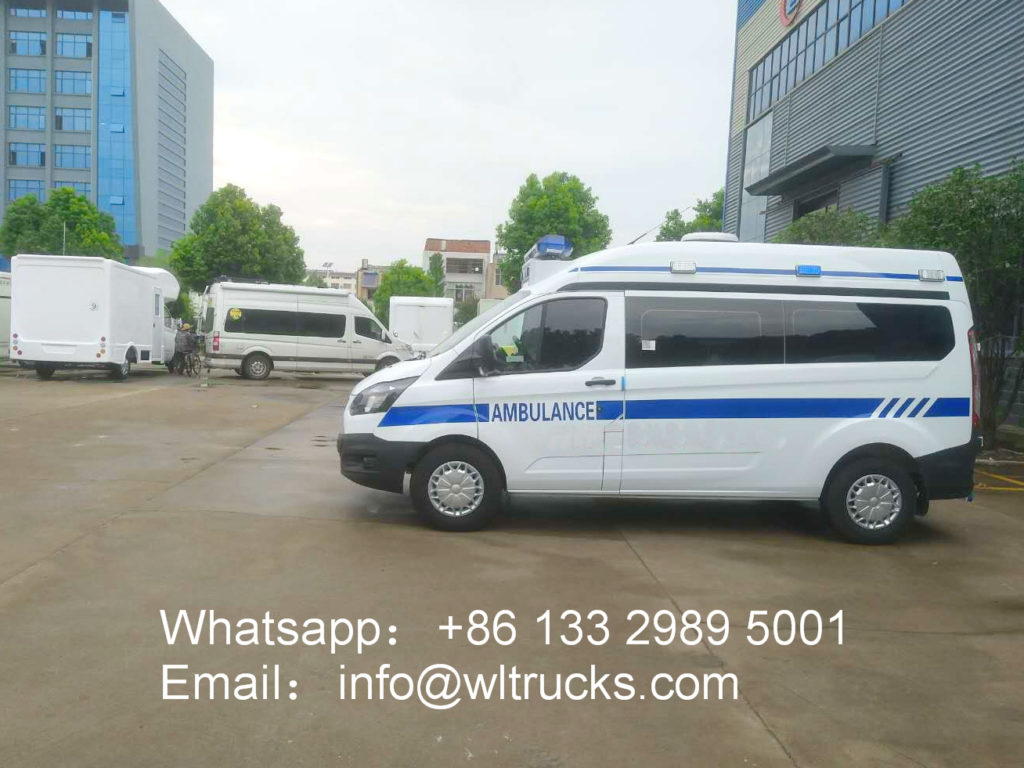

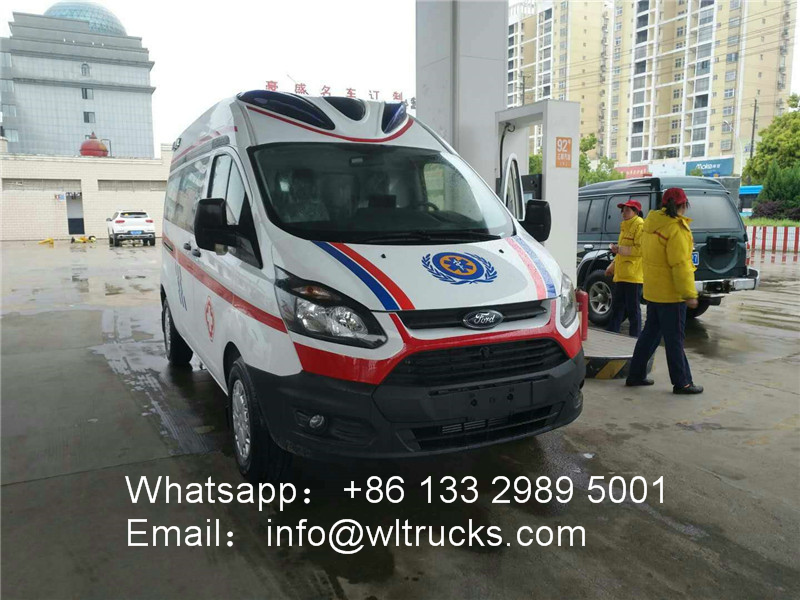

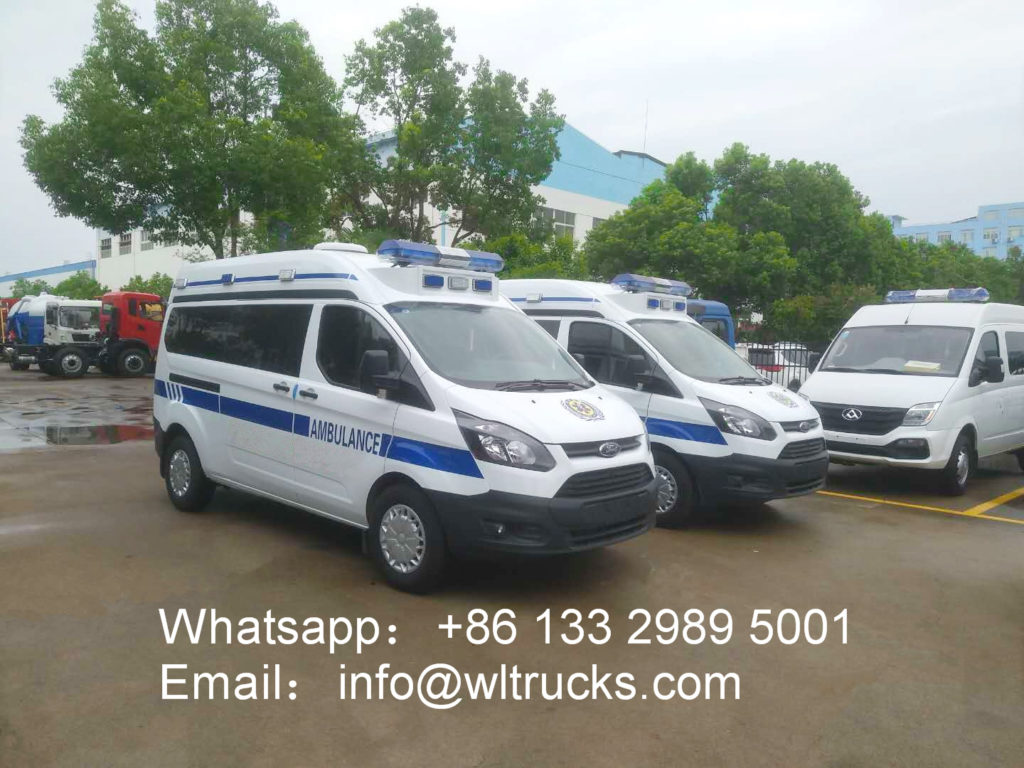

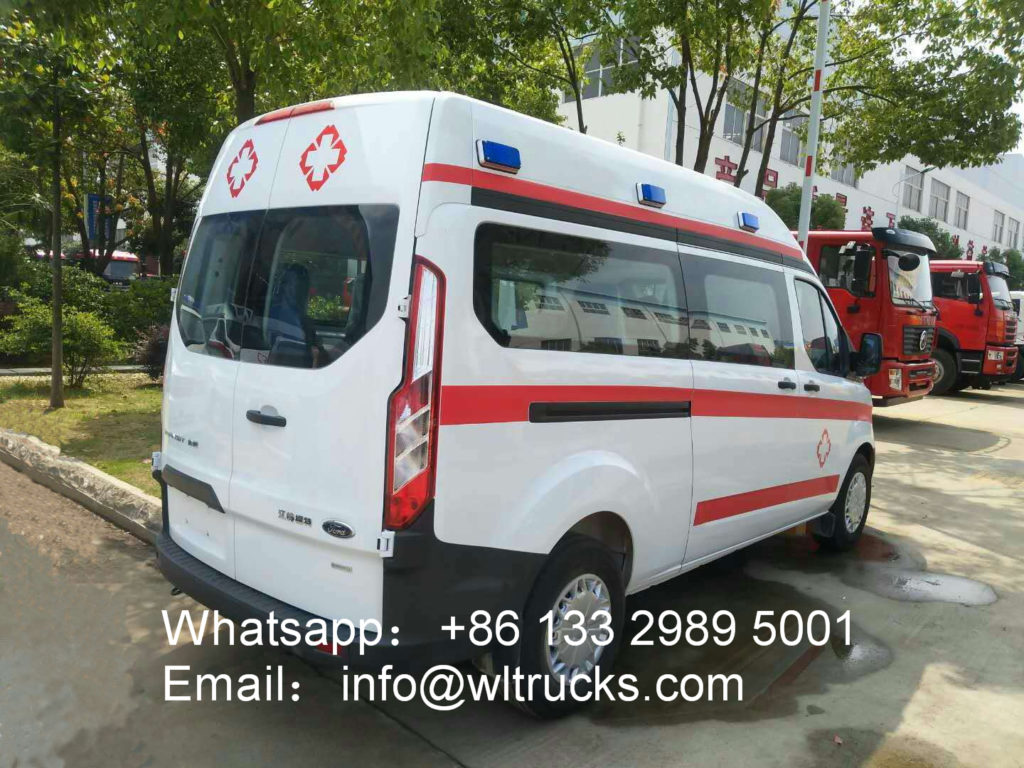

Ambulance car details:

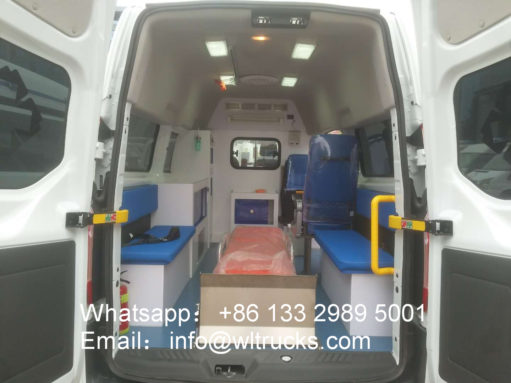

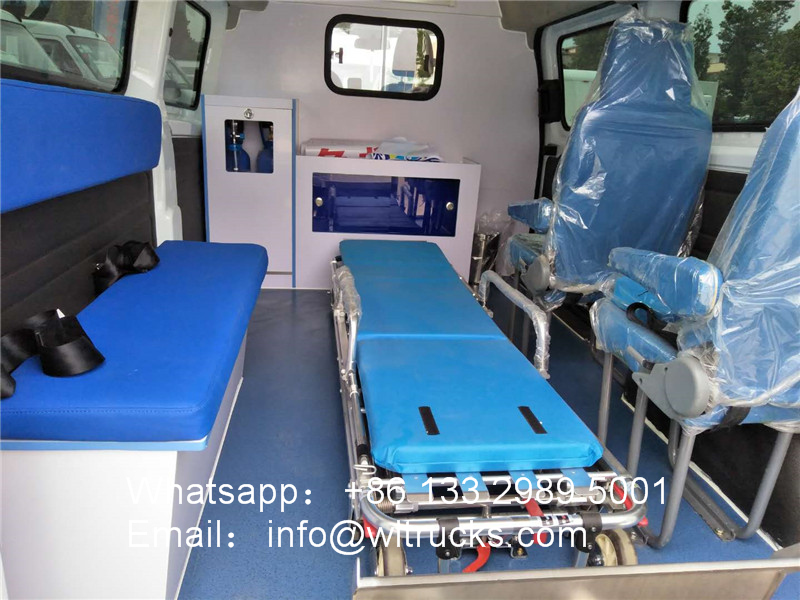

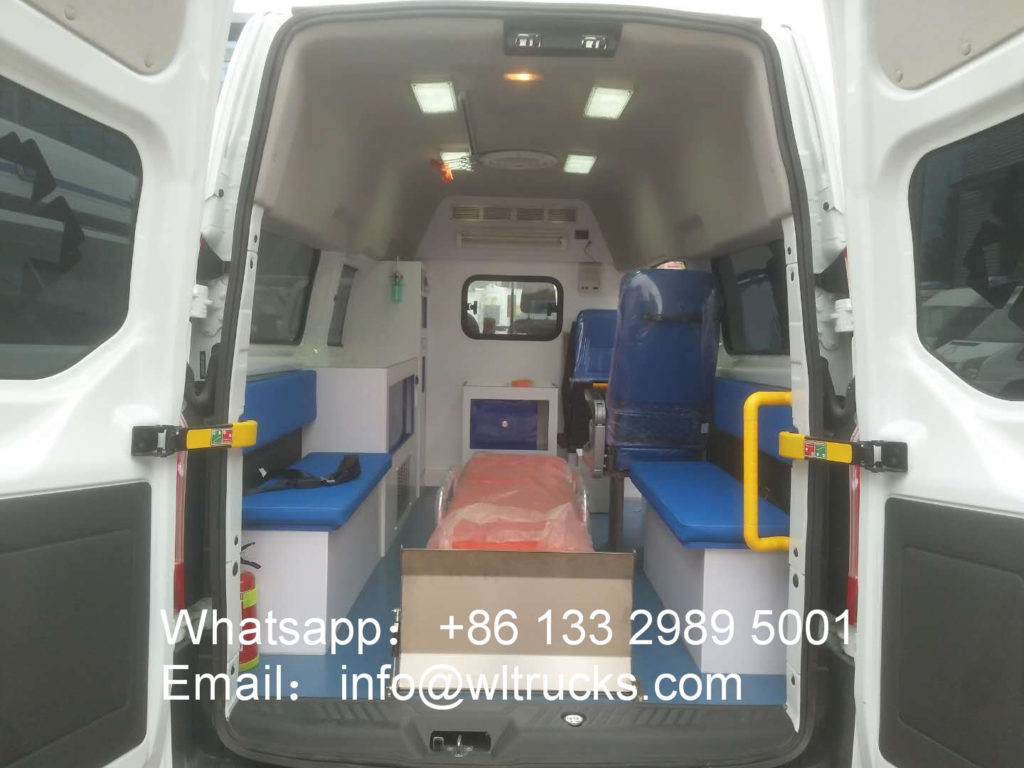

Transit V362 short axis transfer siren ambulance equipment：
