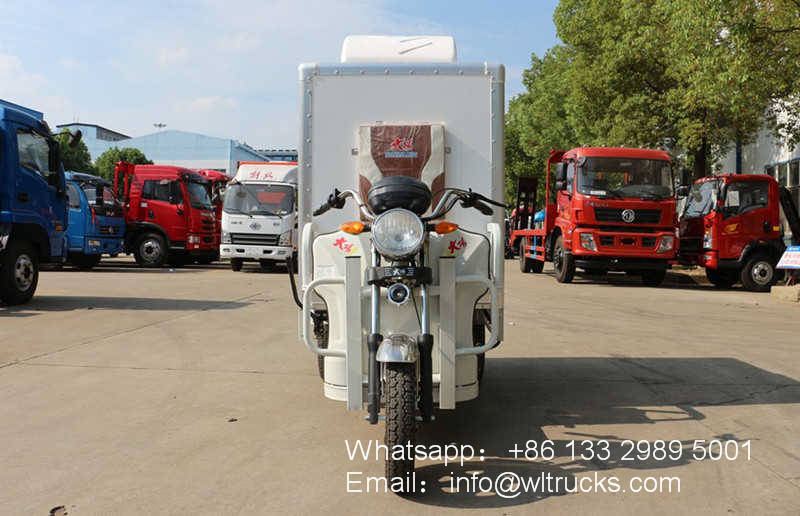

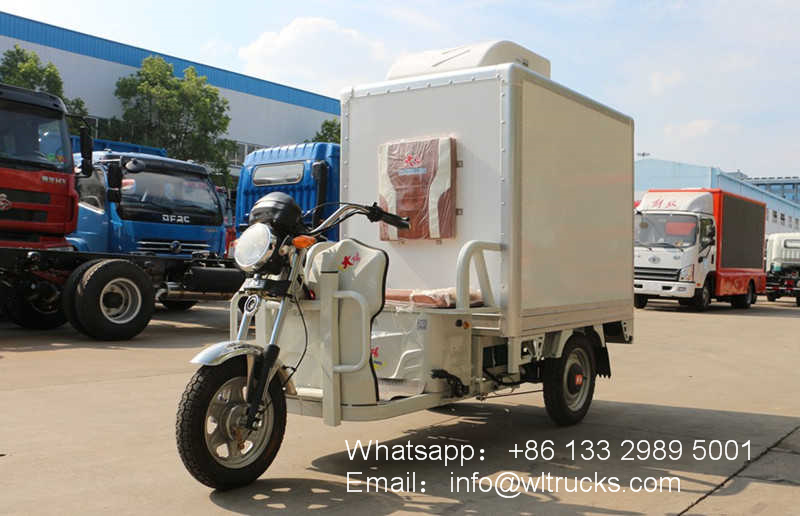

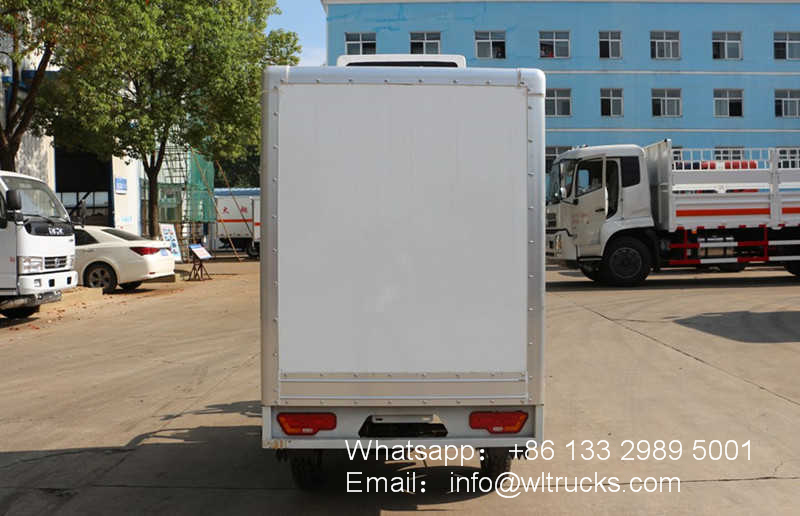

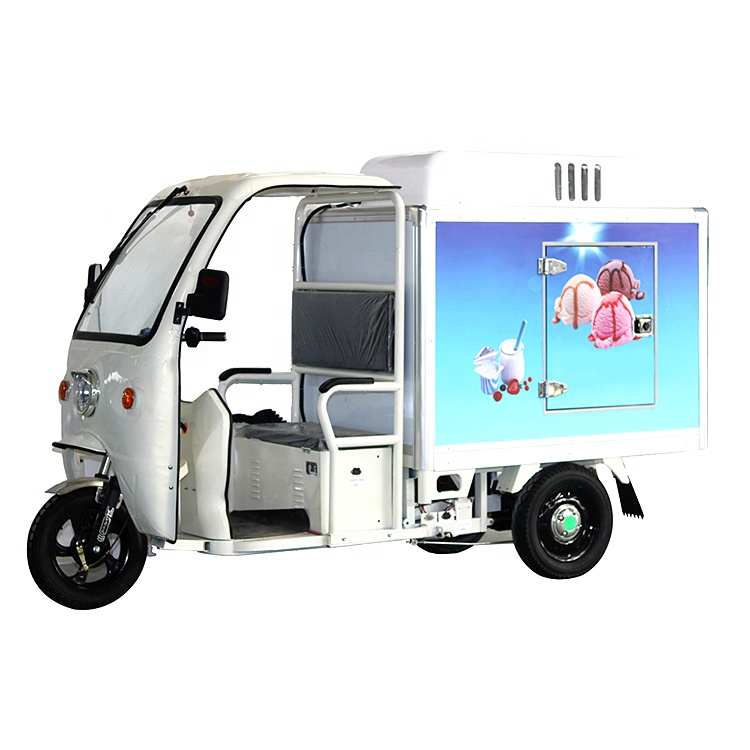

Three wheeler electric refrigerated truck
Three wheel electric refrigerated truck chassis configuration :
Dayang electric three-wheel refrigerated truck, with mass 500KG, 220V charging, two sets of batteries, the cold machine is closed for 80km, the cold machine is open for 40km, the front wheel is 350 tires, the rear wheel is 375 tires, and the car body is made of inner and outer glass steel plates.
The middle is 6cm thick insulation board, the car body size is 1500*1000*1000, the size of the car is 1380×880×1000, the effective volume is about 1.21 cubic meters, the cooling temperature can be selected from -5 degrees or -10 degrees, and the city’s cold chain distribution is preferred.
Three wheeler electric refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Three wheeler electric refrigerated truck specification:
|
Products Technical Specification
|
|
|
Type
|
Refrigerated Truck
|
|
Brand
|
Forland
|
|
Cab
|
Standard cabin
|
|
Model
|
|
|
Vehicle description
|
|
|
Overall dimensions(mm)
|
1580x880x1290
|
|
GVW (kg)
|
2500
|
|
Curb weight (kg)
|
600
|
|
Max speed (km/h)
|
75
|
|
Front / Rear axle (kg)
|
2000/3000
|
|
Type of fuel
|
Electric/desiel
|
|
Tire
|
|
|
Engine
|
|
|
Engine model
|
|
|
Maximum power
|
23hp
|
|
Displacement
|
700ml
|
|
Emission standard
|
Euro3
|
|
Up-parts description
|
|
|
Material of van box
|
Polyurethane foam in the middle Inner and coating is color steel plate
|
|
Thickness of van box(mm)
|
50
|
|
Cooling capacity (w)
|
|
|
Length of van(m3)
|
0.9
|
|
Mini temperature in van
|
-18 degree (suitable for transfer food)
|
Three wheeler electric refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Three wheeler electric refrigerated truck New craft:
Three wheeler electric refrigerated truck Optional configuration:

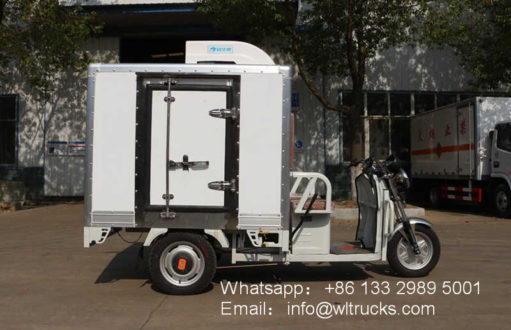

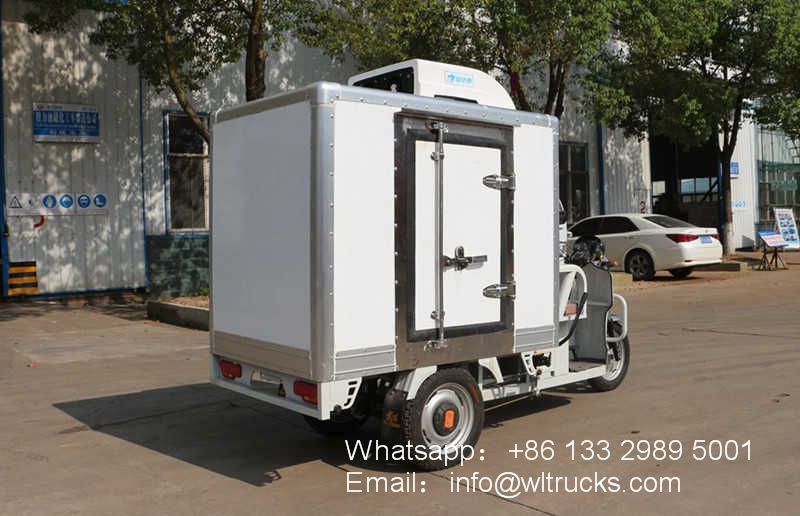

Three wheeler electric refrigerated truck Bodywork details:
Three wheeler electric refrigerated truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
