Sinotruk steyr 35m concrete pumping truck Adopts Sinotruk steyr Cab, wheelbase:4500/5200mm,6 speeds gearbox, vehicle size:10945*2500*3920mm, equipped with Sinotruk 290hp Eruo 3 diesel engine.
products description:
Concrete pump truck is a machine that uses pressure to continuously transport concrete along a pipe. It consists of a pump body and a delivery tube.
The pump body is mounted on the chassis of the car, and then equipped with a telescopic or inflected cloth boom to form a pump truck.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery.
Sinotruk steyr 35m concrete pumping truck Specification:
| 35m concrete pump truck parameters | |||
| Name / Model | EHY5230THB | ||
| Chassis | |||
| Chassis model | ZZ5231N521GE1 | Emission Standards | Eruo 3 |
| engine | SINOTRUK 290 hp | Gearbox | 6 speeds with auxiliary speed change |
| Tire specifications | 1 2 .00R20 | Wheelbase (mm) | 5200 |
| Boom system | |||
| Maximum vertical height of boom (m) | 35 .3 | Boom horizontal cloth radius (m) | 30.4 |
| Cloth depth | 19 | Rotating angle of each arm | 90/180/235/180/180 |
| Distance spanned by front legs ( mm ) | 6900 | Distance spanned by the rear legs ( mm ) | 7660 |
| Outrigger opening method | Front telescopic, rear swing legs | Tail hose length (m) | 3 |
| Concrete pipe diameter | 125 ( inner diameter ) | ||
| Electrical control system | |||
| Control power | 24V | Control module | SYMC |
| Operating Voltage | 24V | Intermediate brand | Matsushita |
| Wireless remote control brand | HBC or Sany Smart | ||
| Hydraulic transmission system | |||
| Type of hydraulic system | Open | System working pressure | 31.5 |
| Main hydraulic oil pump brand | Rexroth | Main oil pump model | VL0190 |
| Displacement of main oil pump ( ml ) | 190 | Suction, oil return filter brand | Liming Hydraulics |
| Boom balance valve brand | Rexroth | Outrigger multi-way valve brand | Taiwan Oil Power |
| Hydraulic lock brand | Rexroth or Edgebis | Cylinder hydraulic seal brand | The United States and country Parker |
| Hydraulic oil tank volume ( L ) | 350 | Hydraulic oil cooling | Air-cooled |
| Main cylinder | Changsha Cooperation | Transfer case brand | German Spor |
| Rotary reducer brand | Trinity dedicated | Hose connector brand | Eaton |
| Cleaning system | |||
| Air pressure or plunger pump | |||
| Size / Quality | |||
| Overall vehicle length ( mm ) | 10945 | Overall width of vehicle ( mm ) | 2500 |
| The total height of the whole vehicle is about ( mm ) | 3920 | The total mass of the whole vehicle is about ( kg ) | 23000 |
| Pumping system | |||
| Concrete distribution valve form | S- tube | Maximum theoretical delivery volume (high pressure / below) | 50/80 |
| Concrete piston brand | Trinity dedicated | Maximum concrete outlet pressure high / low pressure | 12/7 |
| Conveying cylinder inner diameter / stroke | 2 30×1650 | Maximum feeding height ( mm ) | 1380 |
| Hopper volume ( L ) | 600 | Pumpable concrete slump ( mm ) | 180-230 |
| Maximum allowable aggregate size ( mm ) | 40 | Lubrication method | Centralized lubrication |

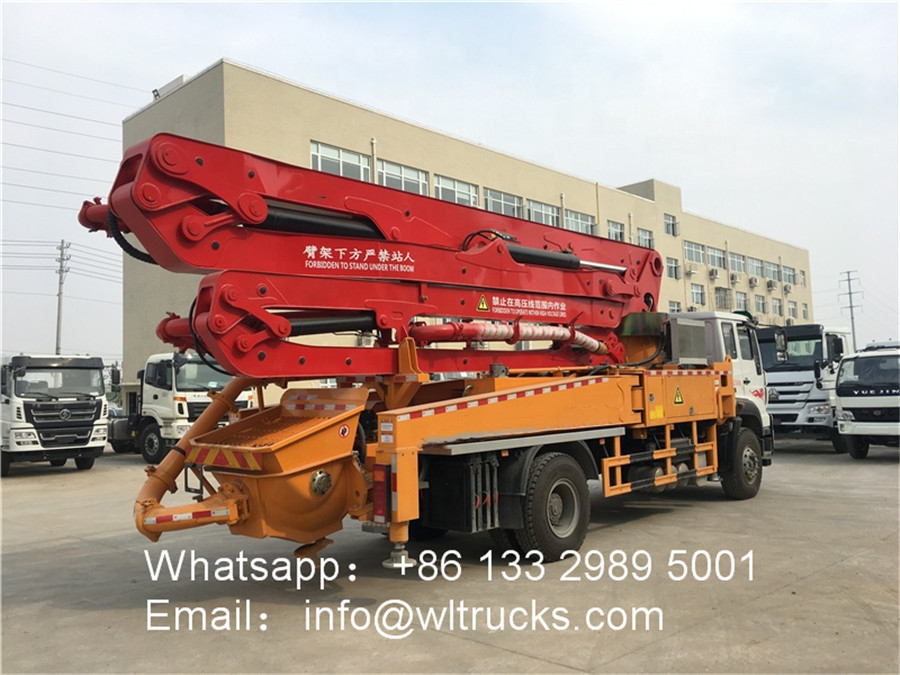

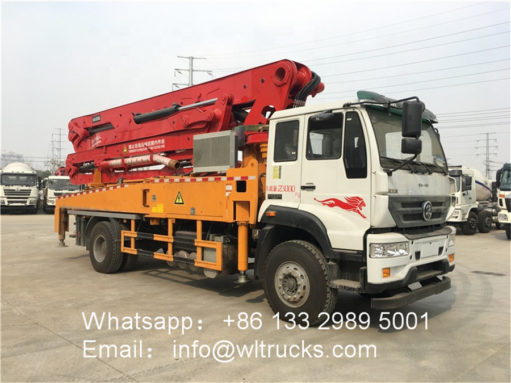

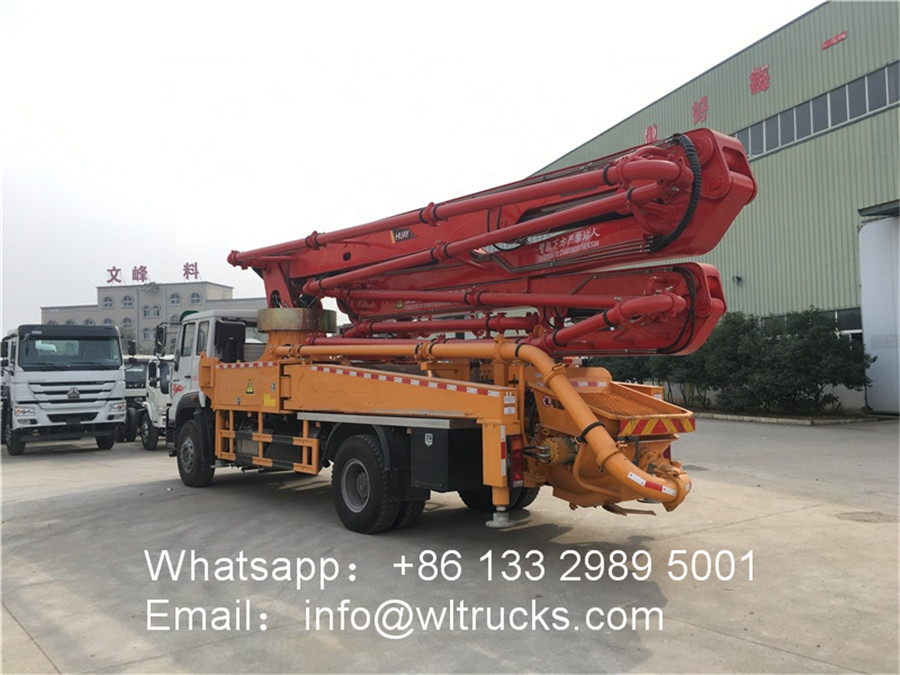

cement pump truck detailed picture:

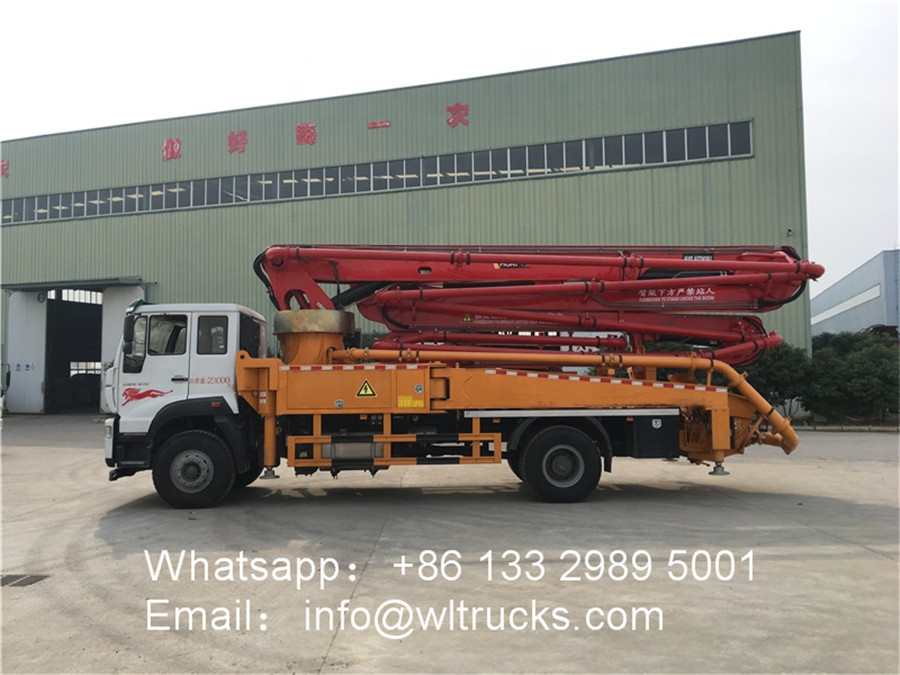

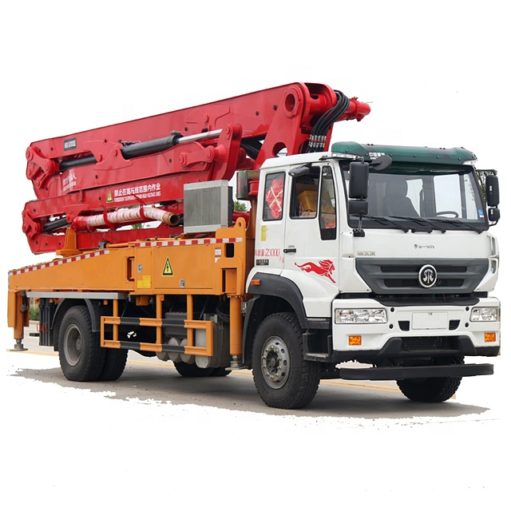

Concrete pumping truck Product Display:
