Sinotruk Howo 8000 liter vacuum fecal suction truck Specification:
Top configuration: tank volume 8000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-9 water ring vacuum pump, optional 8 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
Item |
unit |
parameter |
||
|
Vehicle model |
|
HOWO 4×2 vacuum fecal suction truck |
||
|
Chassis model |
|
ZZ1067F341CD165 |
||
|
Overall dimensions |
mm |
6900×2250×2650 |
||
|
|
Fact cubage |
L |
8000 |
|
|
Mass in working order |
kg |
Appro×6460 |
||
|
Body internal dimensions |
mm |
5200×1750×1250 |
||
|
Wheel base |
3800 |
|||
|
F/R track base |
1605/1545 |
|||
|
Approach/departure angle |
° |
24/11 |
||
|
Exhaust/kw |
ml/kw |
3760/120 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
7.50R16 |
Engine type |
Yunnei 120hp |
|
|
Traction system |
4×2 |
Transmission |
6-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |
1. Carbon steel fecal tank, 4mm thickness. 2. With a view of the fecal window, a self-flow port, cleaning device. 3. With a 6m suction pipe, with a boom seat on the top of tank. 4. With vacuum suction pump, with water and oil separator, anti-overflow valve. |
|||
|
Engine |
Yunei |
|||
|
Production cycle |
30-35 days |
|||
|
Warranty |
12 month, from the date of supply |
|||
|
FOB Shanghai |
USD |
|||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

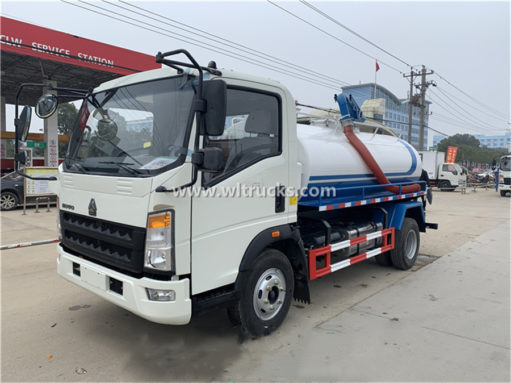

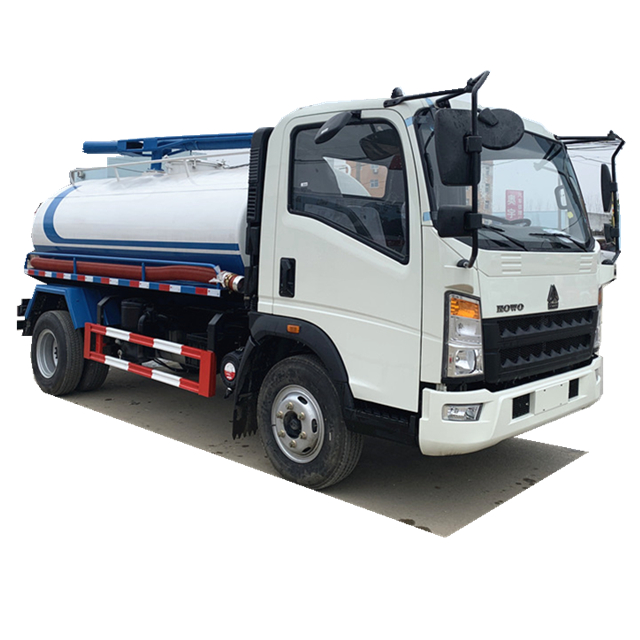

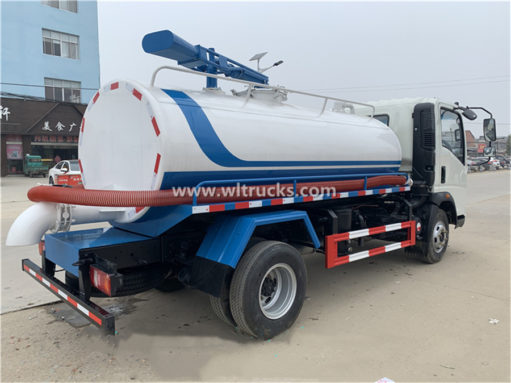

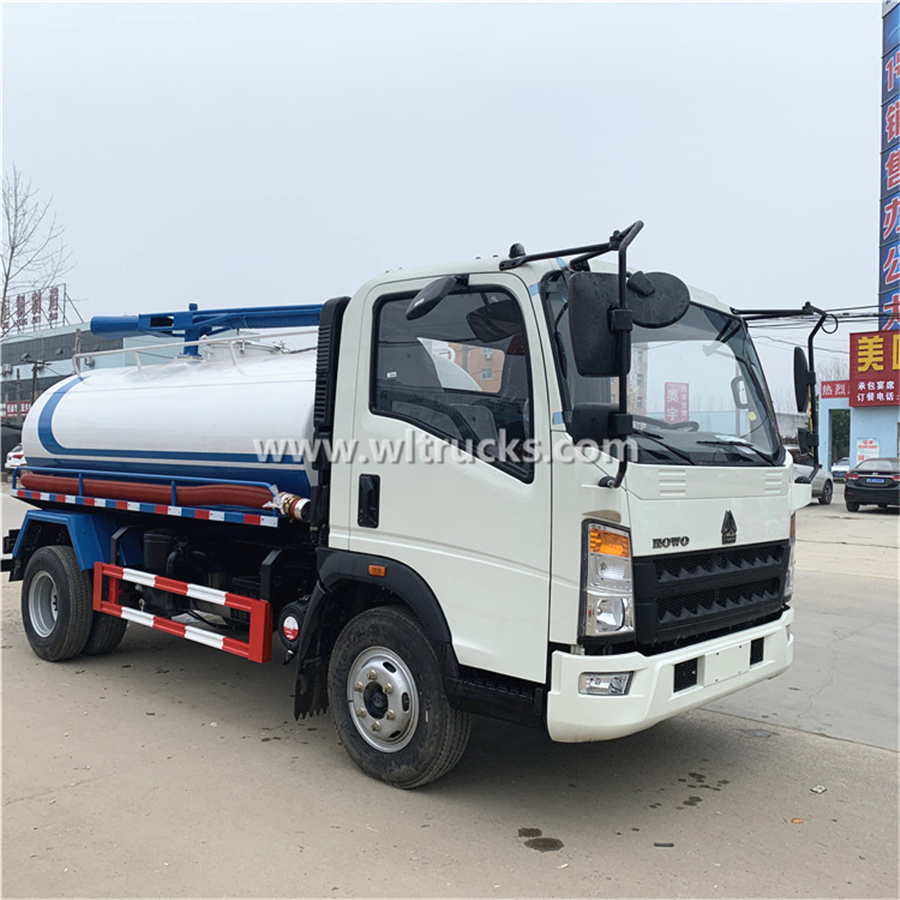

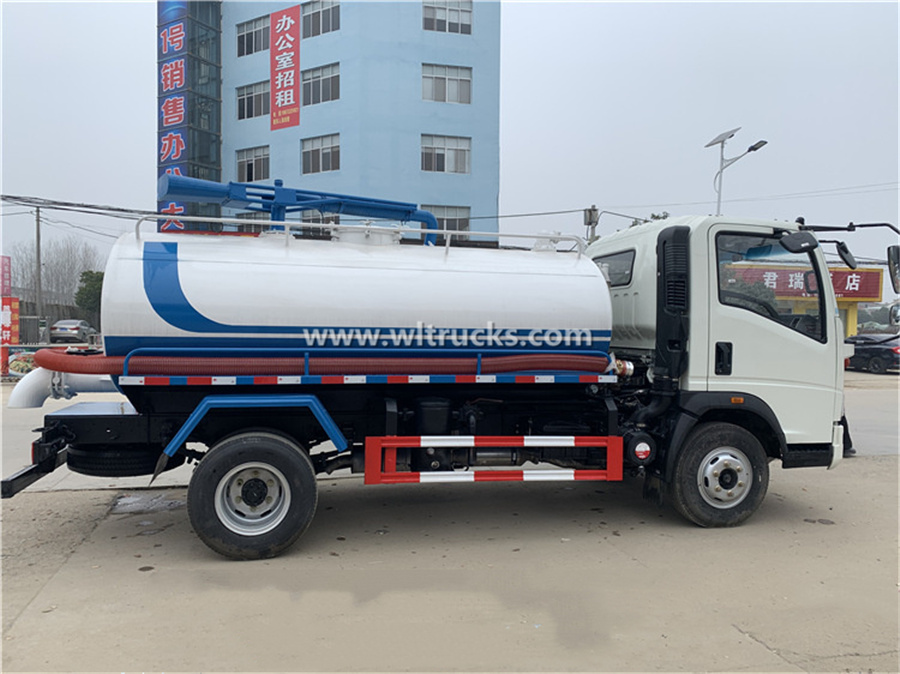

Toilet suction truck Detailed image
