Sinotruk HOWO 5000 liter sewage drainage truck Specification:
Sinotruk HOWO 5000 liter sewage drainage truck tank volume is 5 cubic meters, the tank body adopts the national standard 6mm thick carbon steel plate, equipped with 115 horsepower in the cloud, a five-speed gearbox, and power steering. The tank body is made of carbon steel 6mm plate, equipped with vacuum suction pump.
Sinotruk HOWO 5000 liter sewage drainage truck color of the tank can be customized, with a sight window, a sight pipe, a 6 meter suction pipe, an oil-water separator, an overflow valve, a hand washing device, a hydraulic cylinder with lifting function on both sides of the tank, and a rear cover The arc shape can be opened, and the back cover can directly flow by pressing the flow valve.
|
product name
|
HOWO Left and right drive 5 cubic meter sewage suction truck
|
Chassis model
|
CLW5191GSSD3
|
|
Actual volume ( cubic )
|
5
|
Total mass (kg)
|
4830
|
|
Engine horsepower
|
110
|
Rated load mass (Kg)
|
2030
|
|
Engine name
|
yunnei
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
5900×2200×2150
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
7.00-16, 7.00R16
|
|
Wheelbase (MM)
|
3360
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1503,1485,1519,1595 |
Rear track
|
1494, 1516, 1540
|
|
Performance profile
|
sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments. | ||
|
Dedicated configuration
|
sewage Suction truck body can be: carbon steel, stainless steel. The special part of the suction truck consists of a power take-off, a drive shaft, a special vacuum suction pump, a high-pressure forming manure tank, a water-gas separator, an oil and gas separation, a multi-way reversing valve, a boom, a suction gun, and a pipe network system. It is equipped with a vacuum pressure gauge, a stained window (tube), and a hand washing device .
|
||
Sinotruk HOWO 5000 liter sewage drainage truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Sinotruk HOWO 5000 liter sewage drainage truck Working parameter New craft
Sinotruk HOWO 5000 liter sewage drainage truck Optional configuration

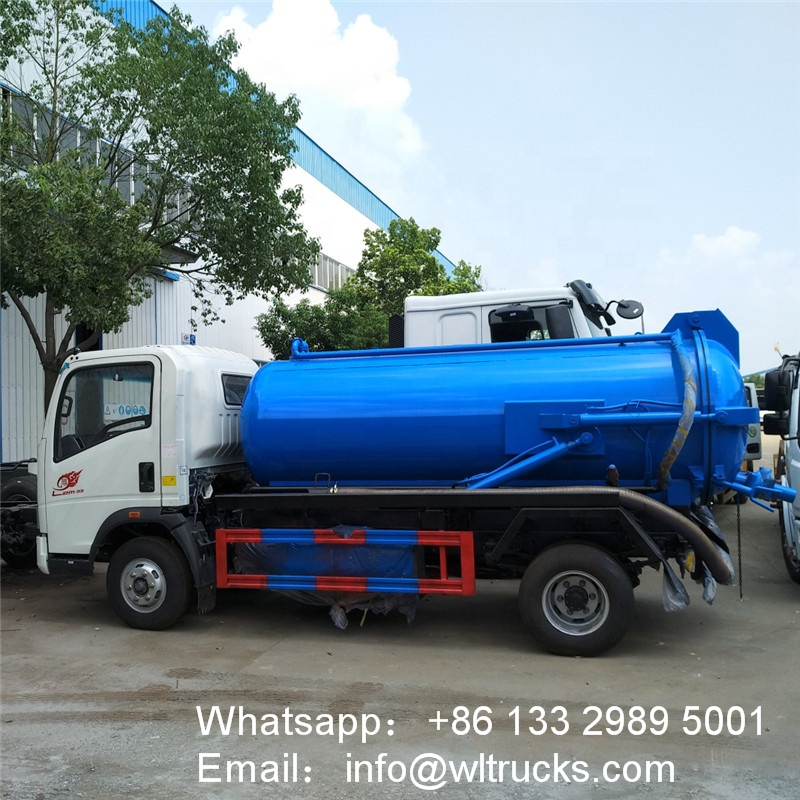

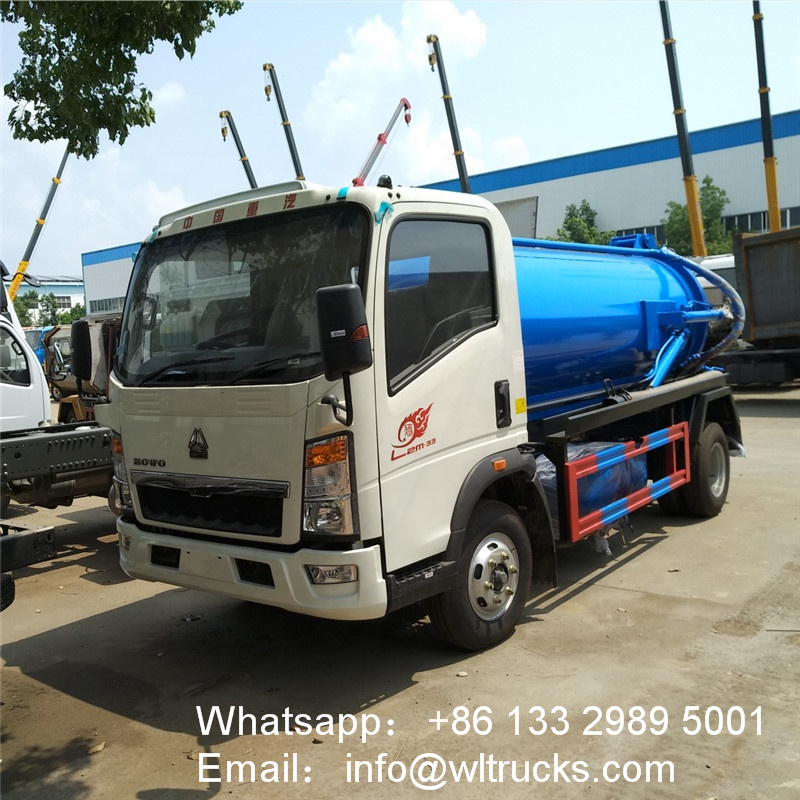

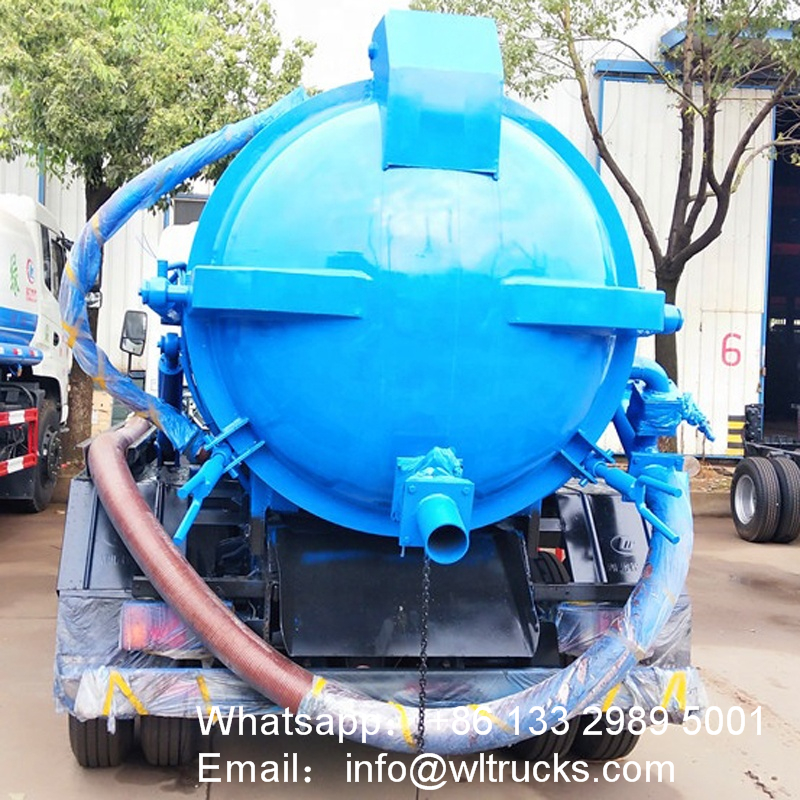

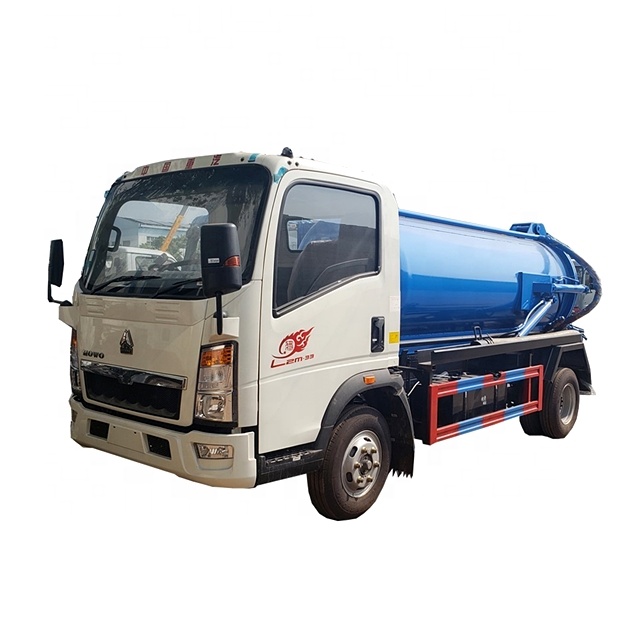

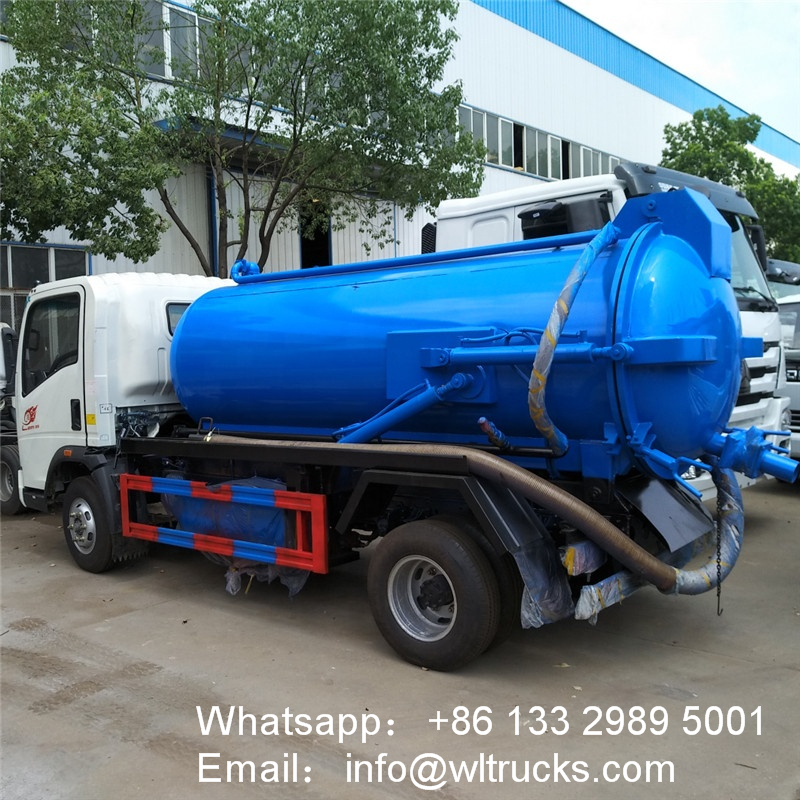

Sinotruk HOWO 5000 liter sewage drainage truck Detailed image
