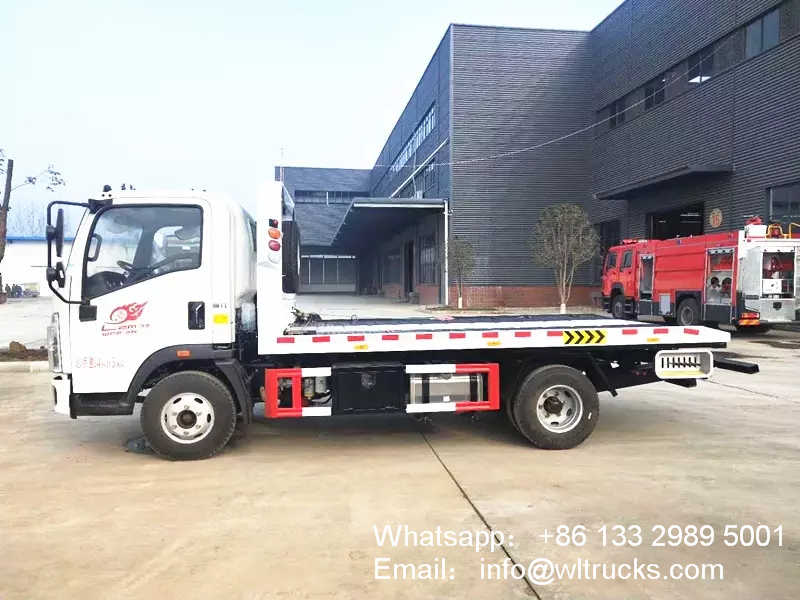

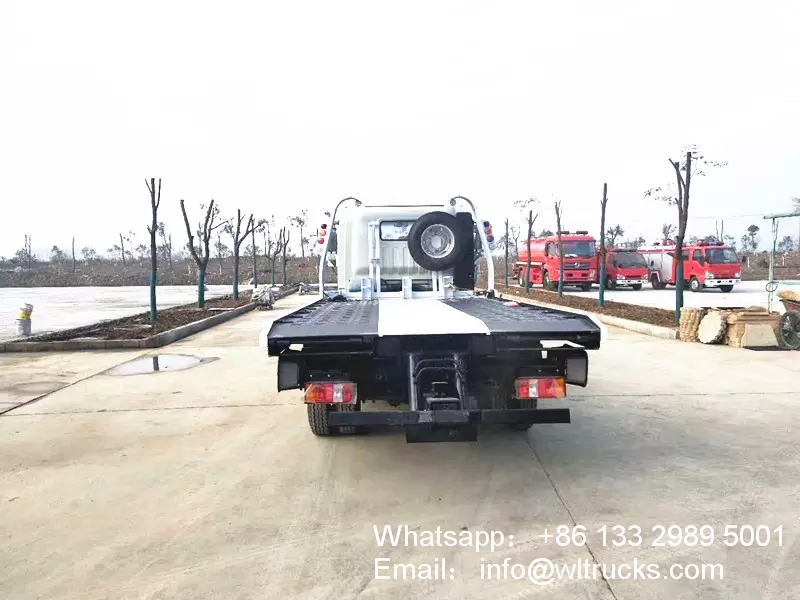

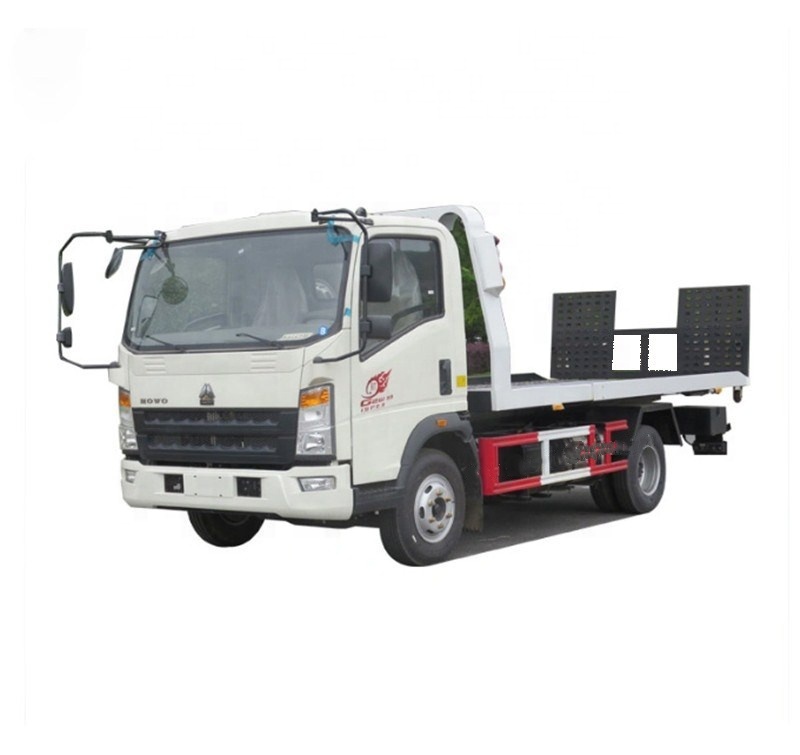

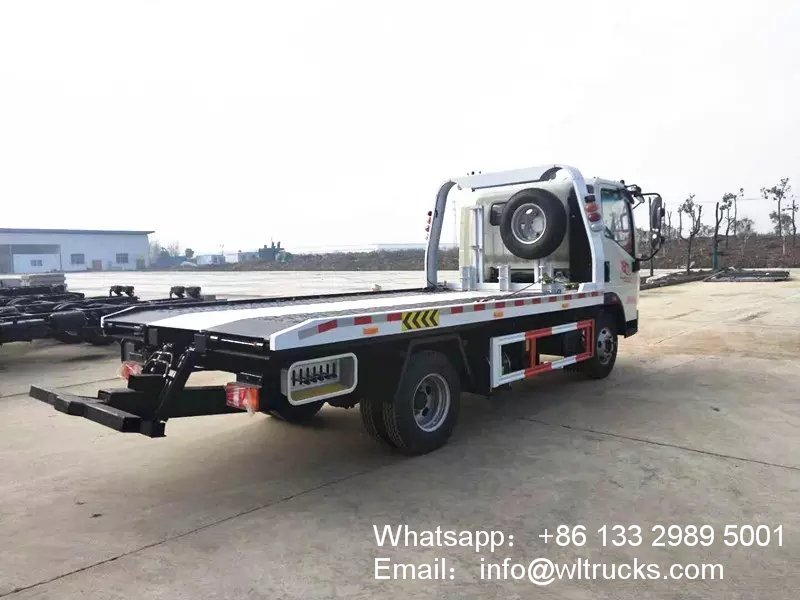

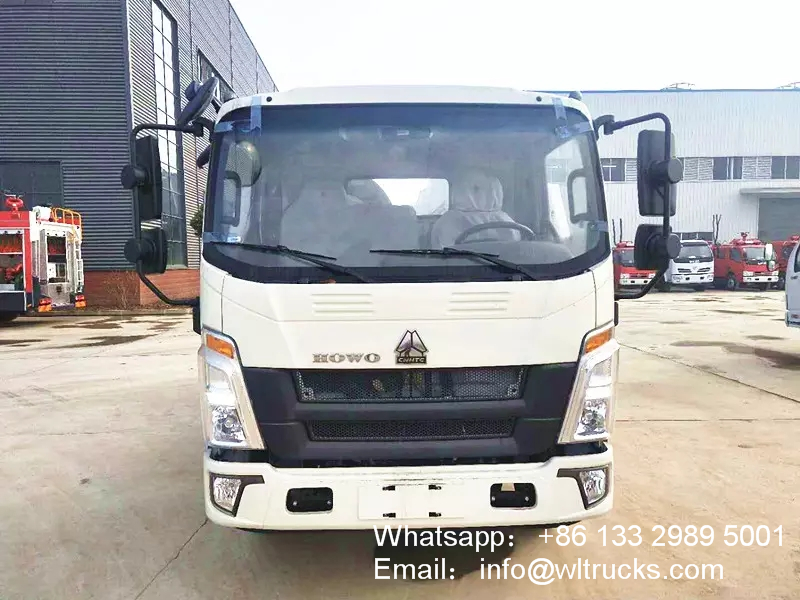

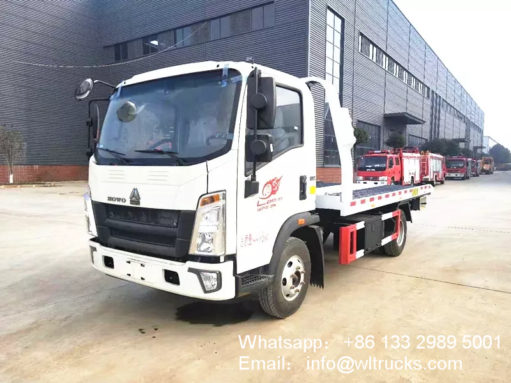

HOWO 5 ton low bed tow truck
HOWO 5 ton low bed tow truck Chassis configuration:
Adopt HOWO’s new cab, 120 horsepower in Ou Sanyun, 6-speed gearbox, 7.00 steel tires.
HOWO 5 ton low bed tow truck Bodywork configuration:
The truck has a length of 5.6 meters and a width of 2.33 meters. The flat can use a new type of disposable stamping plate or 4 thick old pattern plates. The load capacity of the flat plate is 5 tons. 4 tons of tops, 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of 7-character forks, one set of onboard tools, 4 straps, two work lights, with yellow long Row of LED electronic warning lights.
HOWO 5 ton low bed tow truck specification:
Vehicle technical parameters
|
|||
product name
|
HOWO 5 to 8 ton wheel lift wrecker and platform tow truck
|
Dimensions
|
7.39×2.35×2.4 meters
|
Total mass
|
8.28 meters
|
Curb quality
|
5.33 tons
|
Tablet size
|
5.6×2.33 meters
|
Plate thickness
|
4 thick
|
Hoisting specification
|
4 tons
|
Tops
|
4 tons
|
Chassis technical parameters
|
|||
Chassis name
|
HOWO
|
Chassis model
|
ZZ1089VEJEA-F2
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
Wheelbase
|
3.815 meters
|
Tire specifications
|
7.50R16
|
Gearbox
|
5 files
|
Rear axle
|
6 tons
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
ISF3.8s5154
|
Beiqi Futian
|
3760
|
156
|
Top basic configuration
|
|||
The standard configuration
|
4 tons of tops, with 4 tons of winches, 25 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronic engineering lights, A set of car tools.
|
||
Optional configuration
|
It can be installed with imported parts, tow forks, towed forks, hand washing boxes, LED long row strobe lights, all falling floors.
|
HOWO 5 ton low bed tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
