products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

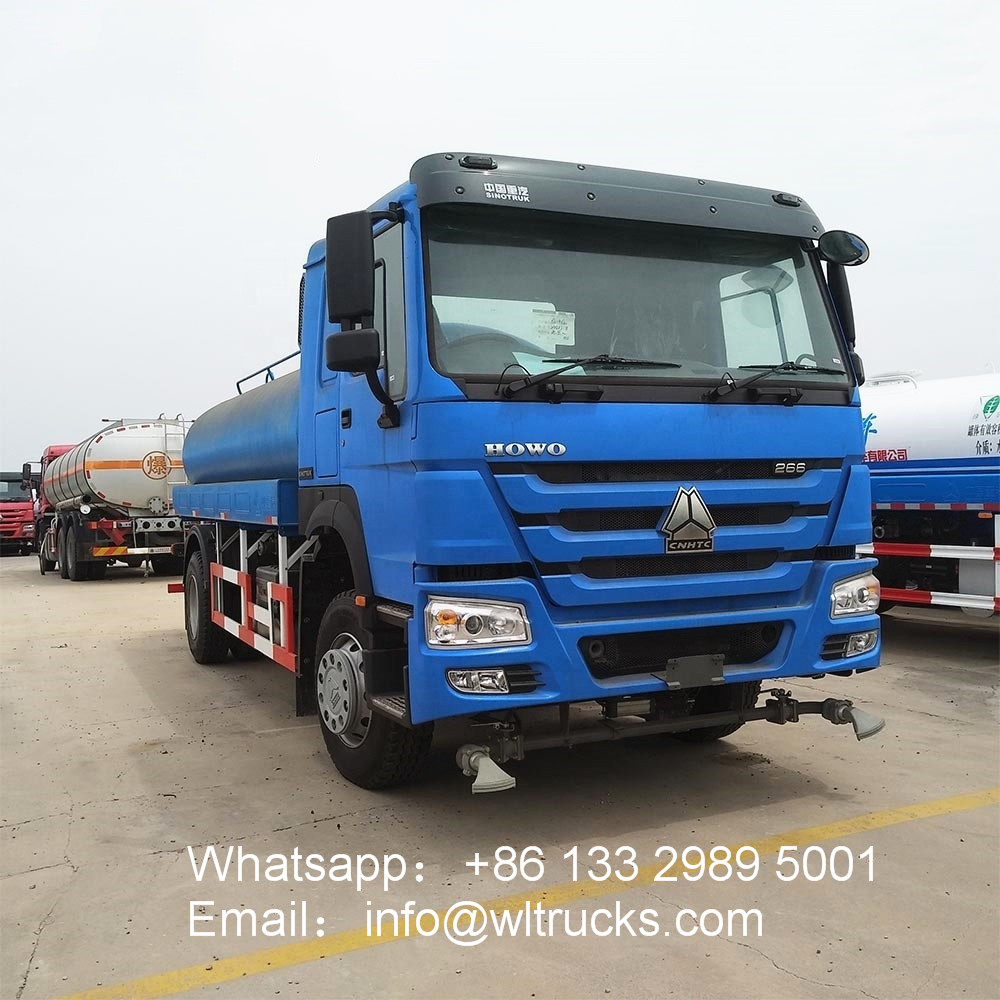

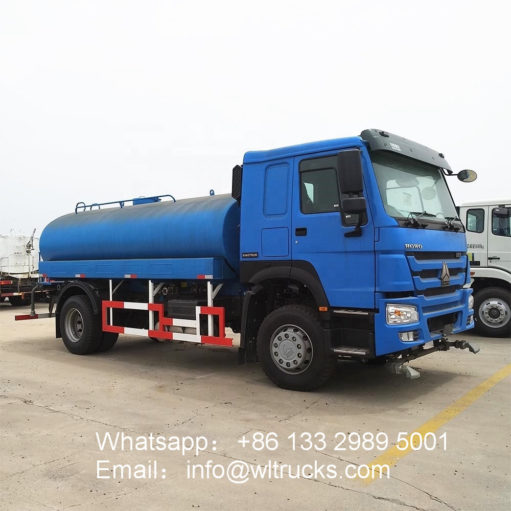

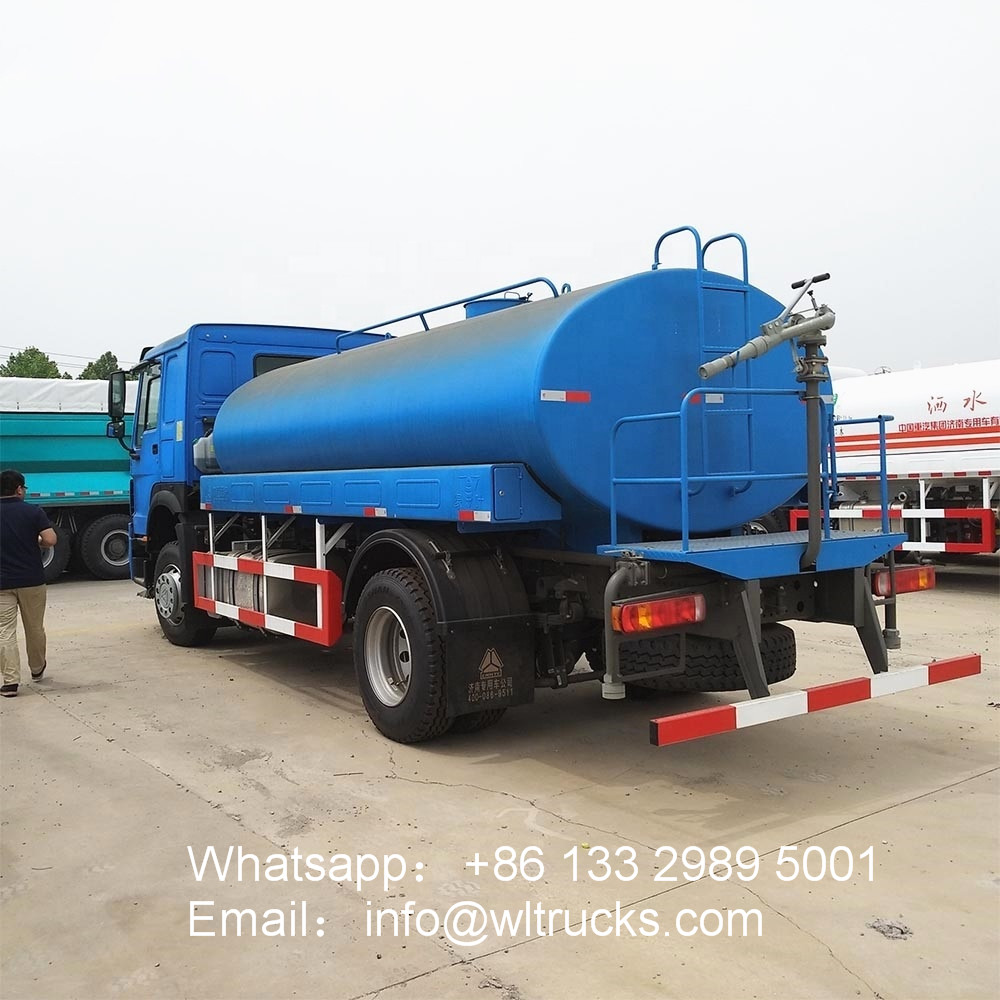

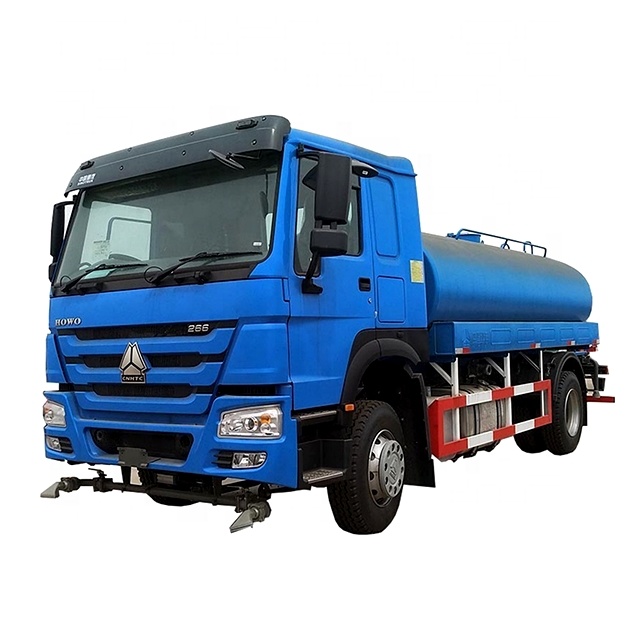

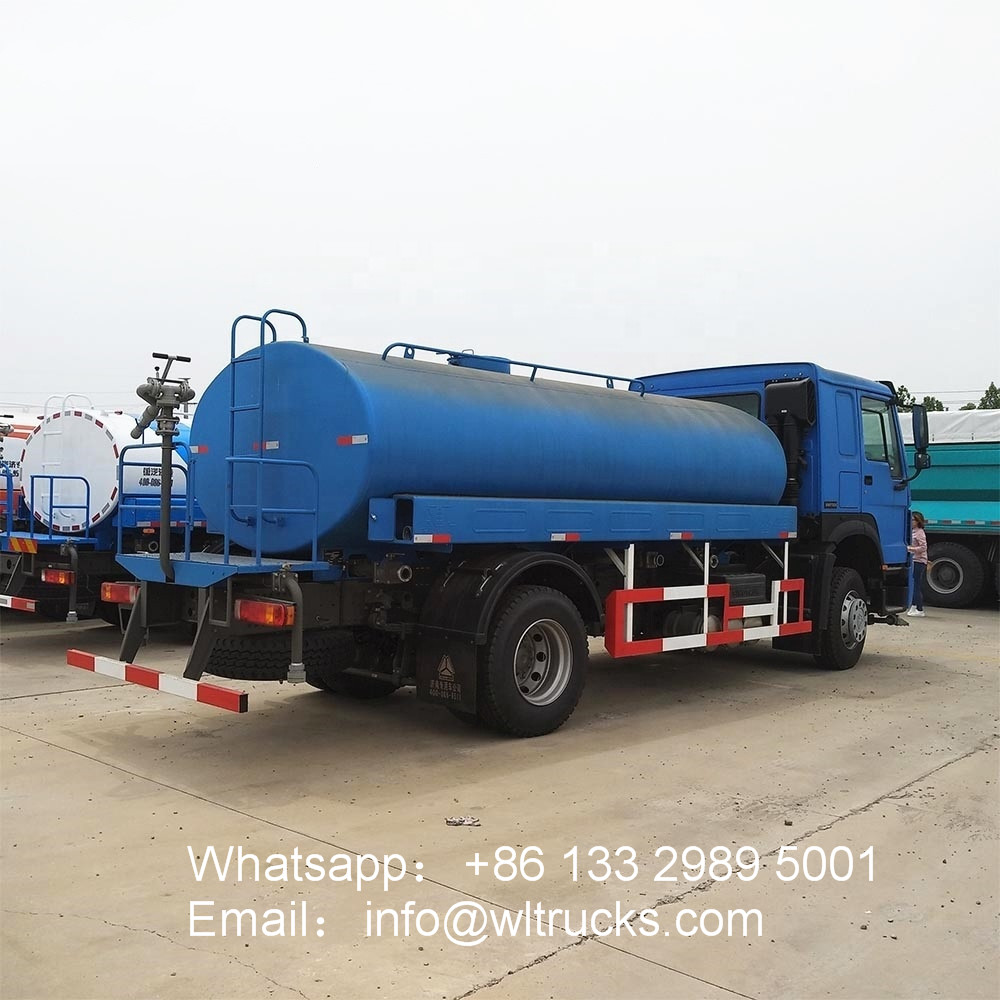

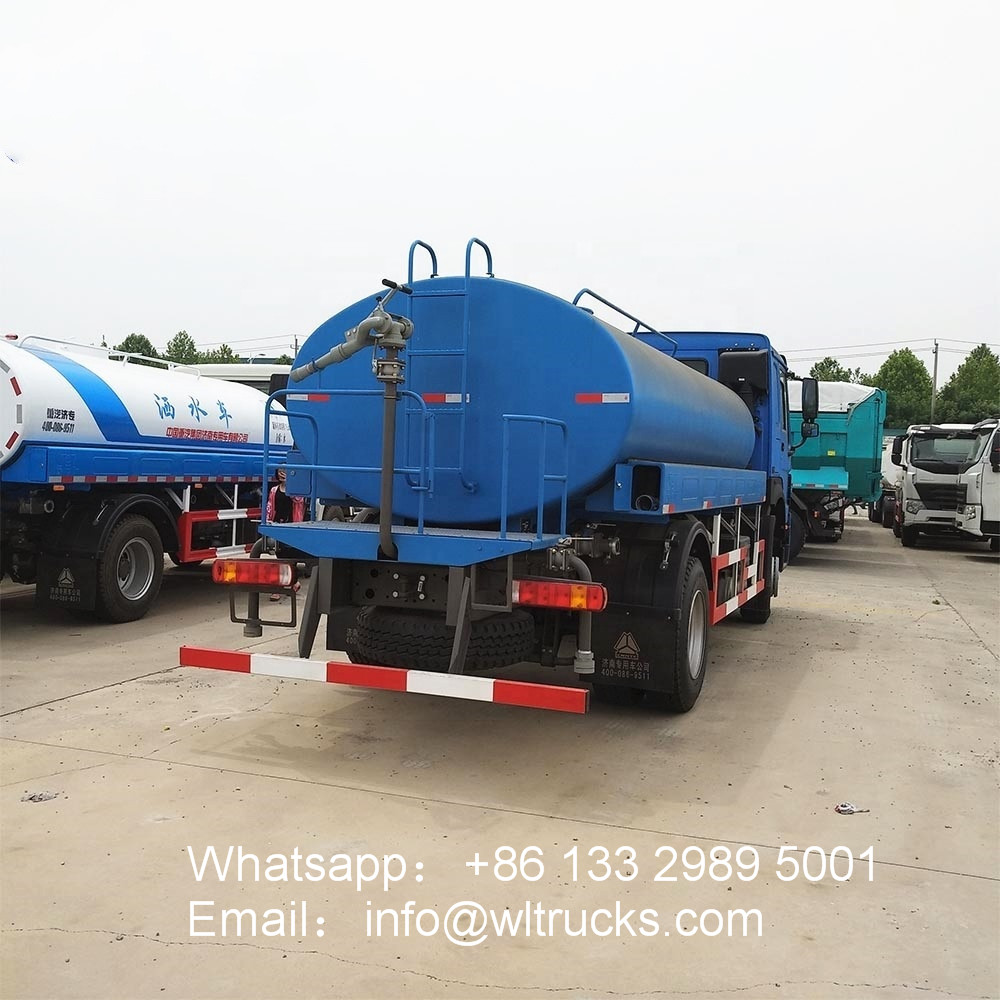

Sinotruk howo 12m3 to 15m3 Water Sprinkler Truck Specification:
|
[url=]Items[/url]
|
Descriptions
|
Specifications and Types
|
|
General
|
Truck Name
|
Water tank truck
|
|
Drive Type
|
6*4
|
|
|
Gross Weight(kg)
|
25000
|
|
|
Curb Weight (kg)
|
9005
|
|
|
Overall Dimensions (mm)
|
9950x2490x3350
|
|
|
Engine
|
Engine Brand
|
SINOTRUK
|
|
Fuel Type
|
Diesel
|
|
|
Power
|
371HP
|
|
|
Emission Standard
|
Euro II
|
|
|
Displacement(ml)
|
9726
|
|
|
Engine Type
|
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
|
|
|
Chassis
|
Chassis Brand
|
HOWO
|
|
Cab
|
Flat roof, one row, tilted cab
|
|
|
Tire No.
|
10+1
|
|
|
Tire Specification
|
12.00R20 Steel tire
|
|
|
Wheelbase (mm)
|
4300+1400
|
|
|
Axle No.
|
3
|
|
|
Steering Wheel
|
Left hand drive with power-assisted
|
|
|
Gear Box
|
10 speed forward with 2 reverse, manual
|
|
|
Brake
|
Air brake
|
|
|
Tank
|
Tank Volume(L)
|
16000
|
|
Tank Material
|
Carbon steel, 6mm
|
|
|
Tank Shape
|
Round
|
|
|
Pipeline, valves & Pump
|
Carbon Steel
|
|
|
Other
|
Equipped with top access ladder, top handrail, hose carrier, water hose, toolbox, water sprayer, water cannon
|
|
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
