Sinotruk howo 10 ton to 15ton refrigerator trucks

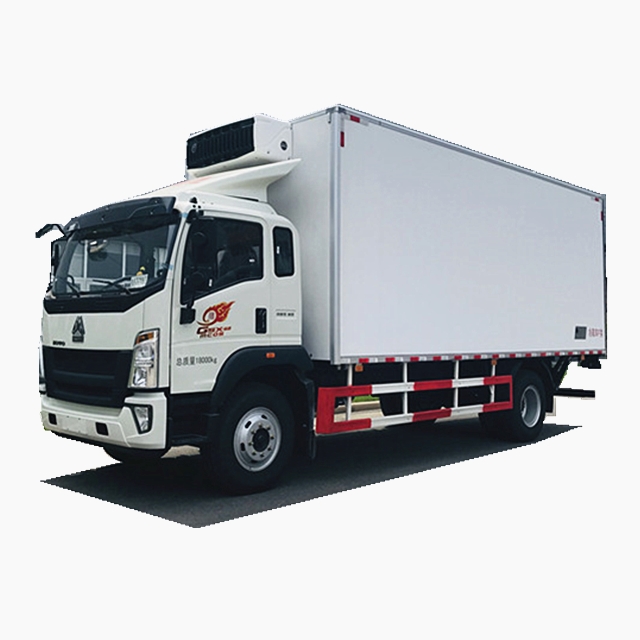

Sinotruk Howo 6.8m refrigerated truck adopts Howo 2250 row and a half cab, 10-speed gearbox, 295/80R22.5 steel wire tires, the whole car size is 8995×2600×3980 (mm), the car body size is 6640×2440 ×2420 (mm), the box body uses inner and outer glass fiber reinforced plastics, the middle imported polyurethane foam is insulation material, the thickness is 8 cm, and various imported -15 degrees–20 degrees refrigerated truck units can be selected.
Sinotruk howo 10 ton to 15ton refrigerator trucks products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Sinotruk howo 10 ton to 15ton refrigerator trucks specification:
| product name | Sinotruk Howo 6m 8 refrigerated truck | Product number | ZZ5187XLCG521DE1 |
| Total mass (Kg) | 18000 | Tank volume (m3) | 40 |
| Rated load mass (Kg) | 9990,9925 | Dimensions (mm) | 8995 × 2600 × 3980 |
| Curb weight (Kg) | 7880 | Cargo compartment size (mm) | 6640 × 2440 × 2420, 2570 |
| Approach angle /departure angle (°) | 19/10 | Front /rear suspension (mm) | 1330/2465 |
| Axle load (Kg) | 6500/11500 | Maximum speed (Km/h) | 95,89 |
| 【Chassis technical parameters】 | |||
| Chassis model | ZZ1187G521DE1 | Chassis name | Truck chassis |
| Brand name | HOWO | manufacturer | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 5200 | ||
| Tire specifications | 10.00R20,295/80R22.5 | ||
| Number of leaf springs | 3/5,3/9+8,11/9+8 | Front track (mm) | 1940, 1980 |
| Fuel type | Diesel | Rear track (mm) | 1800,1860 |
| Emission standard | Eruo 3 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) |
| MC05.18-50
MC05.21-50 |
Sinotruk | 4580
4580 |
132
151 |
Sinotruk howo 10 ton to 15ton refrigerator trucks Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Sinotruk howo 10 ton to 15ton refrigerator trucks New craft:
Sinotruk howo 10 ton to 15ton refrigerator trucks Optional configuration:
Sinotruk howo 10 ton to 15ton refrigerator trucks Bodywork details:
Sinotruk howo 10 ton to 15ton refrigerator trucks Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
