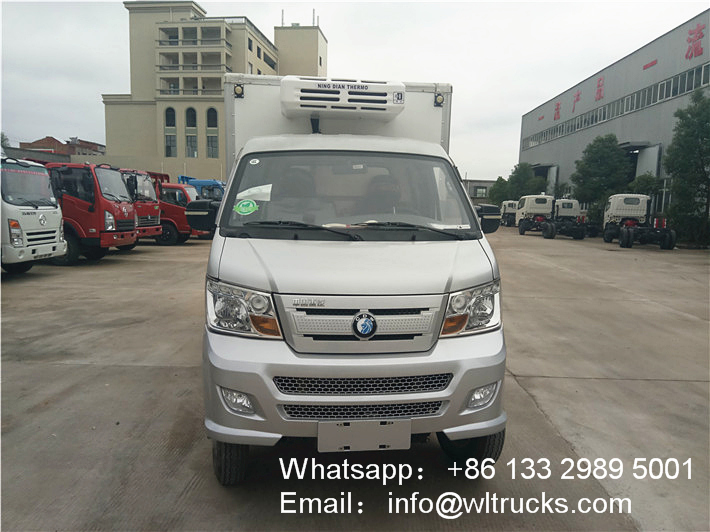

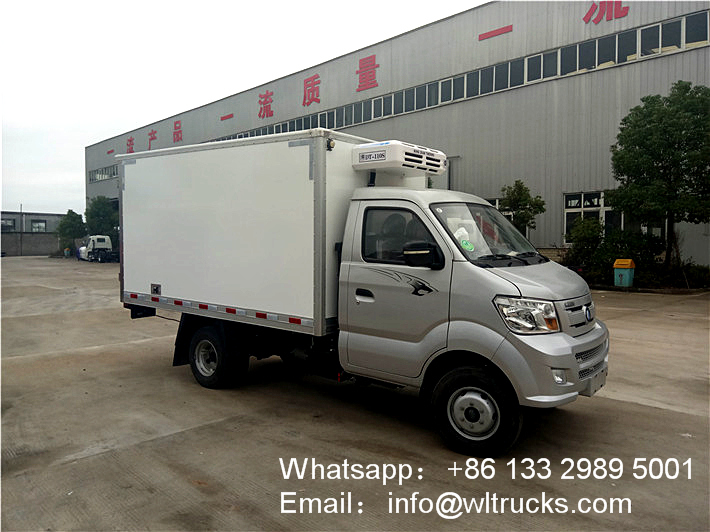

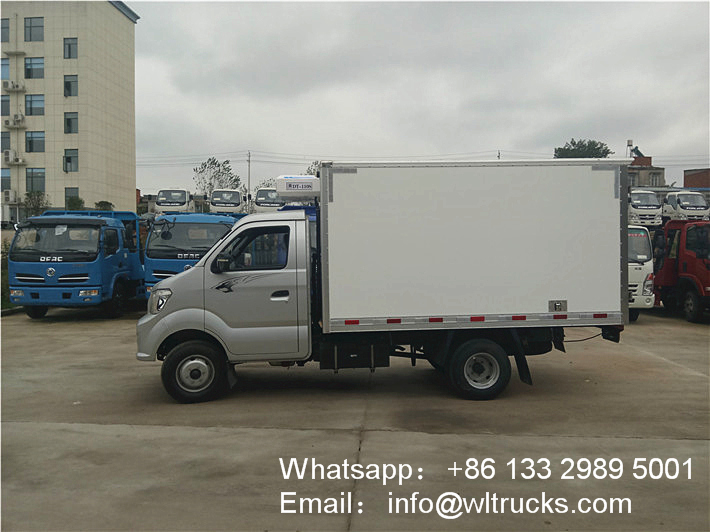

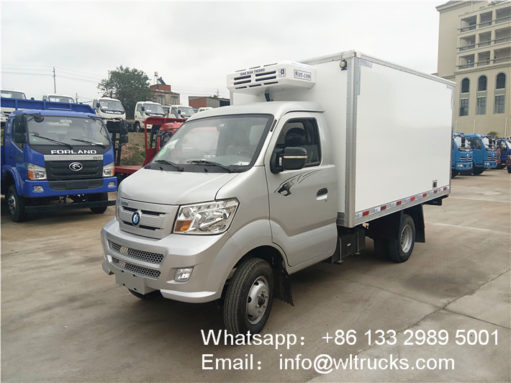

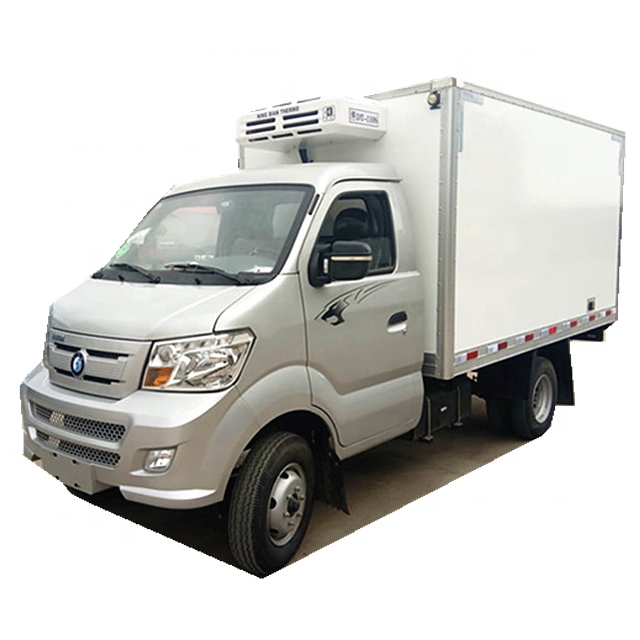

Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck
Adopt Sinotruk Ace 1650 single-row cab, oil brake, electronic power assist, fuel type: CNG natural gas/gasoline. Standard configuration: glass fiber reinforced plastic inside and outside of the car, 5cm high-density polyurethane insulation; bottom plate is anti-skid aluminum plate, rear door lock is stainless steel, cold unit: -5 degrees (freshness) or -15 degrees (frozen)
Optional: Cabin floor optional: patterned aluminum plate, stainless steel, fiberglass; meat hook, guide rail, chiller brand, ventilation slot, temperature monitor, etc.
Optional: Cabin floor optional: patterned aluminum plate, stainless steel, fiberglass; meat hook, guide rail, chiller brand, ventilation slot, temperature monitor, etc.
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck specification:
|
[The main technical parameters]
|
|||
|
product name
|
Sinotruk ace dual fuel refrigerated truck
|
Product number
|
CDW5030XLCN2M5D
|
|
Total mass
|
3495 (Kg)
|
Rated contained mass
|
930 (Kg)
|
|
Curb quality
|
2435 (Kg)
|
Dimensions
|
5930x1950x2820(mm)
|
|
Cabin ride
|
2 people
|
Cargo size
|
3530X1790X1780 (mm)
|
|
Wheelbase (mm)
|
3360, 3500
|
Maximum speed
|
100 (Km/h)
|
|
Configuration
|
Mianyang 112 horsepower / natural gas 100 horsepower dual fuel engine, 5-speed gearbox, 3 tons rear axle, 185R14LT vacuum tire single tire, electronic direction assistance
|
||
|
[Chassis technical parameters]
|
|||
|
Chassis model
|
CDW1030N2M5D
|
Fuel type
|
Gasoline/CNG dual fuel
|
|
Tire specifications
|
6.00-14LT, 185R14LT
|
Number of tires
|
6
|
|
emission
|
National Five Standard
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (Kw)
|
|
V22
|
Mianyang Xinchen Power Machinery Co., Ltd.
|
2237
|
82/72
|
|
[Dedicated function description]
|
|||
|
Car body: inside and outside FRP, 8cm high-density polyurethane insulation, the bottom plate is a non-slip pattern aluminum plate, and the rear door lock is stainless steel. Refrigeration unit: -5 degrees (preservation), -15 degrees (freezing).
|
|||
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck New craft:
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck Optional configuration:

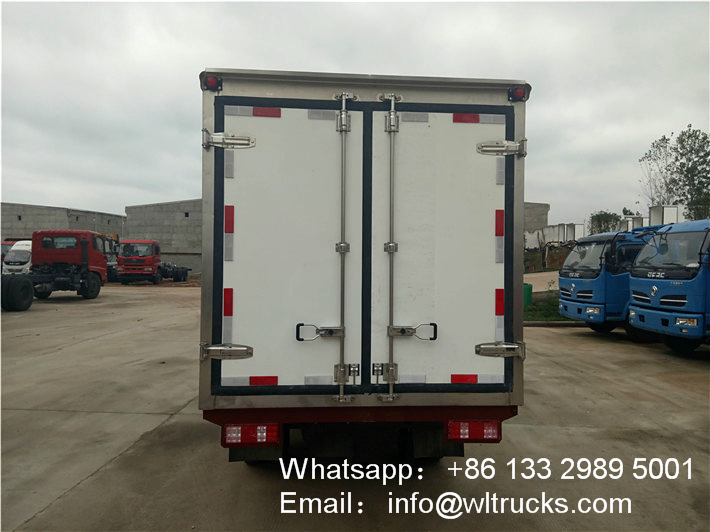

Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck Bodywork details:
Sinotruk wangpai Oil and gas engine 2 ton freezer refrigerated truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
