Shacman 5cbm to 8cbm vacuum sewage suction truck Specification:
Shacman 5cbm to 8cbm vacuum sewage suction truck Chassis configuration: Shaanxi Automobile X9 series wide body single-row luxury cab, Weichai 130 horsepower engine, six-speed gearbox, 3800 wheelbase, 1068 rear axle, 8.25 steel tires, 192 double-layer beam, air brake, with ABS , Power steering, electric doors and windows, driving recorder.
Shacman 5cbm to 8cbm vacuum sewage suction truck Top configuration: 8 cubic meters of tank body, equipped with Yifeng vacuum pump, hydraulic lift of tank body, full opening of tail cover hydraulic pressure, 1 self-flow valve at the rear, 1 sewage suction pipe, full suction for 5 minutes, drain for 3 minutes.
Optional configuration: optional water ring vacuum pump.
Shacman 5cbm to 8cbm vacuum sewage suction truck Product parameters
|
product name
|
JAC 8000 liters vacuum sewage truck
|
Chassis model
|
CLW5192GSSD3
|
|
Actual volume ( cubic )
|
5
|
Total mass (kg)
|
9830
|
|
Engine horsepower
|
117
|
Rated load mass (Kg)
|
6030
|
|
Engine name
|
JAC
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
6900×2200×2650
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
7.50R16
|
|
Wheelbase (MM)
|
3800
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1503,1485,1519,1595 |
Rear track
|
1494, 1516, 1540
|
|
Performance profile
|
sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments. | ||
|
Dedicated configuration
|
sewage Suction truck body can be: carbon steel, stainless steel. The special part of the suction truck consists of a power take-off, a drive shaft, a special vacuum suction pump, a high-pressure forming manure tank, a water-gas separator, an oil and gas separation, a multi-way reversing valve, a boom, a suction gun, and a pipe network system. It is equipped with a vacuum pressure gauge, a stained window (tube), and a hand washing device .
|
||
Shacman 5cbm to 8cbm vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Shacman 5cbm to 8cbm vacuum sewage suction truck Working parameter New craft
Shacman 5cbm to 8cbm vacuum sewage suction truck Optional configuration

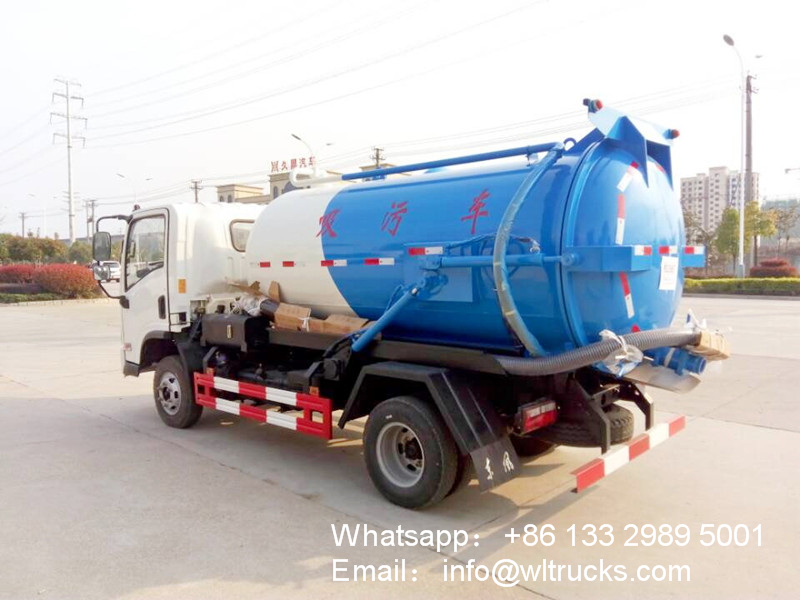

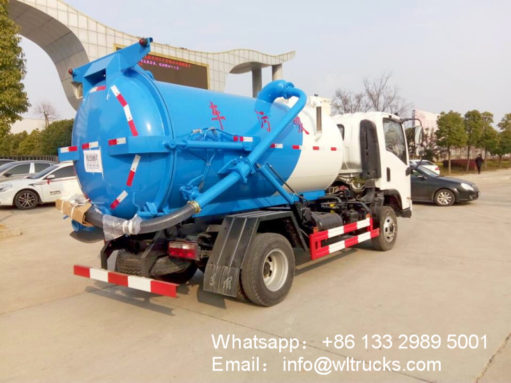

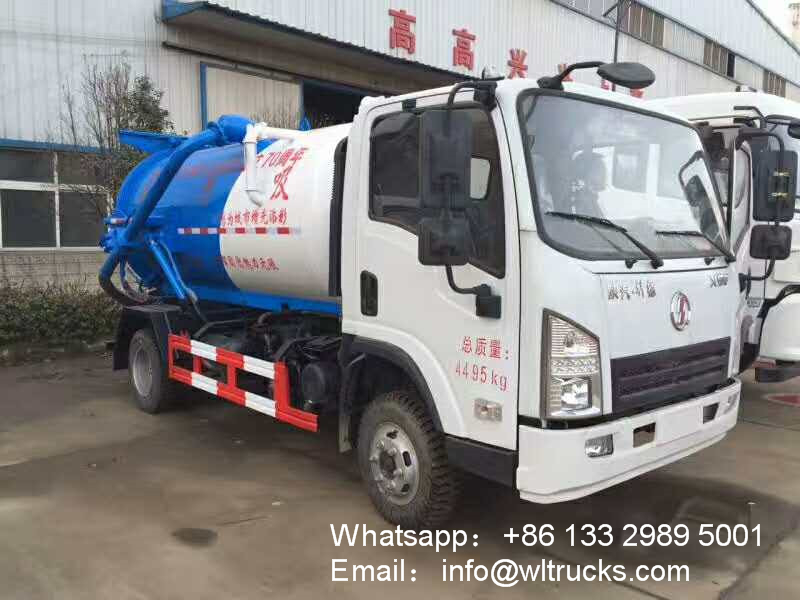

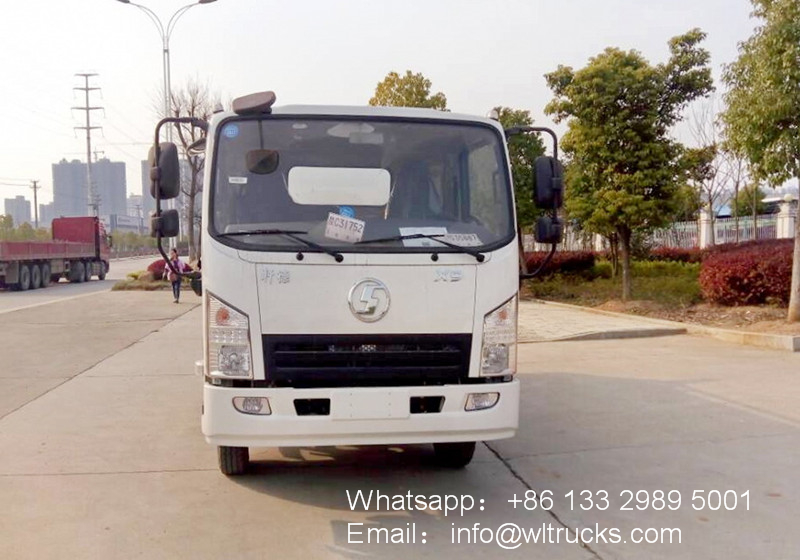

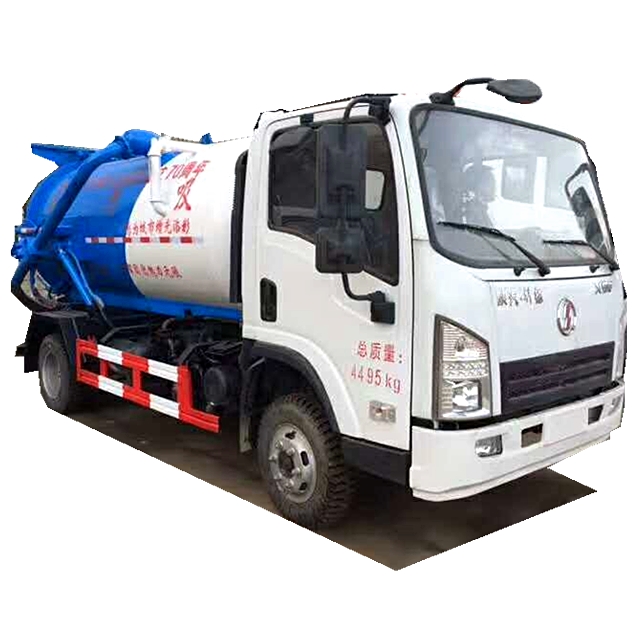

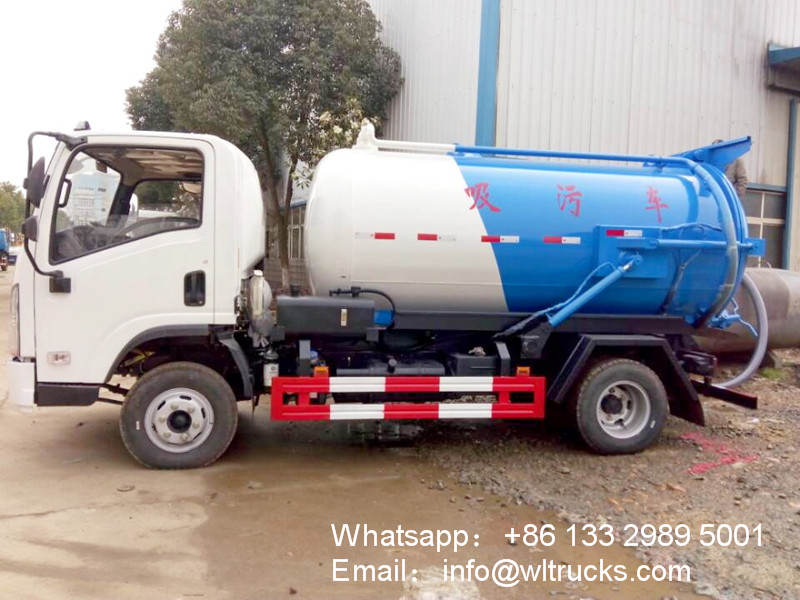

Shacman 5cbm to 8cbm vacuum sewage suction truck Detailed image
