products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

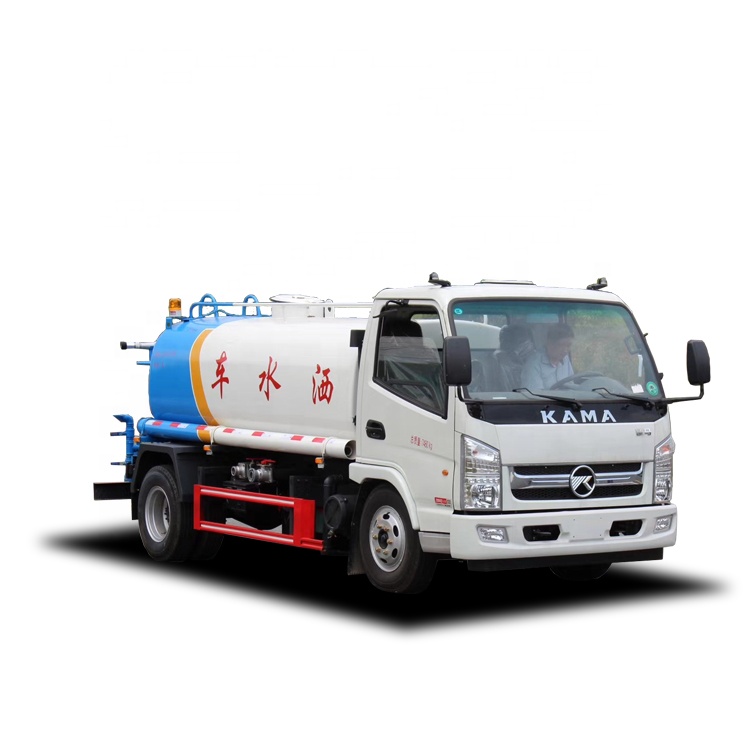

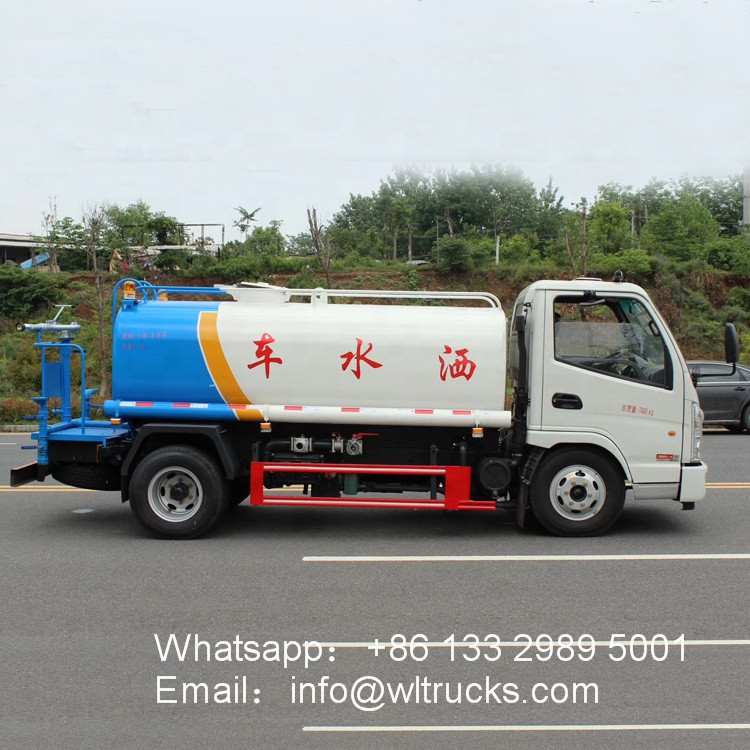

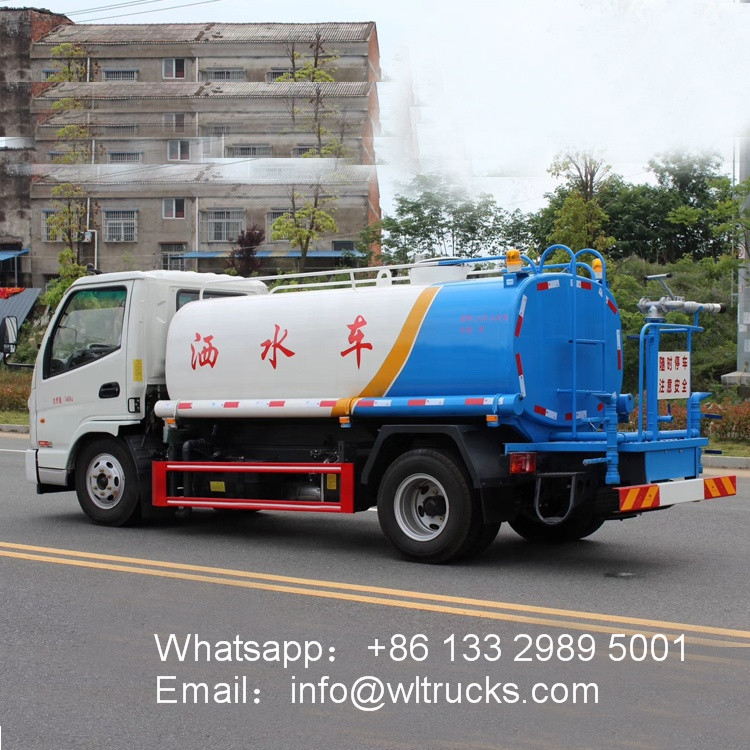

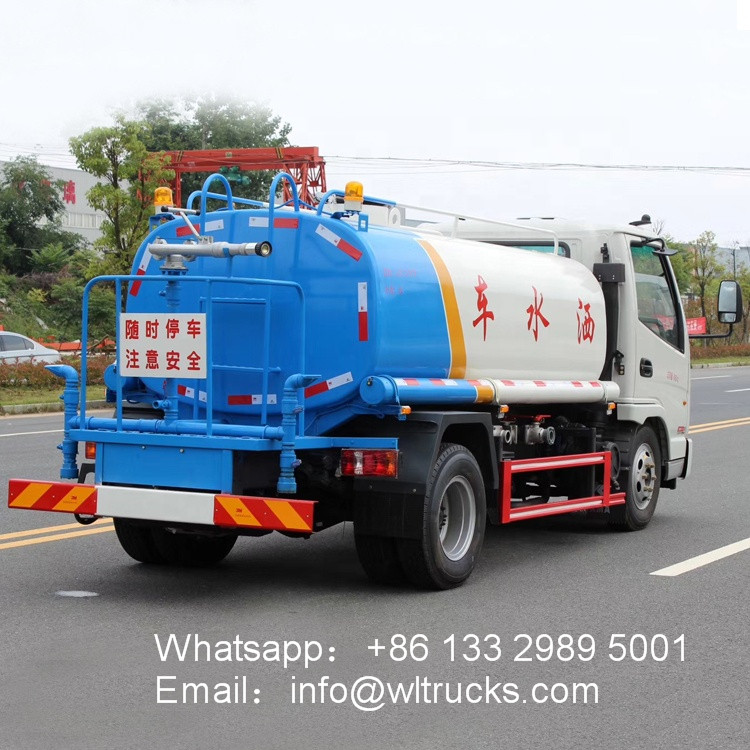

KAMA 5 ton water car Specification:
| Vehicle model | CLW5162GPSD5 | Chassis Model | KMC1086A33D5 |
| Outer size | 6370*2350*2750 | Wheelbase | 3300 |
| Total mass (kg) | 8280 | Rated quality (kg) | 4415 |
| curb weight (kg) | 3735 | axle numbe | 2 |
| Engine type | YN33CRE1 | engine power | 115HP |
| Tire size | 7.00R16 | Number of tires | 6+1 |
| tank volume | 5000L | thickness of the steel plate | 5mm |
| Scoop up way | Lateral force-taking of gearbox | absorption and drainage | water of Automatic absorption and drainage |
| Type of sprinkler pump | 60/90 | Water depth | 7meters |
| pump flow | 60m³/h | Pump head | 90meters |
| Sprinkler width | >=15meters | Sprinkler range | >=30meters |

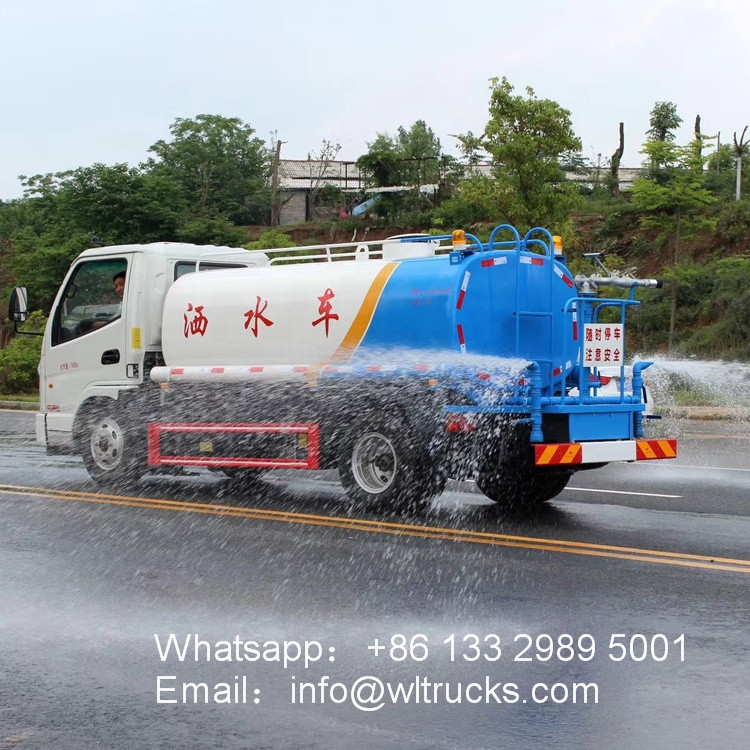

| Sprinkler way | The back of the sprinkler:Mainly used for dust removal in places such as highways.
The side of the sprinkler:Mainly used for roadside greenbelt watering. Squirt guns: It can rotate 360 degrees, and can be adjusted into column shape, or into heavy rain, moderate rain, light rain, drizzle, column shape. Maximum range of 25-30 m |
||
| water way | 1,Water in the pond (or other water source) is sucked into the tank through the on-board high-power sprinkling pump.
2,Direct water from the irrigation port into the tank. 3,Connect the fire hydrant and put water into the tank. |
||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
