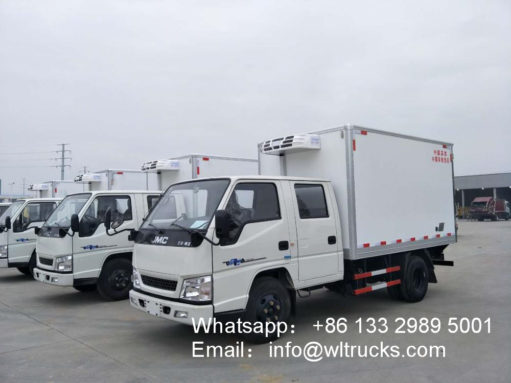

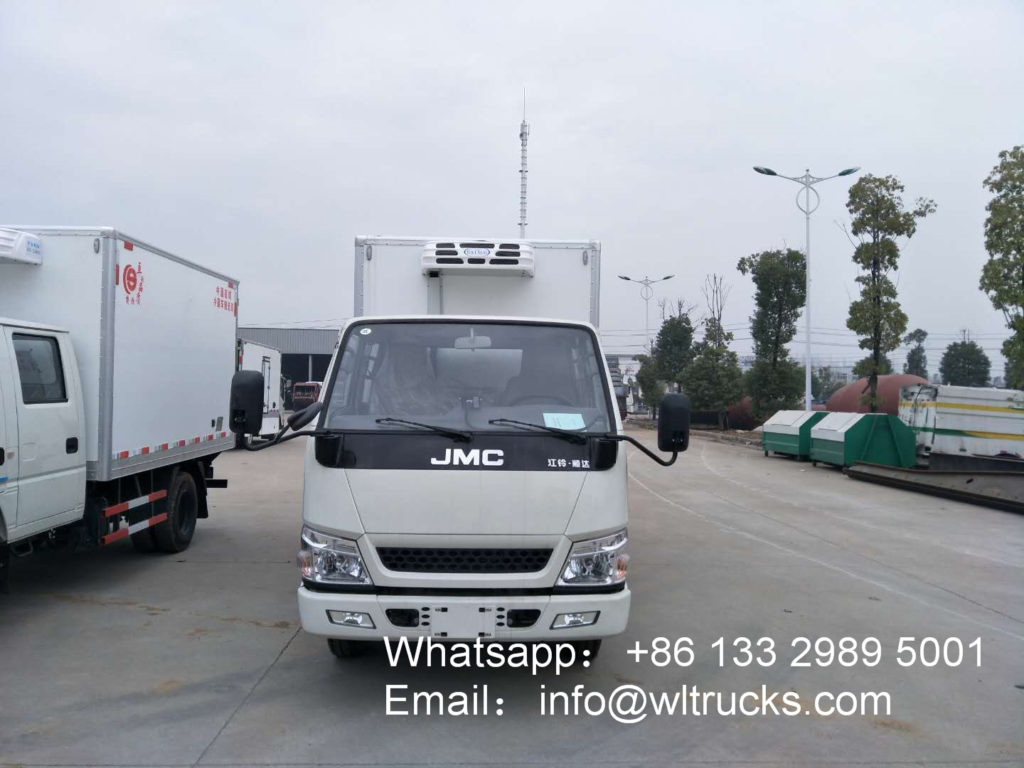

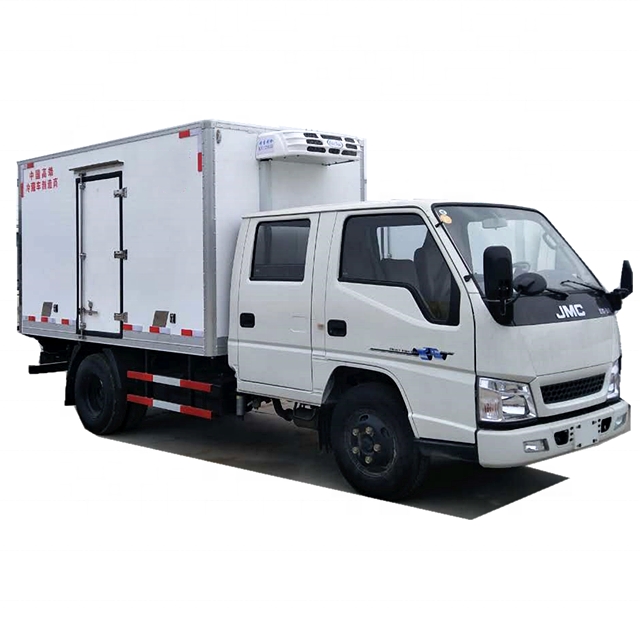

JMC Double Row 3 ton food fridge truck
Jiangling Shunda double-row refrigerated truck, vehicle model: CLW5042XLCJ3, occupancy: 2+3 people, Isuzu diesel engine 90 hp, double-row cab, 7.00R16 steel tires, 5-speed gearbox, wheelbase 3360 (mm) , The vehicle size: 5995×1945×2830 (mm), the box size: 3400×1940×1915 (mm), optional -5 to -18 degree refrigeration unit.
JMC Double Row 3 ton food fridge truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
JMC Double Row 3 ton food fridge truck specification:
|
JMC double-row refrigerated truck [main technical parameters]
|
|||
|
product name
|
JMC Shunda double-row refrigerated truck
|
Product number
|
CLW5042XLCJ5
|
|
Rated mass (Kg)
|
1350
|
Dimensions (mm)
|
5995×1920×2850
|
|
Curb weight (Kg)
|
2820
|
Cargo clearance mm)
|
3220×1750×1750
|
|
Total mass (Kg)
|
4495
|
Cargo container volume (m3)
|
12.5
|
|
Number of passengers in the cab (person)
|
2+3
|
Emission Standards
|
Eruo 3
|
|
Approach angle / departure angle (°)
|
27/15
|
Front overhang / rear overhang (mm)
|
1065/1570
|
|
Number of axes
|
2
|
Wheelbase (mm)
|
3360
|
|
Axial load (Kg)
|
1720/2775
|
Maximum speed (Km/h)
|
100
|
|
JMC double-row refrigerated truck [chassis technical parameters]
|
|||
|
Trade name
|
Jiangling
|
Chassis model
|
JX1041TSG25
|
|
Tire model
|
7.00R16
|
Number of tires
|
6
|
|
Engine company
|
Jiangling Motor Co., Ltd.
|
Engine horsepower
|
Jiangling 115 hp diesel engine
|
|
Jmc 115-horsepower engine, 5-speed gearbox, front axle 2 tons, rear axle 3.5 tons, with exhaust brake, 7.00 wire tire, oil brake, ABS, direction boost, air conditioning.
|
|||
|
Car body material optional
|
Standard special FRP / optional stainless steel
|
Base material optional
|
Standard aluminum pattern skid plate / optional FRP
|
|
Cold machine optional
|
Domestic / import / independent / non-independent
|
Cold machine installation location
|
Standard front/optional skirt, overhead
|
|
Cold machine inner frame
|
Optional
|
Heating equipment (constant temperature refrigeration)
|
Optional
|
|
Floor ventilation slot
|
Optional
|
Meat hook
|
Optional
|
|
Insulated curtain
|
Optional
|
External power supply
|
Optional
|
|
Temperature and humidity recorder micro printer
|
Optional
|
Alarm system
|
Optional
|
JMC Double Row 3 ton food fridge truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
JMC Double Row 3 ton food fridge truck New craft:
JMC Double Row 3 ton food fridge truck Optional configuration:

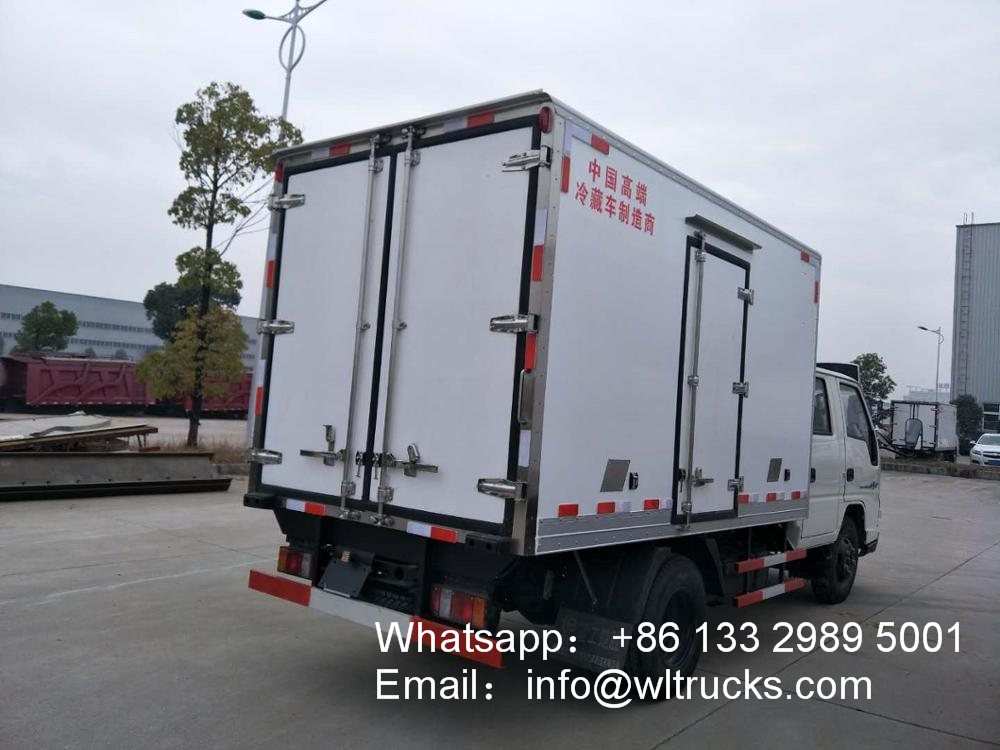

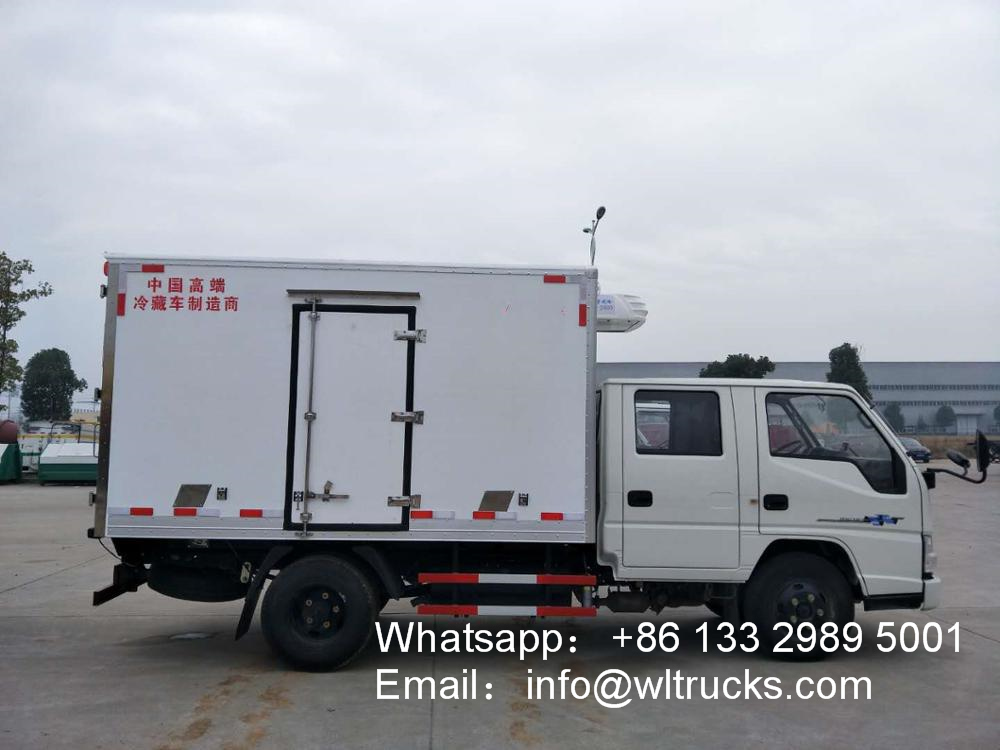

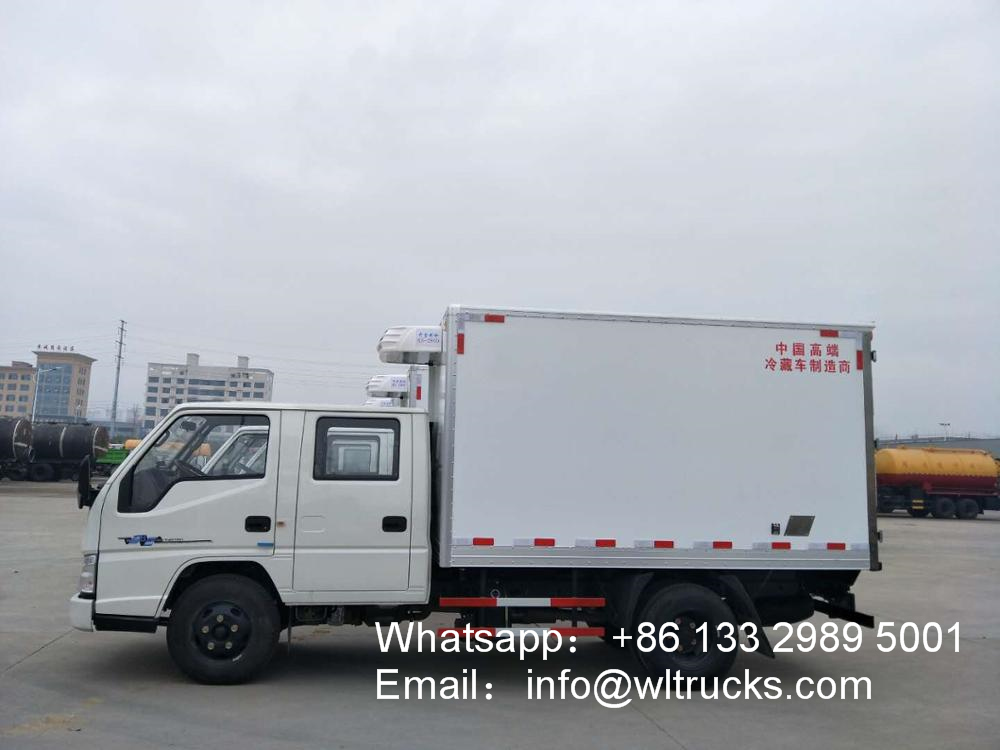

JMC Double Row 3 ton food fridge truck Bodywork details:
JMC Double Row 3 ton food fridge truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
