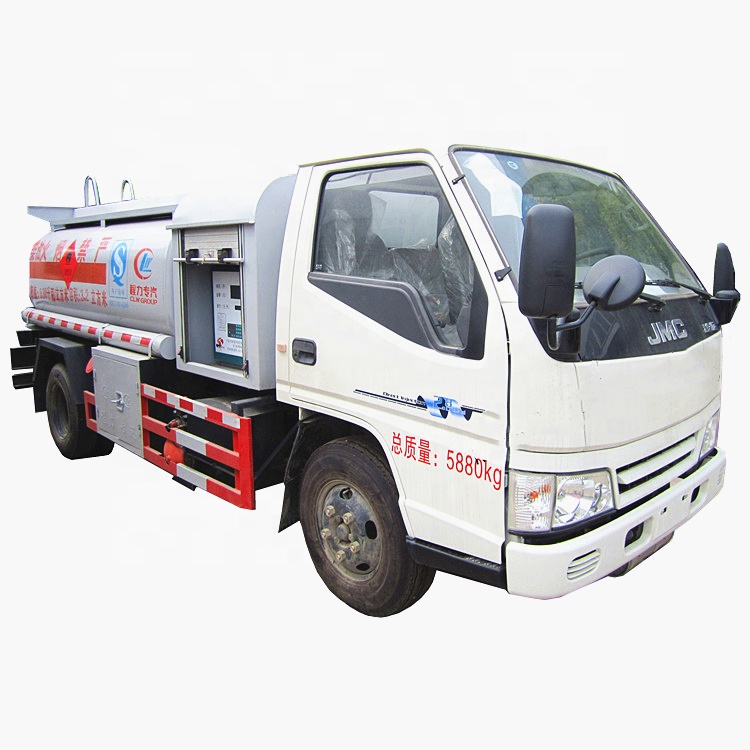

JMC 5000l mobile fuel truck
JMC 5000l mobile fuel truck Bodywork configuration:

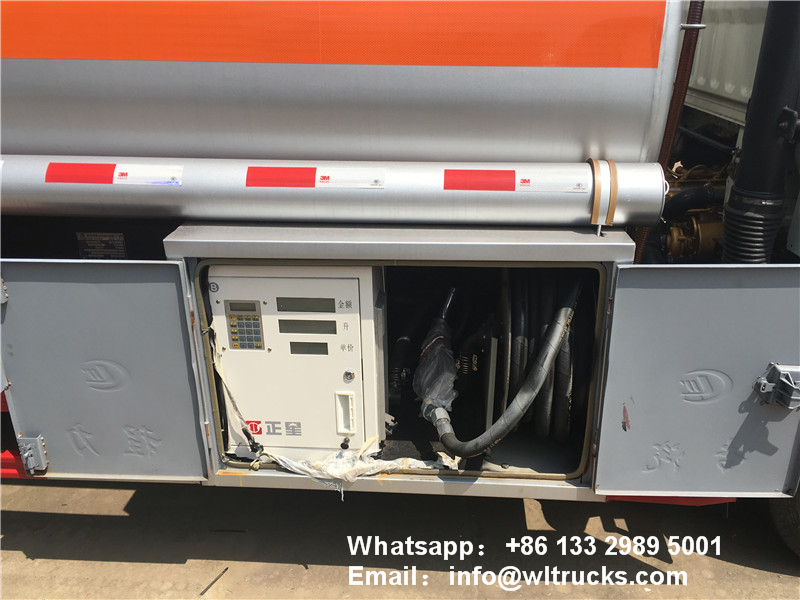

With European standard aluminum alloy down button manhole cover, emergency cut-off valve, tank body and head thickness 5mm, standard with Shanghai Bolai computer tax control oiler, reel 15 meters reel, fuel gun, other requirements can be based on user Request for modification.
JMC 5000l mobile fuel truck Chassis configuration:
It adopts Jiangling’s authentic country five chassis restructuring and a flat head forward cab. The tank volume is 4 tons, and the vehicle is equipped with: Jiangling 108 hp, engine model JX493ZLQ4, 5-speed gearbox, 2.2 tons front axle, 5 tons rear axle, 700-16 steel tires, optional oil brake and pneumatic brake, with Disc brake, ABS, speed limiter device.
JMC 5000l mobile fuel truck Vehicle description:
It adopts Jiangling’s authentic country five chassis restructuring and a flat head forward cab. The tank volume is 4 tons, and the vehicle is equipped with: Jiangling 108 hp, engine model JX493ZLQ4, 5-speed gearbox, 2.2 tons front axle, 5 tons rear axle, 700-16 steel tires, optional oil brake and pneumatic brake, with Disc brake, ABS, speed limiter device. With European standard aluminum alloy down button manhole cover, emergency cut-off valve, tank body and head thickness 5mm, standard with Shanghai Bolai computer tax control oiler, reel 15 meters reel, fuel gun, other requirements can be based on user Request for modification.
| Stainless Steel Fuel Tanker JMC (5000-6000 Litres, 1,500 Gallons) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | JMC | |
| Overall Dimension | 6360 * 2200 * 2650 mm | |
| GVW / Kerb Weight | 6,790 kg / 3,860 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | JMC engine | |
| Power | 115 Ps (85 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16LT | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 75 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5000-6,000 Litres ( About 1,500 gallons) |
| Tank Material | Stainless Steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire suggested hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…
** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite…. ** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
| Equipment | |||
| Oil pump | Model | 60 YHCB-30 | |
| Pressure | 0.4MPa | ||
| Flow | 30m3/h | ||
| Rated power | 6KW | ||
| Rotate speed | 970r/min | ||
| Standard | JB/T6434-92 | ||
