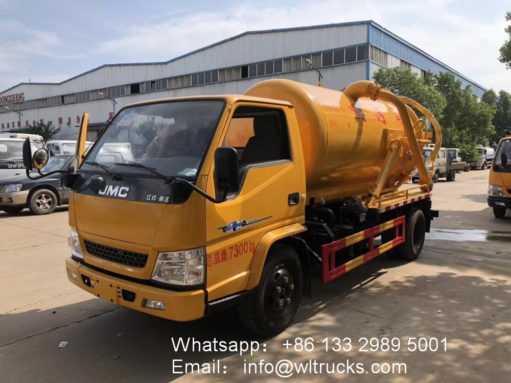

JMC 5000 liter sewage vacuum tanker truck Specification:
|
product name
|
4×2 JMC 5 cubic meter waste sewage truck
|
Chassis model
|
CLW5209GSSD3
|
|
Actual volume ( cubic )
|
5
|
Total mass (kg)
|
4890
|
|
Engine horsepower
|
95
|
Rated load mass (Kg)
|
1133
|
|
Engine name
|
JMC
|
Emission Standards
|
Euro 3
|
|
Dimensions (MM)
|
5950x2200x2400
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
700-16
|
|
Wheelbase (MM)
|
3450-1430
|
Maximum speed (km/h)
|
95
|
|
Front track
|
1503,1485,1519,1595 |
Rear track
|
1494, 1516, 1540
|
|
Performance profile
|
sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments. | ||
|
Dedicated configuration
|
Cleaning part: The cleaning tank is made of 5mm carbon steel plate with a volume of 2 cubic meters.
Installation of Italian high pressure pump, pressure 16Mpa, flow rate 130L/min, with 60m cleaning The hose has a coiling force of 1800N, a hose inner diameter of 19mm, and a coiling speed of 0-25m/min. The thrust is greater than 180N. Suction part: The suction tank is made of 6mm carbon steel plate with a volume of 3 cubic meters. Optional anti-overflow alarm device, solid-liquid separator, anti-corrosion in tank, according to customer requirements |
||
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
JMC 5000 liter sewage vacuum tanker truck Working parameter New craft
JMC 5000 liter sewage vacuum tanker truck Optional configuration

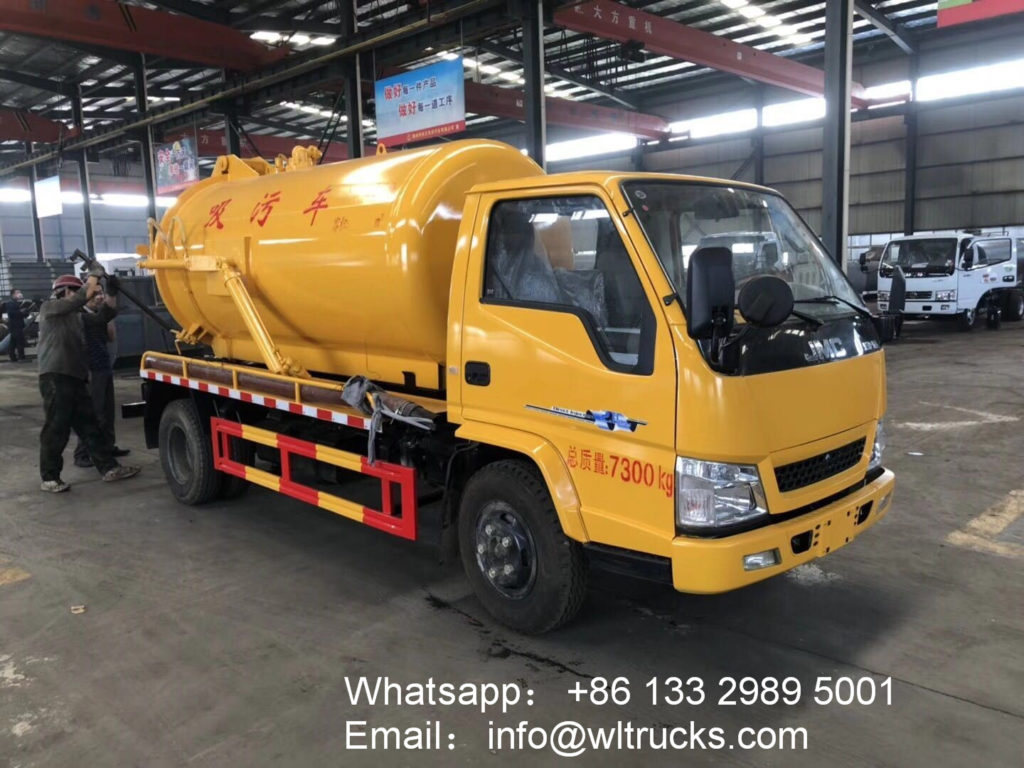

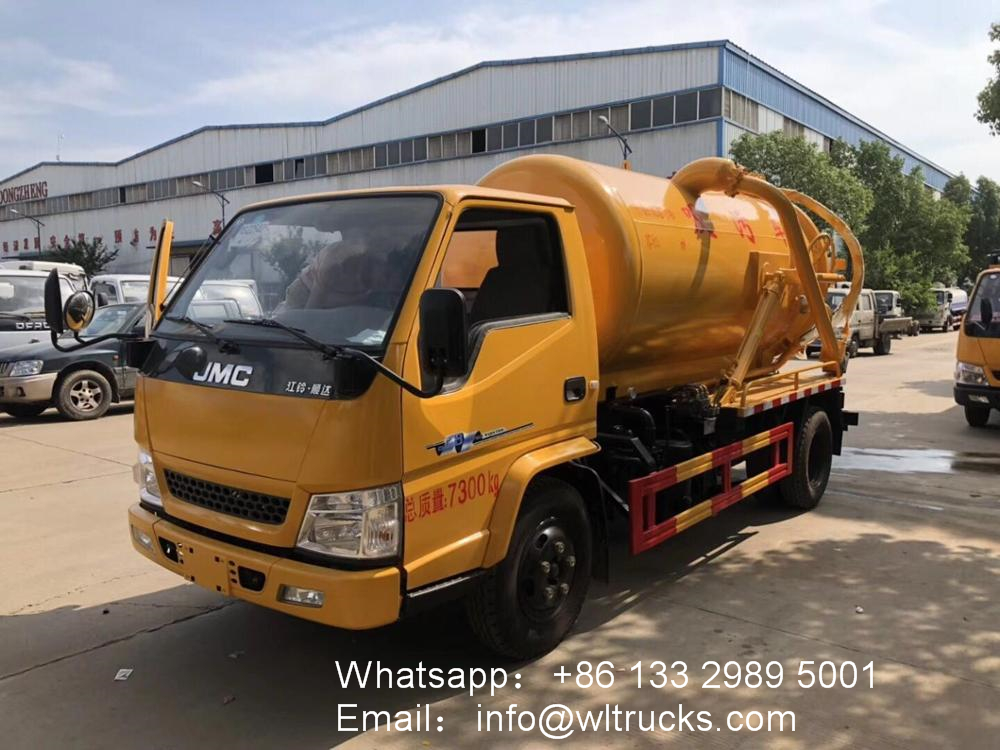

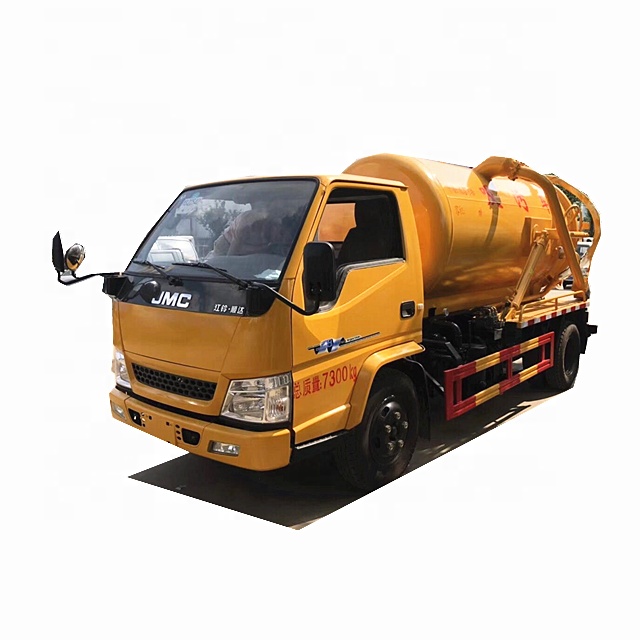

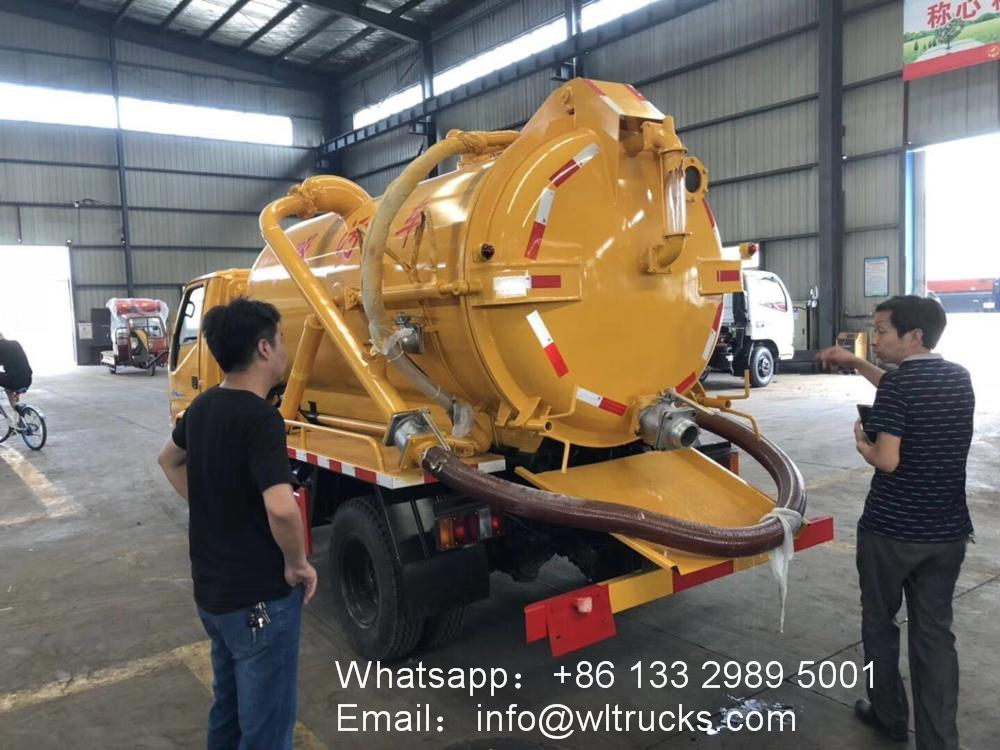

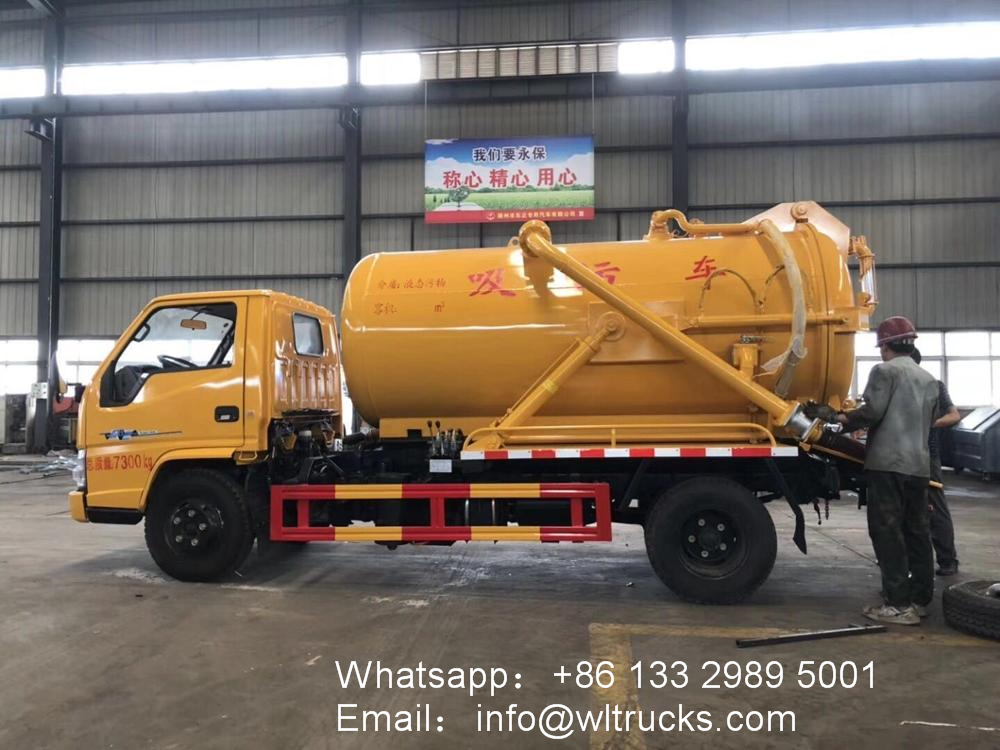

JMC 5000 liter sewage vacuum tanker truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
