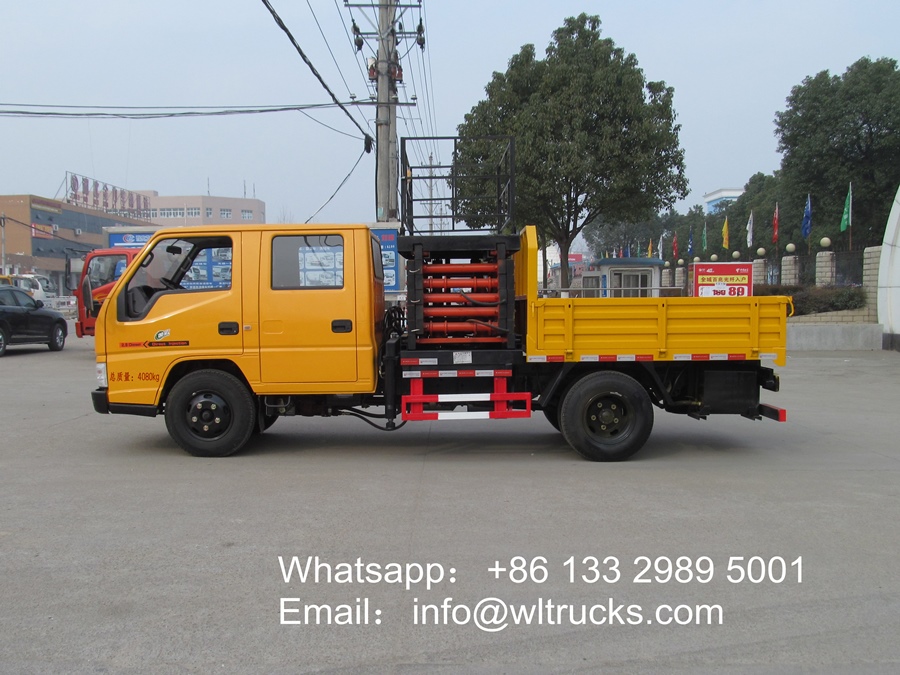

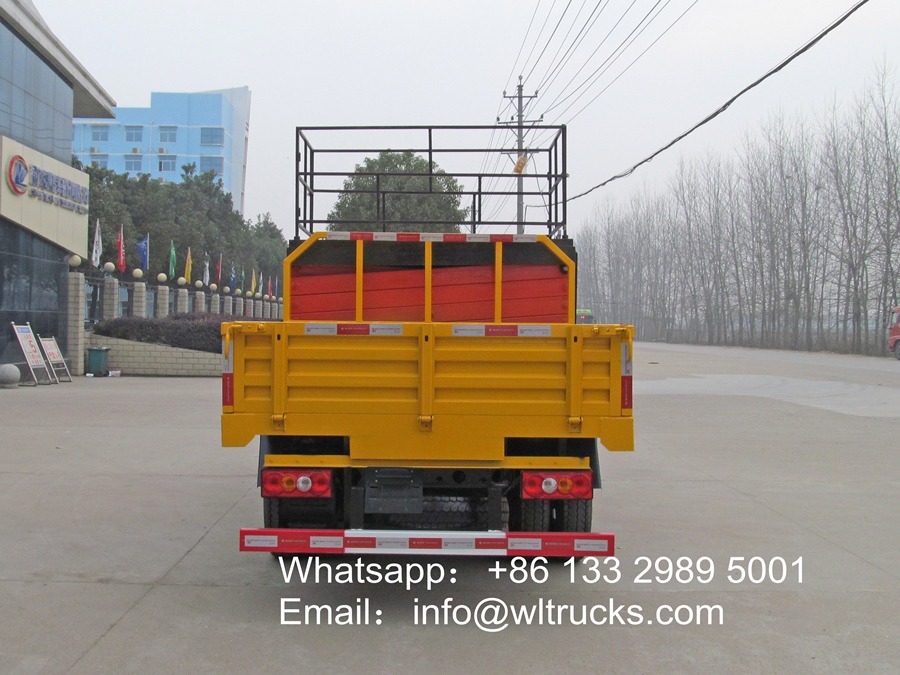

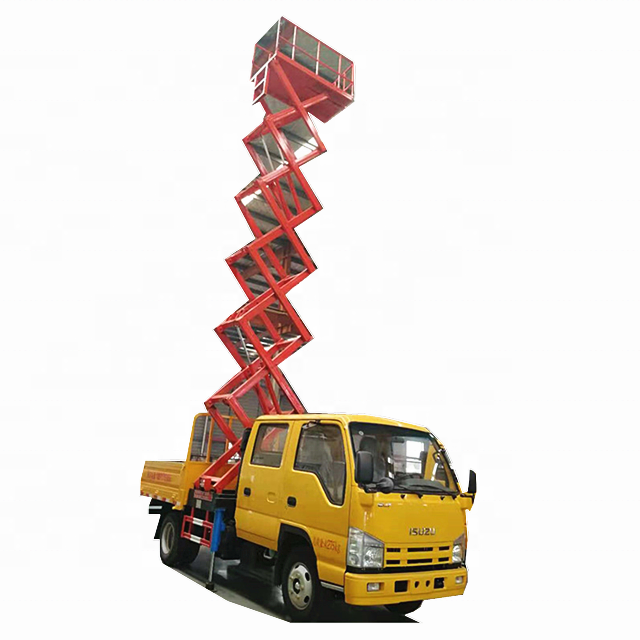

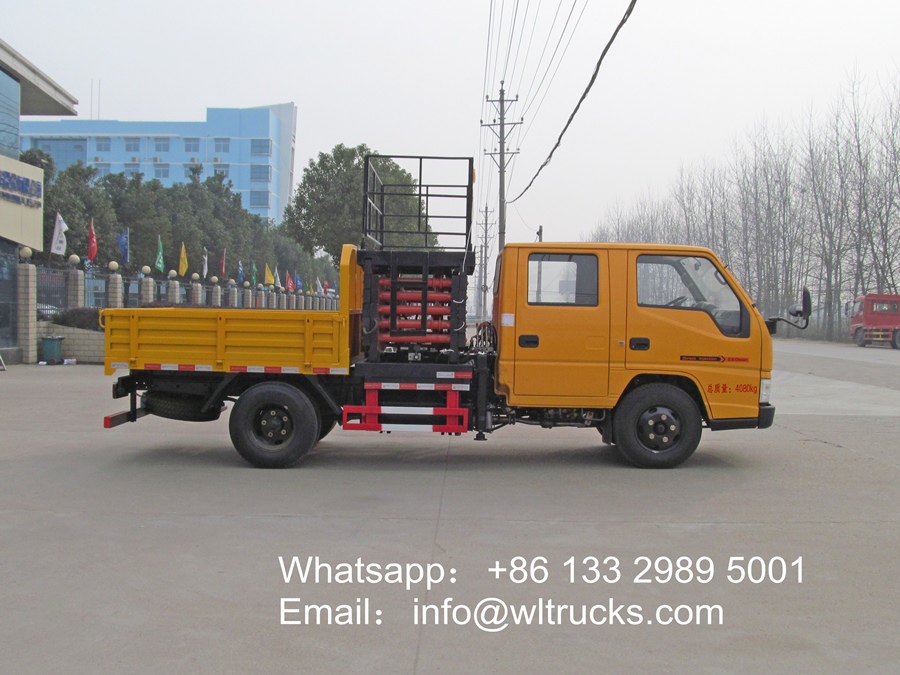

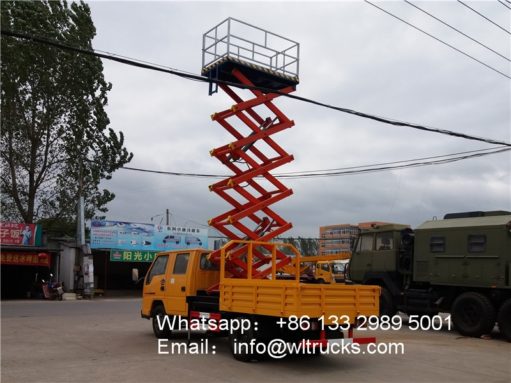

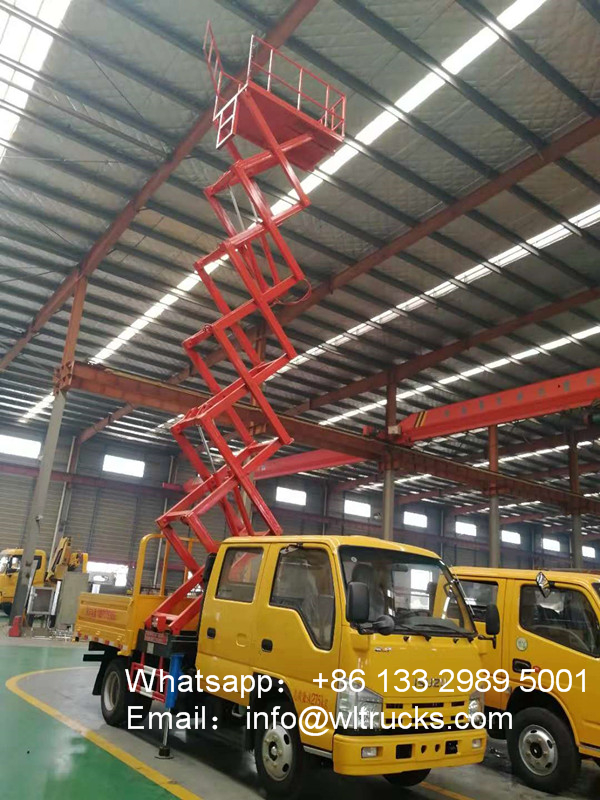

Japan ISUZU ELF 8m 10m 12m hydraulic lift platform truck
Japan ISUZU ELF 8m 10m 12m hydraulic lift platform truck Application area：
Aerial platform vehicles are widely used for installation, maintenance and ascending operations in industries such as municipal administration, electric power, street lights, advertising, communications, photography, gardens, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises, etc.
Aerial platform truck are also known as: street light repair trucks, hydraulic lift trucks, ascending platform trucks. Our company specializes in the production of 6 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters , 28 meters, 32 meters, 38 meters, 45 meters aerial platform trucks, lift trucks, products are widely used in electric power, street lamps, municipal Aerial work areas such as gardens, communications, airports, shipbuilding, ship repair, transportation, advertising, photography, etc. According to the type, it is mainly divided into: vertical lift type (also known as scissor type) aerial work truck, folding arm type lift aerial work truck, self-propelled aerial work platform, telescopic boom type aerial work truck, and ladder truck.
Japan ISUZU ELF 8m 10m 12m hydraulic lift platform truck specification:
|
product name
|
Japan brand ELF 8m 10m platform lift truck with truck mounted hydraulic lifting platform
|
Chassis model
|
QL1040A6HAY
|
|
Working height(M)
|
6 m to 10 m
|
Total mass (kg)
|
5325,5390
|
|
Engine horsepower
|
98Ph
|
Rated load mass (Kg)
|
1970, 1905
|
|
Engine name
|
4KH1CN5LS
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
5995×2000×2600
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
7.00-16, 7.00R16
|
|
Wheelbase (MM)
|
3360
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1506, 1404
|
Rear track
|
1466, 1458
|
|
Performance profile
|
Our company produces self-propelled aerial work platform trucks in the installation of large-scale tunnel equipment. The engineering work of high-altitude operations accounts for more than 60 parts of the whole project. There are a large number of components in the construction process (such as ventilation pipes and drainage pipes, steel structure shielding). Body, cable tray, valve parts, brackets, and special equipment and components must be installed within the specified 3 to 14 m elevation range. In order to reduce labor intensity and improve work efficiency, a multi-functional self-propelled aerial work platform truck integrating material lifting operation, manned aerial work and lifting and hoisting work was developed. | ||
|
Performance profile
|
Working height is 8m-10m, with a hydraulic lifting platform with two hydraulic legs, the hanging blue rated load is less than or equal to 500KG, working pressure 14MPA, platform size: 1700*970*790, with cylinder locking function.
8 meters, 10 meters lifting platform car special performance: equipment structure is simple, sturdy and durable, easy to operate and reliable. The unique hydraulic control system design makes the staff work more smoothly, and can safely send the staff to the 8m, 10m high-altitude operation for maintenance, installation, cleaning, photography, shipbuilding, chemical, electric power, pruning, replacement of street lamps. And other engineering repairs. |
||
Japan ISUZU ELF 8m 10m 12m hydraulic lift platform truck Working parameter:
| Working height | Maximum working height: 8m 10m 12m | |||
| Outrigger form | Outrigger type | H-shaped outrigger | ||
| Outrigger span | Vertical (mm): 2710; horizontal (mm): 1720 | |||
| Working platform | Rated load | ≤500Kg | ||
| size | Length X width X height (mm): 1585/1805x955x1100 | |||
| Safety belt | A pair | |||
| Hydraulic system | Gear pump displacement | 25ml/r | Cylinder | With cylinder lock function |
| Working pressure | 14MPa | Hydraulic valve | Manual | |
| car | Built-in chassis | |||
| Hand washing water tank | 20L | |||
| Operation form | Outrigger | Each leg can be controlled independently | ||
| Interlocking | Have | |||
