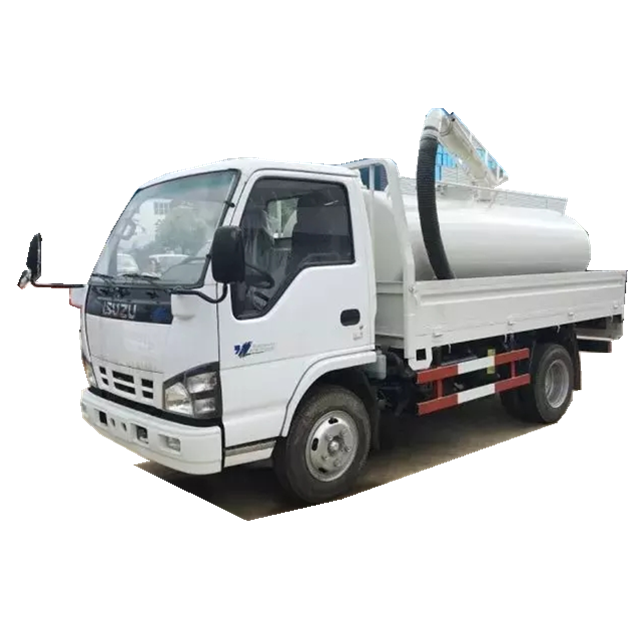

Japan ISUZU 5000L vacuum Fecal truck Specification:
Top configuration: tank volume 5000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-6 water ring vacuum pump, optional 5 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and 1 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
Item |
unit |
parameter |
||
|
Vehicle model |
|
CLW5061GSSD3 vacuum Fecal truck |
||
|
Chassis model |
|
QL1041TJA |
||
|
Overall dimensions |
mm |
5970×2140×2550 |
||
|
|
Fact cubage |
L |
4000-5000 |
|
|
GVW |
kg |
Appro×7800 |
||
|
Rated loading capacity |
Appro×2980 |
|||
|
Mass in working order |
Appro×4625 |
|||
|
Body internal dimensions |
mm |
3080×1700×1050 |
||
|
Wheel base |
3300 |
|||
|
F/R track base |
1750/1586 |
|||
|
Approach/departure angle |
° |
18/14 |
||
|
Exhaust/hp |
ml/kw |
2956/98 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
7.00-16 |
Engine type |
4HK1 |
|
|
Traction system |
4×2 |
transmission |
5-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |
Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
Equipped with power take off, transmission shaft,fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full sucktion<5min |
|||
|
Engine |
ISUZU,diesel engine |
|||
|
Production cycle |
6-7 days |
|||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

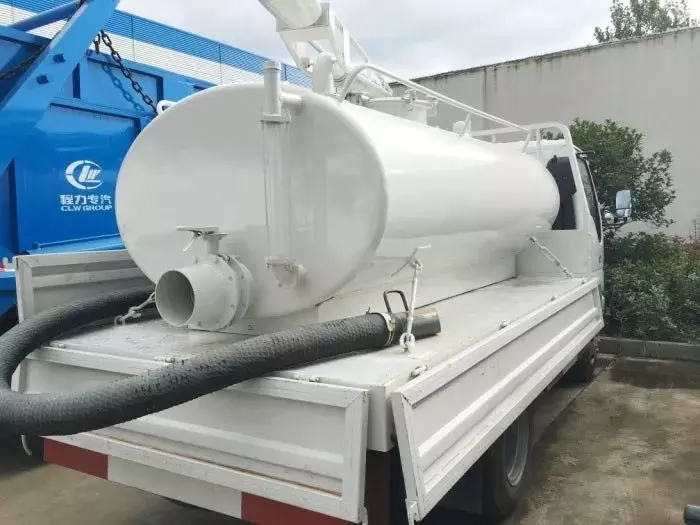

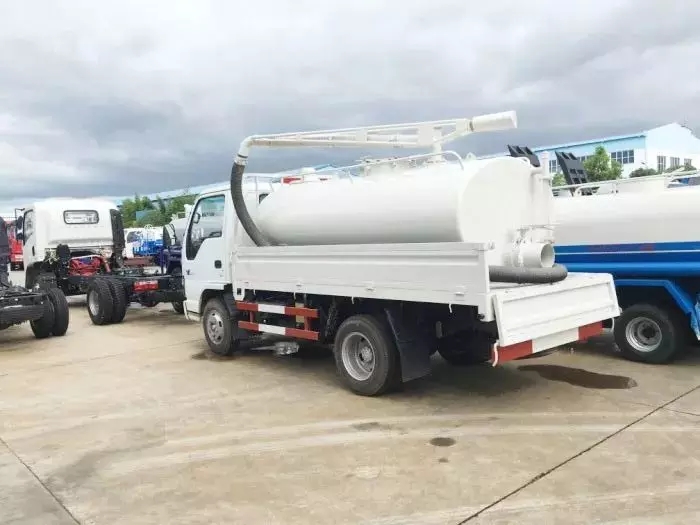

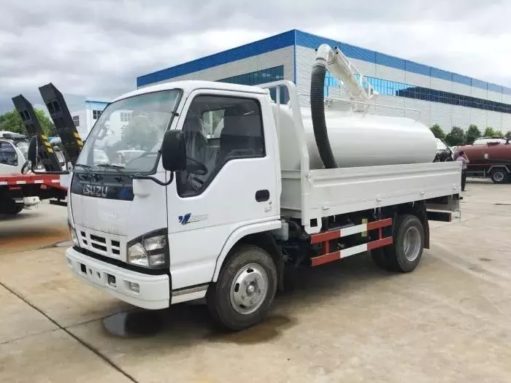

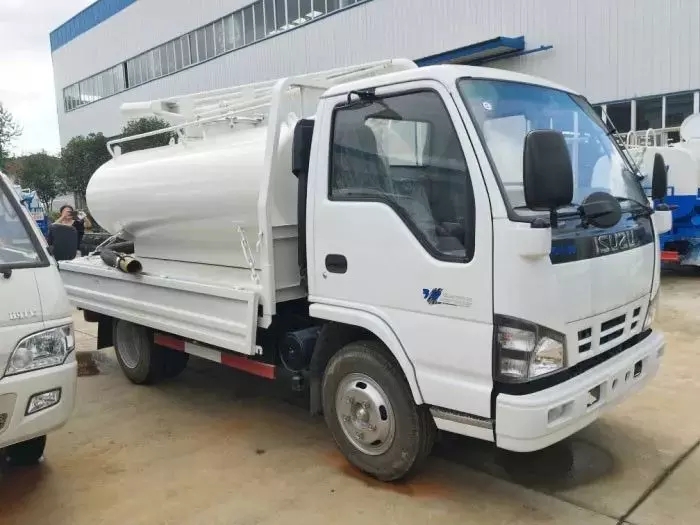

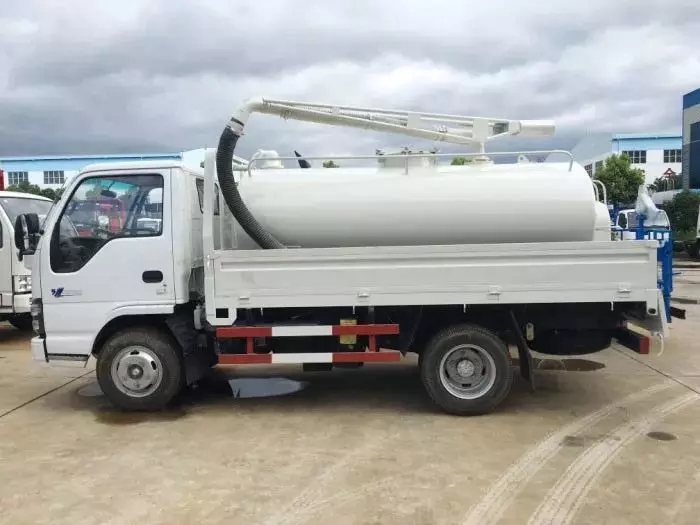

Toilet suction truck Detailed image
