JAC 8m3 Garbage compactor truck Product Description:
JAC 8m3 Garbage compactor truck Chassis configuration: JAC original chassis, wheelbase 3.8 meters, Junling white cab, Weichai 130-horsepower engine, 6-speed gearbox, electric windows, original air conditioner, power steering, 825R20 steel tire with spare tire, ABS.
JAC 8m3 Garbage compactor truck Bodywork configuration: Compressed volume of 8 cubic meters, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 40 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 sewage Collection box, 3 operation control boxes, with night light, equipped with two-way compression function, the two-way hydraulic lock does not leak water.
JAC 8m3 Garbage compactor truck Optional configuration: optional double pump confluence + dual valve control, optional bucket rack, triangle bucket, fully sealed bucket, swing arm device, can be installed 100-130 barrels of garbage production.
JAC 8m3 Garbage compactor truck Specifications:
| Item No. | Parameters | ||
| Overall Dimension | 6950 x 2050 x 2570mm | ||
| Gross Vehicle Weight | 730 kg | ||
| Loading Weight | 6000 kg | ||
| Curb Weight | 10170 kg | ||
| Wheel Base | 3800 mm | ||
| Axles Quantity | 2 Axles | ||
| Front / Rear Axle | 2500 kg / 4800kg | ||
| Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | HFC4DA1-1, Four Stroke, 4 Cylinder in line, Mechanical Engine Pump. | ||
| Engine horsepower | 130HP, EURO 5 | ||
| Displacement | 3881 ml | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||
| Fuel Tank | 500 Liter | ||
| Tire | 7.50-15 (6 pieces with one spare) | ||
| Garbage Bin | Capacity | 8CBM | |
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Plat Form | 2 side for 2 worker for foot transport | ||
| Garbage Compact Ratio | 1/3 – 1/4 | ||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2.Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time<14~18s |
||
JAC 8m3 Garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
JAC 8m3 Garbage compactor truck New craft:

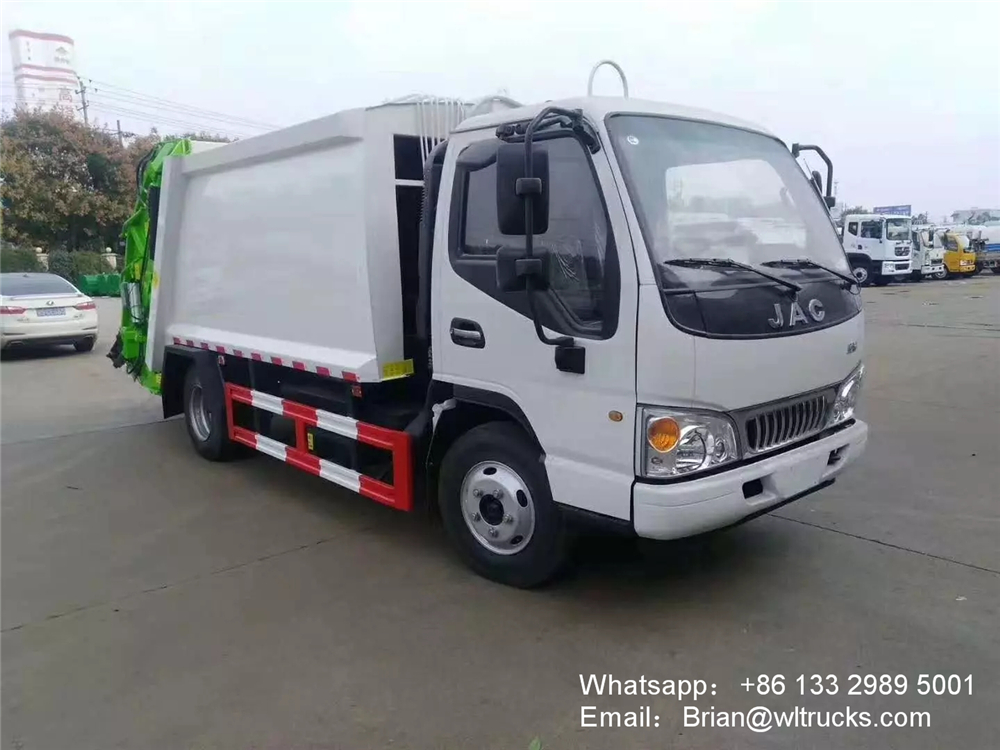

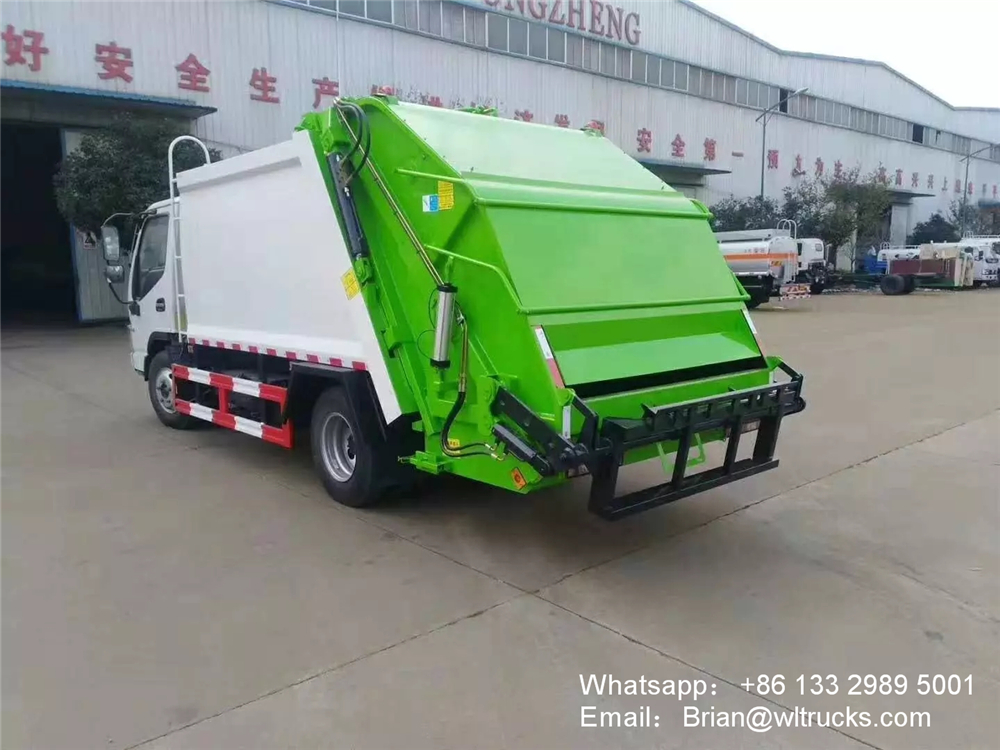

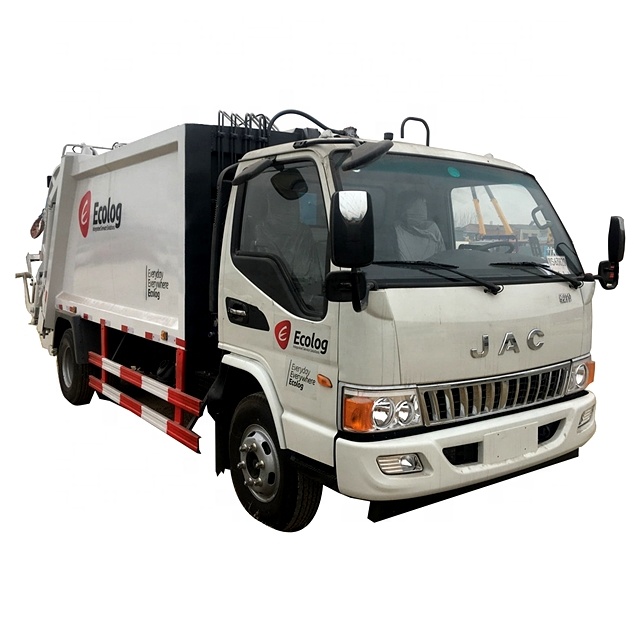

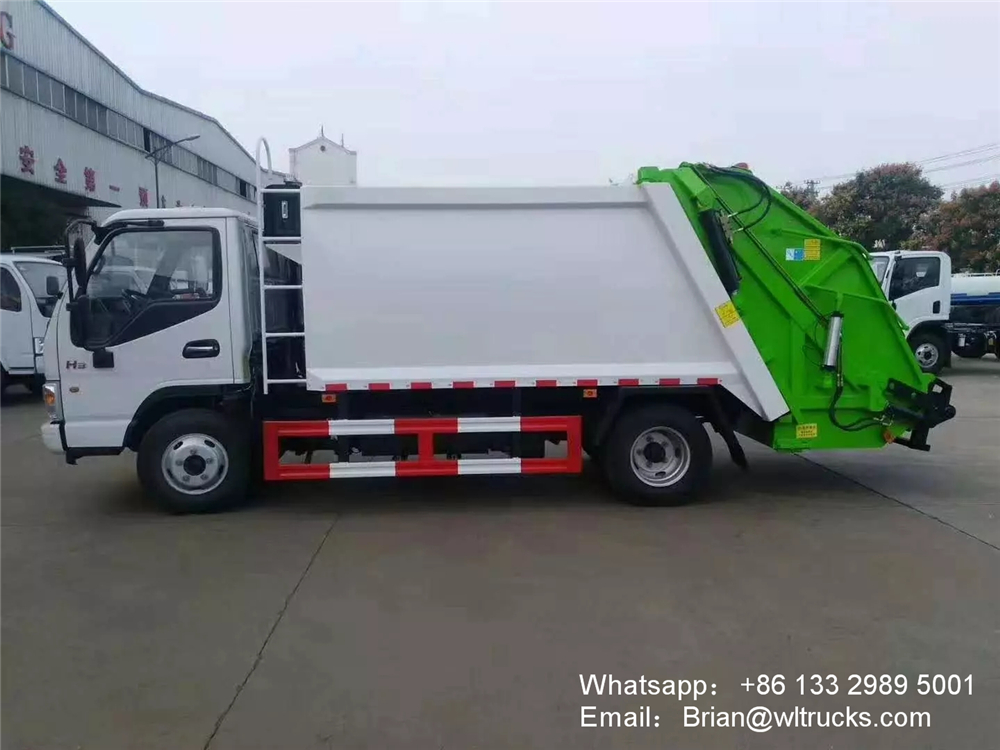

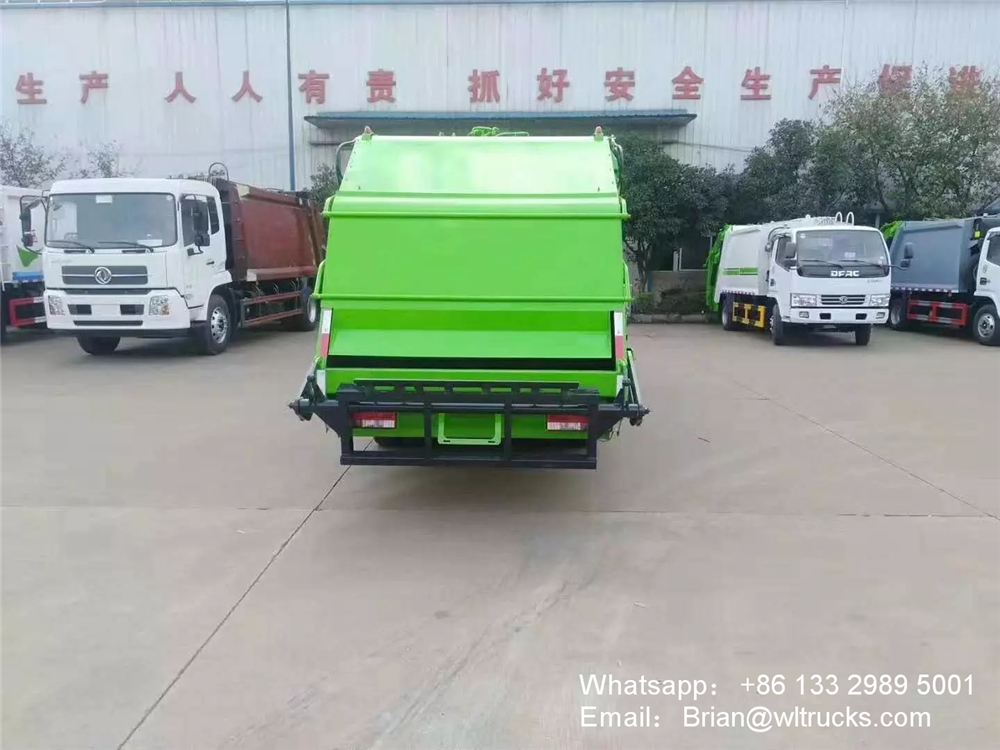

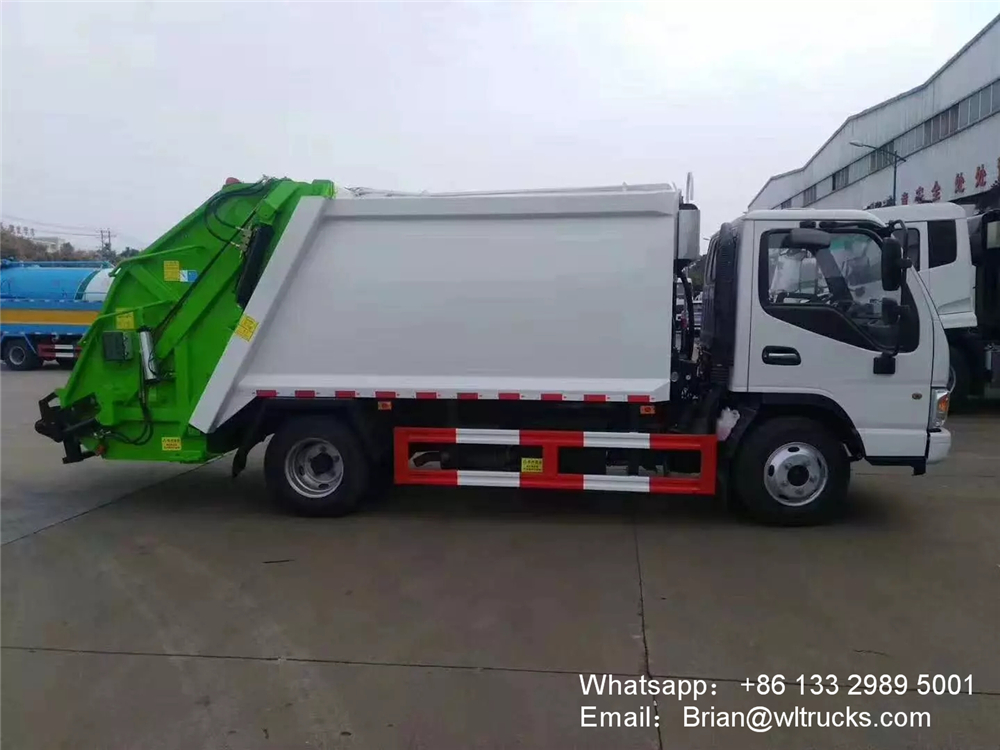

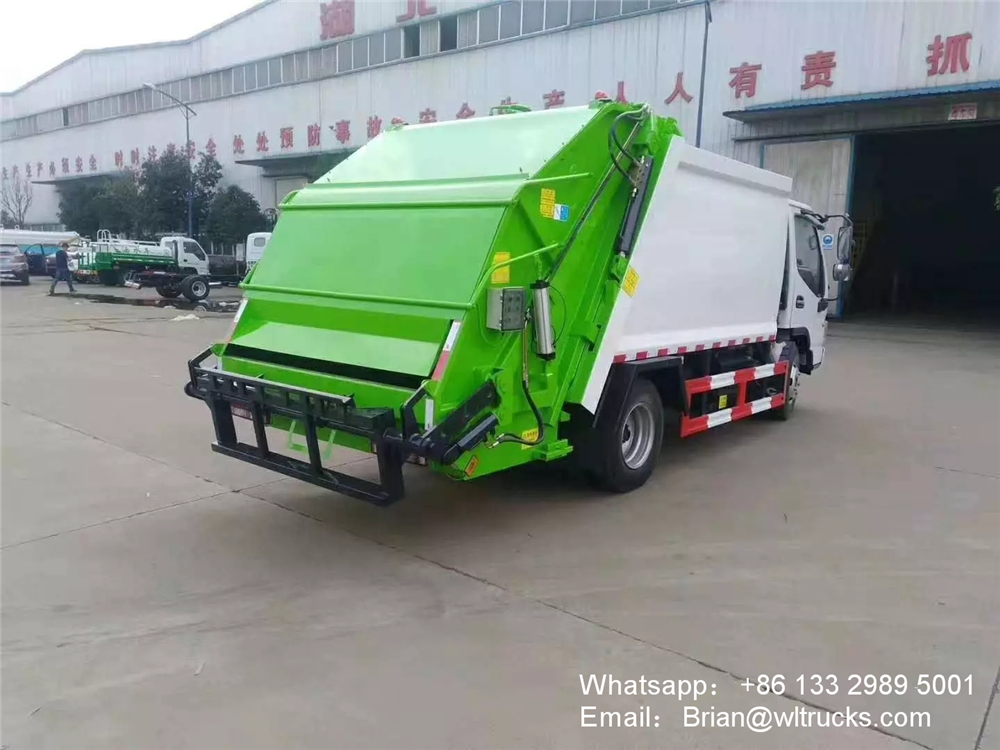

JAC 8m3 Garbage compactor truck Detailed Images:
JAC 8m3 Garbage compactor truck Structure diagram：
JAC 8m3 Garbage compactor truck Detail drawing:
