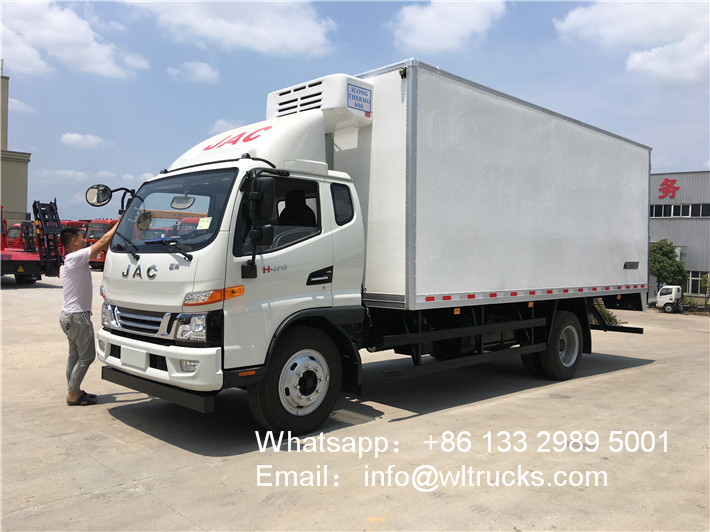

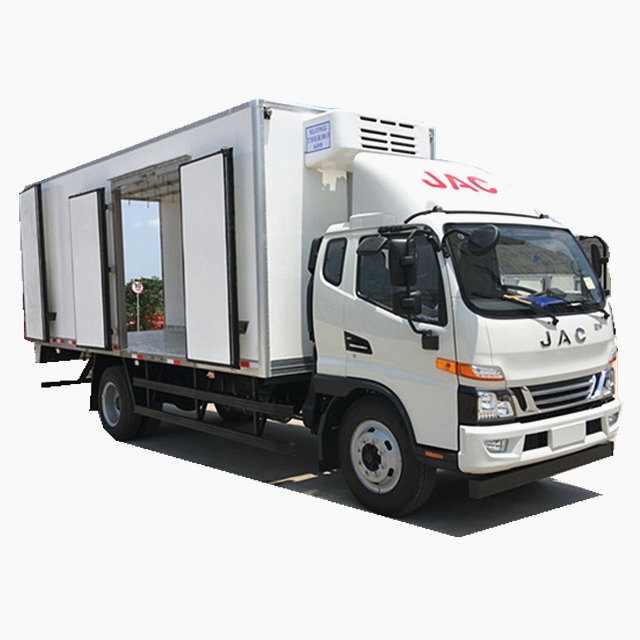

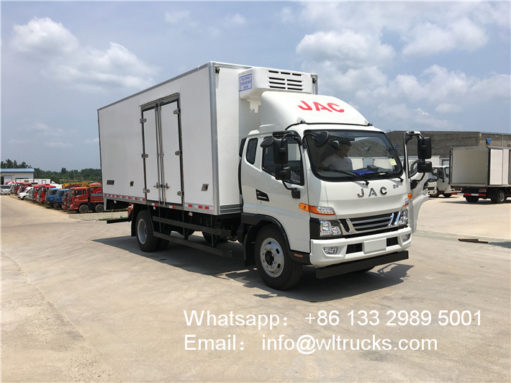

JAC 8 ton 20ft refrigerator truck
Chassis configuration: JAC’s new handsome bell-row semi-cab, Cummins ISF3.8S5154 diesel engine, 156 horsepower, 6-speed gearbox, 825R20 original steel tires, air brake, original air conditioner in the cab, with direction assistance, MP3, Multi-function steering wheel with entertainment control, with electric door and window central control lock, with ABS.
Bodywork configuration: Refrigerated truck cargo box size: 6200x2220x2300mm, inside and outside glass fiber reinforced plastic box, 8CM thick polyurethane insulation layer, stainless steel door lock, stainless steel corner, aluminum alloy edging, optional rear double door.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added. Carrier, cold king -5 degrees to -18 degrees cold machine.
JAC 8 ton 20ft refrigerator truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
JAC 8 ton 20ft refrigerator truck specification:
| 【Vehicle technical parameters】 | |||
| Product trademark | JAC | Announcement batch | 312 |
| product name | Refrigerated truck | Product number | HFC5120XLCP91K1D4V |
| Total mass (Kg) | 11990 | Tank volume (m3) | |
| Rated load mass (Kg) | 5995 | Dimensions (mm) | 8465,8690×2420×3730 |
| Curb weight (Kg) | 5800 | Cargo compartment size (mm) | 6200×2170×2300 |
| Rated passenger (person) | Total mass of quasi-trailer (Kg) | ||
| Number of people allowed in the cab (person) | 3 | Saddle maximum load mass (Kg) | |
| Approach angle /departure angle (°) | 30/13 | Front /rear suspension (mm) | 1120/2645, 1120/2870 |
| Axle load (Kg) | 4315/7675 | Maximum speed (Km/h) | 95,89 |
| 【Chassis technical parameters】 | |||
| Chassis model | HFC1120P91K1D4V | Chassis name | Truck chassis |
| Brand name | JAC | manufacturer | Anhui Jianghuai Automobile Group Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 4700 | ||
| Tire specifications | 8.25-20 14PR, 8.25R20 14PR | ||
| Number of leaf springs | 8/10+10 | Front track (mm) | 1660 |
| Fuel type | Diesel | Rear track (mm) | 1728 |
JAC 8 ton 20ft refrigerator truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
JAC 8 ton 20ft refrigerator truck New craft:
JAC 8 ton 20ft refrigerator truck Optional configuration:

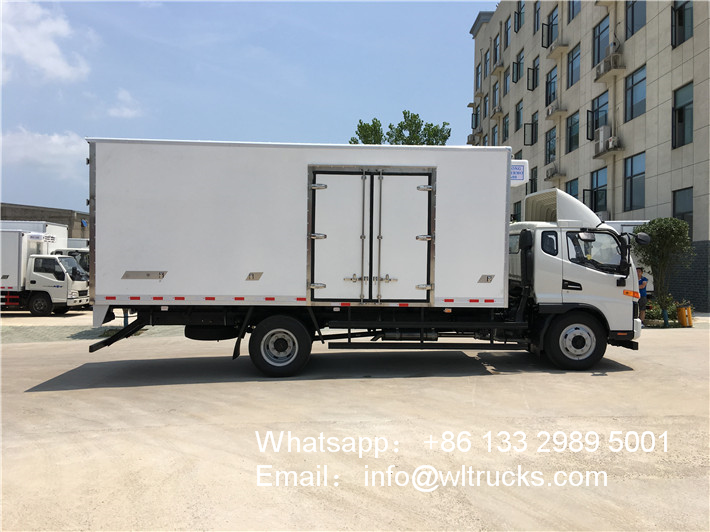

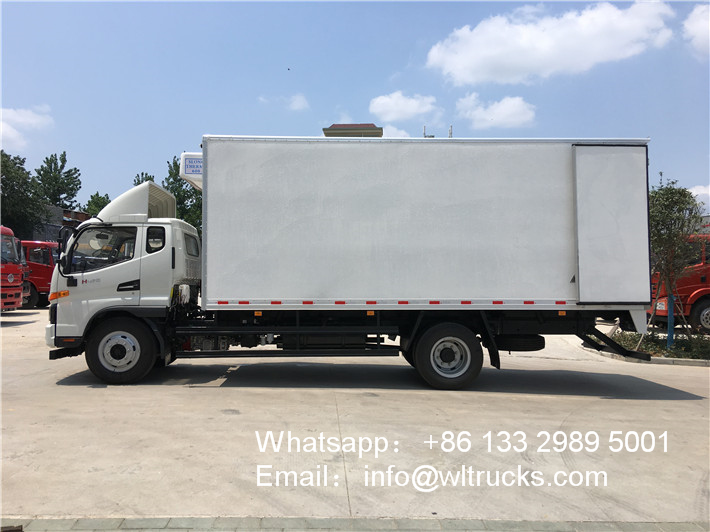

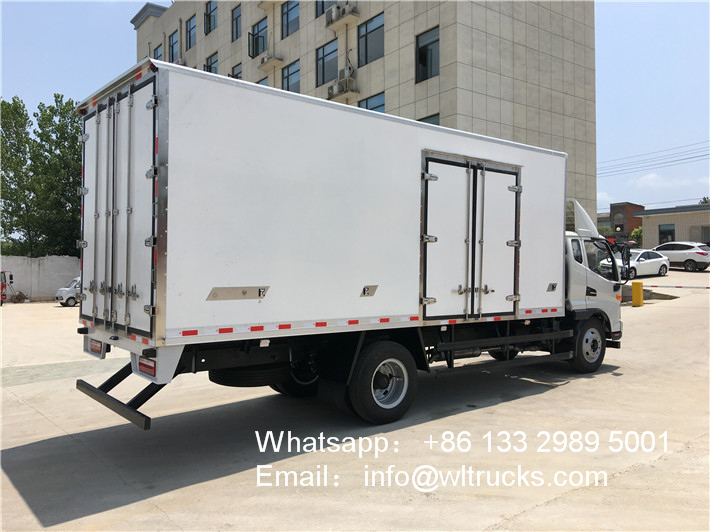

JAC 8 ton 20ft refrigerator truck Bodywork details:

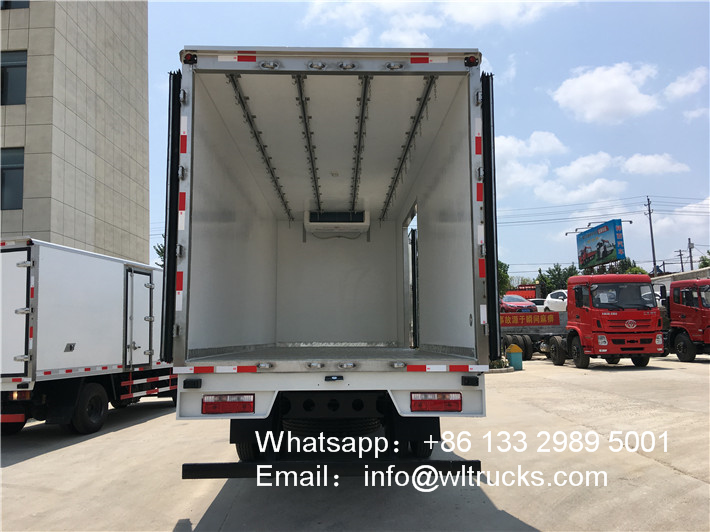

JAC 8 ton 20ft refrigerator truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
