JAC 5000liter combined jetting Vacuum Sewage Suction Truck Specification:
JAC 5000liter combined jetting Vacuum Sewage Suction Truck Chassis configuration: JAC Junling cab, JAC 117 horsepower engine, wheelbase 3308mm, 7.00 steel tires, 5-speed gearbox.
High pressure dredging: 1.5 square meters of water tank, equipped with 24MPa Tianjin Tongjie high pressure pump (optional 16MPa high pressure pump imported from Germany), hydraulic reel automatic retractable tube + pipe self-cleaning function, standard 80m double layer 19mm high pressure tube, standard 10 dredging nozzles with different functions.
Sewage suction function: Sewage tank 3.5 square meters, equipped with Yifeng vacuum pump (optional Weilong vacuum pump or water ring pump), tank body lifting self-unloading, tail cover hydraulically opened, with manual locking, equipped with 1 8 meter suction pipe .
Optional function: optional cleaning and suction style, the total volume is 5 squares freely divided, the tank body cannot be lifted and unloaded, the tail cover cannot be opened, and the tank tail is equipped with a self-flow valve.
JAC 5000liter combined jetting Vacuum Sewage Suction Truck Product parameters
| Complete Vehicle Parameter | |
| Vehicle | JAC vacuum sewage truck |
| Overall dimension (mm) | 6860*2040*2800mm |
| Sewage tank (m3) | 6 |
| Gross vehicle weight (kg) | Appro×8600 |
| Wheel base (mm) | 3815 |
| Max speed (km/h) | 95 |
| Chassis Parameter | |
| Cabin | Flat top cabin,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 4×2 |
| Engine | Model: CY4102-C3D, 109hp Type: diesel, turbocharged, 4 cylinder. Displacement: 3856ml Emission standard: Euro 4 |
| Transmission | 6 forward,1 reverse, manual operated |
| Tire model | 7.50-16,8.25-16 |
| No.of tires | 6pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 6000 liter. 2. Sewage tank material is carbon steel,thickness 5mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |
JAC 5000liter combined jetting Vacuum Sewage Suction Truck Working parameter
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
JAC 5000liter combined jetting Vacuum Sewage Suction Truck Working parameter New craft
JAC 5000liter combined jetting Vacuum Sewage Suction Truck Optional configuration

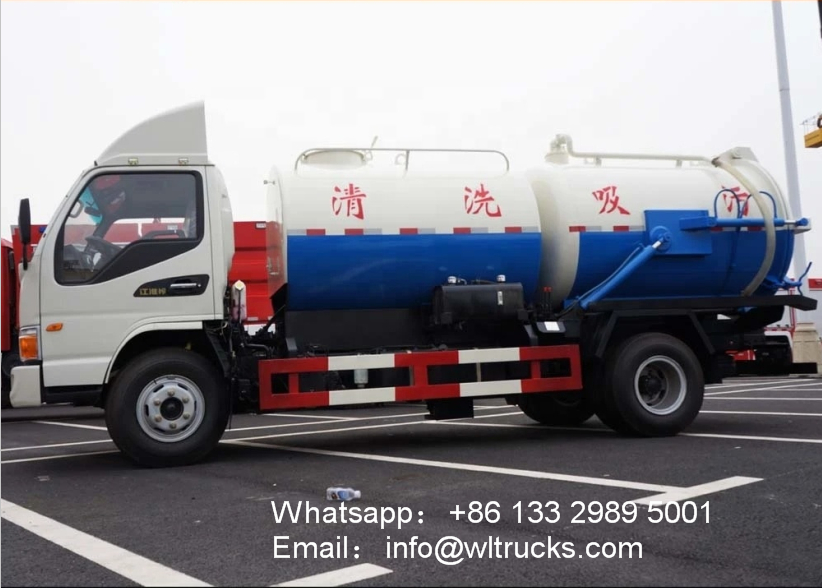

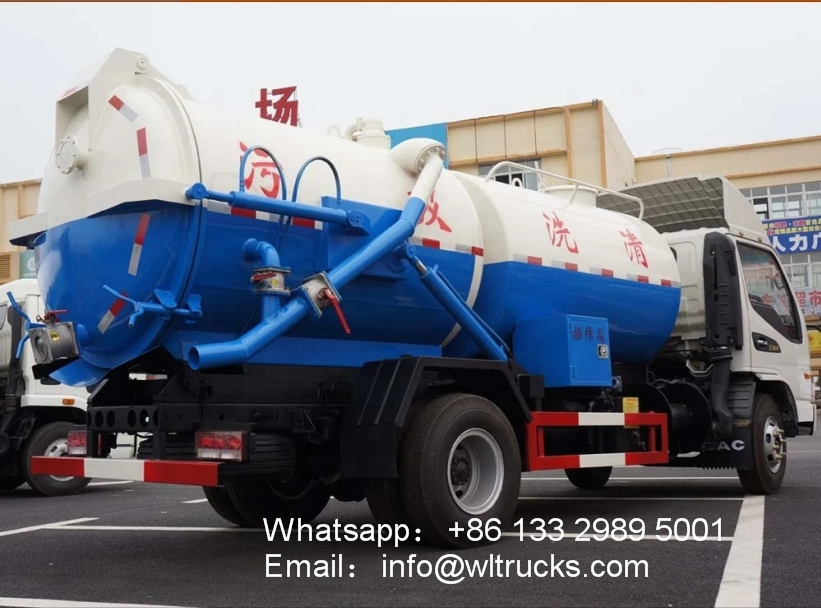

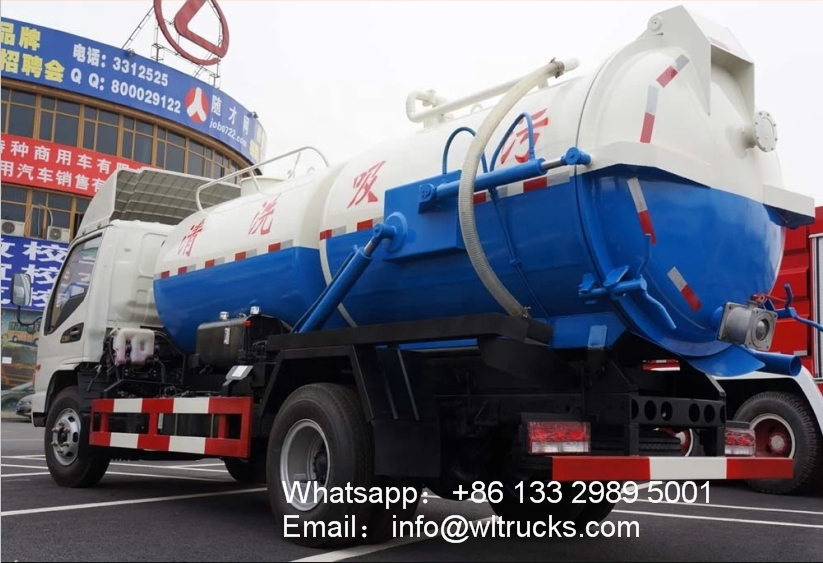

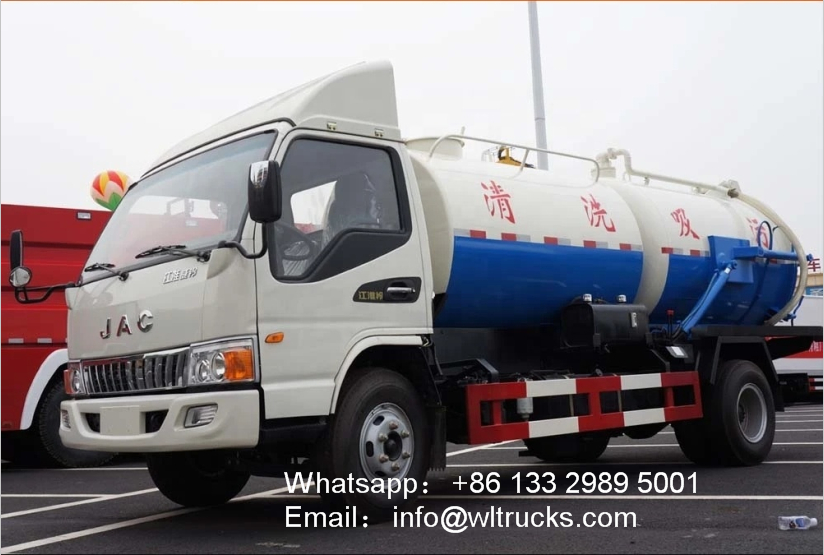

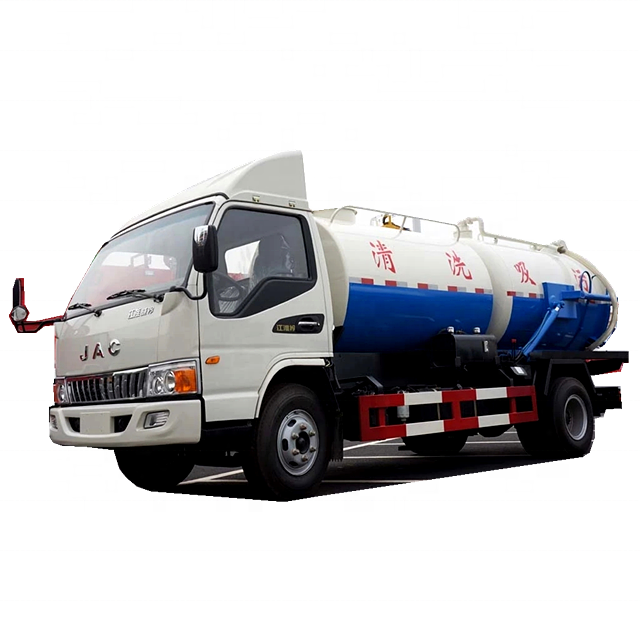

JAC 5000liter combined jetting Vacuum Sewage Suction Truck Detailed image
