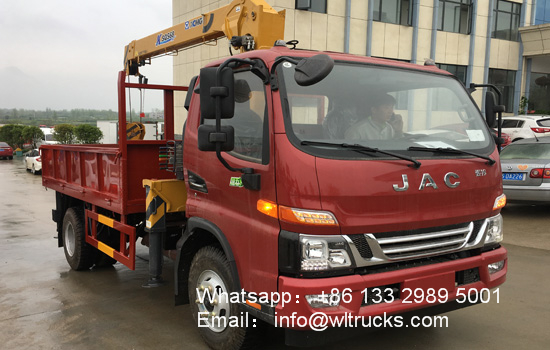

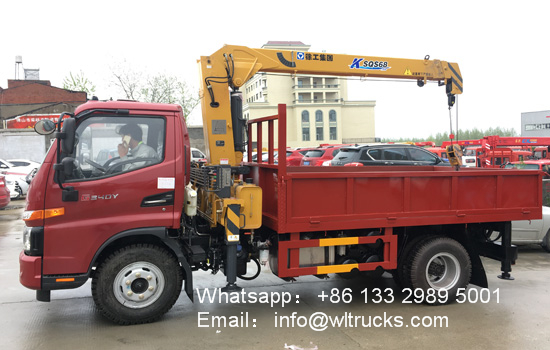

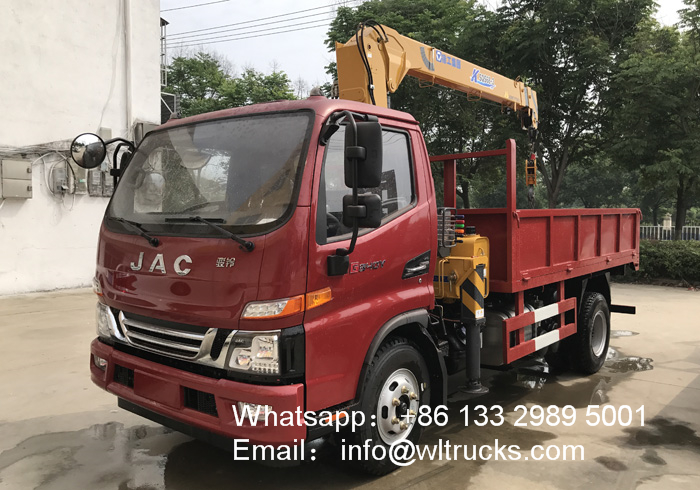

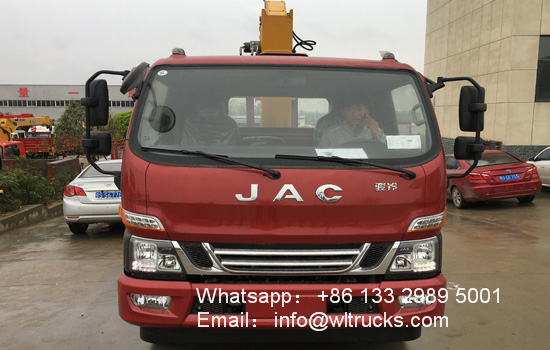

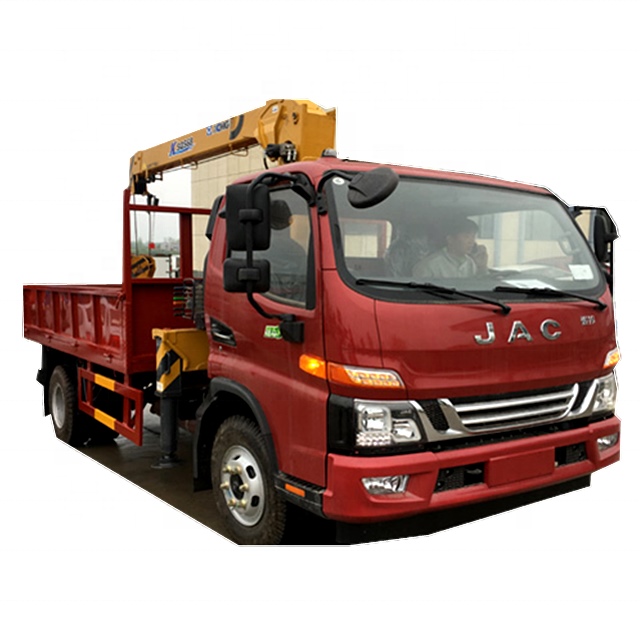

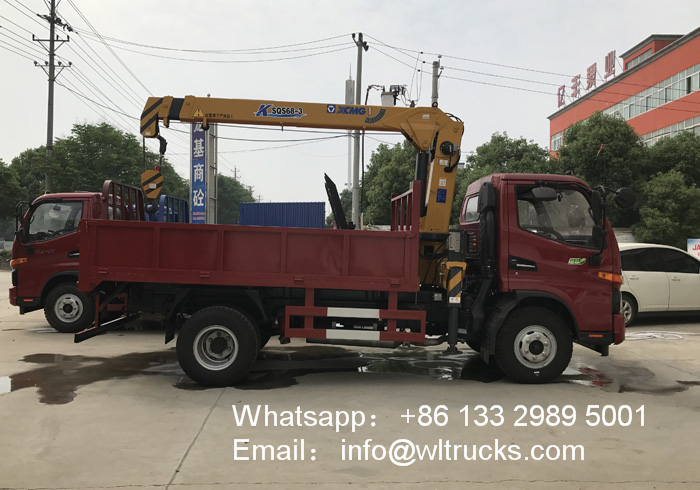

JAC 3 ton crane truck
JAC 3 ton crane truck Adopt Junling single-row reversible cab, 117 horsepower, 5-speed gearbox, 4 tons rear axle, 200 double-layer beam, optional 3 tons 3 section straight arm crane (full swing), lifting height 9.5 meters The working radius is 7.7 meters, the cargo box is 3500 * 2300 * 550, and the self-unloading function can be added according to customer requirements.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
JAC 3 ton crane truck specification:
SQ3.5SA2 (3.5 tons three-section arm truck crane) parameters
| Crane model | SQ3.5SA2 (3.5 tons two straight arms) | |||||
| Maximum lifting mass (kg) | 3500 | |||||
| Maximum lifting torque (nm) | 70000 | |||||
| Sectional form | hexagon | Slewing mechanism | Rotation speed r/min | 2.5 | ||
| Section number | 3 (two sections) | Swing range (°) | 360 | |||
| Length m | 3.5-7.6 | Outrigger | Type | Upright leg | ||
| Maximum working radius m | 7.6 | Span m | 1.85-3.1 | |||
| Extending speed m/s | 3/30 | Hydraulic system | System pressure mpa | 17.5 | ||
| Range of amplitude | 0-73° | Tank volume L | 40 | |||
| Arm speed | 73/14°/s | safety equipment | Overturn alarm | |||
| Maximum lifting height m | 9.5 | Self weight kg | 1050 | |||
| Single rope allowed tension N | 8750 | Match truck | Loading trucks with a mass of more than 1 ton | |||
| Maximum single rope speed m/min | 36 | Note: The above table parameters are rated parameters when the engine speed is 1500r/min. | ||||
| Wire rope diameter mm | 8 | |||||
| Wire rope length m | 55 | |||||
| Working radius m | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.6 |
| Rated load kg | 3500 | 1880 | 1080 | 780 | 580 | 430 |
