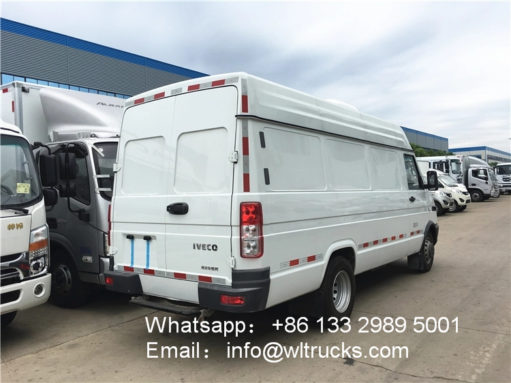

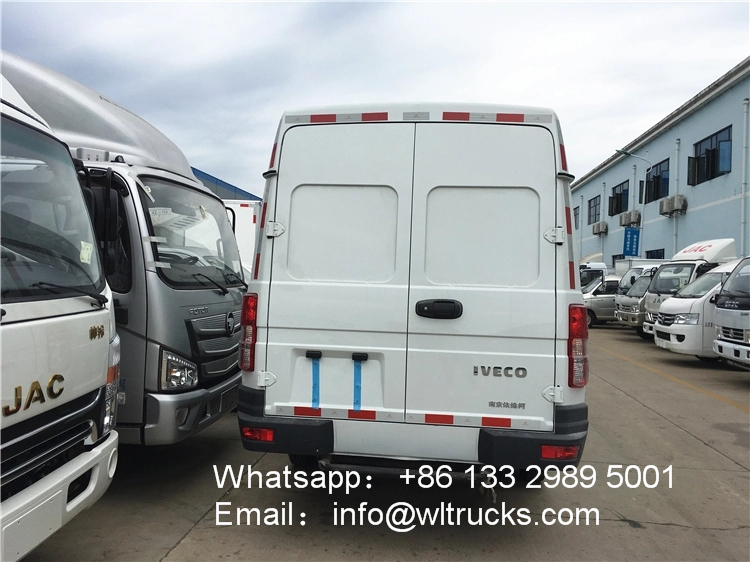

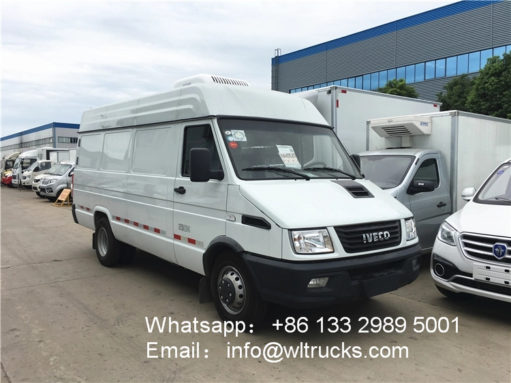

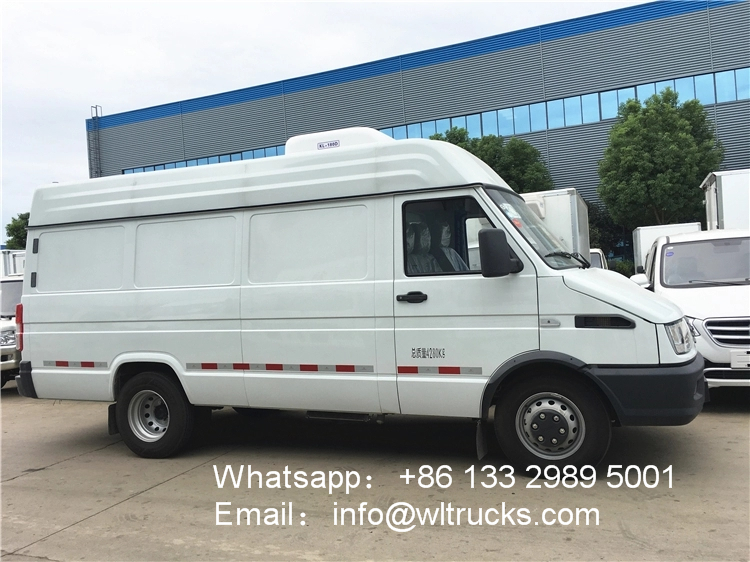

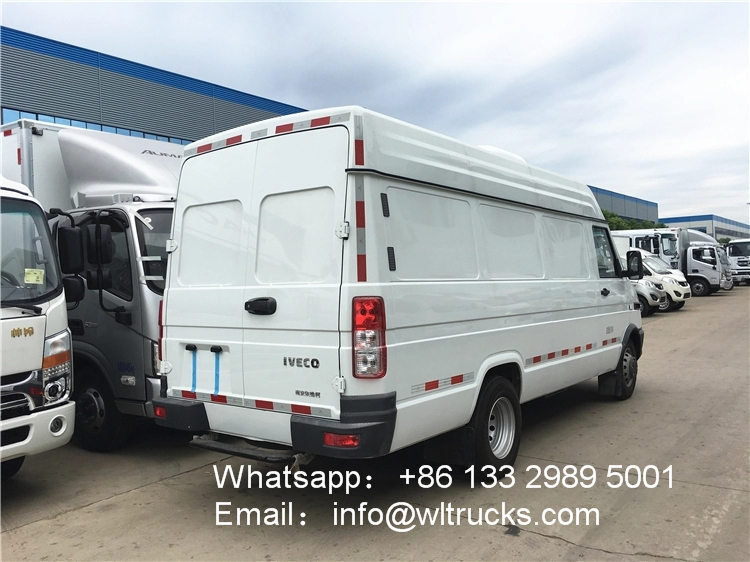

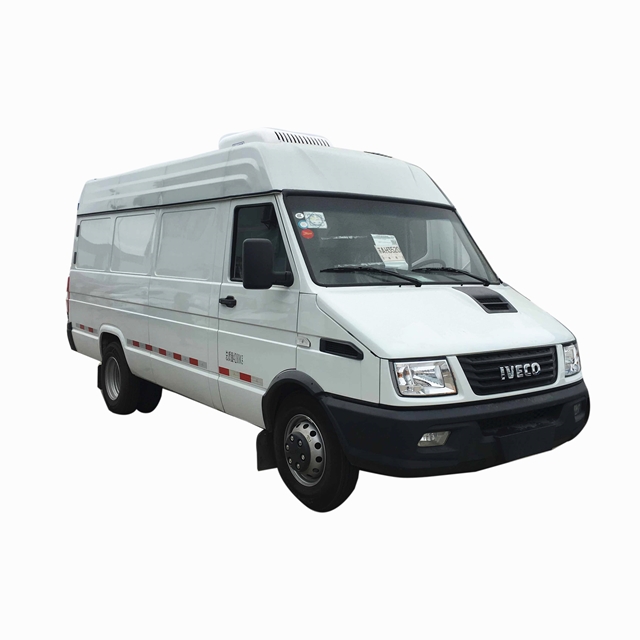

IVECO minibus 2 ton refrigerator truck
IVECO minibus 2 ton refrigerator truck specification:
No. |
Item |
Unit |
Specification |
1 |
Vehicle Name |
|
IVECO 2Ton refrigerator truck |
2 |
Drive type |
|
4*2 |
3 |
Steering type |
|
Left hand drive |
4 |
Gross Weight |
kg |
|
5 |
Payload |
kg |
|
6 |
Wheelbase |
mm |
2800 |
7 |
Overall Dimension |
mm |
4850*2000*2735 |
8 |
Van body size |
mm |
2100*1580*1480 |
9 |
Insulating layer thickness |
cm |
8 |
10 |
Van material |
|
Fiberglass reinforced |
11 |
Refrigerator unit brand |
|
Thermoking or Carrier |
12 |
Refrigeration temperature range( degree centigrade) |
|
-18 to 0 |
13 |
Chassis Model |
|
NJ5045XXYQA |
14 |
Chassis Brand |
|
IVECO |
15 |
Engine Model |
|
SOFIM8140.43S5 |
16 |
Displacement / Power |
ml/kw |
2798 / 95KW/ 129HP |
17 |
Emission Standard |
|
Euro 5 |
18 |
Fuel Type |
|
Diesel |
19 |
Tyre specification |
|
215/75R16LT |
IVECO minibus 2 ton refrigerator truck Working parameter:

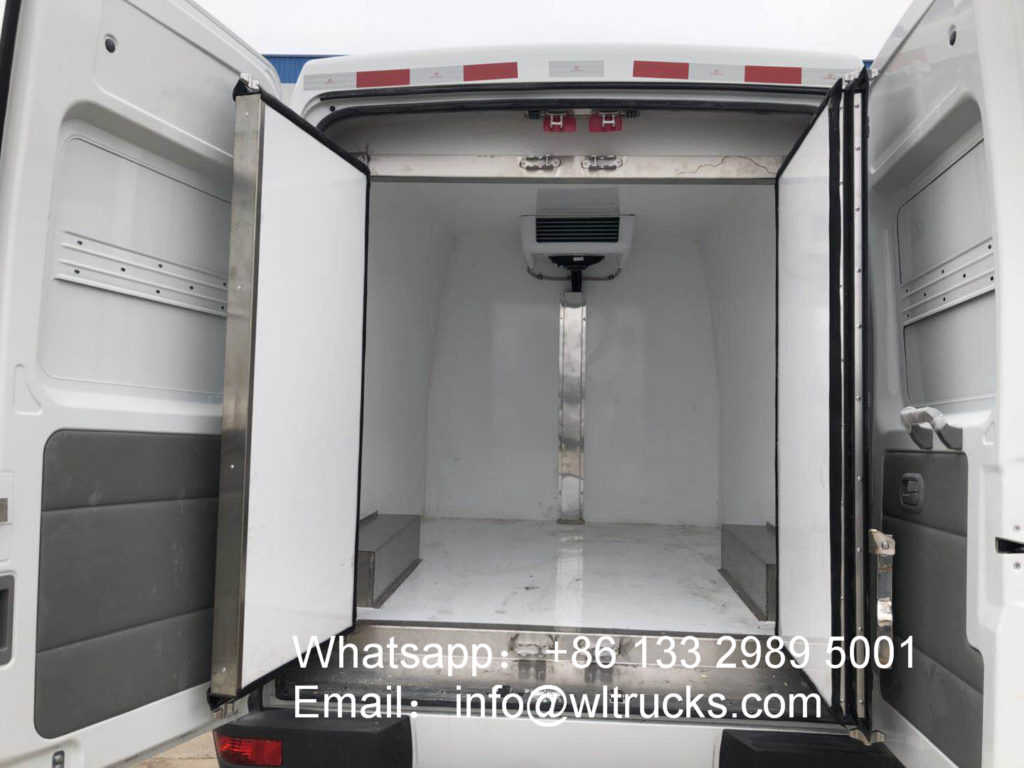

Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
