ISUZU fvr 12000liter vacuum sewage suction truck Specification:
ISUZU fvr 12000liter vacuum sewage suction truck Product parameters
| Complete Vehicle Parameter | |
| Vehicle | ISUZU vacuum sewage truck |
| Overall dimension (mm) | 7850×2470×3200 |
| Sewage tank (m3) | 10 |
| Gross vehicle weight (kg) | Appro×18000 |
| Curb weight (kg) | Appro×8048 |
| Payload (kg) | Appro×9757 |
| Wheel base (mm) | 4500 |
| Max speed (km/h) | 95 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 4×2 |
| Engine | Brand: ISUZU Model: 4HK1-TCG40, 190hp Type: diesel, turbocharged, 6 cylinder. Displacement: 5193ml Emission standard: Euro 4 |
| Transmission | 6 forward,1 reverse, manual operated |
| Tire model | 10.00-20 |
| No.of tires | 6pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 10000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |
ISUZU fvr 12000liter vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
ISUZU fvr 12000liter vacuum sewage suction truck Working parameter New craft
ISUZU fvr 12000liter vacuum sewage suction truck Optional configuration

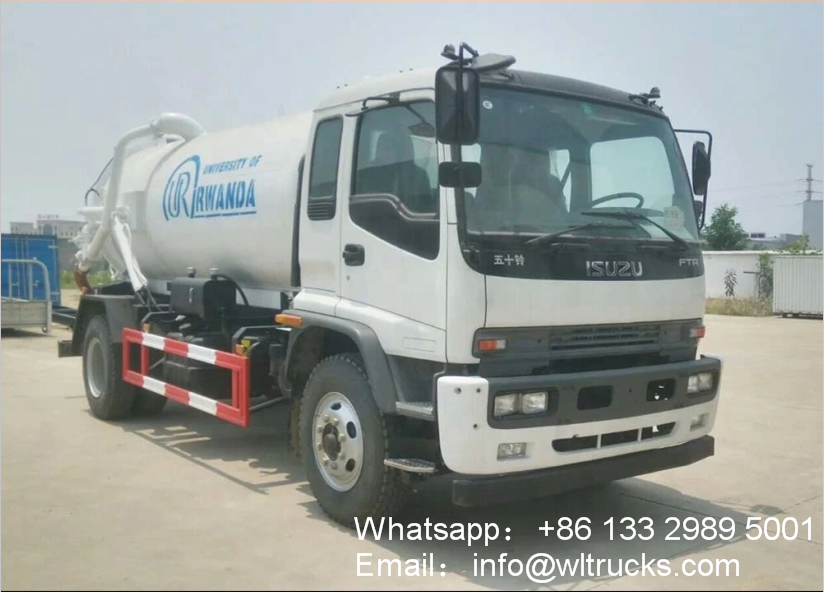

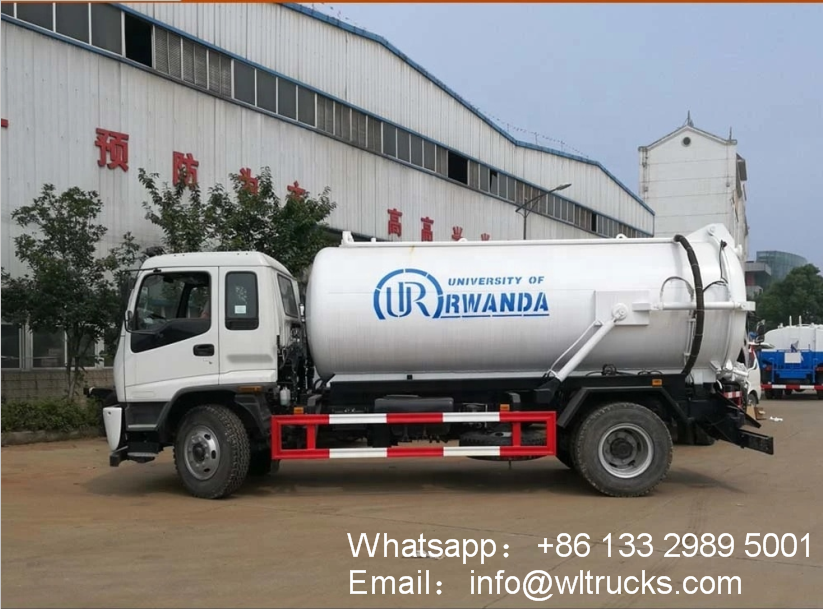

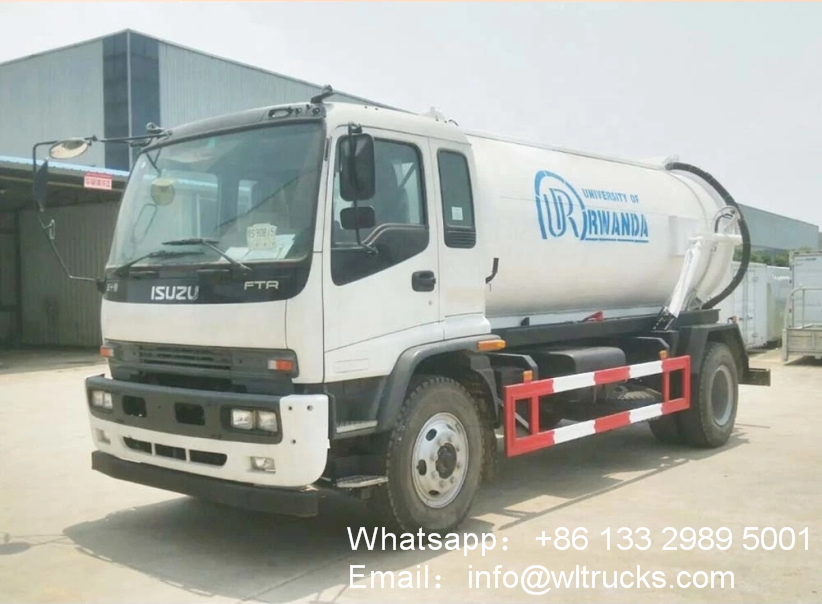

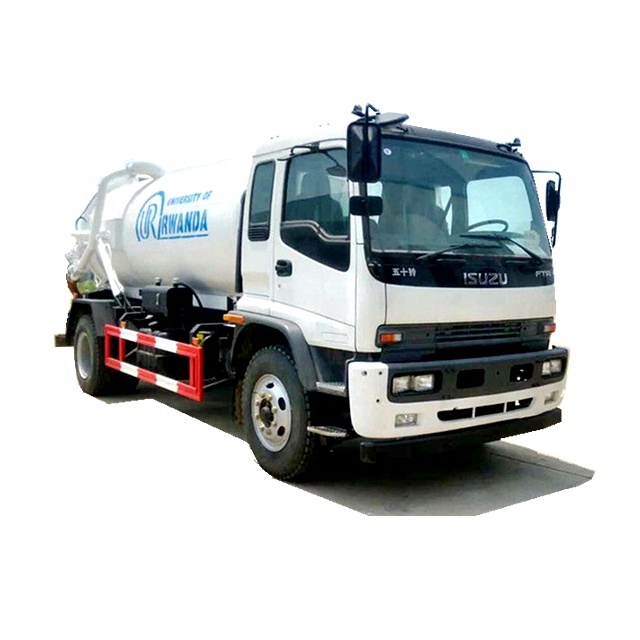

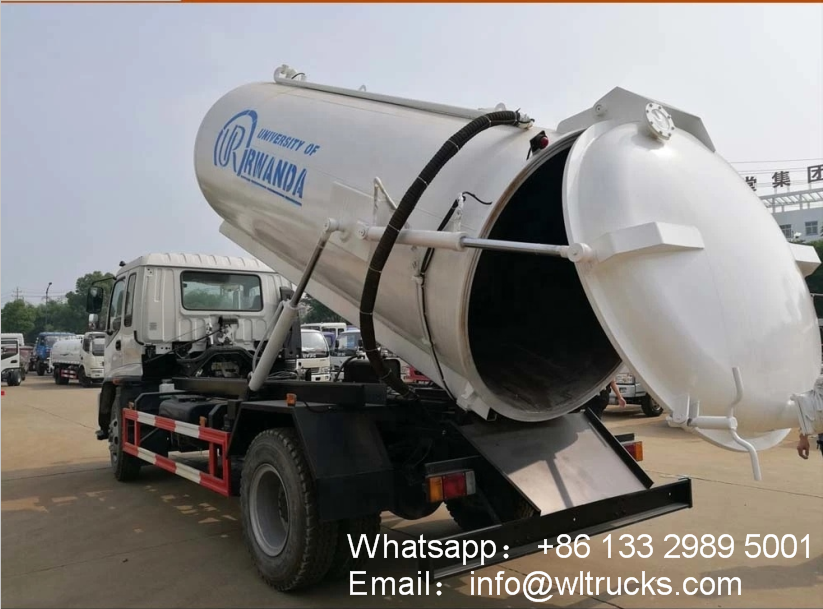

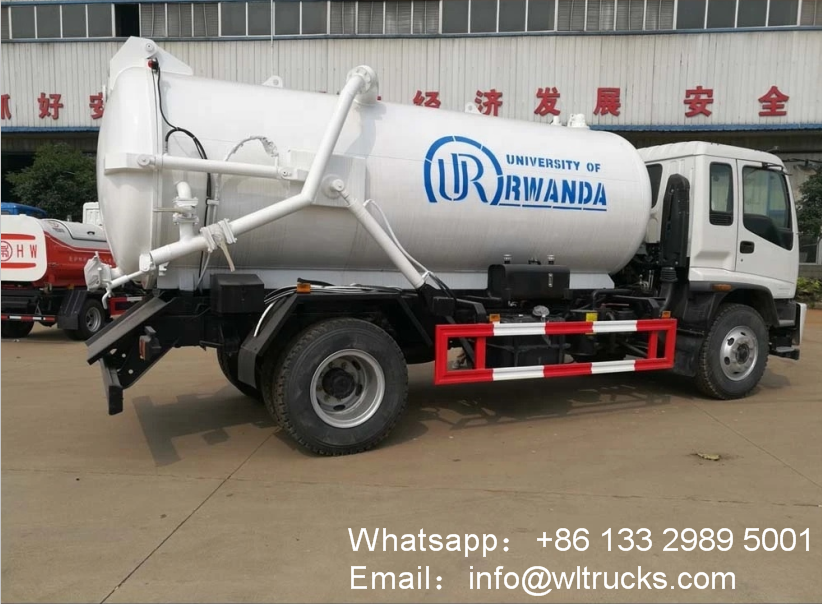

ISUZU fvr 12000liter vacuum sewage suction truck Detailed image
