ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Product Description:
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Chassis configuration: Equipped with Isuzu’s 205 horsepower efficient fuel-saving engine, with strong power, equipped with original ABS, heating and cooling air conditioning, good sealing of the cab, and wide vision.
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Bodywork configuration: Compression volume 10m3 to 14m3, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, double pump confluence + double valve control, Zhongmei multi-way valve, Siemens PLC control, electric light switch 2 sewage collection boxes, 3 operation control boxes, with night lighting, equipped with two-way compression function, the two-way hydraulic lock does not leak.
Optional configuration: optional bucket rack, triangle bucket, fully sealed bucket, swing arm device.
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Specifications:
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 8500×2490×3250 | |
| Wheel base (mm) | 4500 or 4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 6300/13000 kg, | ||
| Approach/departure angle | 19/12 | ||
| Weight in KGS | Curb Weight | 9850kg | |
| GVW | 15800kg | ||
| Max. driving speed(km/h) | 98 | ||
| Engine | Brand | isuzu Brand,Diesel ENGINE | |
| Model | 4HK1-TCG40 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 205hp | ||
| Emission standard | Euro IV | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20,9R22.5 or 10R22.5, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 12cbm or 14cbm | ||
| Body material | Floor plate 5mm and side plate 4mm | ||
| Waste water tank | 200L | ||
| Filling container volume | 500L | ||
| Filling time | 8~10s | ||
| Filling cycle time | 50~60s/time | ||
| Discharge time | 30~40s | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck New craft:

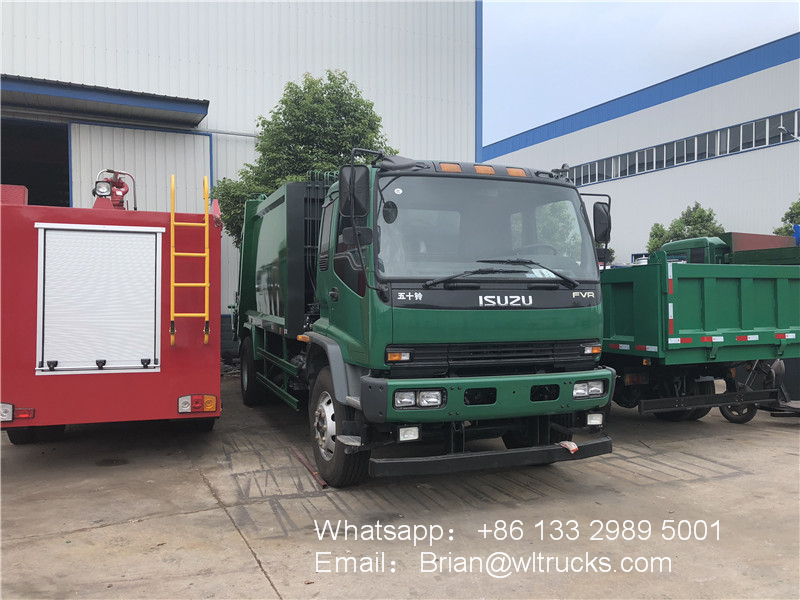

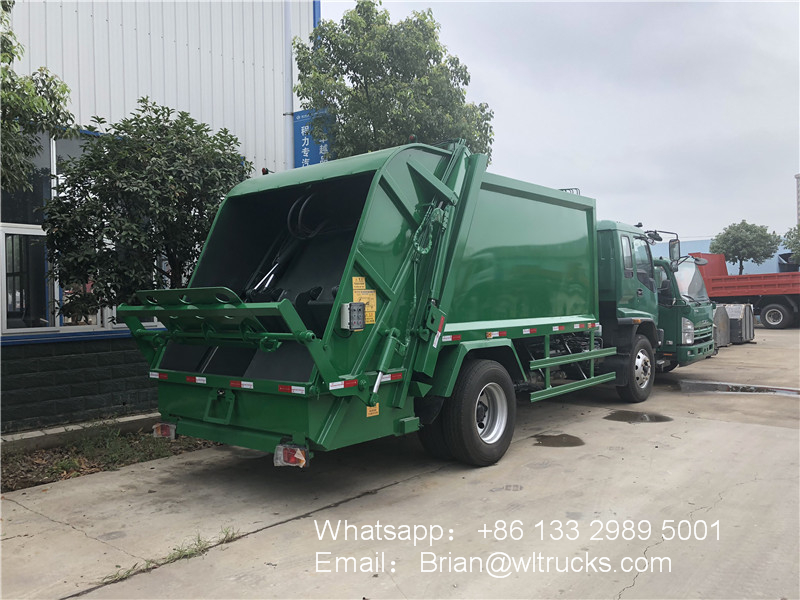

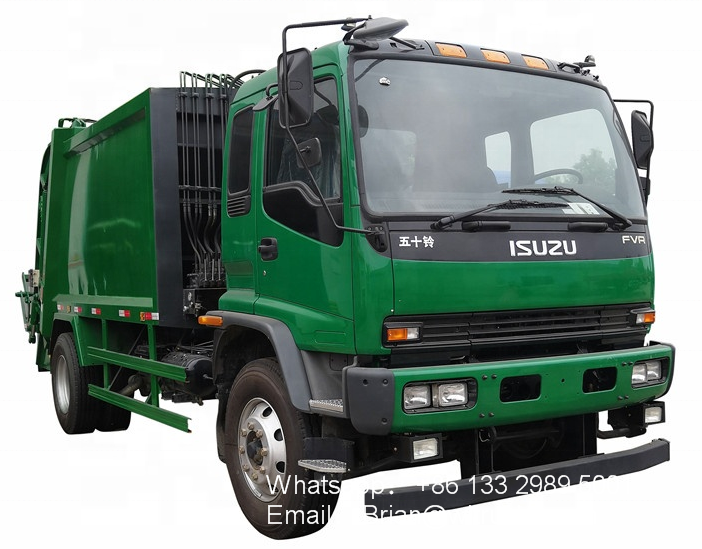

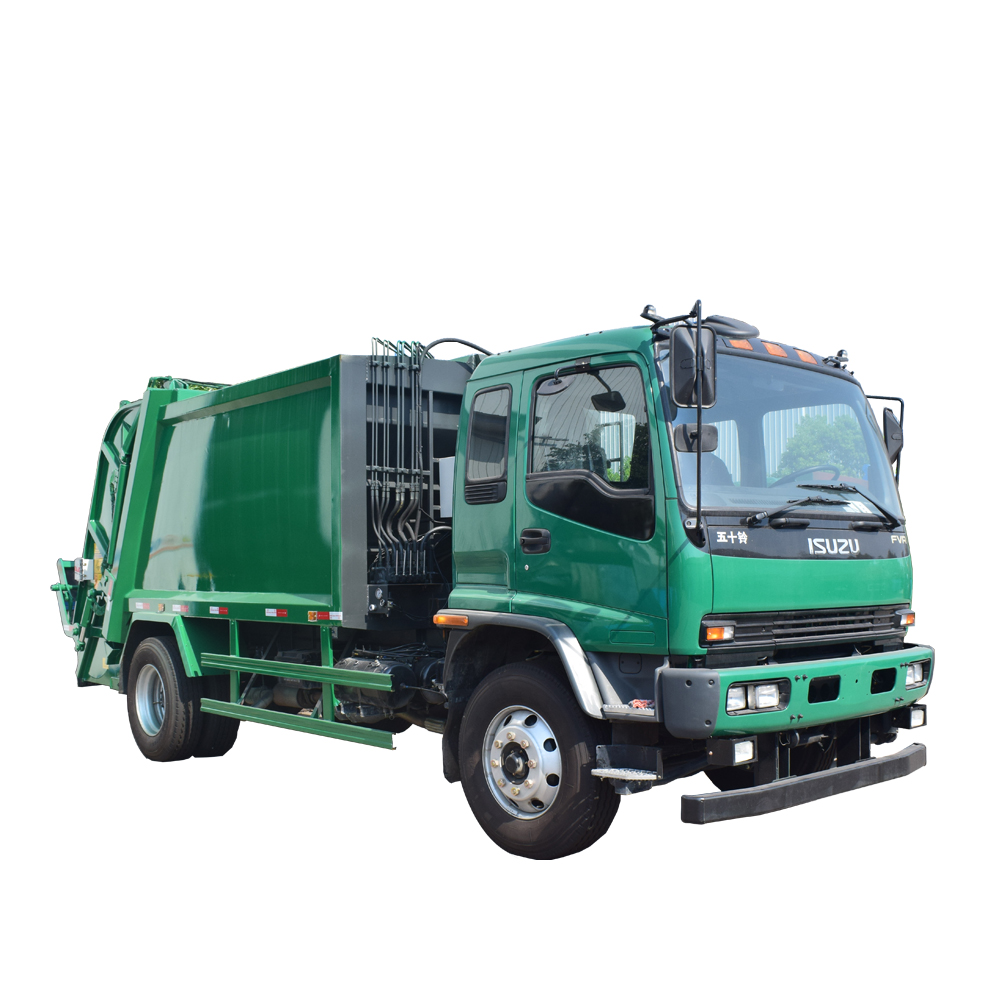

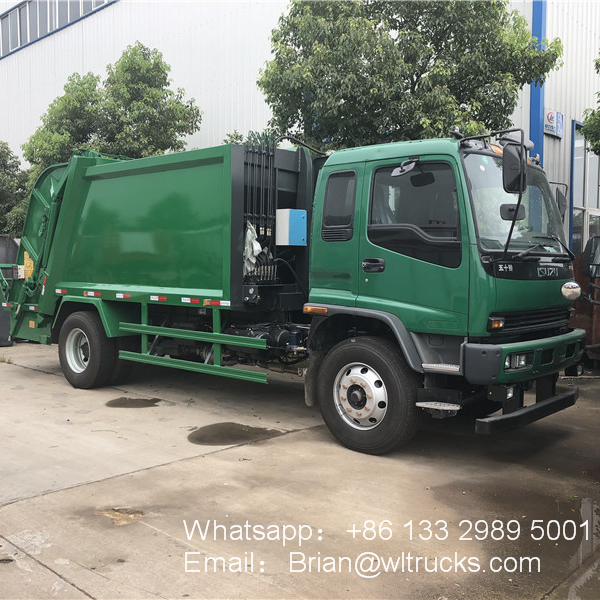

ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Detailed Images:
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Structure diagram：
ISUZU ftr 12000 liter to 15000liters Garbage compactor truck Detail drawing:
