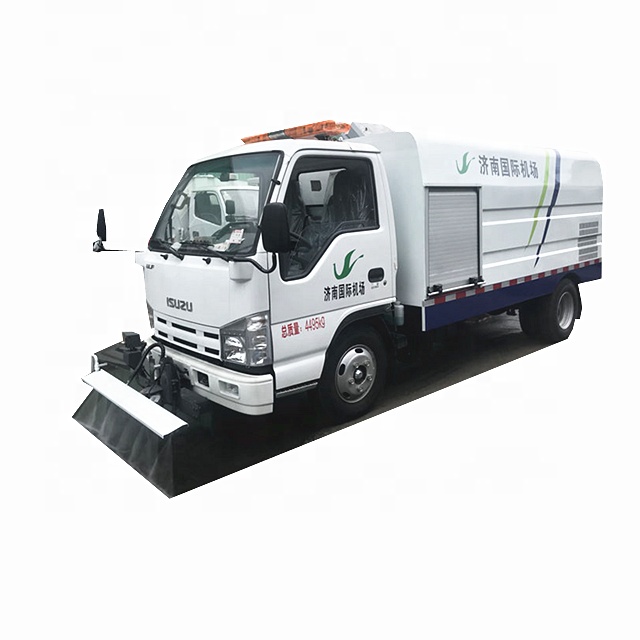

ISUZU ELF 5000 liter mobile street washing truck Adopts ISUZU LEF 100P cab, Euro IV 98 horsepower diesel engine, high-pressure water curtain formed by the front 7 nozzles, and an angle of 30 degrees to the left and right can effectively clean the road.
The single-point dredging with a left and right angle of more than 45 degrees can remove stubborn stains to the greatest extent. The rear 20-meter high-pressure reel with multiple angle cleaning guns is a good helper for removing small advertisements.
The authentic Honda gasoline engine and the Italian high-pressure pump provide stable and reliable performance. The high-quality electric actuator system runs smoothly.
products Features:
Road cleaning truck is also called street washing truck, is a new type of multi-function pavement cleaning maintenance car which can clean sidewalks, non-motor vehicle driveways, oil stain road, etc.
1. Italy imported high-pressure water pump, high pressure pump is driven by gasoline engine and non-interference with external driving systems.
2. Vice engine is international famous brand gasoline engine.
3. Front sprinkler rack’s spray width is 1.5m, the system pressure maximum is to 10mpa.Impored slit nozzle, high pressure jet-flow, controlled flow, long continuous operation time. Site-specific cleaning device can spin up, down, left, right to clean up footpaths, blind Angle.
4. Seven hole cleaning device with high pressure pipe can clean 15m width which used to clean roadway which other vehicles cannot enter.
5. It is equipped with manual spray water pistol and hand push type spray tube, cleaning functions are diversified, can clean small ads, pedestrian ways, curbs ,billboards and other kinds of public facilities, is convenient and flexible operation.
6. The water tanker is installed with low water viewer, which can prevent damage of high pressure water pump for lack of water.
7. Factory direct sale, low price and high quality.
ISUZU ELF 5000 liter mobile street washing truck Specification:
| product name: | I-SUZU GLF 5000 liter Street cleaning truck | Dimensions (mm): | 5980x2200x2100 |
| Effective volume : (kg) | 5000 | Emission Standards: | Country V (Country V) |
| Configuration instructions | |||
| Water tank material | Q235B (304 stainless steel) | High pressure pumps | GC50/12 (Italy) |
| Power generation machine | Honda (HONDA) GX390 | ||
| Function Description | |||
| Cleaning width | >1.5 meters | Water pressure | 12 Mpa |
| flow | 30-50 L/min | Drive mode | Gasoline engine driven by reducer or V belt |
| Continuous working time | 50 hours | ||
| Vehicle parameters | |||
| Total mass: (kg) | 8650 | Approach/departure angle (°) | 34/22 |
| Rated quality: (kg) | 5000 | Front overhang / rear overhang (mm): | 560/1120 |
| Curb weight: (kg) | 3620 | Maximum speed (km/h): | 120 |
| Axle load: | 560/1120 | ||
| Chassis parameters | |||
| Chassis model: | QL1027DAC5 | batch: | 290 |
| Number of axes: | 2 | Fuel type: | diesel |
| Wheelbase (mm): | 3300 | Front track (mm): | 1360 |
| Rated passengers: | 2 (including driver) | Rear track (mm): | 1360 |
| Number of tires: | 4 | Number of springs: | -/6 |
| Tire specifications: | 700-16 | ||
| Engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| 4HK1 | ISUZU | 2680 | 75 |
Small high pressure cleaning truck composition structure:

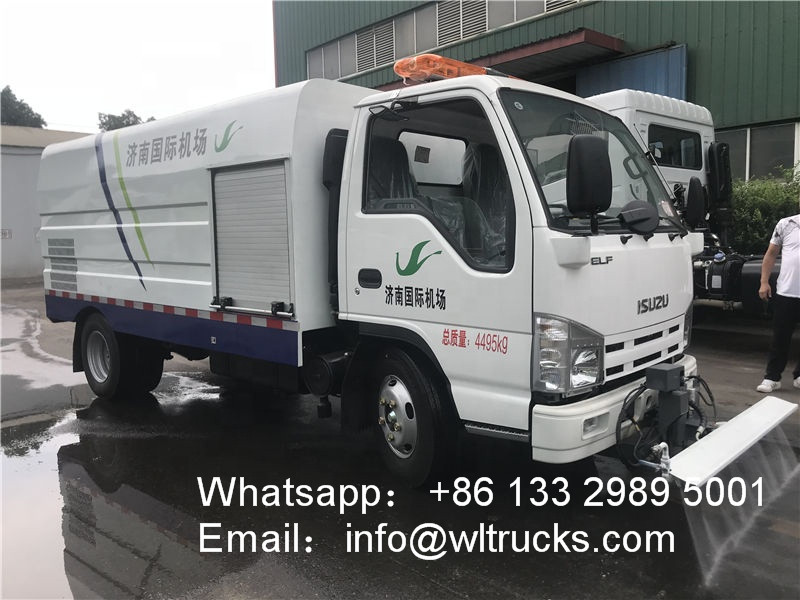

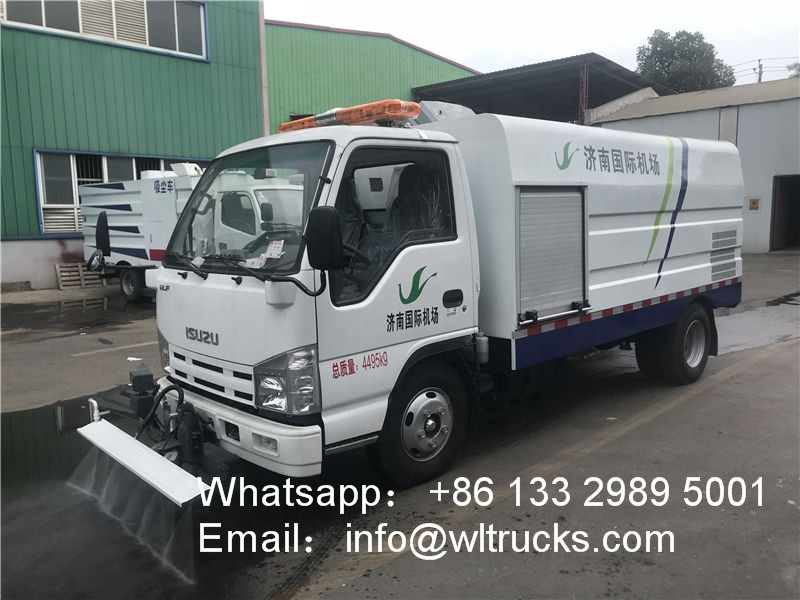

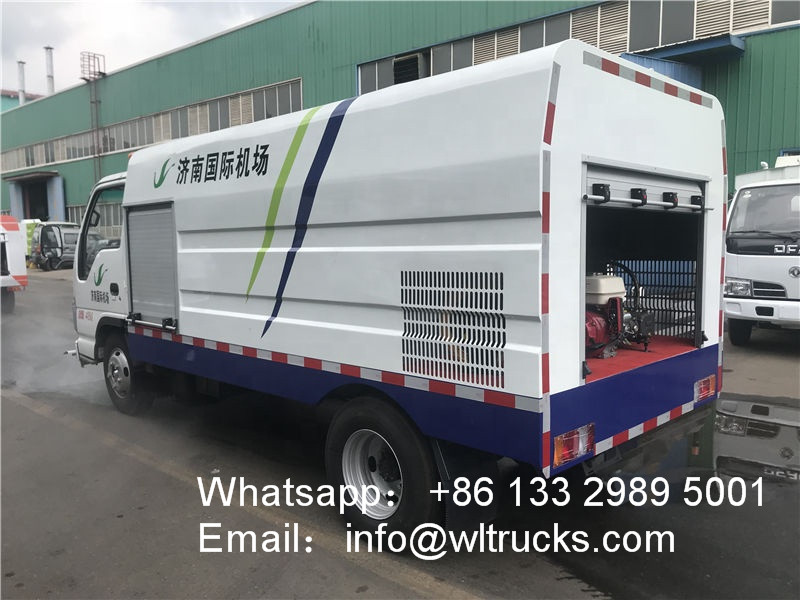

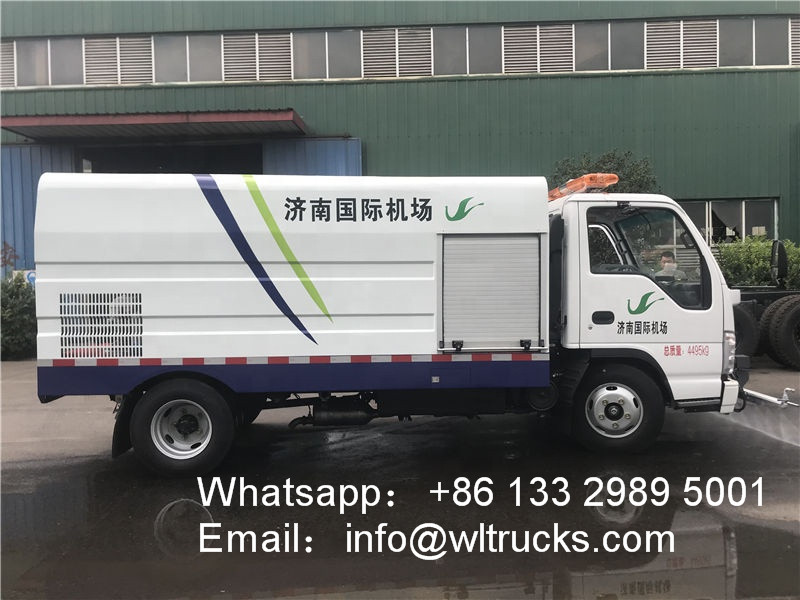

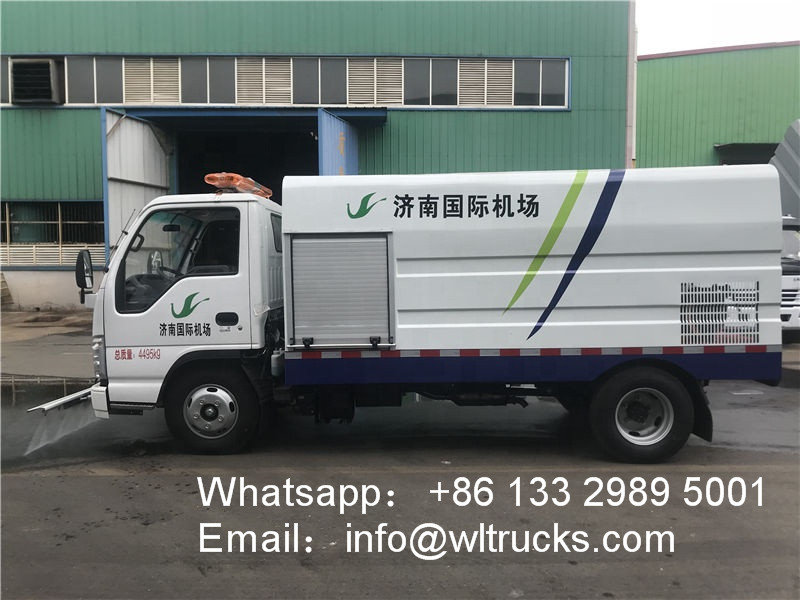

mini high pressure washing truck working photos：
clean truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
wash truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
