ISUZU ELF 10m3 to 15m3 hook arm garbage truck Product Description:
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Chassis configuration: ELF 700P single-row / one-row semi-cab, luxurious interior, Isuzu 190 horsepower engine, Isuzu six-speed gearbox, 3900mm to 5200mm wheelbase, 900 steel tires, ABS, dynamic rotation, 7T rear axle, air brake .
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Bodywork configuration: the volume of the car body is 10 to 15 cubic meters, made of high carbon steel plate, anti-rust in the internal knowledge, hydraulic pump, multi-way valve, the car can be unloaded, the cab can be operated, and other manufacturers standard. A set of pull arm hook loading system is adopted, and the pull arm hook swings through the expansion and contraction of the oil cylinder to complete the hook loading, hook unloading and unloading work of the sealed garbage bin.
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Specifications:
| Vehicle parameters: | |
| Overall dimensions (length * width * height) | 8460*2350*3250mm |
| Total mass | 15000Kg |
| Rated contained mass | 9500Kg |
| 68500Kg | |
| Wheelbase | 3800mm to 5200mm |
| Front overhang / rear overhang | 1210/2150 ,1210/2450mm |
| Approach / departure angle | 24/13 |
| Chassis parameters | |
| Drive form | 4*2 |
| Wheelbase | 3800mm to 5200mm |
| Engine model | 4HK1-TC51 |
| Engine power (kw) | 136 |
| Emission Standards | ERUO 4 |
| Top loading parameters: | |
| Effective volume of the box | 10M3 to 15M3 |
| Box material | Bottom 4 sides 4 |
| Compression ratio | ≥2.5 |
| Loading cycle once | ≤35 s |
| Pushing garbage time | ≤35s |
| control method | automatic / manual |
| Hydraulic system pressure | 16MPa |
| Multiple way reversing valve | Yangzhou Zhongmei |
| Hydraulic oil pump | Hefei Changyuan (Zhonglian Heavy Industry) |
| PLC control system | Siemens, Germany |
| Engine power control | Fully automatic control |
| Tumbler mechanism | Hang two 240L trash cans at the same time (Optional other types of flip frame) |
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
ISUZU ELF 10m3 to 15m3 hook arm garbage truck New craft:
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Optional configuration:

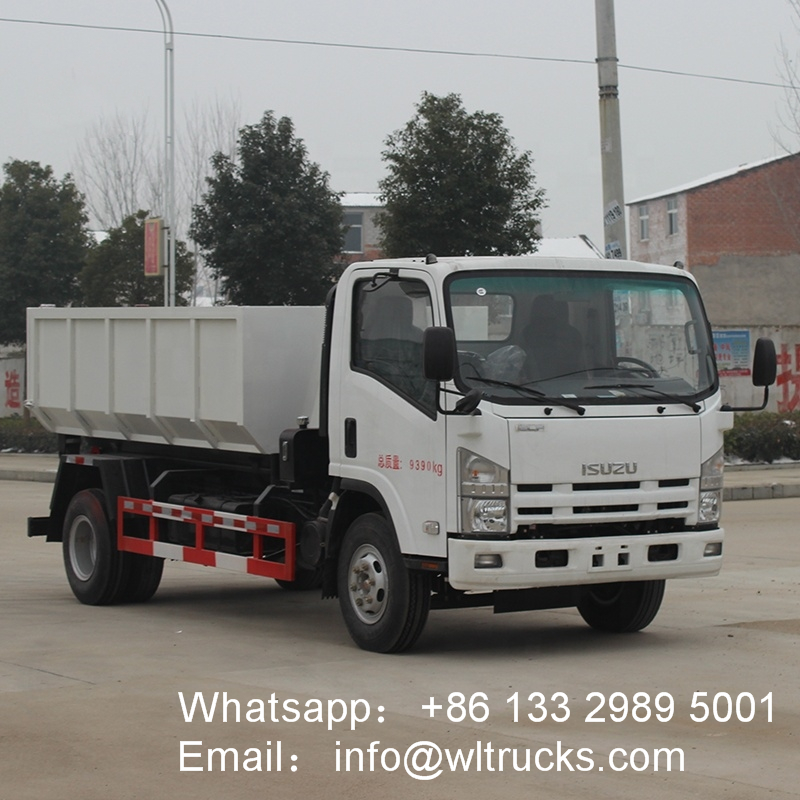

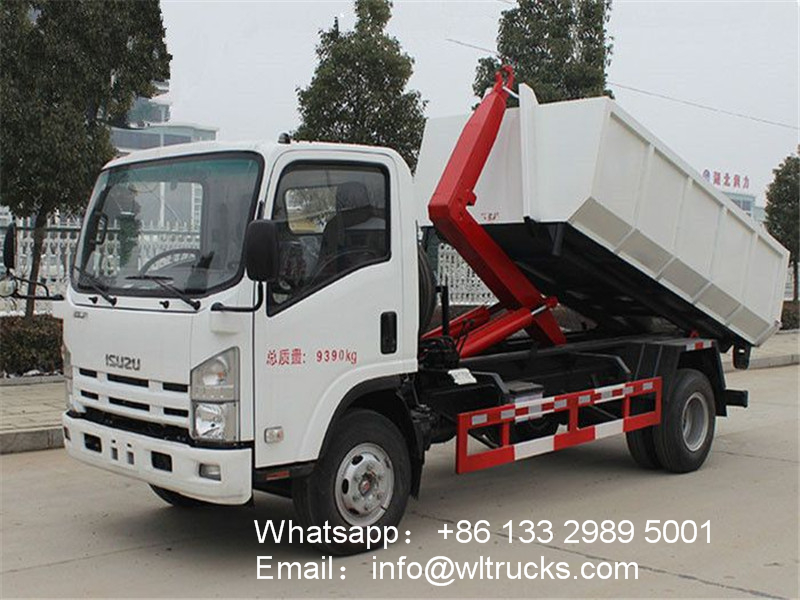

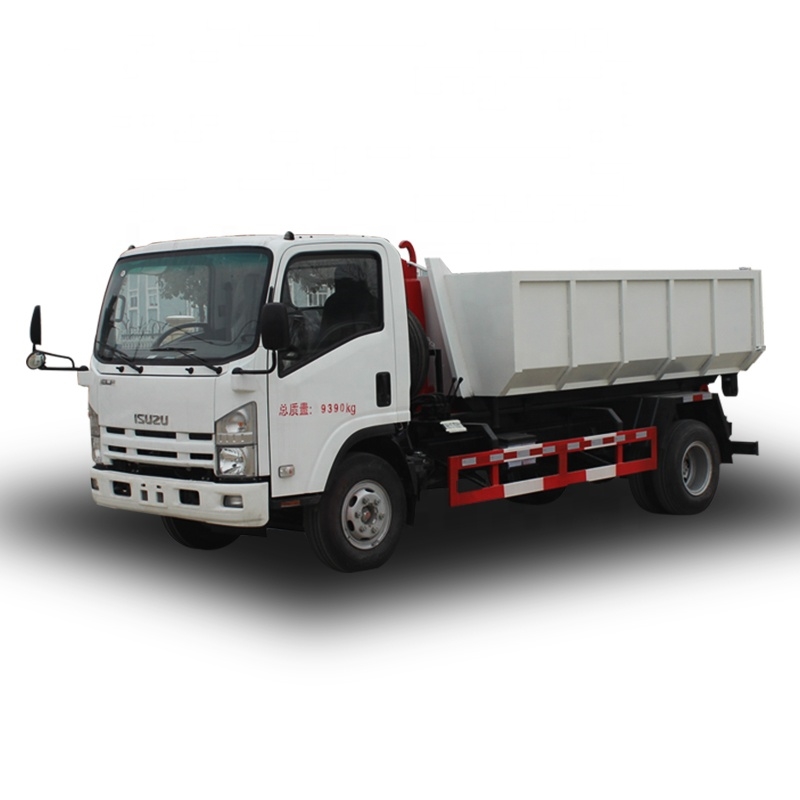

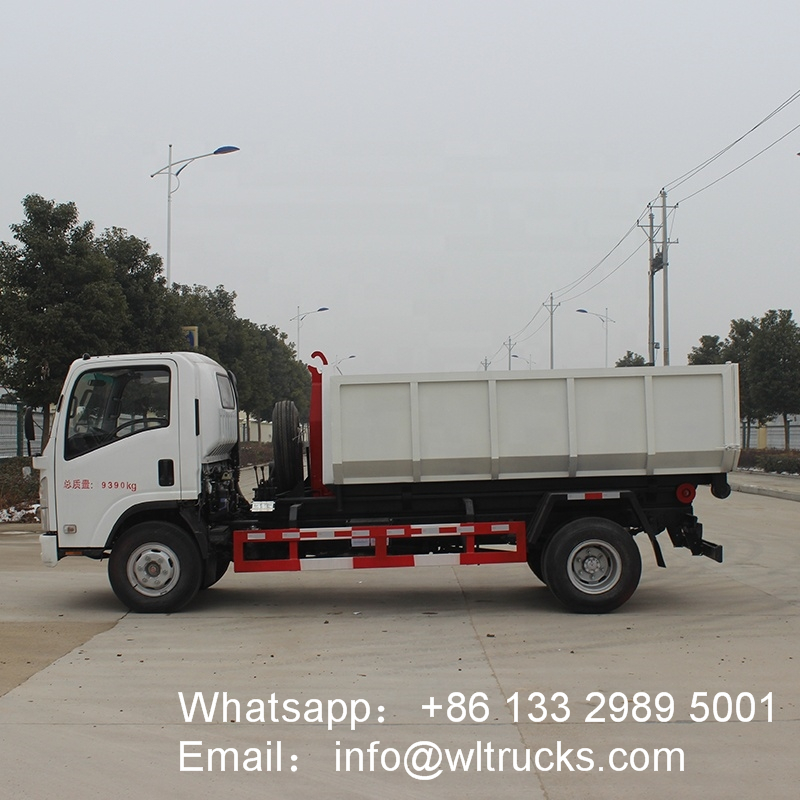

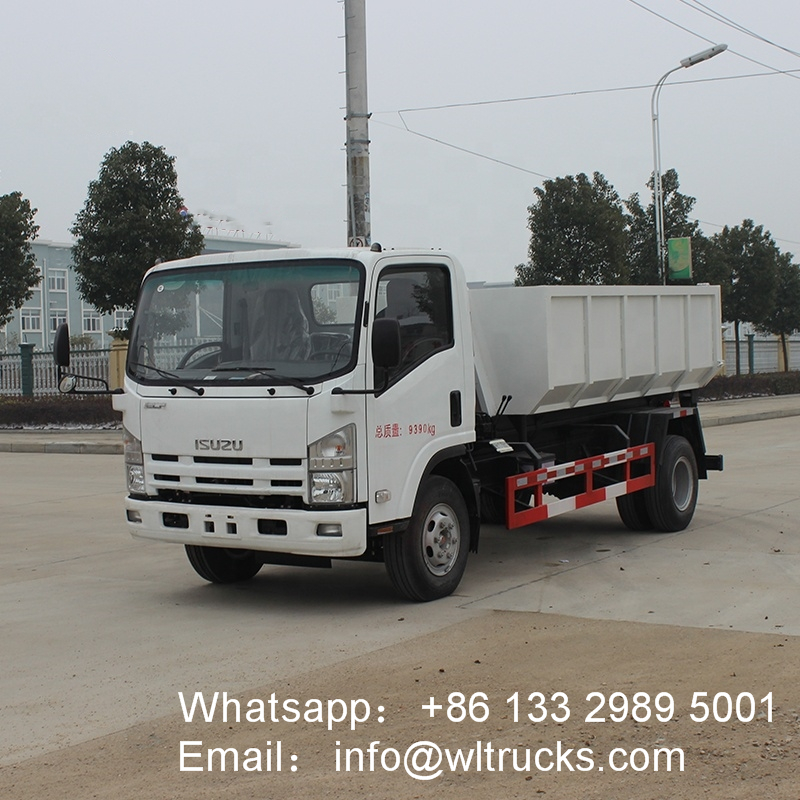

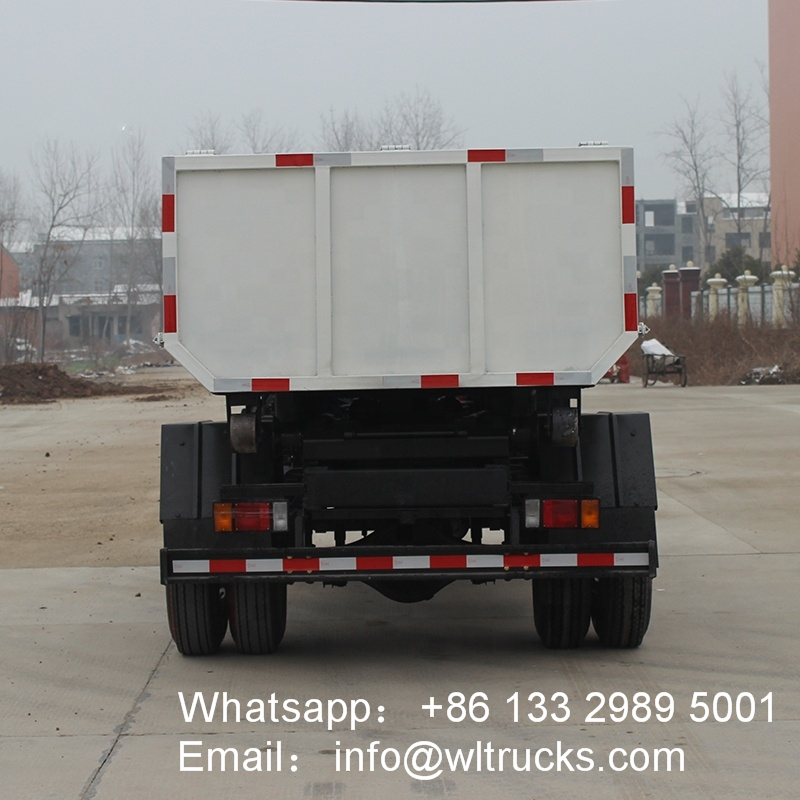

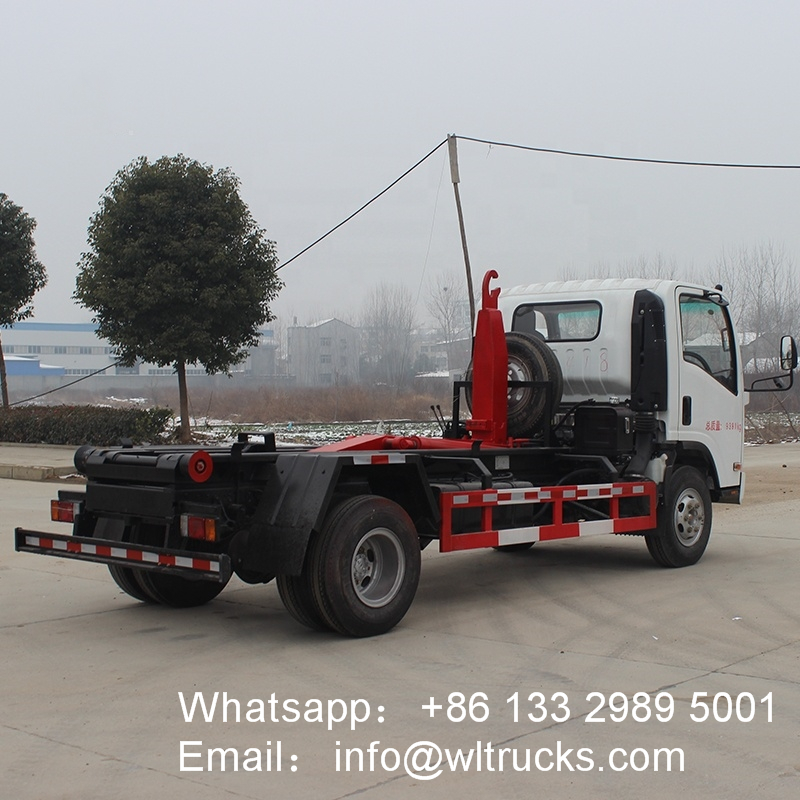

ISUZU ELF 10m3 to 15m3 hook arm garbage truck detailed images:
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Structure diagram：
ISUZU ELF 10m3 to 15m3 hook arm garbage truck Detail drawing:
