ISUZU 8000 liter vacuum sewage suction truck Specification:
ISUZU 8000 liter vacuum sewage suction truck is cylindrical in shape, using WISCO 6mm thick high-quality carbon steel plate, with a suction window in the front of the tank, hand washing device, lifting device, 5 meters of suction pipe, and more Various colors are selected, and the rest are made according to the standard configuration in the factory.
The truck is equipped with a high-power vacuum suction pump and a high-quality hydraulic system. The tank head is die-casted at one time, the tank can be opened back, and the double top is self-unloading. The dirt in the tank can be directly dumped through the back cover, which has the characteristics of high vacuum (larger suction power than the suction truck), large tonnage, high efficiency and wider use.
ISUZU 8000 liter vacuum sewage suction truck (vertical suction: ≥8 m, working pressure: 8500Pa, theoretical pumping speed: 120L / S, shaft power: ≤13kw, inlet and exhaust caliber: 50mm, pumping time for full tank: <5 min, time to drain the tank: <4min.
Optional configuration: hand washing device, liquid level sight tube, rear window, hydraulic alarm device, sprinkler function, high pressure cleaning function.
|
|
|||
|
Product Name
|
Japanese sewage truck 5m3 sewage suction truck
|
||
|
Specifications
|
1.isuzu 5-6cbm sewage suction truck
2.Volume:5-6cbm 3.Engine:120hp 4.we can do it according to your orders |
||
|
product description
|
Suction sewage truck, also called vacuum sewage, sewage pollution models, is to collect, clean up the transport, sewage sludge,
and avoid the secondary pollution of sanitation vehicles, new car pollution can be self-priming since the row, working speed,
large capacity, transportation is convenient, applicable to collect feces, mud, oil and other liquid material transport. Pollution
car adopts the advanced technology of pollution vacuum pump, the suction, suction cjay, especially suitable for the drain suction
of warp, the loading and unloading, especially can suck a drain mud, mud, stones, bricks and other large objects.
|
||
|
Chassis brand
|
isuzu
|
Volume of tanker
|
5000L-6000L
|
|
Overall size
|
5990×1980×2450(mm)
|
Wheel base
|
3300(mm)
|
|
Gross weight
|
4495(Kg)
|
Power steering
|
Equipped
|
|
Curb weight
|
2870(Kg)
|
Vacuum pump
|
Equipped
|
|
Max load
|
4800(Kg)
|
Material of tank
|
Carbon Steel
|
|
Axle load
|
1800/2695
|
Capacity
|
6000Liters/min
|
|
Suction meters
|
16-18M
|
|
|
ISUZU 8000 liter vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
ISUZU 8000 liter vacuum sewage suction truck Working parameter New craft
ISUZU 5000 liter vacuum septic tank truck Optional configuration

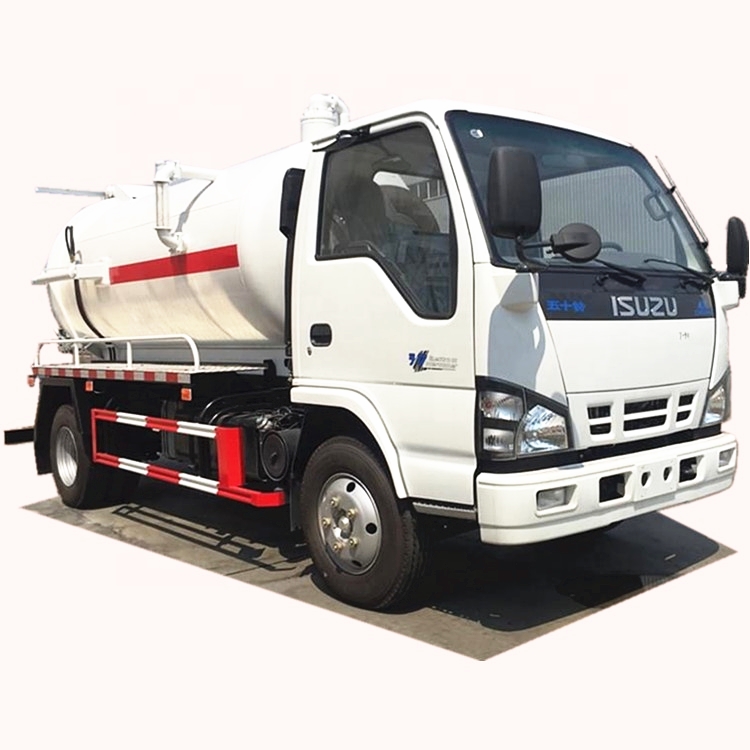

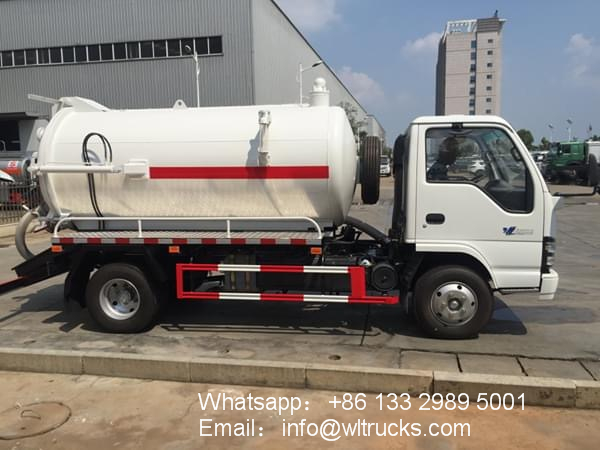

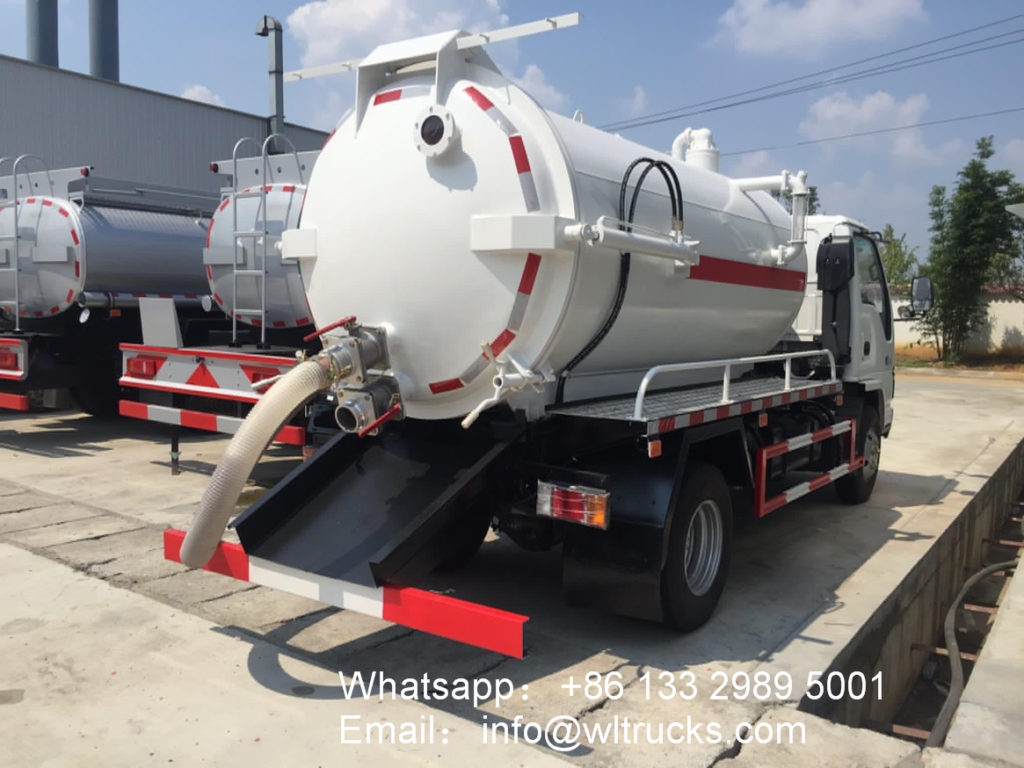

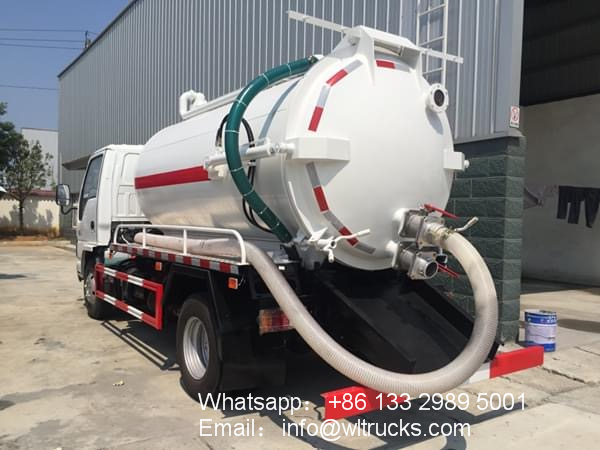

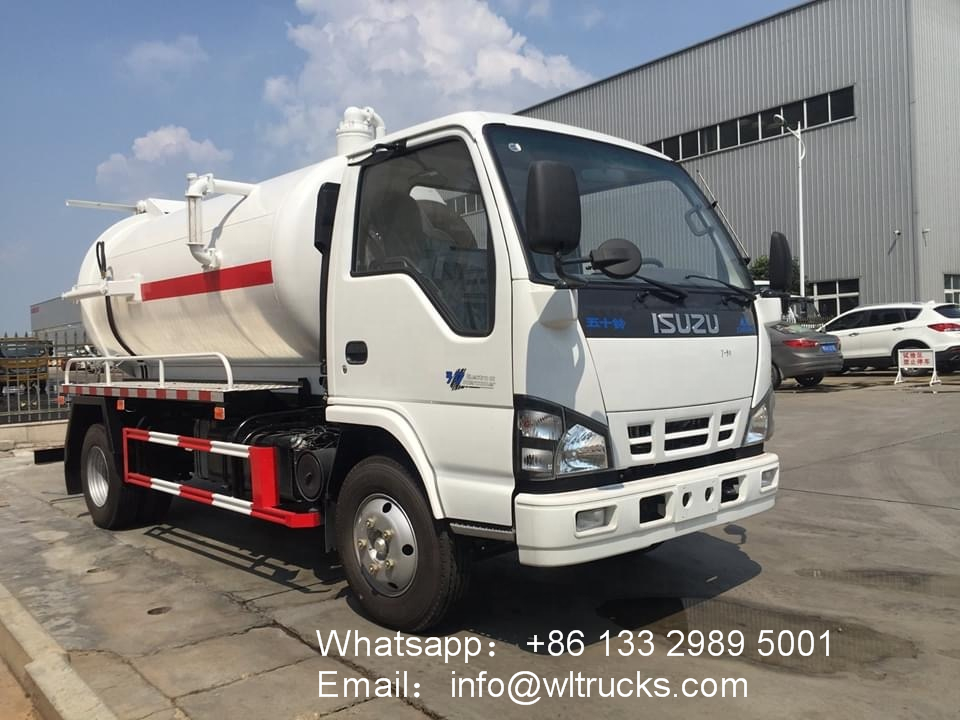

ISUZU 5000 liter vacuum septic tank truck Detailed image
