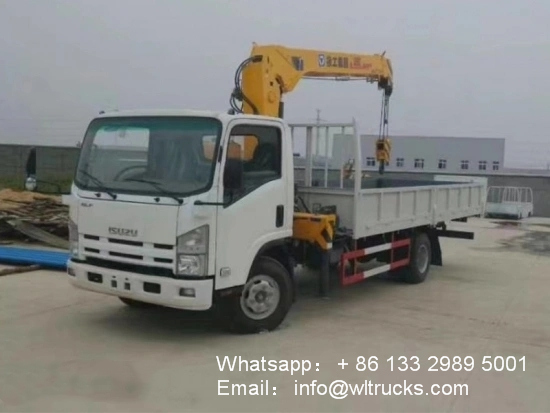

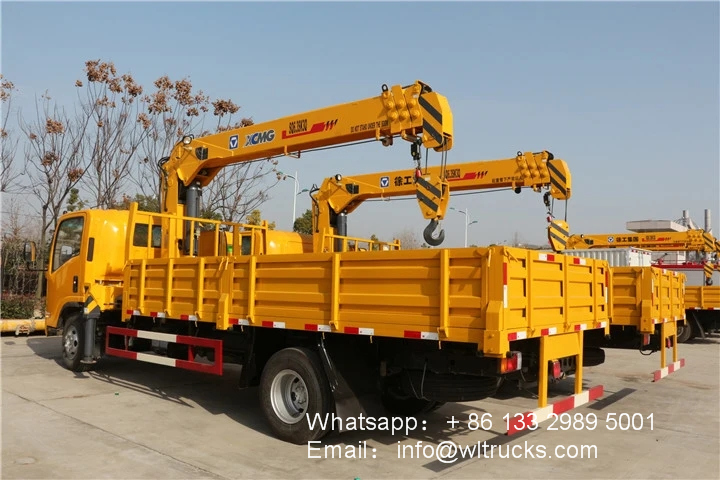

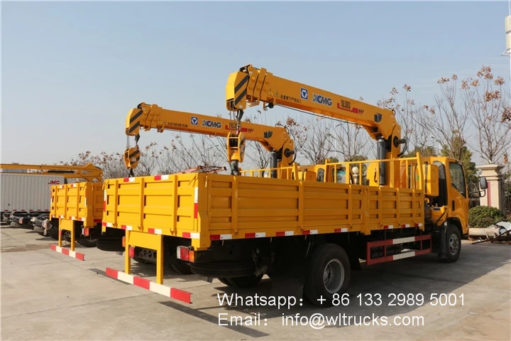

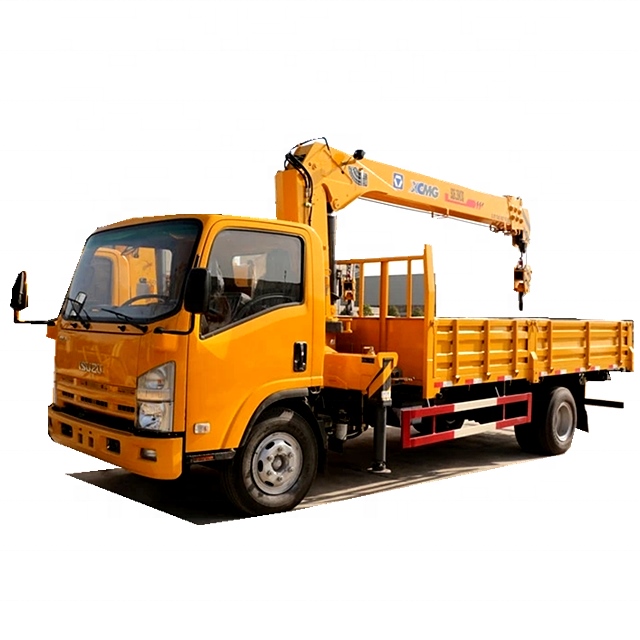

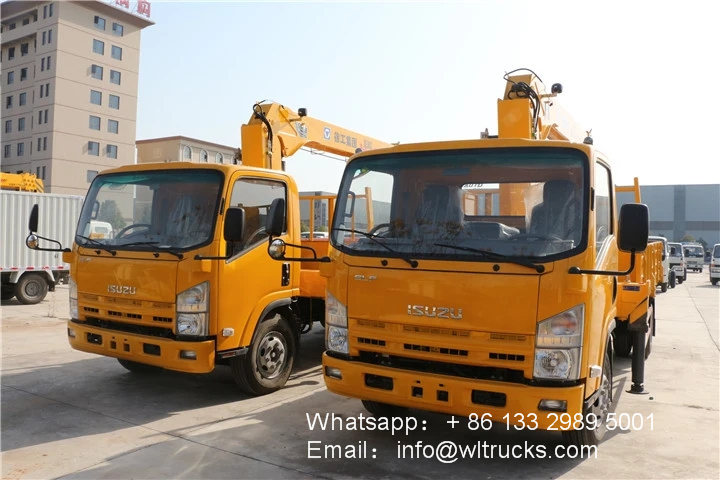

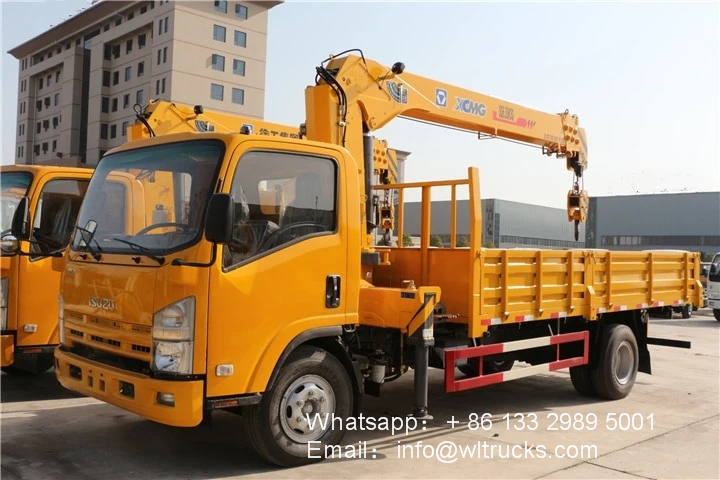

ISUZU 700P 6ton to 8ton truck crane
ISUZU 700P 6ton to 8ton truck crane Adopt Isuzu 700P single-row flat-roof cab, Isuzu 190 horsepower engine, 6-speed gearbox, 7-ton reinforced cast rear axle, full-vehicle 9.00 steel tires, wheelbase 5000mm, cargo box standard can be done 5.46 meters, optional manual expansion Or hydraulic telescopic cargo box, the rear can be equipped with ladders, pull excavator, multi-function vehicle.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
ISUZU 700P 6ton to 8ton truck crane specification:
| Vehicle information Items | Technical parameters |
| Brand of chassis | ISUZU |
| Overall dimensions ( L * W * H) | 7850x2350x2950 mm |
| Cargo dimension ( L * W * H) | 5100 x 2200 x 500 |
| Wheel base | 5000 mm |
| Axle load (kgs) | 1610(front)/3810(rear) |
| Tire | 7.00-16 nylon tire (6+1 spare) |
| Engine | YN |
| Emission Standard | Euro 4 |
| Engine horsepower | 190 HP |
| Front overhang and rear overhang | 1015/1975 mm |
| Approach angle /Departure angle | 24/13 |
| Cabin seat | 2+3 |
| Max.speed | 105 km/h |
| Operation control system | Steering wheel |
| Liberation of Sany 7 tons / 8 tons truck crane parameters | ||||
| Trinity 7 tons four-section arm | Trinity 8 tons four-section arm | Xugong 6.3 tons four-section arm | Xugong 8 tons four-section arm | |
| Lifting capacity (kg) | 7000 | 8000 | 6300 | 8000 |
| Farest lifting weight(kg) | 690 | 800 | 600 | 1100 |
| Working radius (m) | 12 | 14 | 11 | 11.5 |
| Lifting height (m) | 14.6 | 16.1 | 12.8 | 13.5 |
| Crane weight (kg) | 2650 | 3820 | 2290 | 3315 |
| Leg span (mm) | 2280-5200 | 2280-5600 | 2280-5100 | 2280-5580 |
| Swing angle | 360 degree full swing | 360 degree full swing | 360 degree full swing | 360 degree full swing |
ISUZU 700P 6ton to 8ton truck crane Working parameter:
