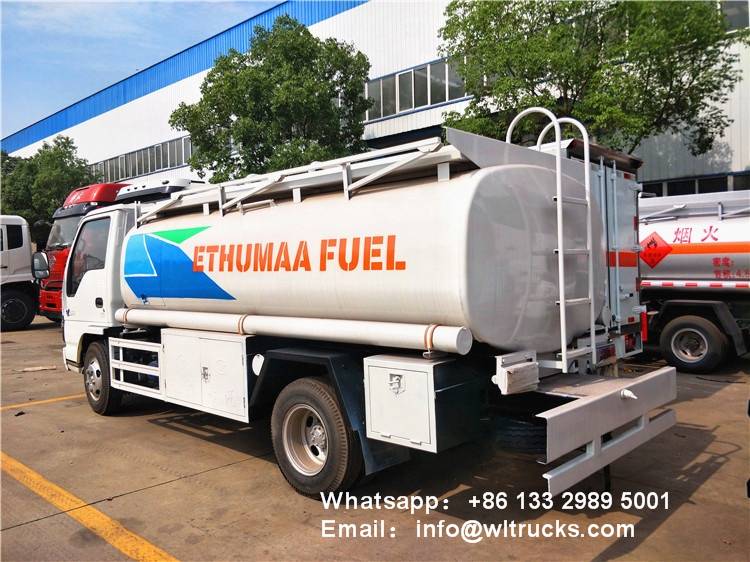

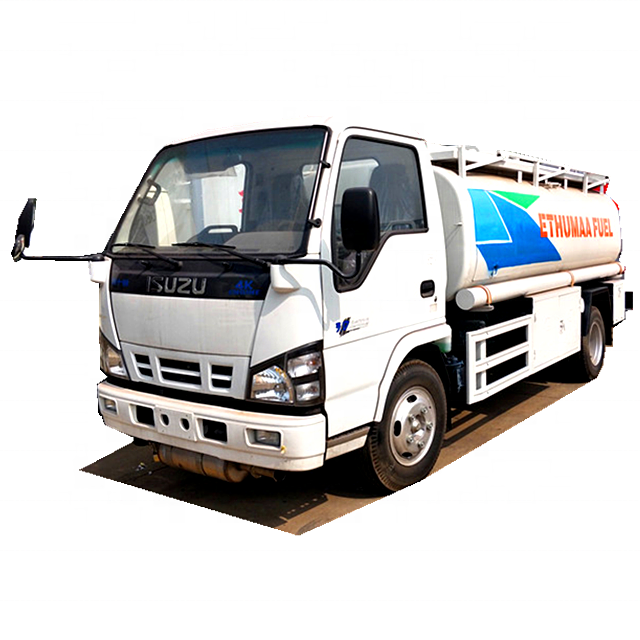

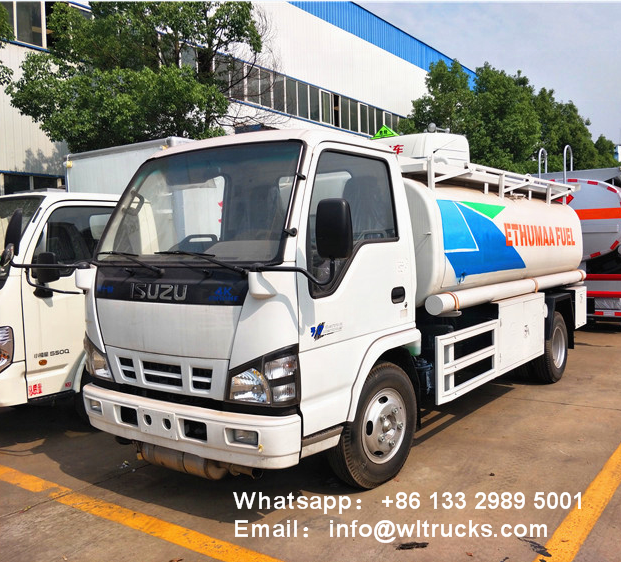

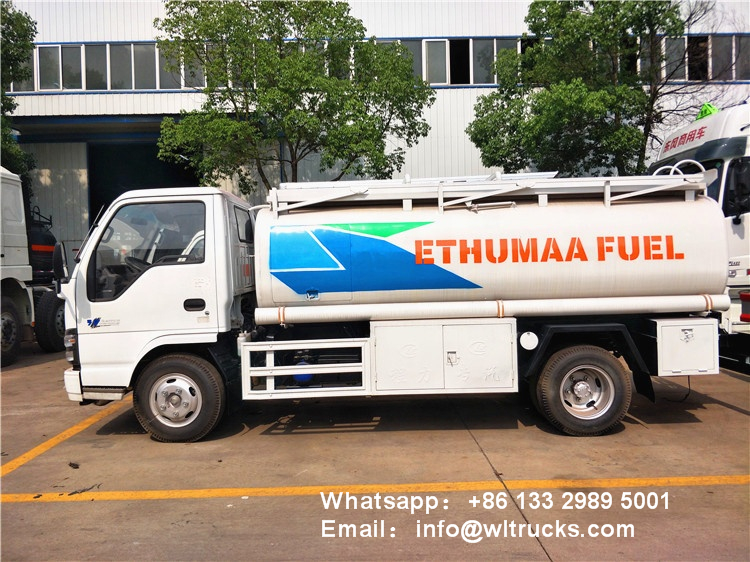

ISUZU 600p 8000L fuel delivery trucks
ISUZU 600p 8000L fuel delivery trucks Chassis model: QL1060A1HAY, engine model: 4KH1-TCG40, engine horsepower is Isuzu engine 120 horsepower, engine manufacturer: Qingling Isuzu (Chongqing) Engine Co., Ltd., wheelbase: 3360MM, tire: 7.00-16 14PR steel wire Tire, with front disc brake, ABS, speed limit device.

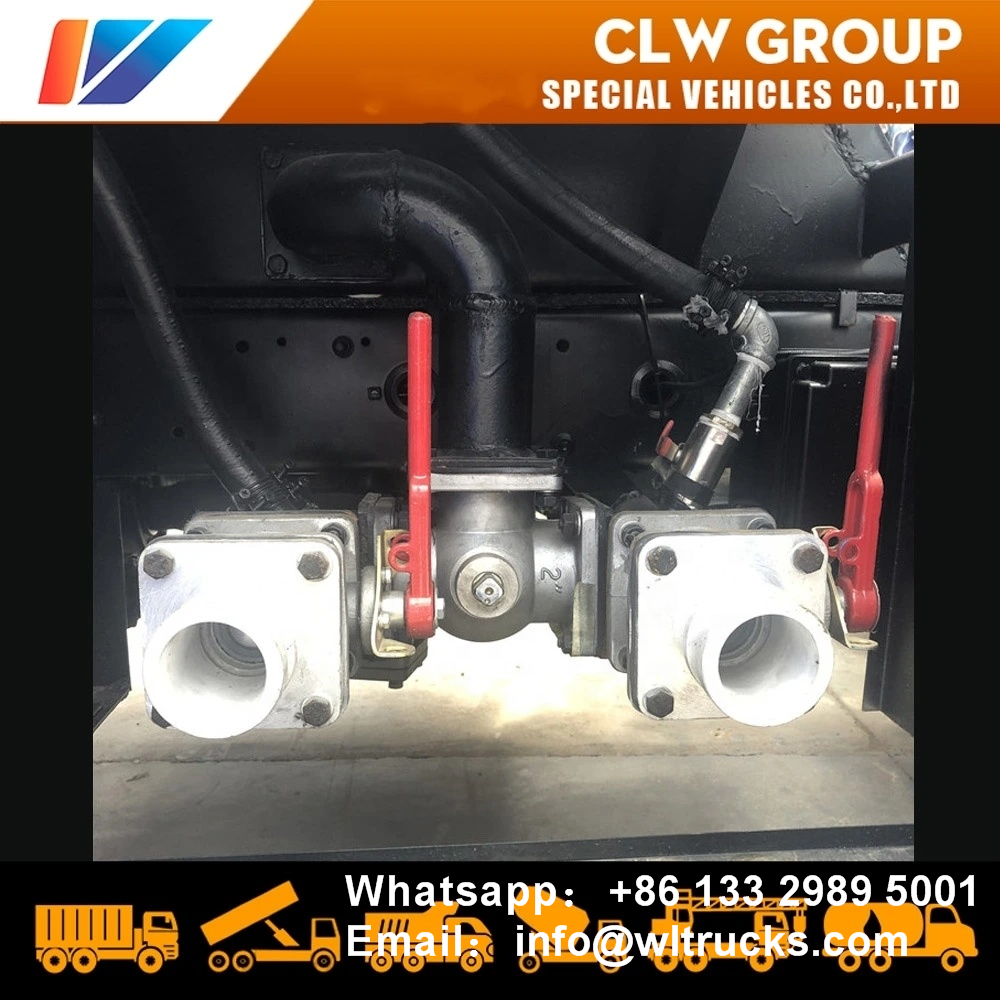

ISUZU 600p 8000L fuel delivery trucks It is made of national standard Wugang carbon steel plate, the thickness of the plate is 5MM, the tank body volume is 8 square meters, with 2 European standard tank ports, 1 subsea valve, single warehouse with pump, pump in and pump out, folding guardrail, with a tool according to space Box, with license plate light, reflective plate, with electrostatic grounding belt, electrostatic reel, equipped with a fire cap, two oil pipes of equal length to the tank, two 4KG fire extinguishers, standard for other manufacturers. The paint is silver-pink, with reflective strips, reflective tapes, three “flammable liquid” signs, and safety signs. ,
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.

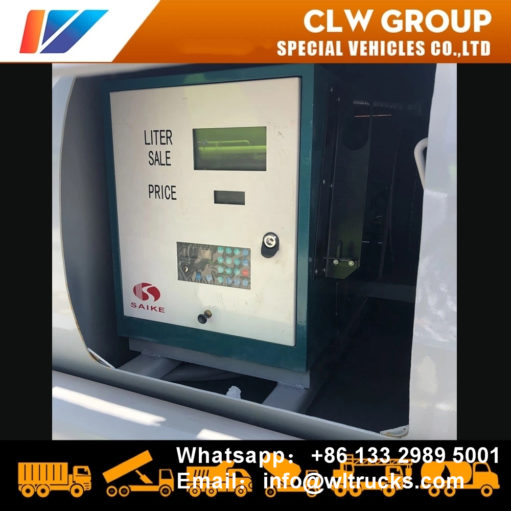

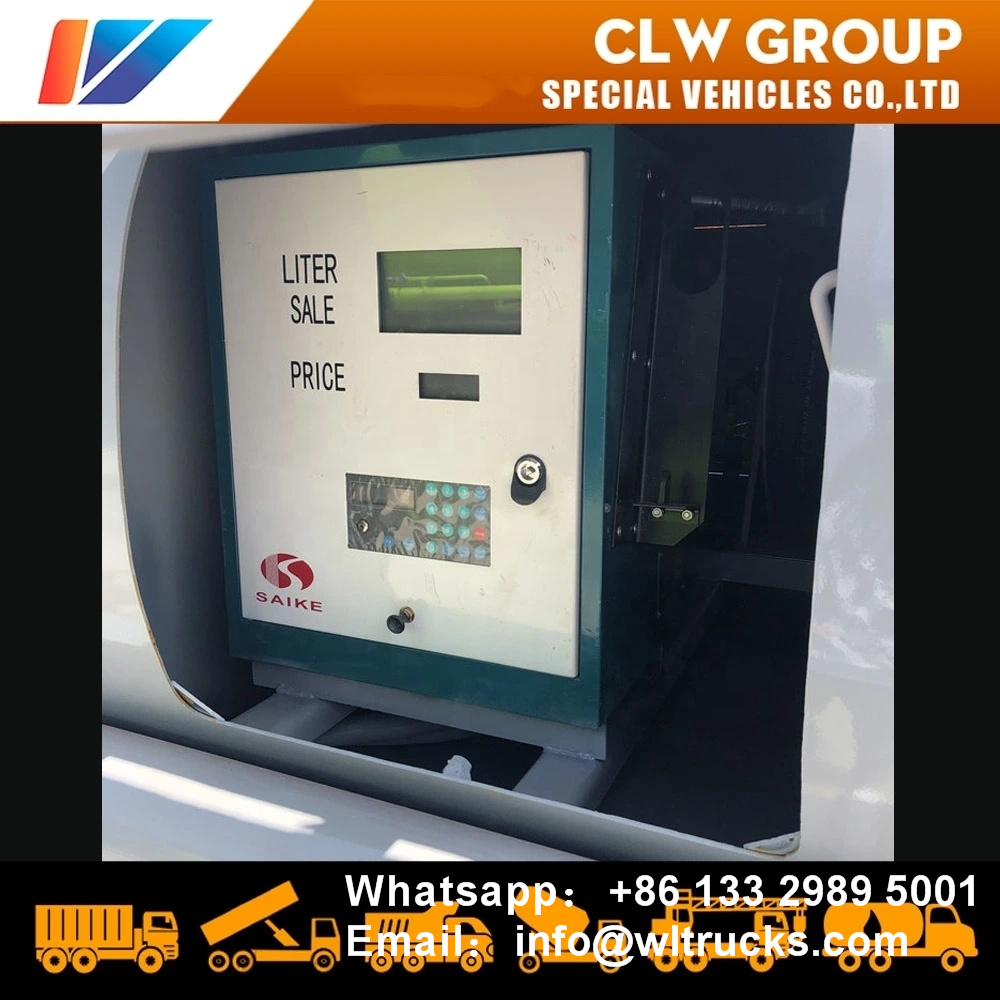

7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
|
Famous Japan Brand 4×2 10000litres Mobile Fuel Tanker Truck
|
||
|
General
|
Vehicle Brand
|
CLW
|
|
Chassis Brand
|
ISUZU
|
|
|
Overall Dimension
|
6000 * 1880 * 2552 mm
|
|
|
GVW / Kerb Weight
|
7,300 kg / 3,370 kg
|
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Air conditioner is optional
|
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU engine, 4HK1
|
|
|
Power
|
130 Ps (96 KW)
|
|
|
Displacement
|
2999 ml
|
|
|
Emission Standard
|
Euro III
|
|
|
Chassis
|
Drive Type
|
4X2, left or right hand drive
|
|
Transmission
|
ISUZU gear box, no overhaul within 500,000km
|
|
|
Wheelbase/No. of axle
|
3360 mm / 2
|
|
|
Tyre Specification
|
7.00-16
|
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
|
|
Max Speed
|
95 km/h
|
|
|
Paint
|
Metallic paint
|
|
|
Superstructure
|
Tank Capacity
|
6,000 Litres (About 1,600 gallons)
|
|
Tank Material
|
Carbon steel
|
|
|
Pump
|
Equipped for overhead delivery, 1000 litres / min
|
|
|
Suction Head
|
6 m
|
|
|
Hose
|
High quality, wire strengthened hose, with cooper wire, anti-static
|
|
|
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…..
|
||
|
Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…
** It can be divided into many compartments. ** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
