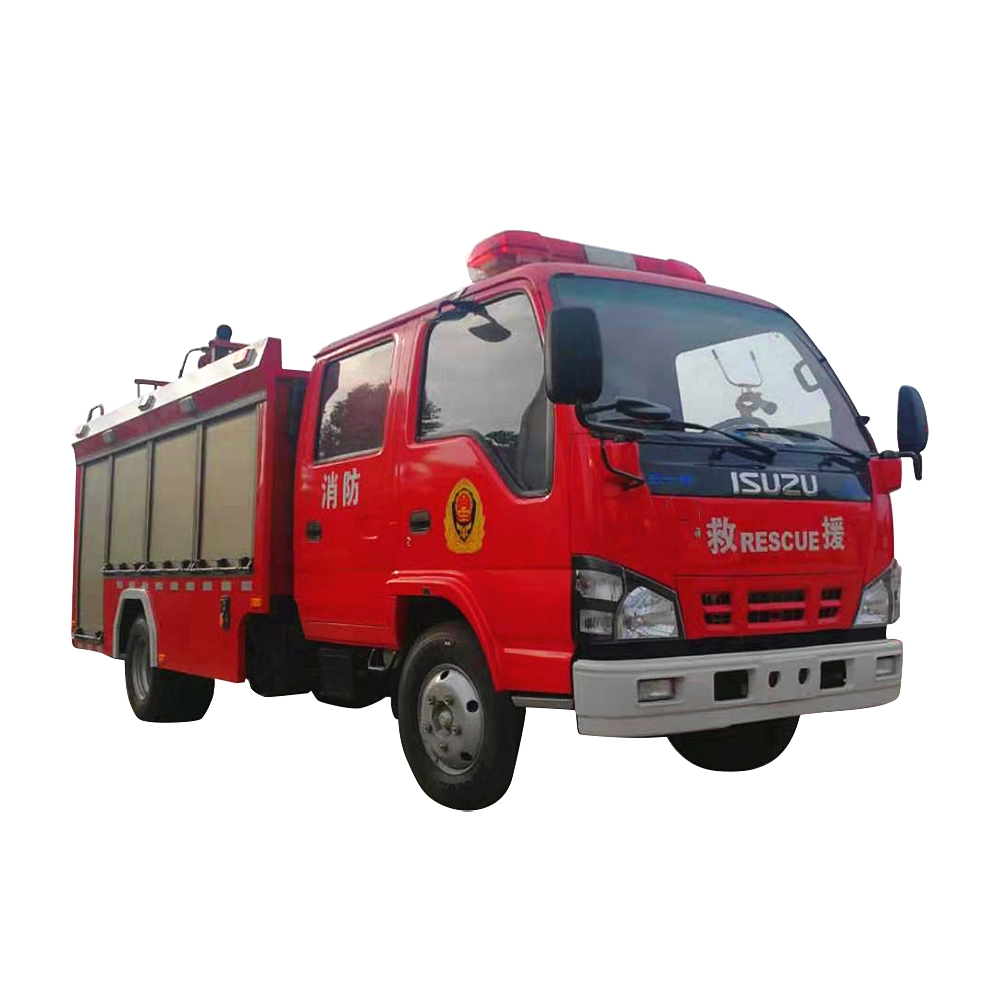

ISUZU 600p 3 ton to 5 ton Foam fire truck is Modified from Isuzu 600P series QL1070BUKWY chassis. The vehicle is composed of two parts: the firefighter’s cabin and the body. The cabin is an original double row and can take 2+3 people. The car has a built-in tank structure. The front of the body is a water tank + foam tank + equipment box. Department is the pump room.
The liquid carrier tank is made of high-quality carbon steel, which is elastically connected to the chassis, carrying 2000kg of water, equipped with a CB10/30 fire pump at the rear, a rated flow of 30L/S, and a PL24 water-foam dual-use fire monitor on the roof.
Product Specifications:
| Whole car parameters number | |
| Vehicle model | CLW5070GXFPM20/Q6 ISUZU 600p 3 ton to 5 ton Foam fire truck |
| Dimensions | Length × width × height: 6805×1906×2950 (mm) |
| Quality parameter | Total mass: 6750kg Rated load mass: 1850kg Curb weight: 4525kg |
| Front track/rear track | 1504/1425 |
| Maximum speed | 95km/h |
| A bottom plate with opposing | |
| Chassis model | QL1070BUKWY (Qingling Motors Co., Ltd.) |
| engine model | 4KH1CN6LB (Qingling Isuzu (Chongqing) Engine Co., Ltd.) |
| Engine power/displacement | 88kw/2999ml |
| Number of axles/wheelbase | 2 axes/3815mm |
| Tire specifications | 7.00R16 14PR |
| Designed with distribution set | |
| Tank volume | Water tank 2/3.4 cubic meters Foam tank 1/1.5 cubic meter |
| Tank material | High quality carbon steel tank (stainless steel or PP material can be selected) |
| Fire pump parameters | Model: CB10/30, flow: 30L/s 1.0MPa |
| Fire monitor parameters | Model: PL24, range: foam ≥40m water ≥45m |
| Remarks | With air conditioning, drive rotation, with ABS.
Optional hand lift pump, charging device, with aluminum alloy frame. |

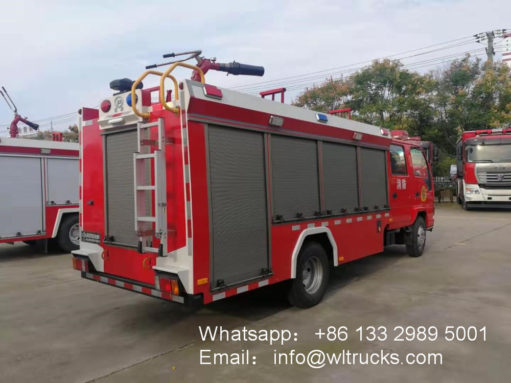

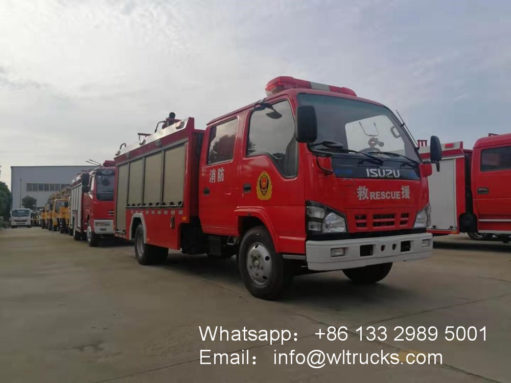

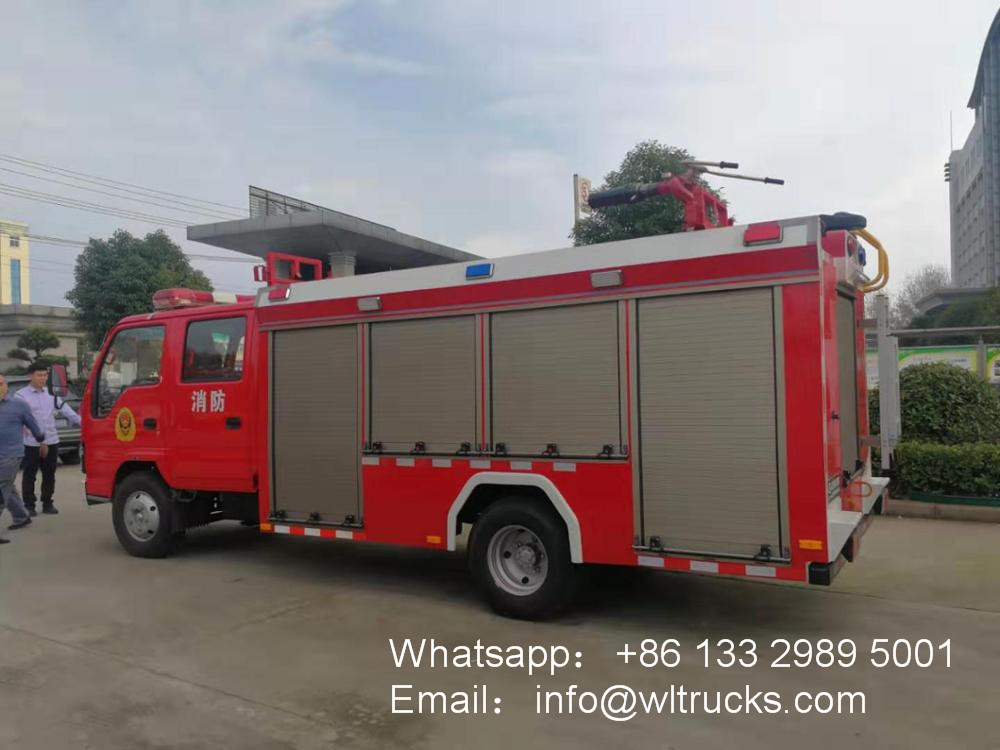

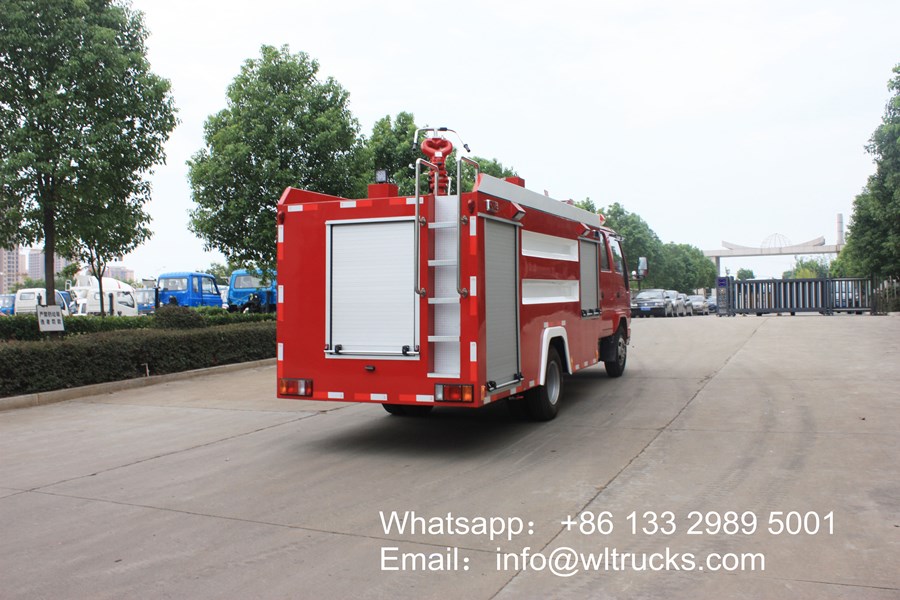

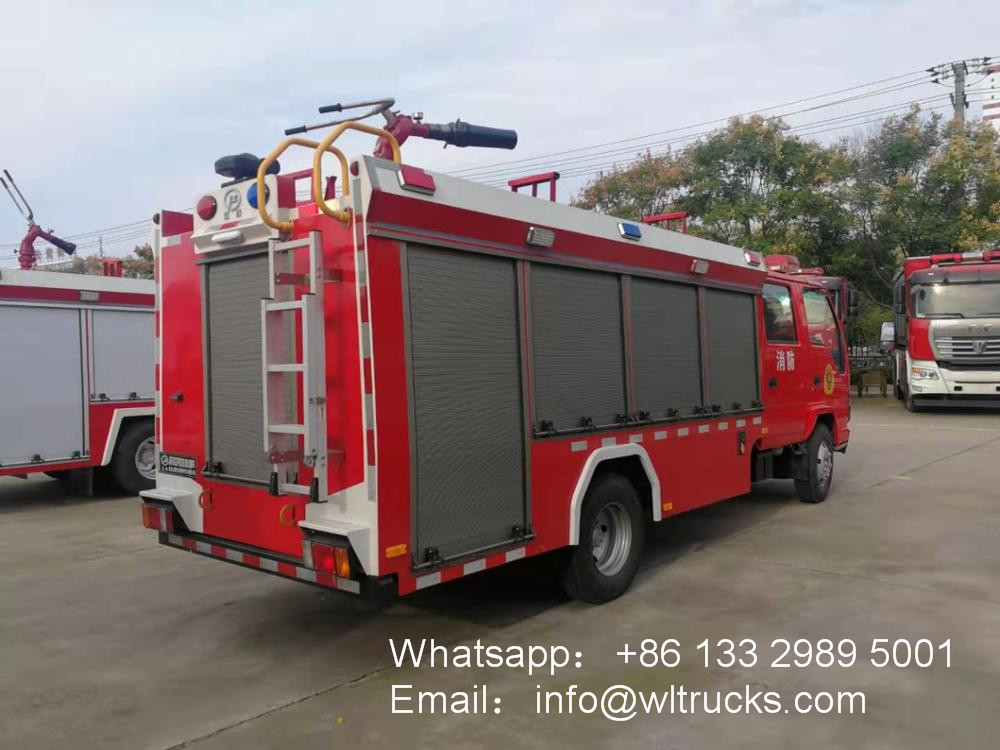

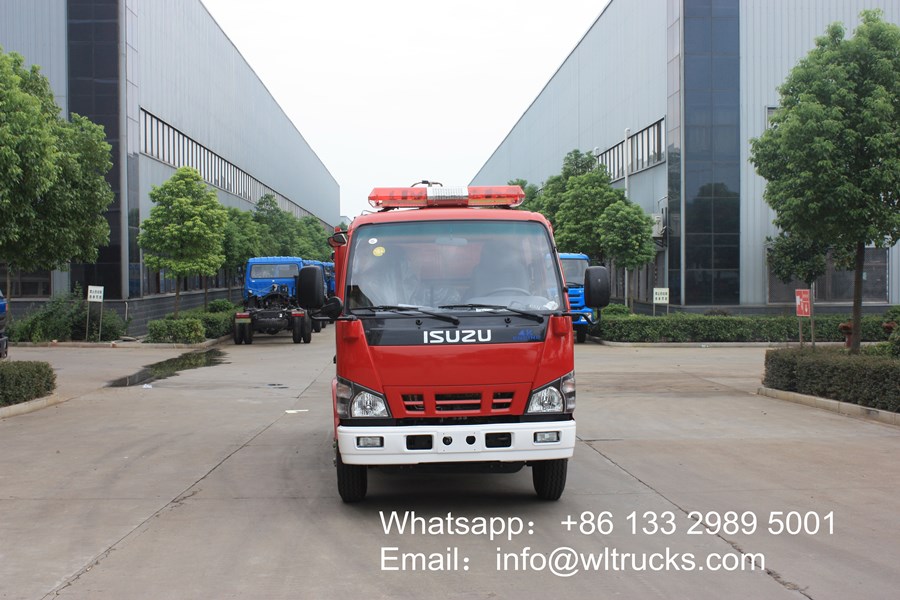

ISUZU 600p 3 ton to 5 ton Foam fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
