ISUZU 5000 liter vacuum septic tank truck Specification:
ISUZU 5000 liter vacuum septic tank truck is cylindrical in shape, using WISCO 6mm thick high-quality carbon steel plate, with a suction window in the front of the tank, hand washing device, lifting device, 5 meters of suction pipe, and more Various colors are selected, and the rest are made according to the standard configuration in the factory.
The truck is equipped with a high-power vacuum suction pump and a high-quality hydraulic system. The tank head is die-casted at one time, the tank can be opened back, and the double top is self-unloading. The dirt in the tank can be directly dumped through the back cover, which has the characteristics of high vacuum (larger suction power than the suction truck), large tonnage, high efficiency and wider use.
ISUZU 5000 liter vacuum septic tank truck (vertical suction: ≥8 m, working pressure: 8500Pa, theoretical pumping speed: 120L / S, shaft power: ≤13kw, inlet and exhaust caliber: 50mm, pumping time for full tank: <5 min, time to drain the tank: <4min.
Optional configuration: hand washing device, liquid level sight tube, rear window, hydraulic alarm device, sprinkler function, high pressure cleaning function.
|
Truck model
|
CLW
|
|
|
Model
|
CLW1100TKARY
|
|
|
Vehicle size
|
(mm)
|
5900×2000×2350
|
|
A/D angle
|
20/16
|
|
|
F/R hang
|
(mm)
|
1015/1525
|
|
Total mass
|
(Kg)
|
6495
|
|
Rated mass
|
(Kg)
|
4000
|
|
Curb weight
|
(Kg)
|
2050
|
|
Max speed
|
(km/h)
|
98
|
|
Axles
|
2
|
|
|
Wheelbase
|
3360
|
|
|
Wheel loading
|
1805/2690
|
|
|
Steel spring NO
|
3/3+2
|
|
|
Tyre NO
|
6
|
|
|
Tyre size
|
7.00R16 8PR
|
|
|
Front tread
|
1504
|
|
|
Rear tread
|
1525
|
|
|
Engine
|
Model
|
Euro 4 engine
|
|
Power
|
80
|
|
|
Horse power
|
98HP
|
|
|
More tanker equipment
|
Oily water separator, air water separator, special vacuum excrement suction pump, pressure volume gauge, pipeline system, the
sucking tube, flow valve, vacuum tank, a communicating device (as the dung window), automatic anti-overflow valve these parts |
|
|
Vacuum pump
|
Vane rotor pump with 4-way-value
|
|
|
Suction tube diameter
|
108mm
|
|
|
High pressure water pump
|
Bentian brand
|
|
|
assembly
|
Oil-water separator,
gas-water separator, Hydraulic self-unloading device, Special vacuum suction pump, Pressure volume table, Pipe network system, Aspiration catheter, Gravity valve, Vacuum tank,Connector ( depending on the dung window ), automatic anti-overflow valve, |
|
ISUZU 5000 liter vacuum septic tank truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
ISUZU 5000 liter vacuum septic tank truck Working parameter New craft
ISUZU 5000 liter vacuum septic tank truck Optional configuration

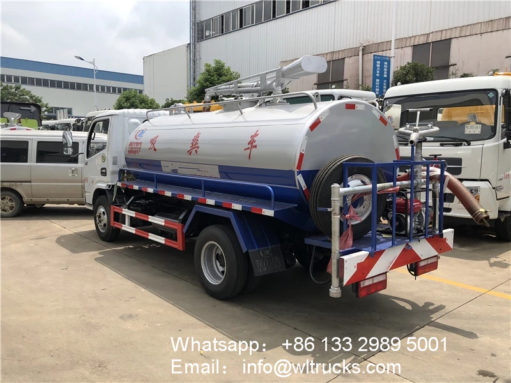

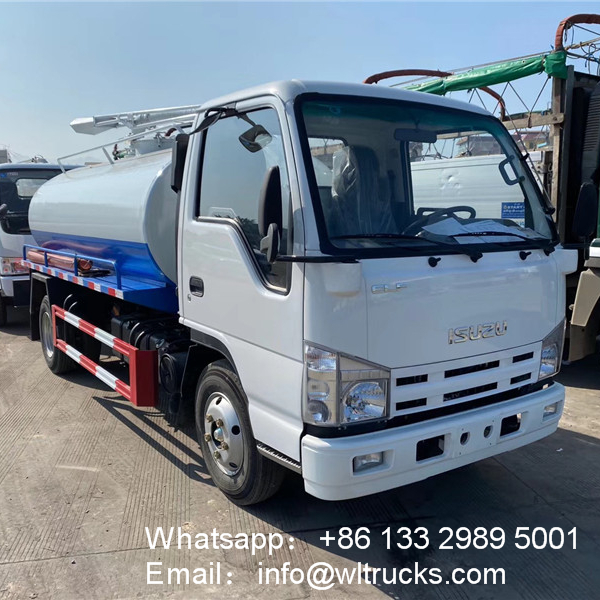

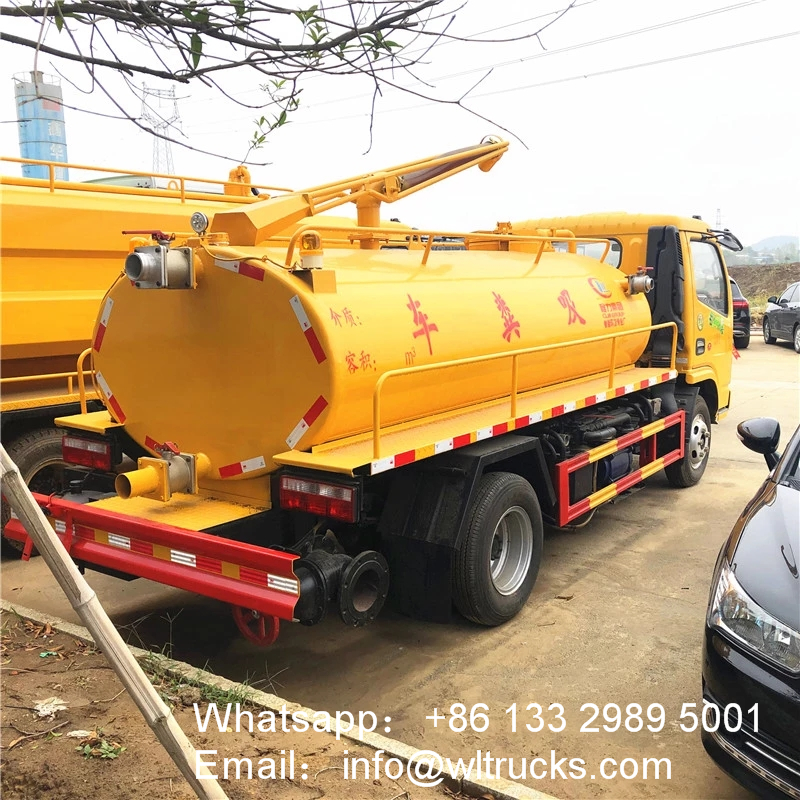

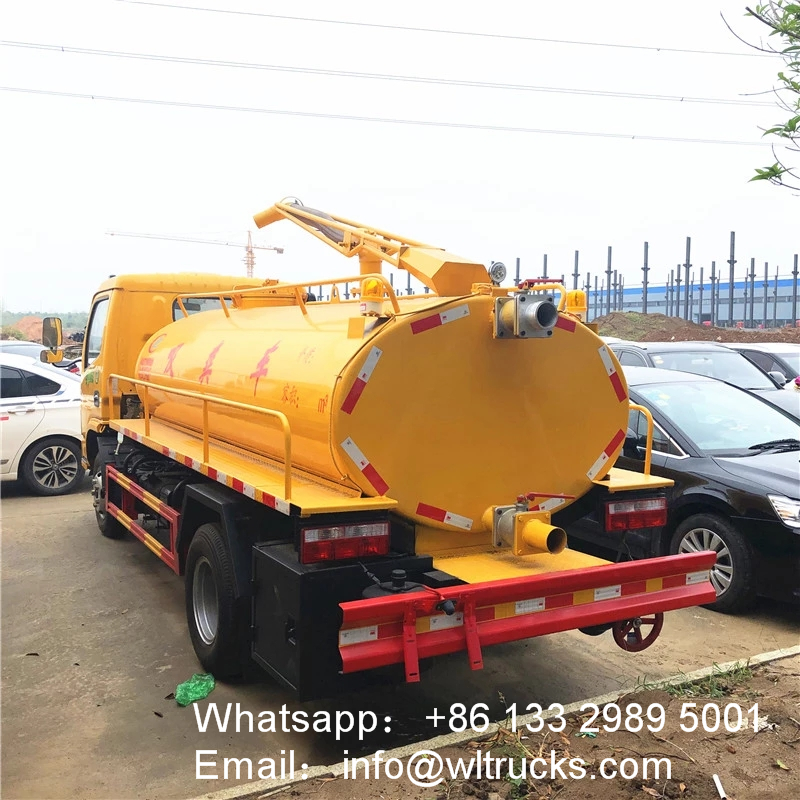

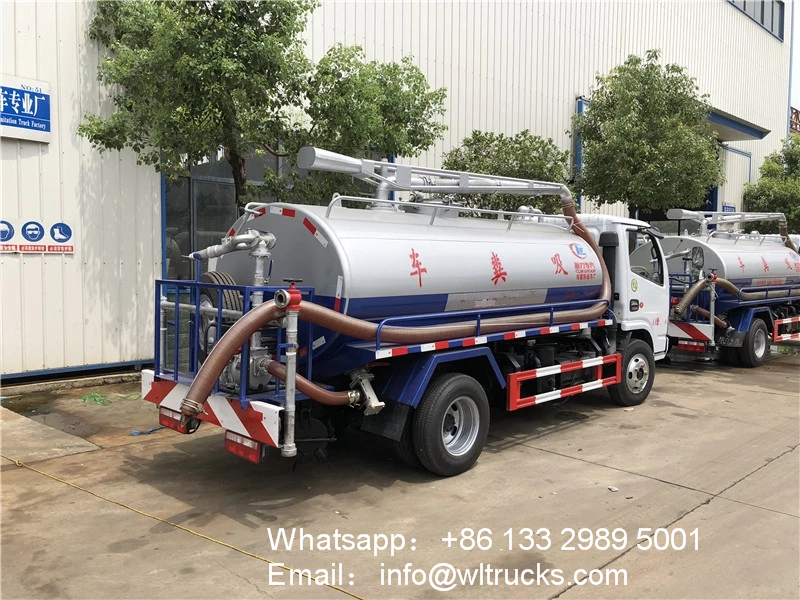

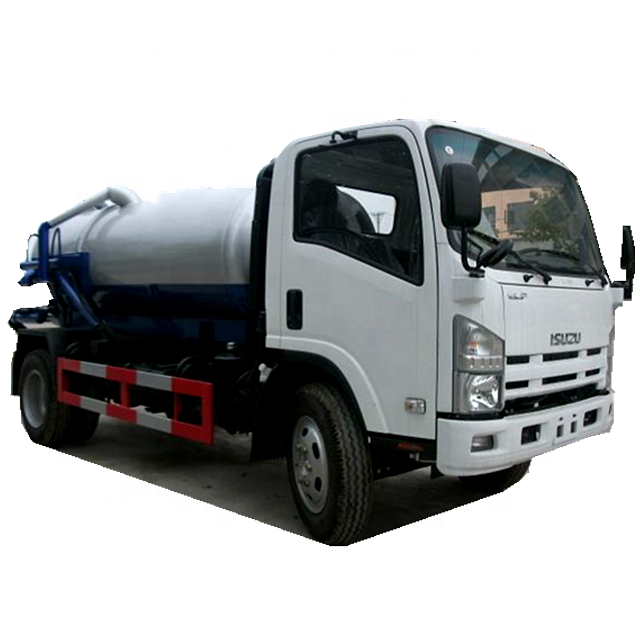

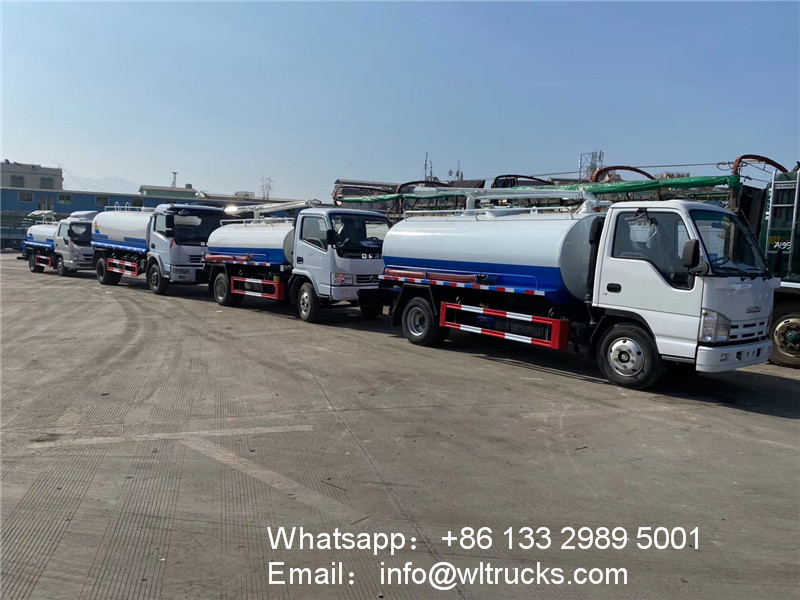

ISUZU 5000 liter vacuum septic tank truck Detailed image
