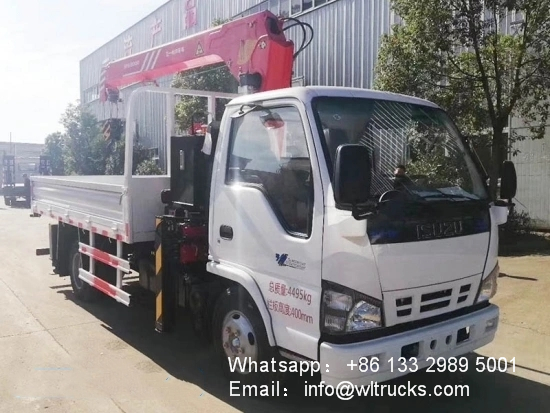

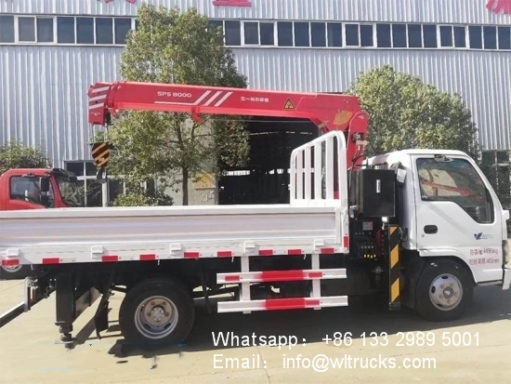

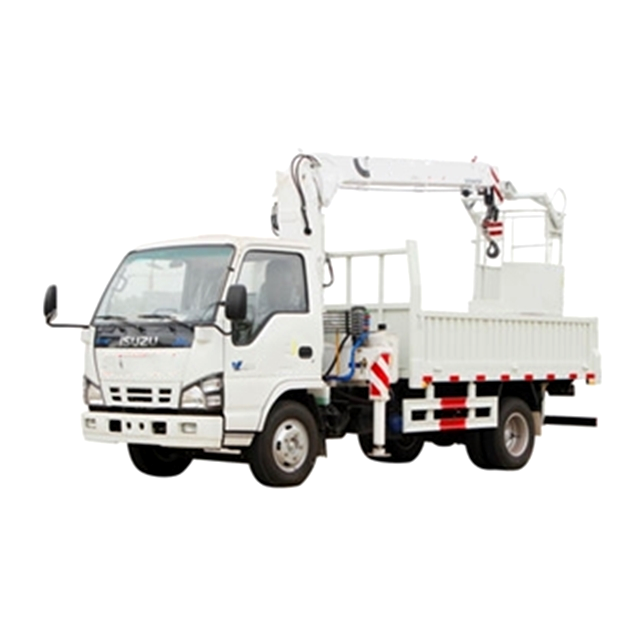

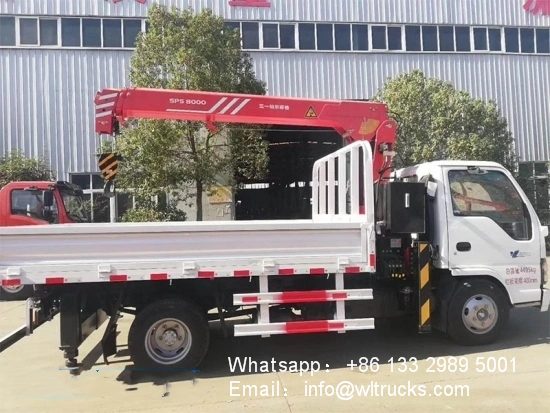

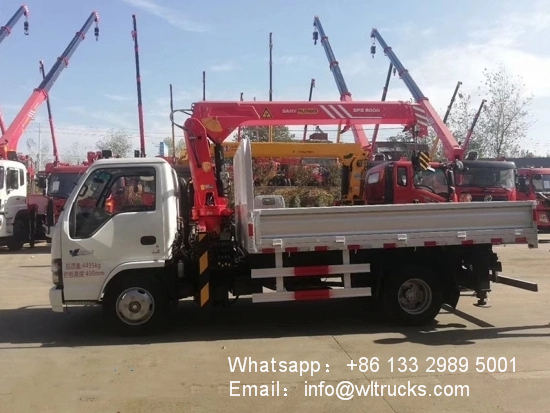

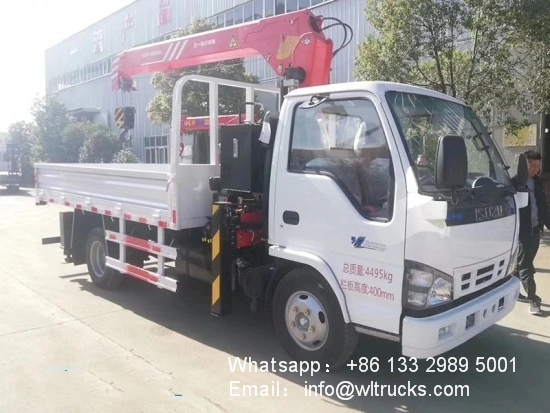

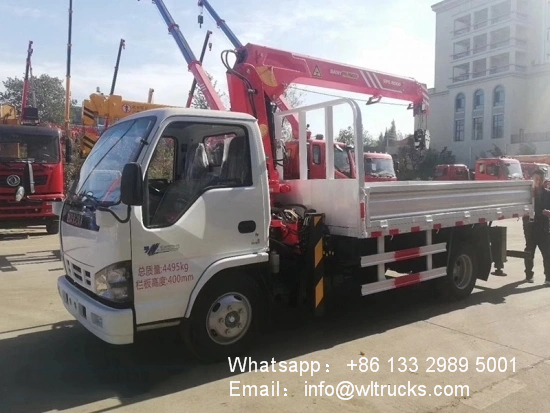

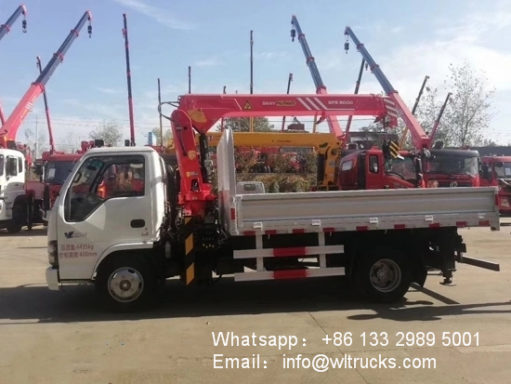

ISUZU 4ton 5ton hydraulic arm crane truck
ISUZU 4ton 5ton hydraulic arm crane truck Adopt ISUZU 600P single-row cab, wheelbase 3800, ISUZU 120 engine, 6-speed gearbox, 2.7 / 4.8 tons of front and rear axles, 5 tons of installation force, 3 section straight arm truck mounted crane, lifting height 10 meters, working With a radius of 8 meters, it can be equipped with self-unloading, aerial work and other devices according to customer requirements, so as to realize multi-use of one vehicle.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
ISUZU 4ton 5ton hydraulic arm crane truck specification:
| ehicle information Items | Technical parameters |
| Brand of chassis | ISUZU |
| Overall dimensions ( L * W * H) | 5995x2150x2650 mm |
| Cargo dimension ( L * W * H) | 3600 x 2100 x 500 |
| Wheel base | 3360 mm |
| Axle load (kgs) | 1610(front)/3810(rear) |
| Tire | 7.00-16 nylon tire (6+1 spare) |
| Engine | YN |
| Emission Standard | Euro 4 |
| Engine horsepower | 120 HP |
| Front overhang and rear overhang | 1015/1975 mm |
| Approach angle /Departure angle | 24/13 |
| Cabin seat | 2+3 |
| Max.speed | 105 km/h |
| Operation control system | Steering wheel |
| Model | SQ4SA2 | Unit |
| Max Lifting Capacity | 4000 | kg |
| Max Lifting Moment | 10000 | T.M |
| Rotation Angle | All Rotation, hydraulic | |
| Crane Weight | 1050 | kg |
| Oversize (H x W x Thickness) | 2118 x 2000 x 556 | |
ISUZU 4ton 5ton hydraulic arm crane truck Working parameter:
