ISUZU 16m3 road washing sweeper truck is a new generation of cleaning equipment independently developed by our company with one vehicle and multiple functions. It has multiple functions such as pavement cleaning, pavement cleaning, curb cleaning, curb and curb stone facade scrubbing, low pressure washing, spray dust reduction , Can effectively increase the utilization rate of vehicles and reduce vehicle purchase costs.
It is suitable for mechanized cleaning, sweeping, spraying and dust cleaning of urban roads, highways, airports, docks, tunnels, bridges, isolation walls, curbs. Optional lifting platform, sprinkler cannon, snow shovel, snow removal roller, guardrail cleaning equipment, multi-purpose vehicle, economical and affordable, welcome to purchase.
ISUZU 16m3 road washing sweeper truck Chassis configuration: Isuzu 700P luxury chassis, single-row / row half-belt reclining cab, Isuzu 190 horsepower country five engine, 6-speed gearbox, wheelbase 5200mm, 9 tons rear axle, 9.00R20 original steel tire Original ABS, original air conditioner, with direction boost, clutch booster, air brake.
ISUZU 16m3 road washing sweeper truck Bodywork configuration: center-mounted 2 sweep discs, suction nozzles, Sanyo motor, high-pressure water pump imported from Germany (front flush, side spray, middle spray, rear spray, side flushing car water gun, trash can self-cleaning device), universal high-pressure roadside Cleaning, low pressure pump forward, stainless steel water tank, trash can; stainless steel high-pressure pipeline, Schneider control switch, American sensor, tail LED arrow light, motor oil, trash can, water tank are equipped with anti-overflow or low water alarm devices; reversing and washing State cab monitor, 18m high-pressure washing reel, maximum washing width 3.5m; high-pressure washing height ≥ 21m.
| Item | Main performance parameters | ||
| Car type | Isuzu | ||
| Vehicle model | CLW5100TXSQ5 type washing car | ||
| Chassis model, category, manufacturer | QL1100A8LAY | ||
| Emission Standards | GB17691-2005 National V, GB3847-2005 | ||
| hair
move machine |
Host | Chassis engine model and manufacturer | 4HK1-TC51 Qingling Isuzu (Chongqing) Engine Co., Ltd.
|
| Power (kw) | 141 | ||
| Horsepower (ps) | 191 | ||
| Displacement (ml) | 5193 | ||
| Auxiliary engine | Cleaning engine model and manufacturer | B140 Dongfeng Cummins Co., Ltd. | |
| Power (kw) | 102 | ||
| Horsepower (ps) | 140 | ||
| Displacement (ml) | 3200 | ||
| Fuel type | No. 0 light diesel (shared diesel tank with chassis) | ||
| vehicle
Basic parameter |
Dimensions (length X width X height) mm | 7430 * 2290 * 2750 | |
| Wheelbase (mm) | 4175 | ||
| Tire | 8.25R20 14PR | ||
| Number of tires | 7 (including 1 spare tire) | ||
| Track | Front wheel (mm) | 1680 | |
| Rear wheel (mm) | 1650 | ||
| Rated crew | 3 people | ||
| Front / rear suspension (mm) | 1110/2145 | ||
| Approach angle | 20 ° | ||
| Departure angle | 11 ° | ||
| Ground height (mm) | 320 | ||
| Rated load mass (kg) | 1500 | ||
| Curb weight (kg) | 8360 | ||
| Maximum total mass (kg) | 10055 | ||
|
Special performance parameters |
Dustbin volume (m 3 ) | 6 (stainless steel material) | ||||
| Clean water tank volume (m 3 ) | 5 (stainless steel material) | |||||
| Sweeping width (mm) | 2800-3200 | |||||
| Cleaning operation speed (km / h) | 3-15 | |||||
| Cleaning operation speed (km / h) | 15-20 | |||||
| Maximum cleaning capacity (m 2 / h) | 48000 | |||||
| Suction capacity | Density (g / cm 3 ) | 2.0 | ||||
| Mass (kg) | 1.5 | |||||
| Suction particle size (mm) | ≥100 | |||||
| Dumping angle | ≥45 ° | |||||
| Cleaning efficiency | ≥96% | |||||
| Operation noise (db) | < 88 accords with GB7258 | |||||
| Driving performance parameters | Drive type | 4 × 2 rear axle drive | ||||
| Suspension type | Leaf spring | |||||
| Number of leaf springs (front / rear) | 8/10 + 7 | |||||
| Braking type | Double-circuit pneumatic brake, drum type | |||||
| Braking distance (full load 30km / h) | ≤ 10m | |||||
| Maximum speed (km / h) | 99 | |||||
| Minimum turning radius (m) | 8 | |||||
| Maximum grade | ≥30% | |||||
| Clutch system | Single-plate dry diaphragm spring clutch, hydraulically operated | |||||
| Transmission system | Mechanical 5-speed transmission with synchronizer, manual | |||||
| Engine fuel consumption | Driving (L / 100km) | Operation (L / h) | Operation (L / 10000m 2 ) | |||
| ≤ 12 | ≤ 6 | ≤ 3 | ||||
| Dust reduction system | Water spray form | Low pressure mist | ||||
| Main components | German imported high pressure pump, water filter, pipeline, stainless steel spray frame, high pressure nozzle, etc | |||||
| High pressure pumps | Imported from Germany | |||||
| Installation location | Sweep dust | Front left and right scan | ||||
| Vacuum and dust | Suction cup suction port | |||||
| Control type | Electronic control, one-key operation | |||||
| Hydraulic system | Type | Open, centralized control of electric control | ||
| Main components | Gear pumps, gerotor motors, hydraulic cylinders, solenoid valves, manifolds, high-pressure pumps, etc. | |||
| Cycloid motor | Sanyo | |||
| gear pumps | Changyuan Machinery | |||
| Hydraulic cylinder | Huibo hydraulic cylinder | |||
| Hydraulic cylinder seal | Taiwan Dingji | |||
| Hydraulic tubing | Guangzhou Tianhe | |||
| Solenoid valve group | Hypres (Sino-Italian joint venture) | |||
| Shockproof pressure gauge | German IMT | |||
| Return oil filter | Sophia Shanghai | |||
| System overflow pressure | Mpa | 10-12 | ||
| Hydraulic oil tank volume | L | ≥60 | ||
| Electrical system | System composition | It is composed of chassis car circuit, auxiliary engine electrical part and special working device operation control circuit. | ||
| Chassis system voltage (V) | twenty four | |||
| Working device system voltage (V) | 12 | |||
| Composition of electric control panel | Auxiliary machine tachometer, auxiliary machine water temperature meter, oil temperature alarm device, various operation control switches | |||
| Control switch | Shanghai Schneider (Sino-French joint venture) | |||
| Programmable logic controller | Omron Japan | |||
| breaker | Hager | |||
| Battery model | 12V-70A.H (2 in parallel) | |||
| Fan system | Type | Special high-pressure centrifugal fan | ||
| Brand | Luoyang North Slope Fan | |||
| Rated working speed | r / min | 2700 | ||
| Transmission type | Auxiliary engine, clutch, high temperature resistant A-belt drive with teeth (4) | |||
| Fan belt | Zhejiang Sanlux | |||
| Automatic clutch | Centrifugal, imported materials, two-year warranty, service life up to 20,000 working hours | |||
| Air volume ( m 3 / h ) | 5000 ~ 7800 | |||

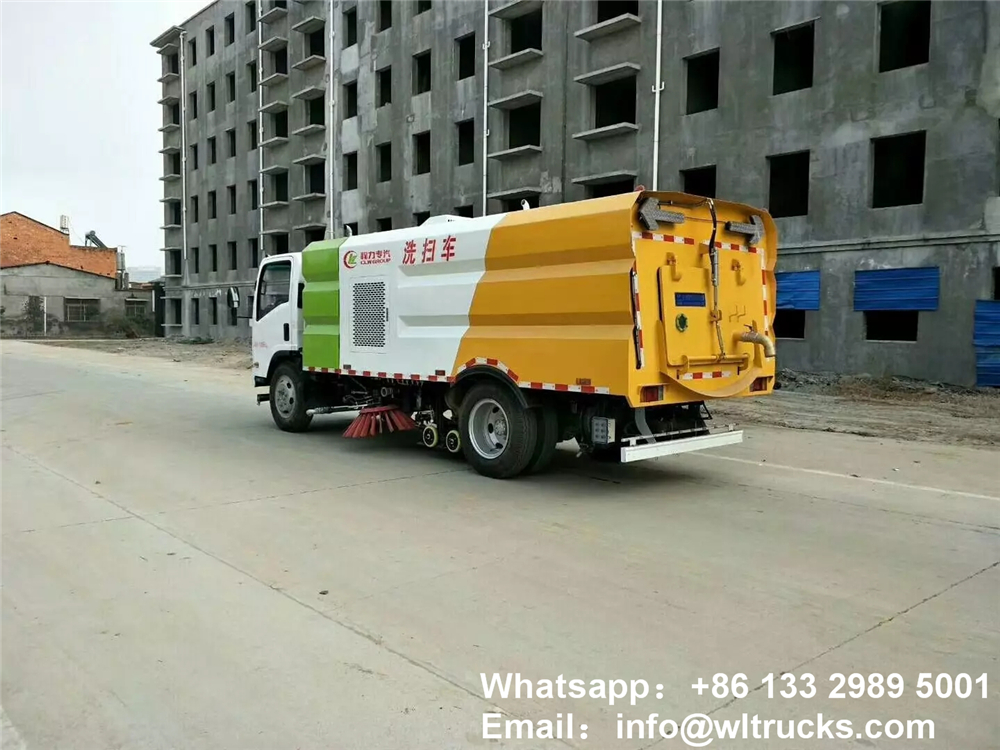

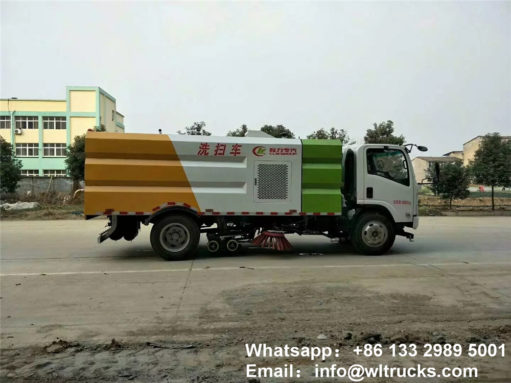

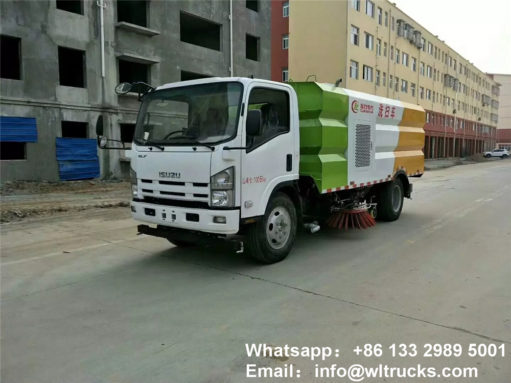

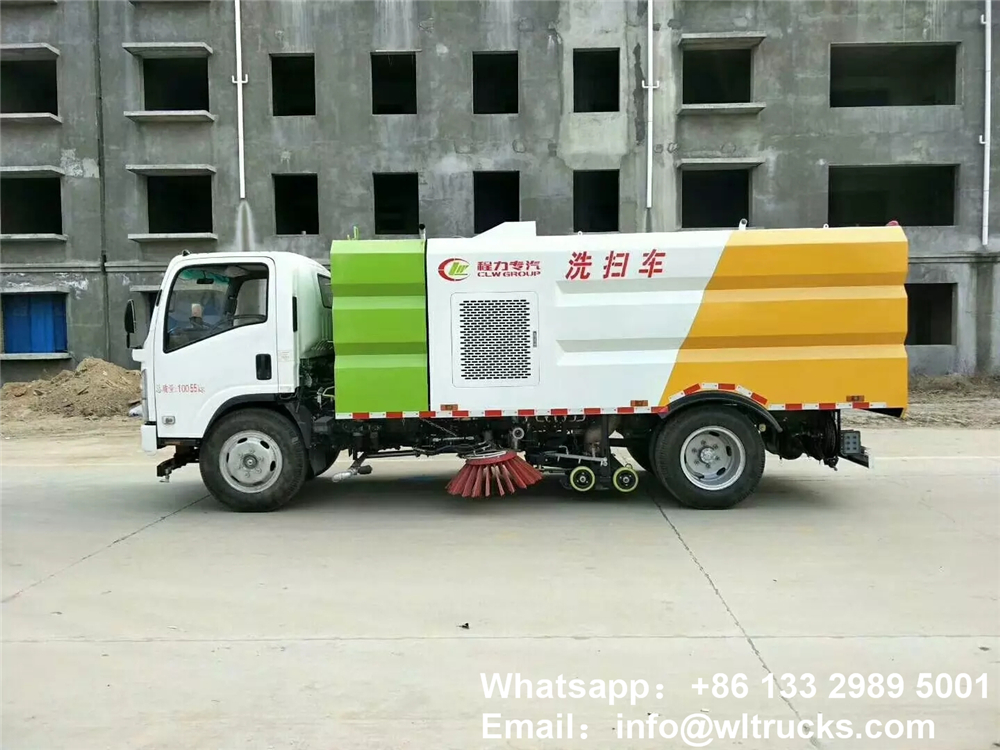

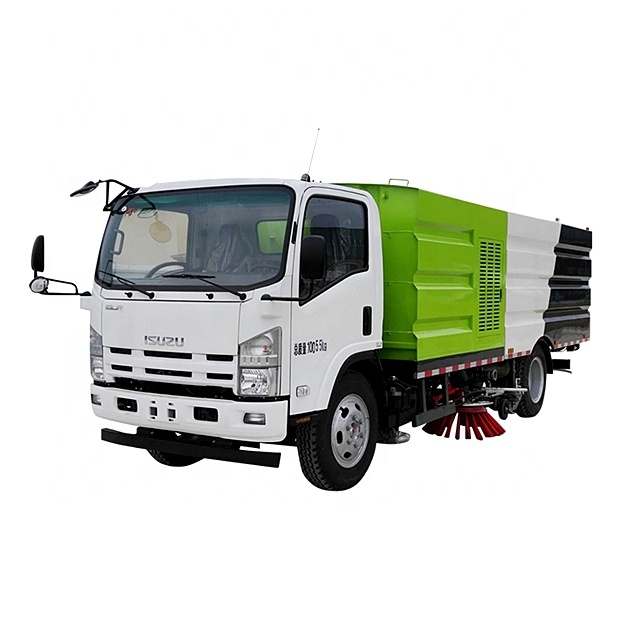

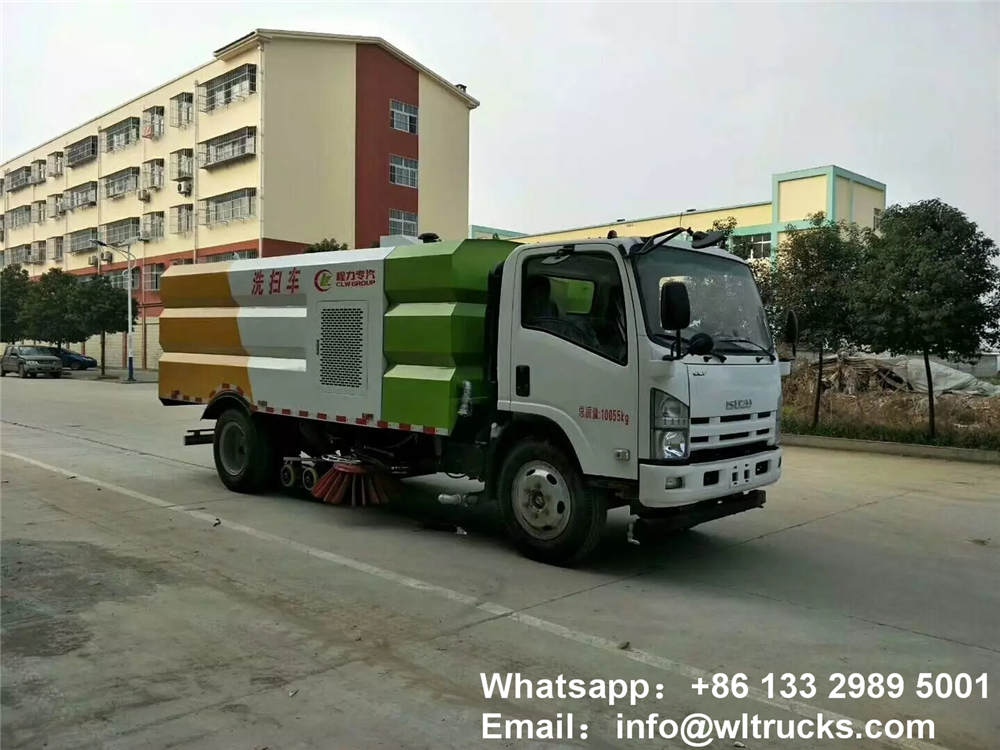

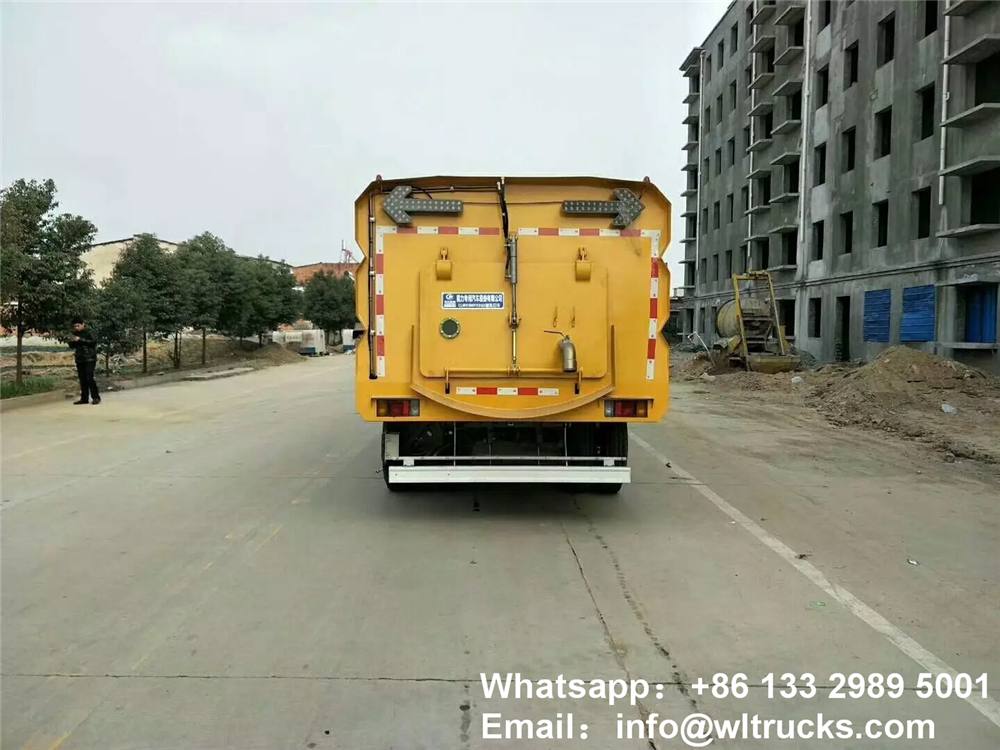

ISUZU 16m3 road washing sweeper truck detailed image
