HOWO 5000liters septic tank truck Specification:
Top configuration: tank volume 5000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-6 water ring vacuum pump, optional 5 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and 1 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
|
Model
|
CLW5060GXWZZ
|
Curb weight
|
4200
|
|
Overall size
|
5995×2000×2550(mm)
|
Type
|
4×2
|
|
wheelbase
|
3300mm
|
Power steering
|
Equipped
|
|
Front Axle
|
2ton
|
Rear axle
|
4ton
|
|
Gearbox
|
Manual
|
Tire
|
7.00R-16
|
|
Engine
|
CY4102
|
volume
|
4cbm
|
|
Vacuum pump
|
Equipped
|
Material
|
Carbon steel
|
|
Suction meters
|
16-18M
|
Capacity
|
6000Liters/min
|
Specifications
1.HOWO 4×2 septic tank truck
2.Volume:3-4cbm
3.Engine:116hp
4.we can do it according to your orders
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

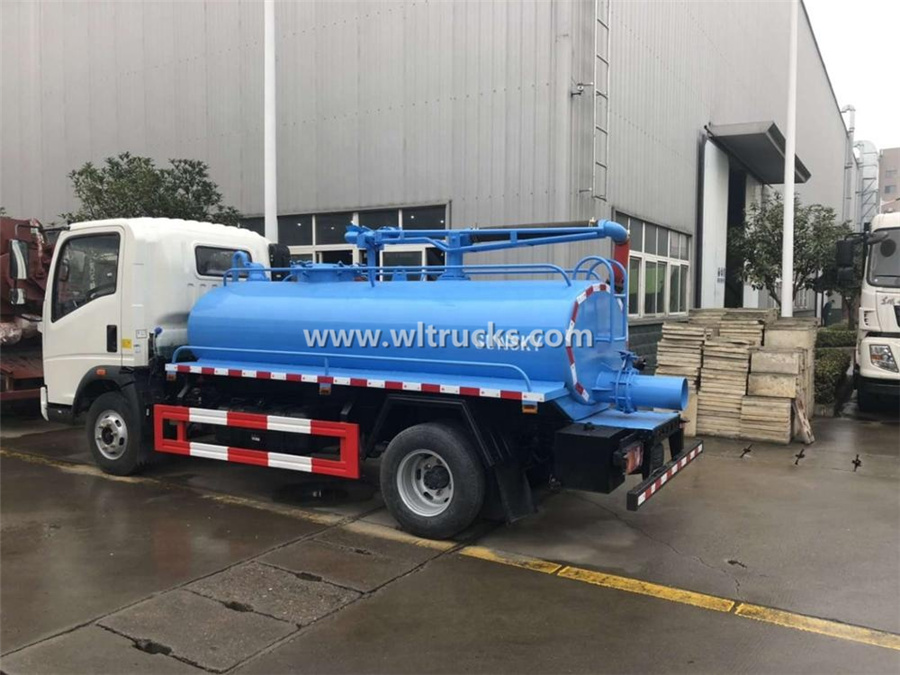

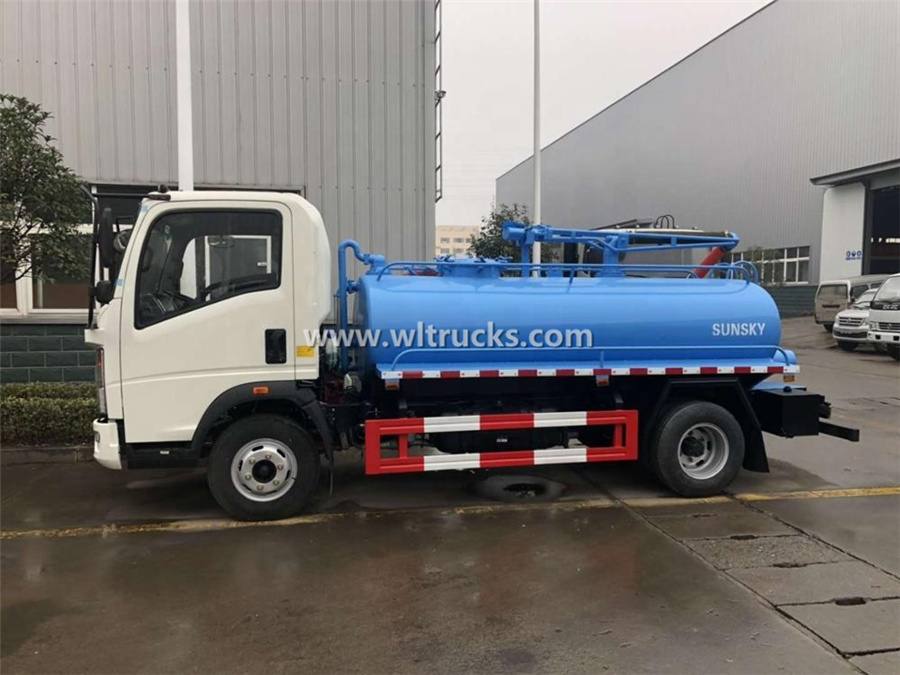

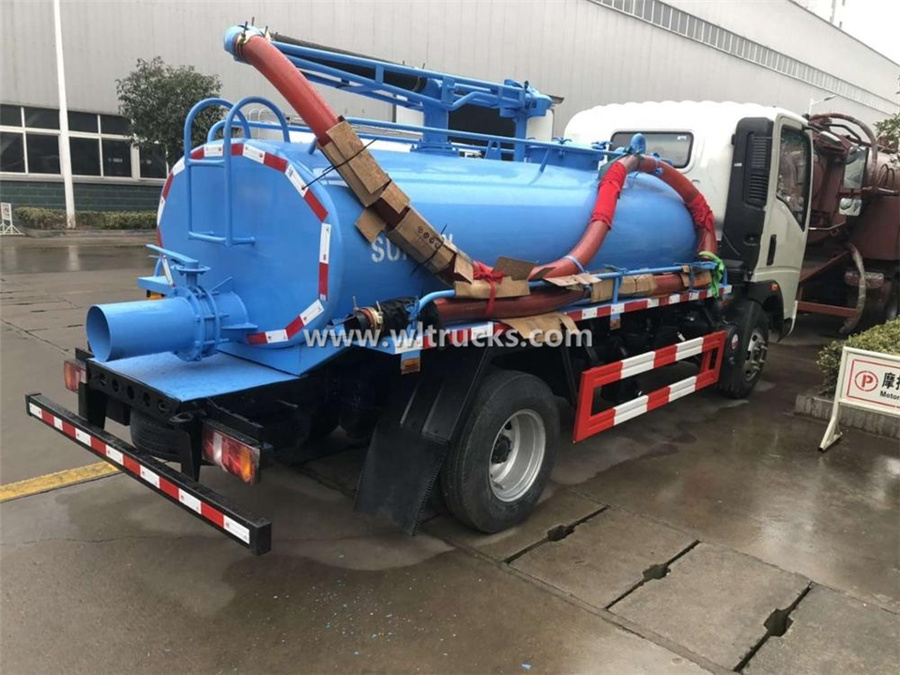

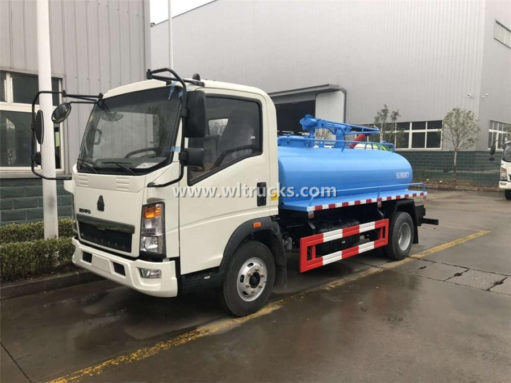

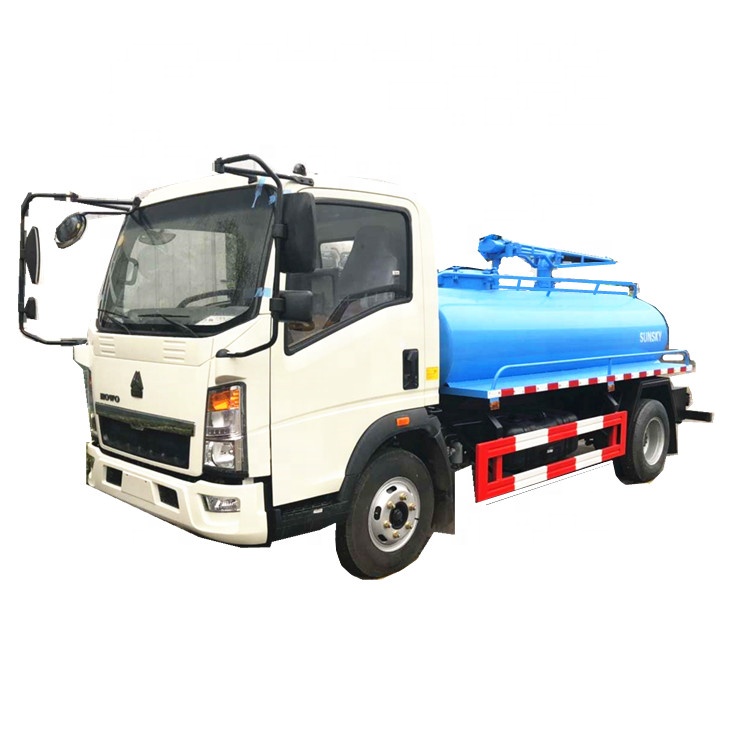

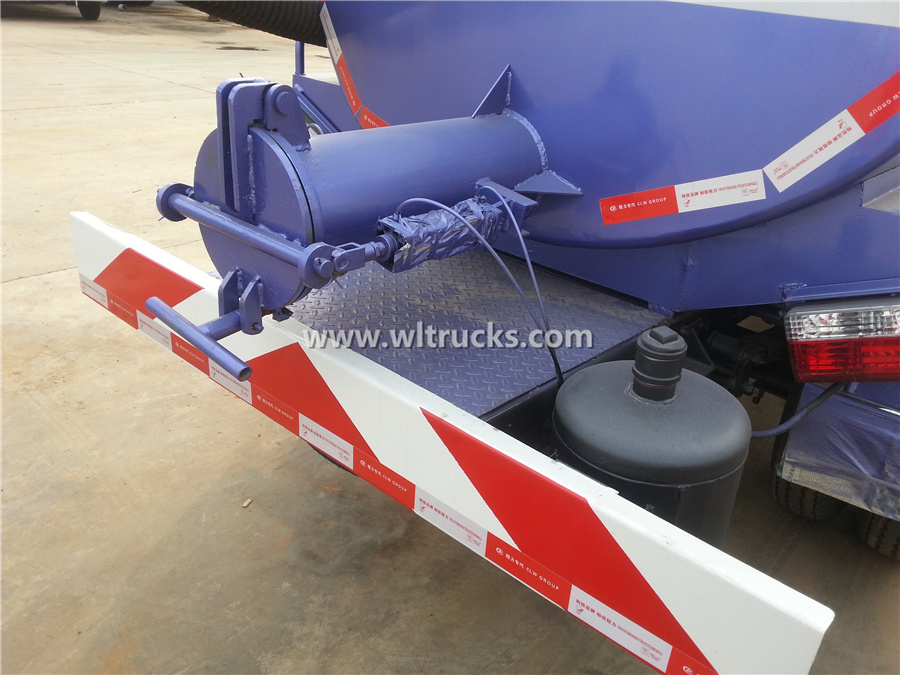

Toilet suction truck Detailed image
