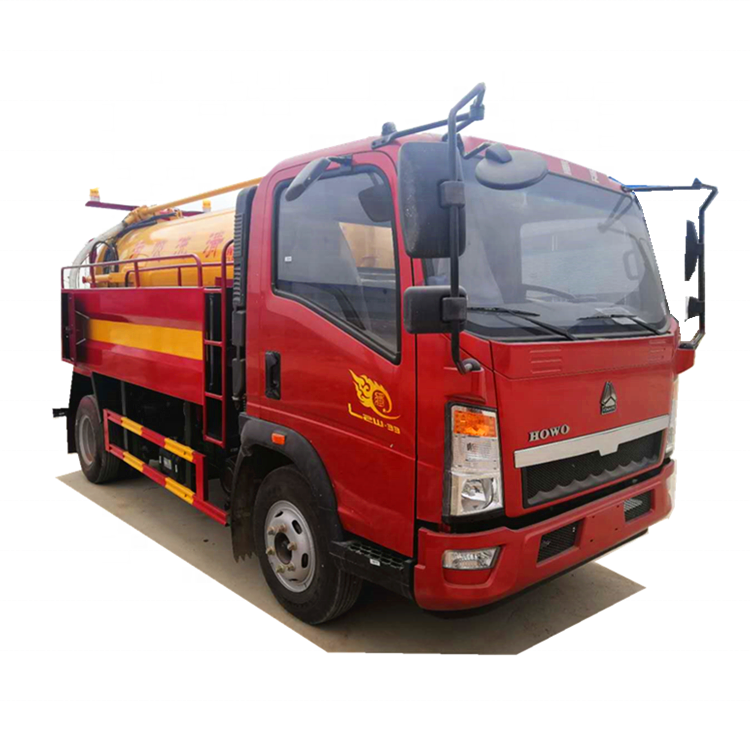

HOWO 5000liter sewer jetting sewage suction truck Specification:
![products details products details](https://www.wltrucks.com/wp-content/uploads/2020/05/20170413164238_47649.png)
ITEM |
UNIT |
DESCRIPTION |
Vehicle |
|
Hseptic tank truck |
Overall dimensions |
mm |
6200x2100x2400 |
Septic tank |
m3 |
5 |
GVW |
kg |
Appro×8275 |
Curb weight |
Appro×4450 |
|
Loading |
Appro×3695 |
|
Wheel base |
mm |
3800 |
Front/Rear overhang |
1030/1950 |
|
Approach/departure angle |
° |
20/14 |
Max speed |
km/h |
90 |
Standard configuration |
1. Septic tank volume 5000L.
2. Tank thickness : 5mm carbon steel. 3. Looking sewage window. 4. Self flow exit. 5. Cleaning device. 6. Fecal suction pipe 5m. 7. Vacuum pump. 8. Oil water separator, overflow valv. |
|
Chassis Parameter | ||
Cabin |
Single row cabin, no air conditioner, power steering, 2 passengers. | |
Drive type |
4×2 | |
Engine |
Brand : DONGFENG CHAOCHAI POWER
Model : CY4102-E3C, 120hp Fuel type : diesel. Displacement : 3856ml Emission standard : Euro 3 |
|
Transmission |
5-speed, manual | |
Tire model |
700-16 | |
No.of tire |
6pcs |
Dredge function | Sewage suction function | ||
High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist |

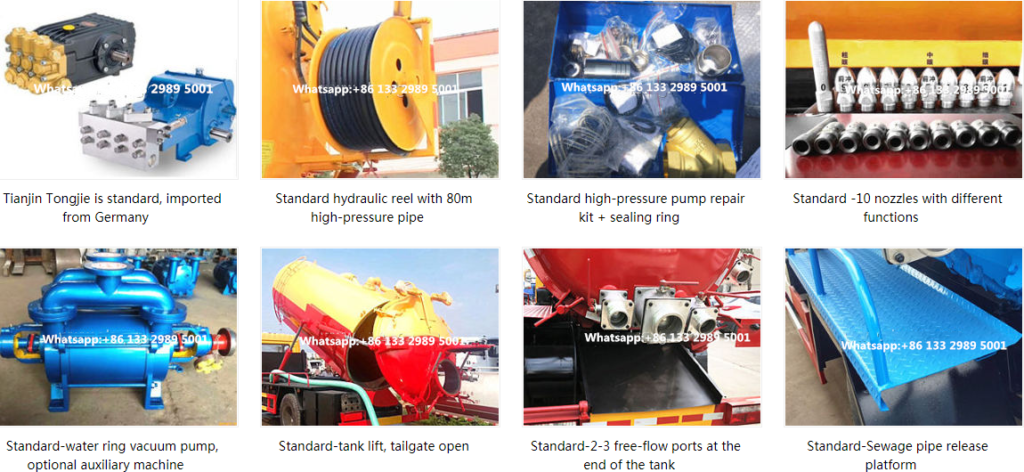

HOWO 5000liter sewer jetting sewage suction truck Working parameter New craft

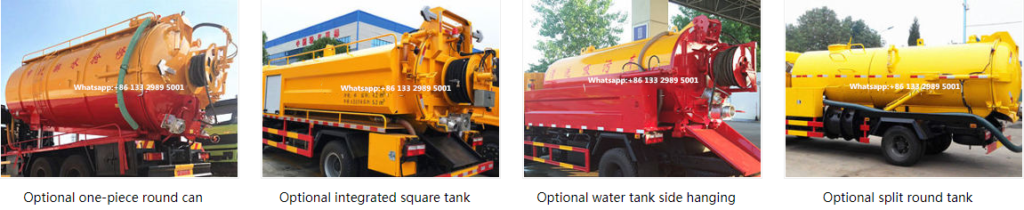

HOWO 5000liter sewer jetting sewage suction truck Optional configuration

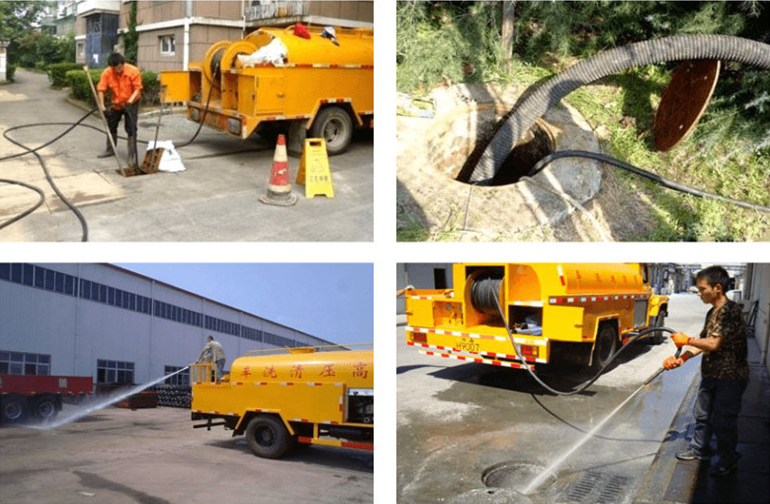

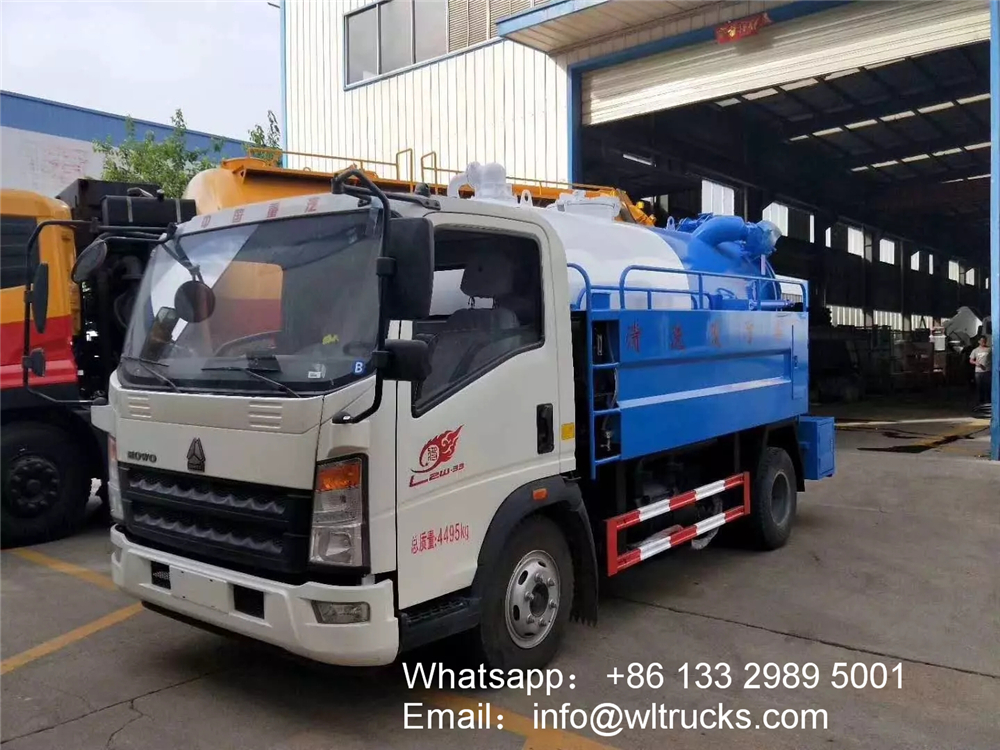

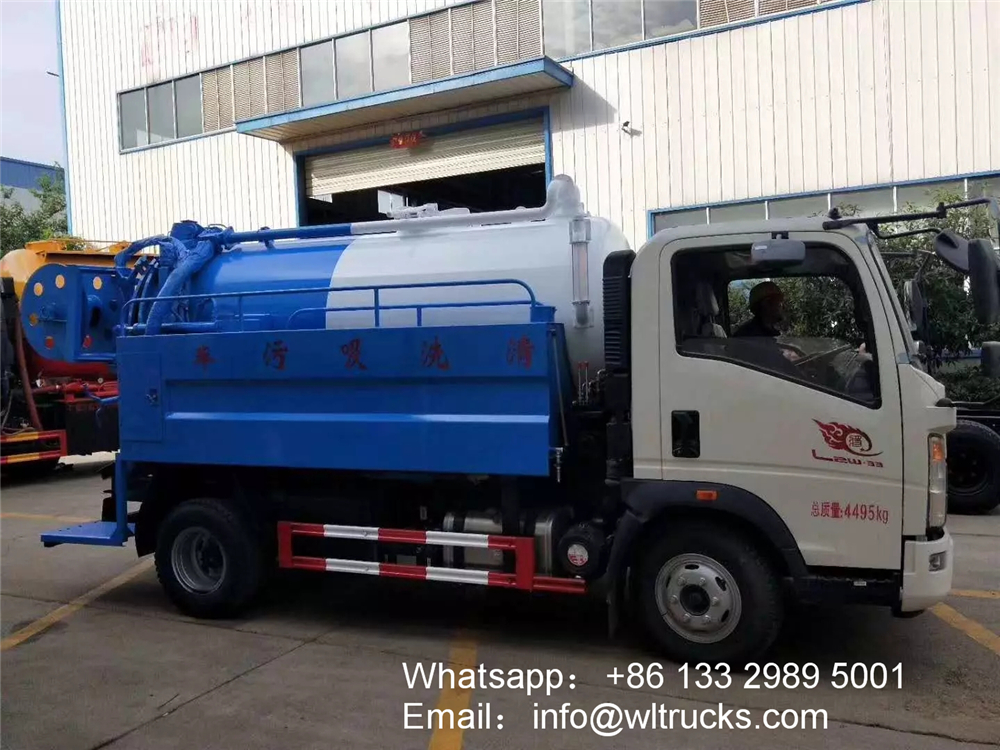

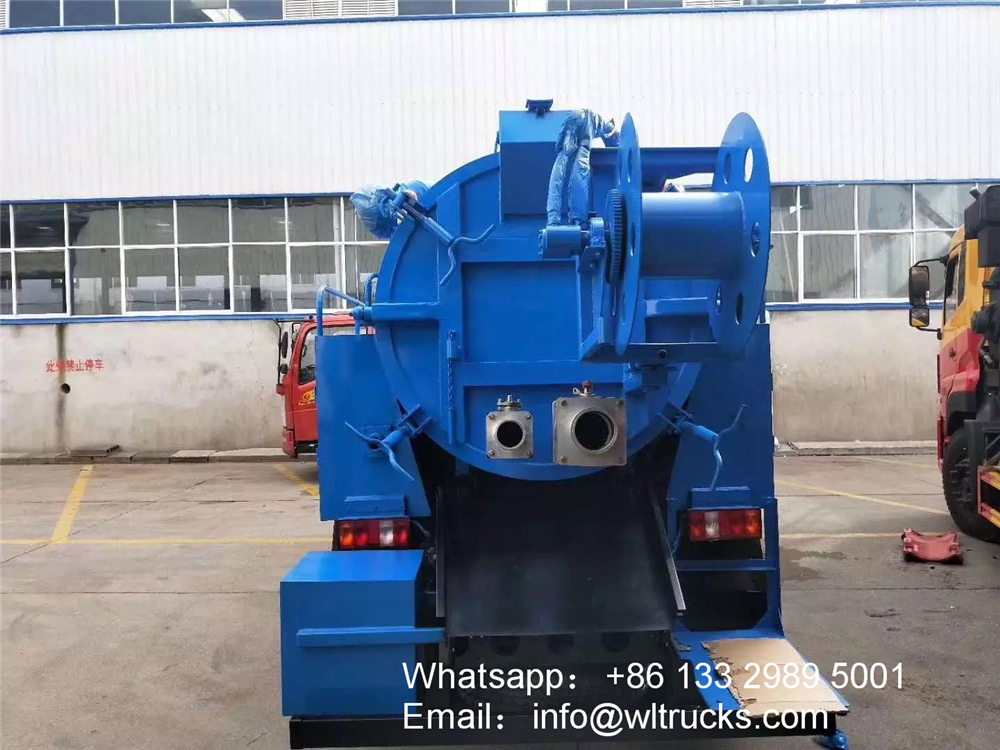

HOWO 5000liter sewer jetting sewage suction truck Detailed image
