HOWO 5000 liter to 10000liter Swing arm waste collection truck Product Description:
HOWO 5000 liter to 10000liter Swing arm waste collection truck Chassis configuration: wheelbase 3300mm to 4500mm, HOWO single and double row cab, hydraulic flip, 115 horsepower in the cloud, Yuchai 160 horsepower engine, 6-speed gearbox, 4.5 tons front axle, 9 tons rear axle, with direction assistance, Air brake.
HOWO 5000 liter to 10000liter Swing arm waste collection truck Bodywork configuration: Reinforced alloy steel main boom, tensile and anti-deformation, double hydraulic legs to stabilize the car body, with hydraulic safety relief valve, the function of lifting and lowering the garbage hopper and self-unloading of the hopper can be completed by simple operation. The single working time is less than 60 seconds, the bucket and the car are separated, and the cycle operation of one car with multiple buckets can be realized. Comes with a garbage bin.
Optional configuration: You can choose ship-shaped ground bucket, square ground bucket, covered ground bucket, etc.
HOWO 5000 liter to 10000liter Swing arm waste collection truck Specifications:
| Cabin | Driving type 4×2 | |
| Single, Left/Right Hand Drive | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7350*2500*3350 |
| Wheel base (mm) | 3950 | |
| Wheel track (front/rear) (mm) | 1980/1860 | |
| Approach/Departure angle(°) | 24/15 | |
| Weight in KGS | Tare Weight | 6660 |
| Loading Capacity | 9145 | |
| Front axles loading capacity | 1×3600 | |
| Rear axles loading capacity | 1×8000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Yuchai |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 160 HP | |
| Emission standard | Euro 5 | |
| Gearbox | FAST, 6 forwards &1 reverse | |
| Steering Gear | Hydraulic steering with power assistance | |
| Fuel tank (L) | 300 L | |
| Tire | 9.00R20 tires with one spare, totally 7 pcs. | |
| Swing arm system with cargo box | ||
|
||
HOWO 5000 liter to 10000liter Swing arm waste collection truck structure diagram:
HOWO 5000 liter to 10000liter Swing arm waste collection truck Structure diagram：

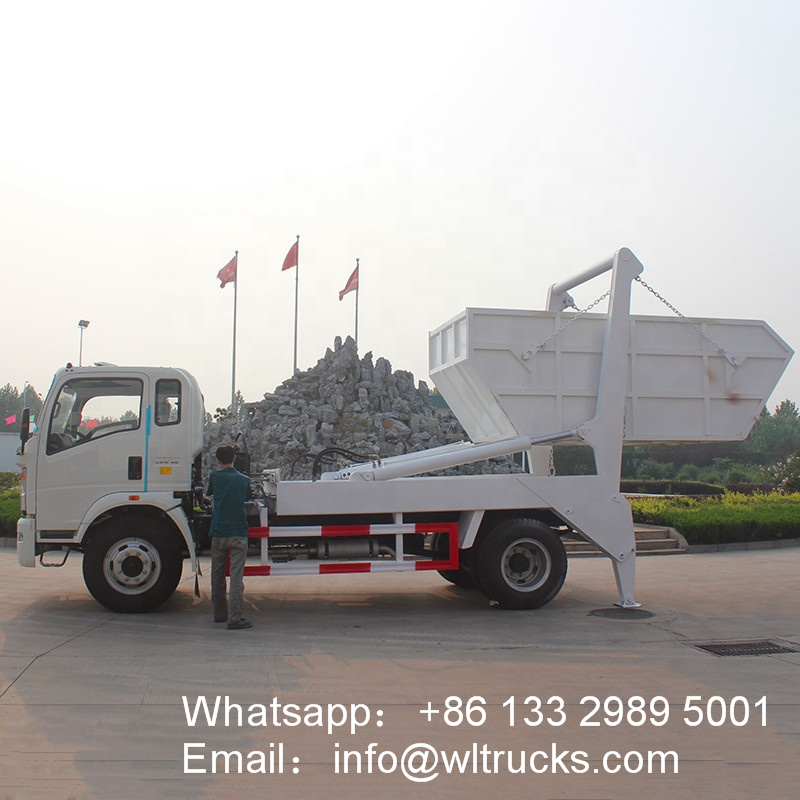

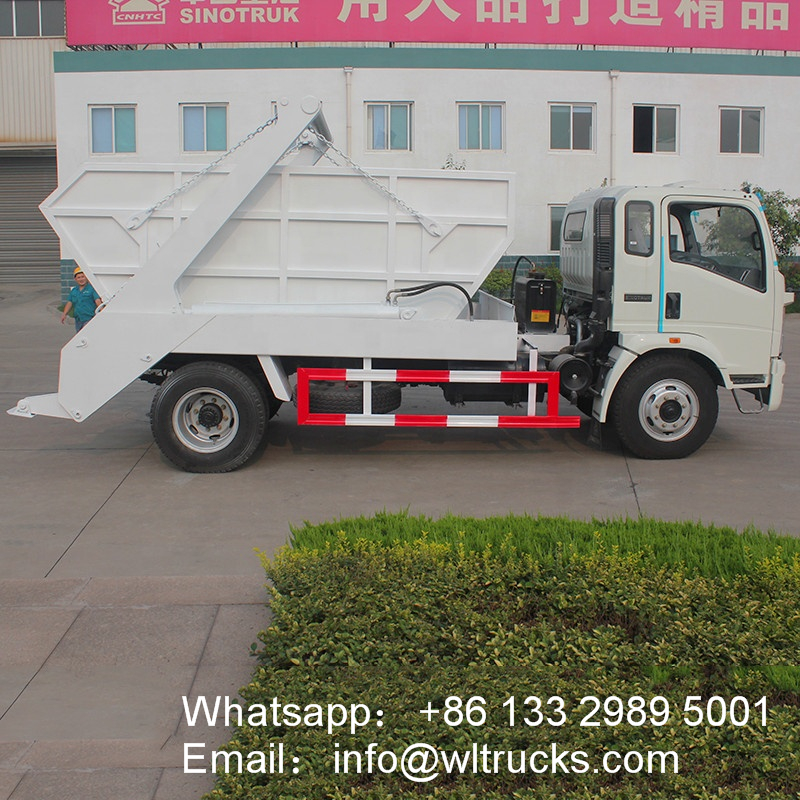

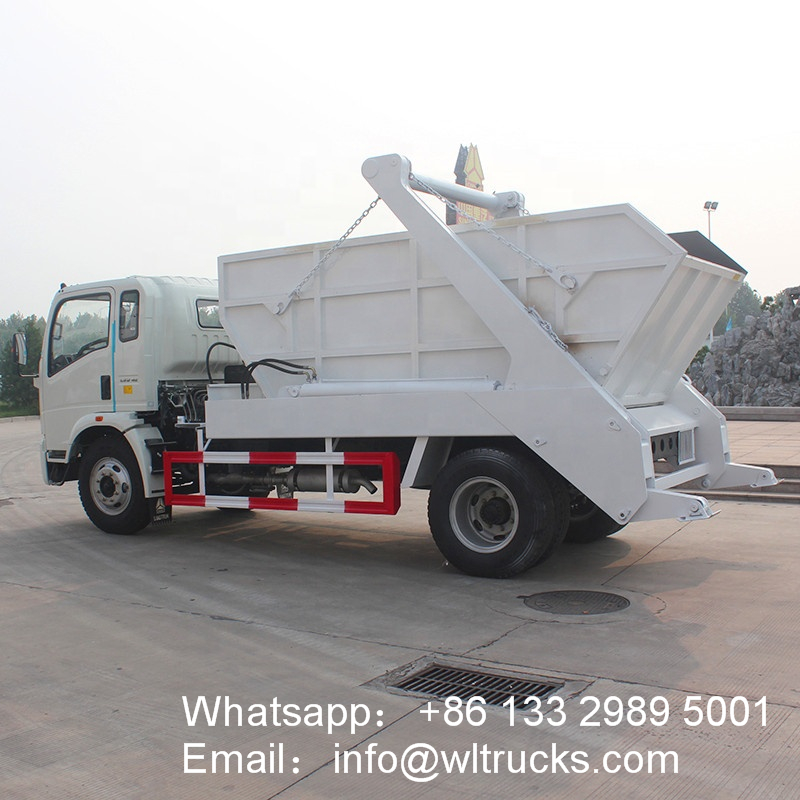

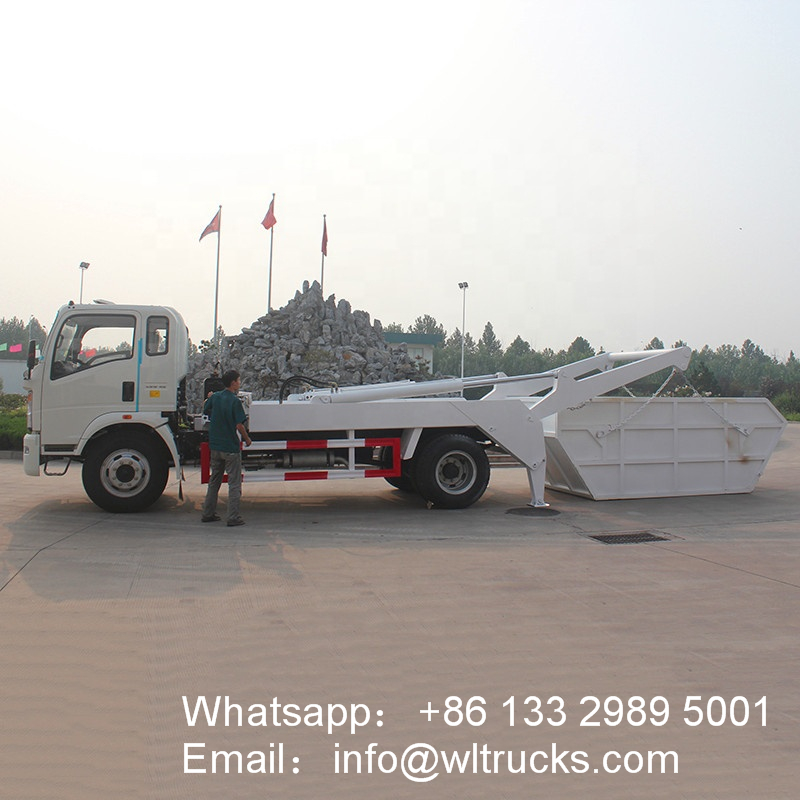

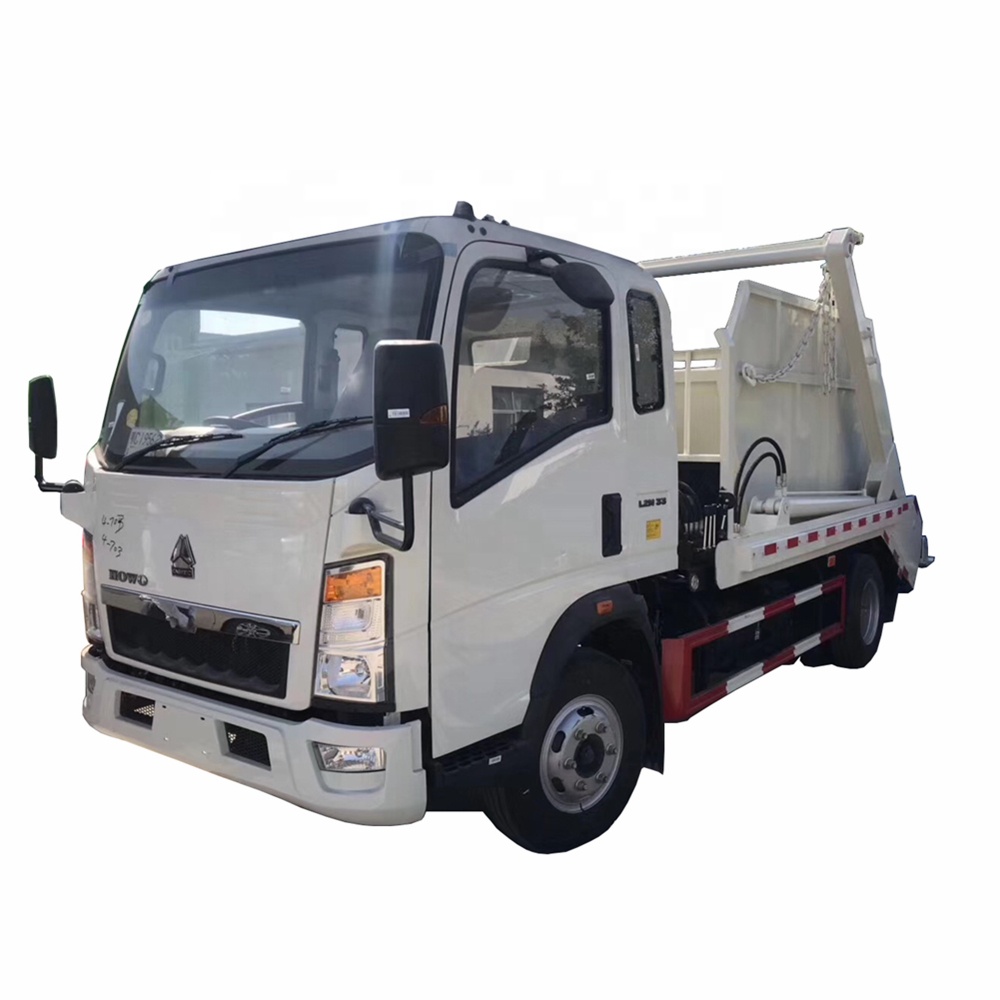

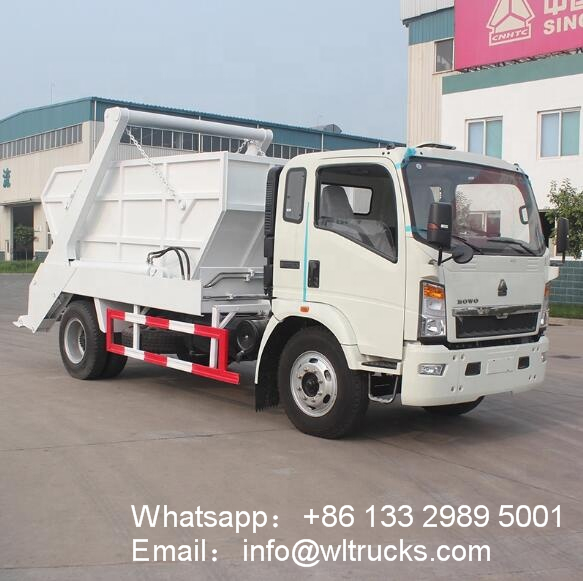

HOWO 5000 liter to 10000liter Swing arm waste collection truck Detail drawing:
Customizable garbage truck models
