HOWO 5000 liter garbage disposal truck Product Description:
HOWO 5000 liter garbage disposal truck Chassis configuration: Sinotruk original chassis, wheelbase 3.3 meters, Sinotruk Howo light truck white cab, 115 horsepower engine in the cloud, power steering, air brake, 700 tires with spare tires.
HOWO 5000 liter garbage disposal truck Bodywork configuration: Compressed volume of 5 cubic meters, made by T420 special steel plate integral bending, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 40 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 sewage Collection box, 3 operation control boxes, with night light, equipped with two-way compression function, the two-way hydraulic lock does not leak water.
HOWO 5000 liter garbage disposal truck Optional configuration: optional double pump confluence + double valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device. It can be loaded with 85-95 barrels of garbage, with large power and much load.
HOWO 5000 liter garbage disposal truck Specifications:
| HOWO 5CBM Garbage Compactor Truck | |||||
| Overall Dimension | 6220×2150×2470 mm | Gross Vehicle Weight | 7360 kg | ||
| Curb Weight | 5400 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 116HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 6CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 – 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
HOWO 5000 liter garbage disposal truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
HOWO 5000 liter garbage disposal truck New craft:

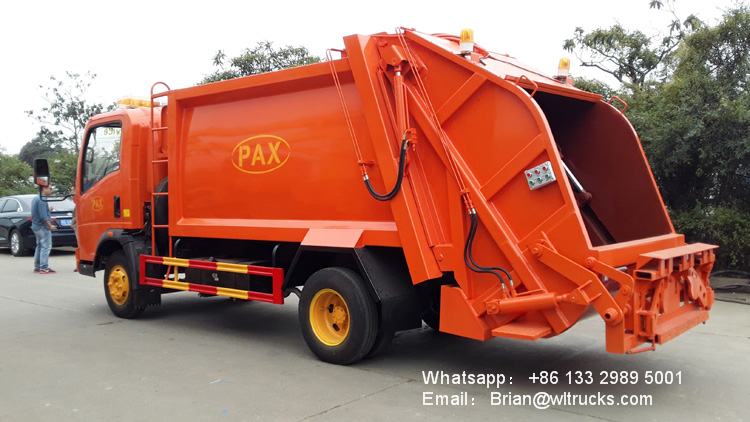

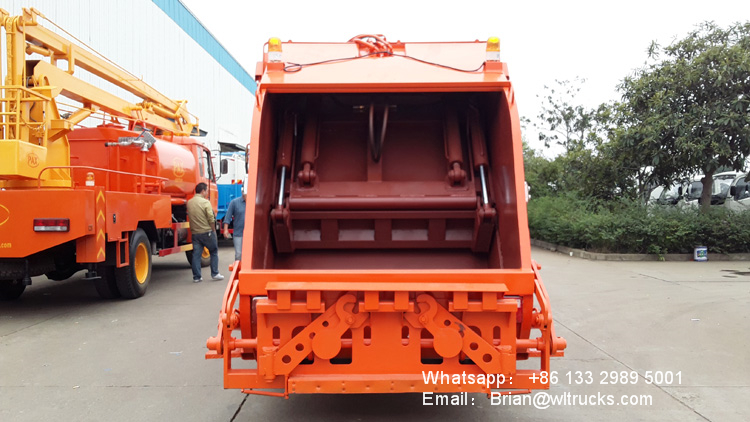

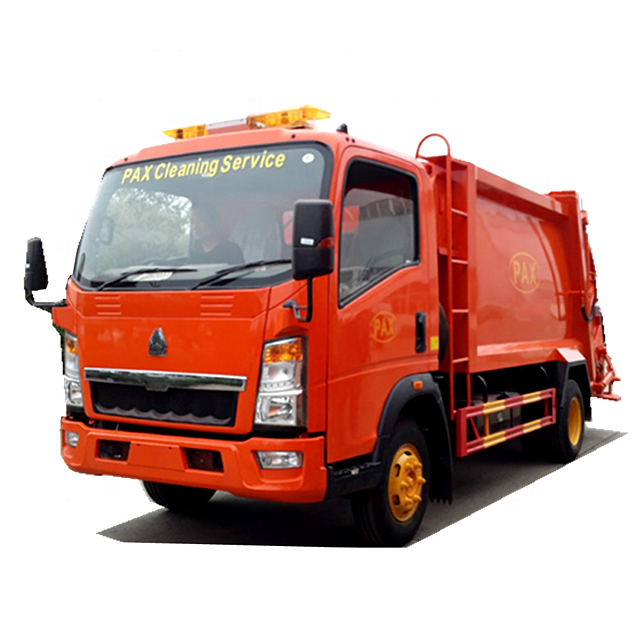

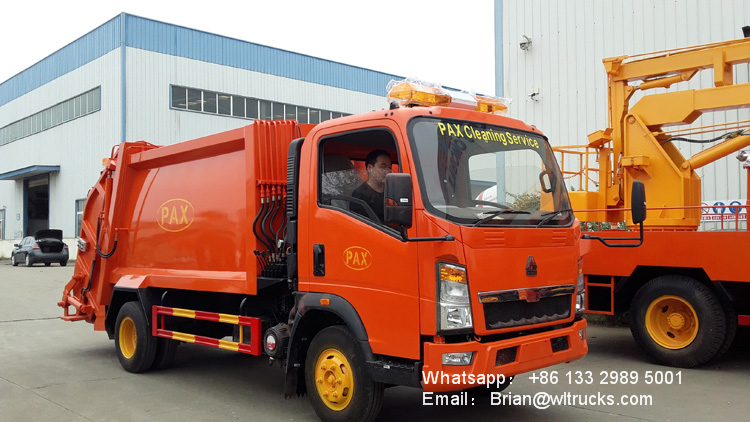

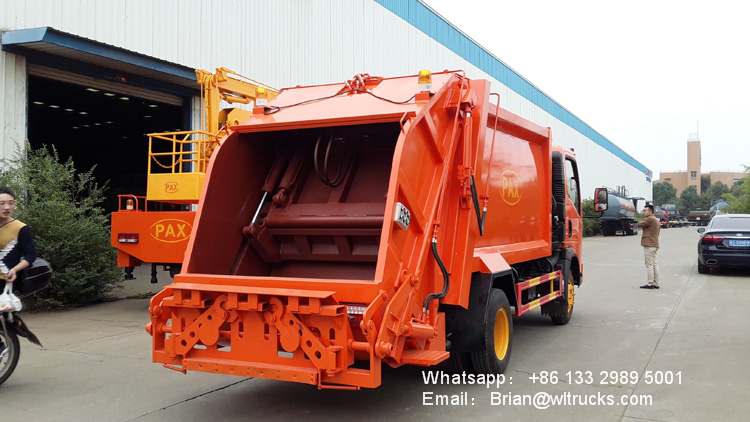

HOWO 5000 liter garbage disposal truck Detailed Images:
HOWO 5000 liter garbage disposal truck Structure diagram：
HOWO 5000 liter garbage disposal truc Detail drawing:
