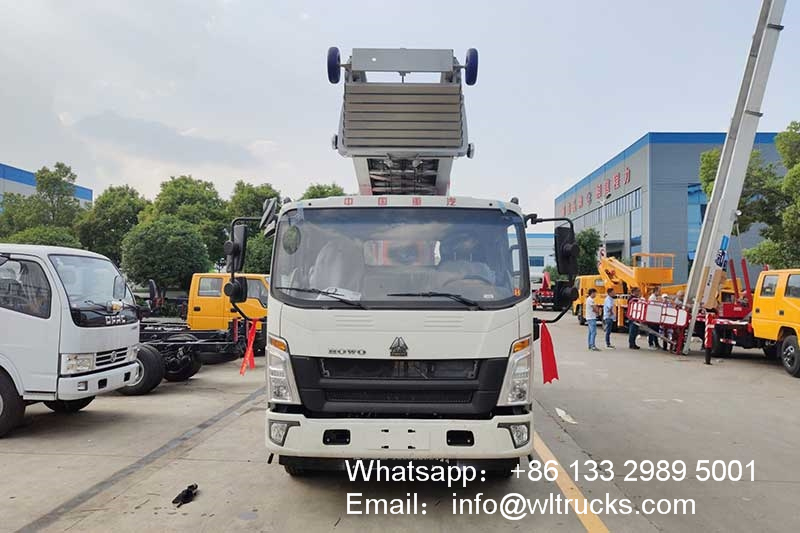

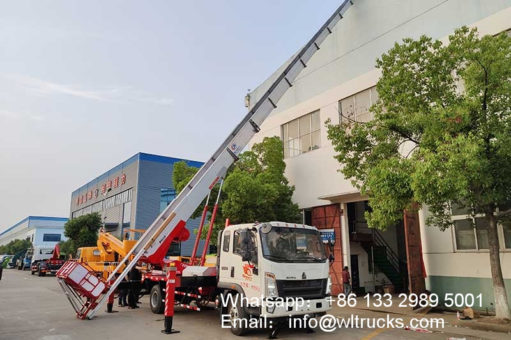

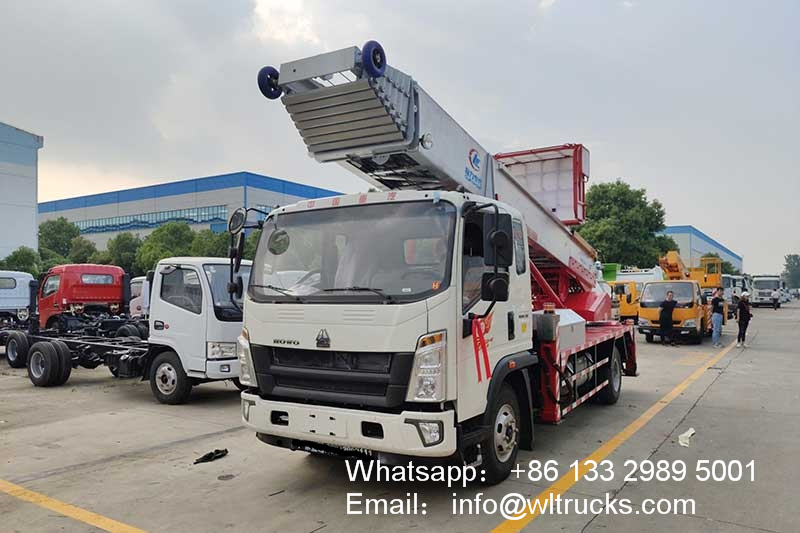

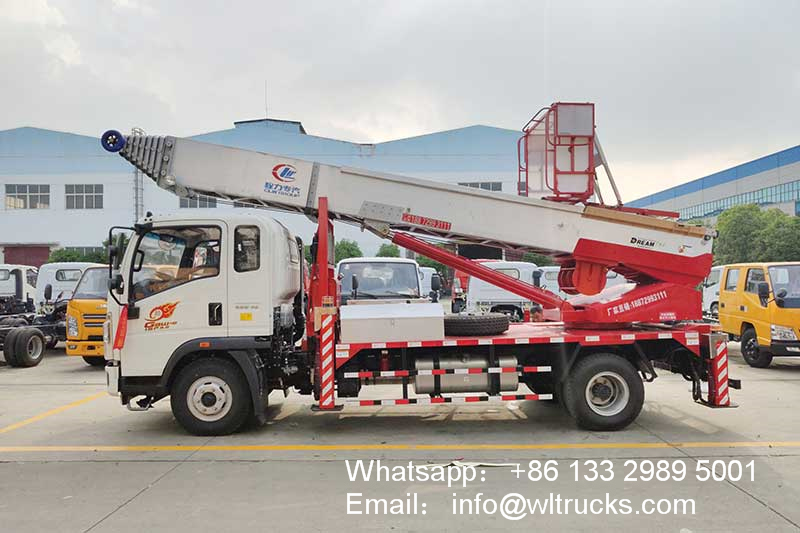

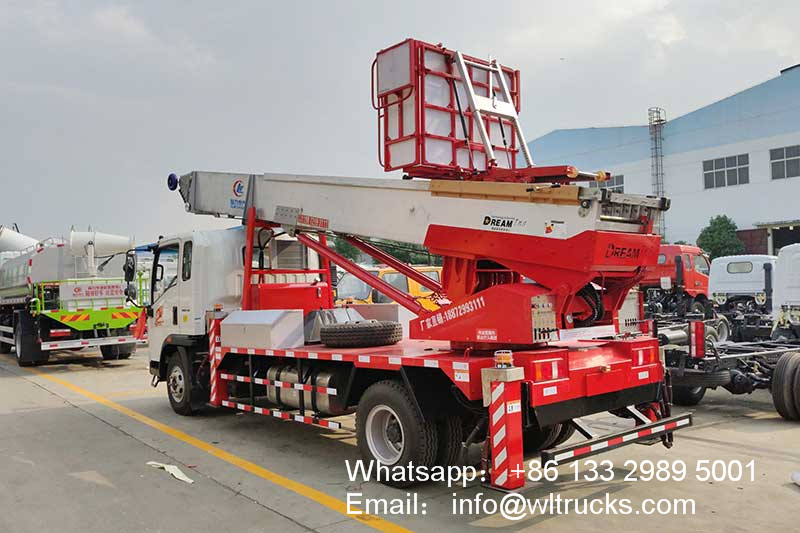

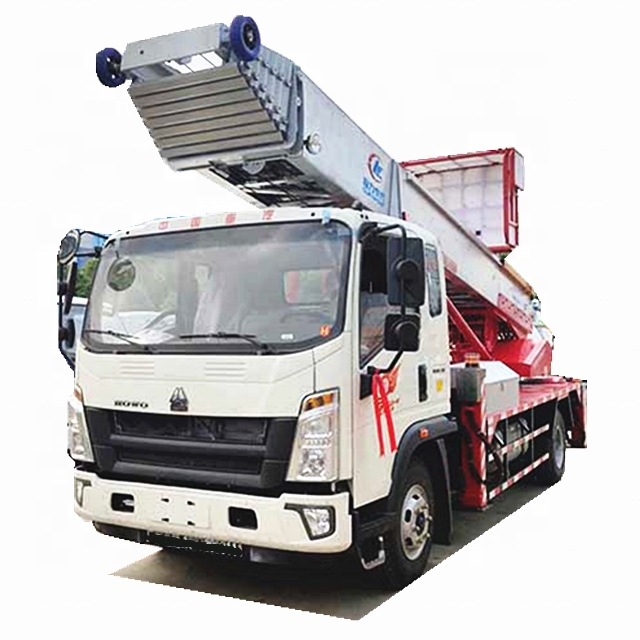

HOWO 38 m 45 m ladder lift truck
HOWO 38 m 45 m ladder lift truck Application area:
Aerial ladder truck, also called high altitude cargo delivery ladder truck, is specially designed and produced for transporting furniture or other house using goods, heavy cargos to high floor building; do operation works on high altitude.
28 to 45 meters ladder type multi-purpose overhead working truck, safe and reliable, and can be used for aerial work, high relief, high-rise cargo handling, suitable for villa floor decoration, outer wall paint, trim trees, billboards, street lamp, monitoring equipment, installation and maintenance convenient service, high-rise fire rescue and so on aerial work also can be widely used in: municipal construction, highway, railway, airport, hospital, ships, mines, tunnels, exploration, oil, terminals, pipelines, shipyards, power plant, drilling, steel mills, subway, factory, hotel, supermarket, office building, wide in the field of communications and companies..
HOWO 38 m 45 m ladder lift truck specification:
product name | HOWO 38 m 45 m ladder lift truck aerial and high rise hydraulic ladder lift truck | Dimensions (mm) | 6480x2410X3840mm |
Total mass (kg) | 8655 | Rated mass (kg) | 1000 |
Chassis parameters | |||
Chassis model | ZZ1107G421CE199 | Maximum speed (km/h) | 95 |
Front track (mm) | 1385 | Rear track (mm) | 1425 |
Wheelbase (mm) | 3800 | Tire specifications | 7.50R16LT 8PR |
Engine parameters | |||
engine model |
China Yunnei
|
Emission Standards | Euro III (diesel) |
Engine manufacturer | YN4102QBZL | Horsepower | 120 |
Top-loading configuration |
28 meter ladder truck has a vertical height of 45 meters, which is equivalent to 15 floors. The maximum load is 400 kilograms. The configuration includes hydraulic legs, remote control, dump bucket and radiator.
Cheng Liyun ladder car advantages: 1. Automatic interlocking device for getting on and off: used for interlocking between the upper and lower vehicles to prevent danger from misoperation. 2. Horizontal state tester for the whole vehicle: It can detect the tilting state of the vehicle in both horizontal and vertical directions. 3. The ladder limit alarm device: ladder Extending to reach the limit automatically alarm prompt 4, emergency brake device: used to force stop the platform operation 5, one-button ignition, flameout: the engine can be ignited and extinguished at the operating console 6, night safety lighting device: at the ladder There are engineering lighting on the arm 7. Safety warning device for the leg: used to warn that the leg is not received as required |
Comparison of the price of ladder lift truck and manual handling:
Workload | Number of people | Operating time | cost | |
28m cloud ladder moving car | 20 cubic meters of sand /600 bags of cement
(Move to the 2nd floor or higher) |
2 people | 6 hours | 1800$ |
Manual handling | 8 people | 2-4 days | Around 5,000$ |
Comparison of the ladder lift truck and other types of aerial work trucks:
- It can be equipped with80 meters of wireless remote control. The wireless remote control includes the start of the whole vehicle, the lifting of the cargo bucket, the automatic stop when it reaches the specified position, and the hydraulic radiator switch.
- All components of Yunti are imported from South Korea,with stable quality, rich experience and technical clearance.
- Aself-unloadingbucket can be installed , and the bucket can reach the ground directly . Greatly saves manpower and makes the operation more efficient.
- The cargo hopper can be unfolded. After unfolding, the length and width are2m*2.4m. Can hold larger volumes of goods.
