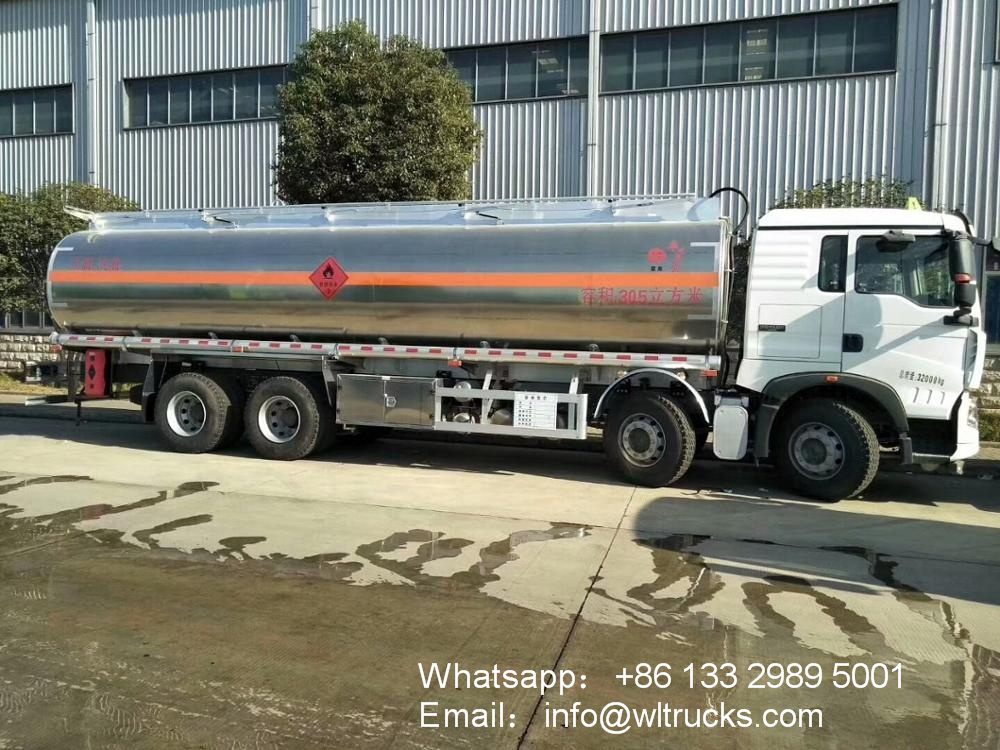

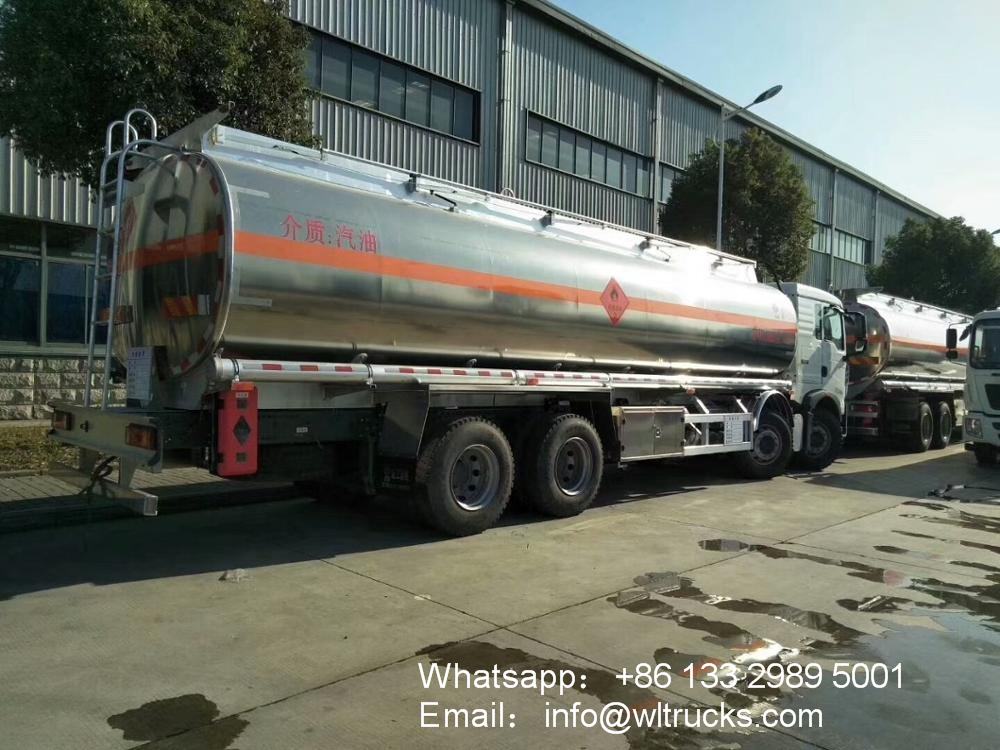

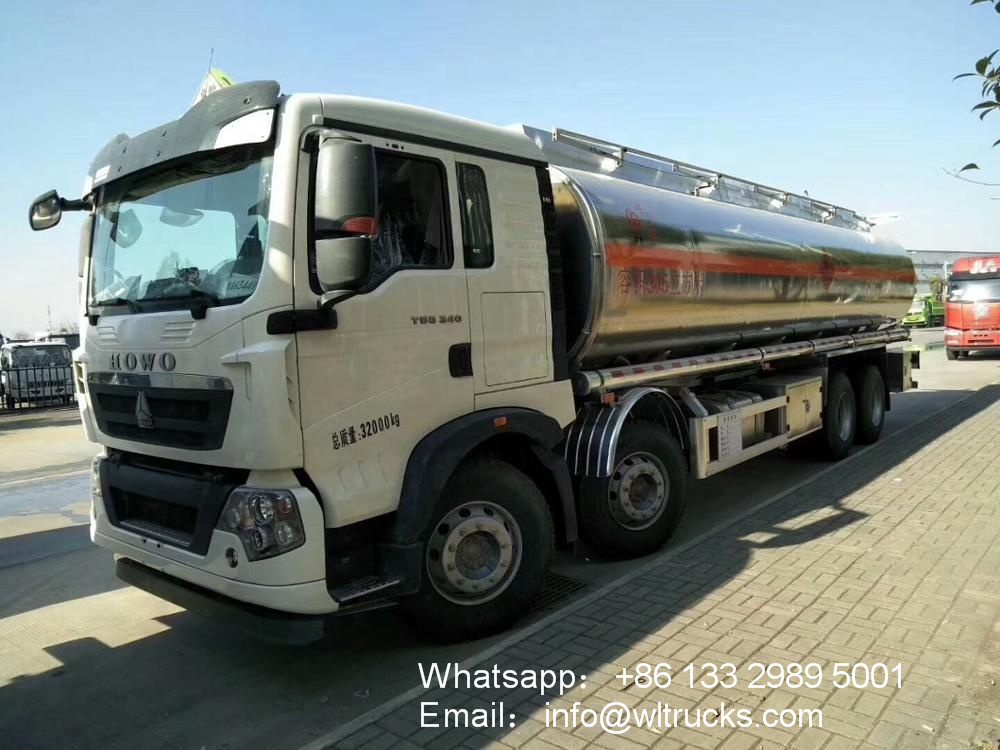

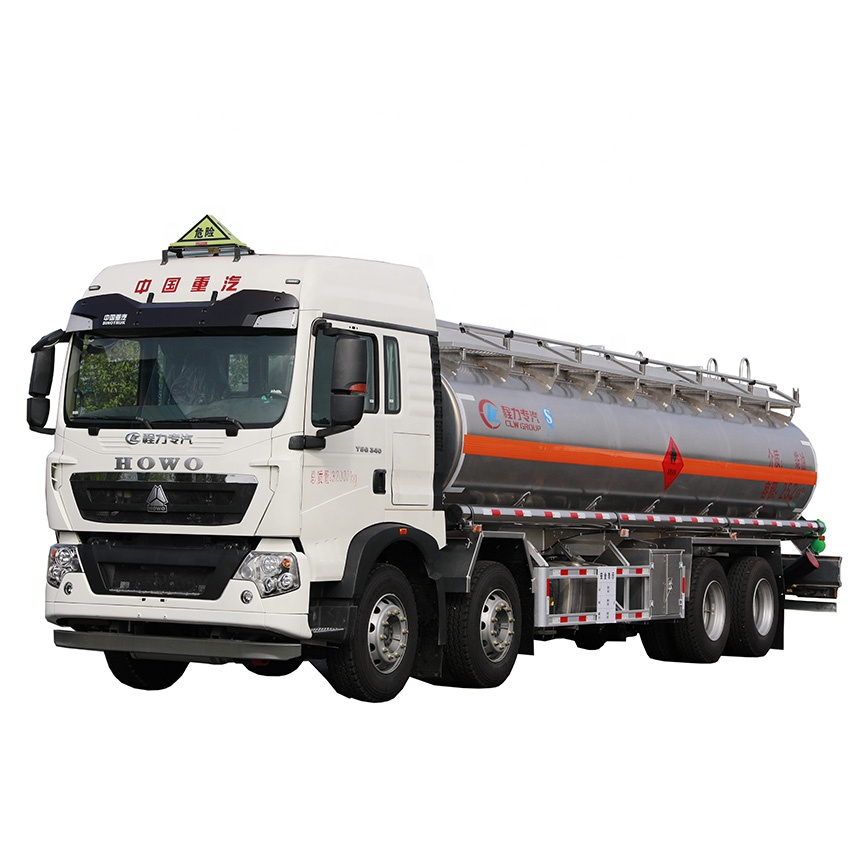

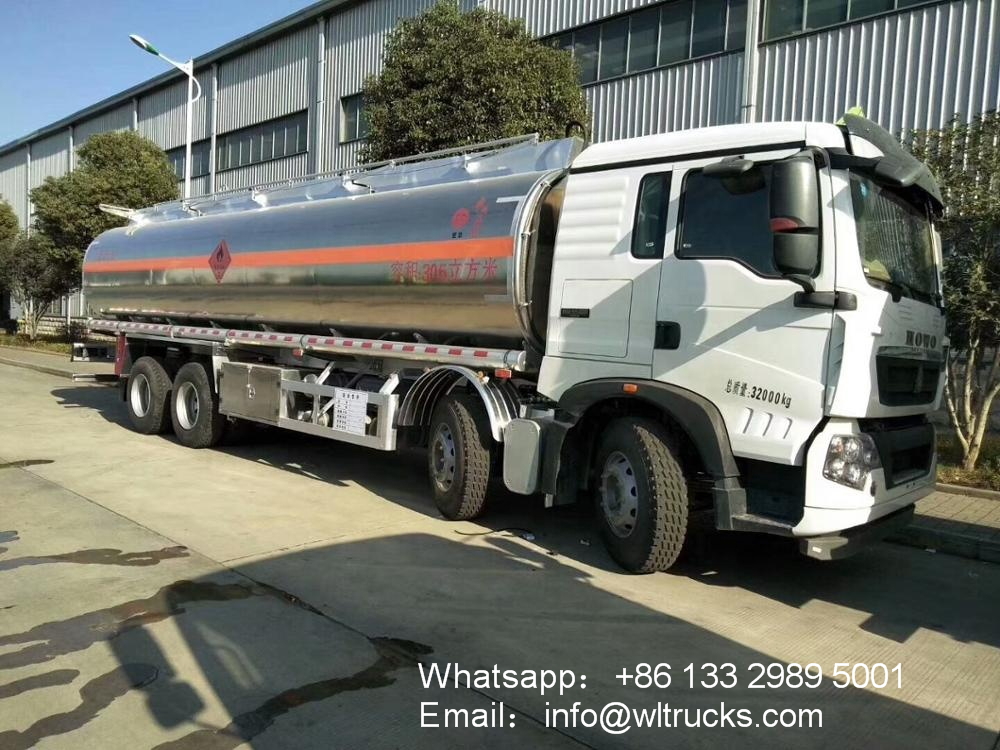

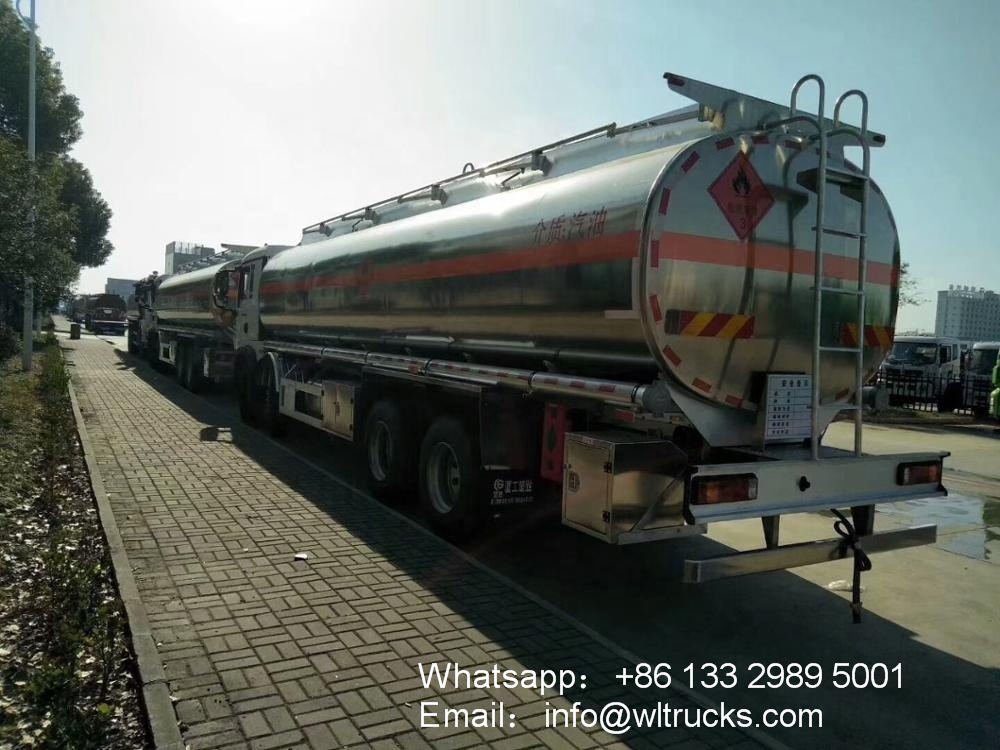

Sinotruk HOWO 30000liters Aluminum alloy fuel oil tank truck
Sinotruk HOWO 30000liters Aluminum alloy fuel oil tank truck adopts T5G high-roof cab, electrically tilted cab, HW13710CL gearbox (10-speed), front axle VPD060QB (7-ton disc brake), rear axle: MCY11 (Manton 11-ton ), 295 / 80R22.5 vacuum tires, MC07.34-50 National V engine, flange type 50 power take-off, driving recorder, exhaust front, ABS, speed limit device, warning lights.
Transport medium: suitable for transporting liquid substances such as alcohol, aldehyde, benzene, ether and other gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products.
Sinotruk HOWO 30000liters Aluminum alloy fuel oil tank truck special performance: equipped with power take-off, high-quality special oil pump, a full set of European standards (aluminum alloy European standard tank port, aluminum alloy lifting guardrail, aluminum alloy subsea valve, bottom oil port, exhaust gas recovery, Anti-overflow probe rod and socket, static socket), two equal-length oil pipelines, equipped with quick-fit joints, two small locks, two fire extinguishers, two plugging caps, fire caps, reinforced bumpers on both sides and rear Anti-skid ladder, with license plate light, tool box, and notice board. It is made strictly according to the announced size, and the whole vehicle is not overweight and worry-free.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Cabin | Driving type 8×4 LHD/RHD | |
| HW76 Lengthen cab, single bunk,safety belts,left hand driving,air conditioner. | ||
| Overall Dimensions | 11182X2496X3215,3800 mm | |
| Wheel Base | 1500+3800+1350 mm | |
| GVW | 31000kg | |
| Front axle loading capacity | 2 x 9000 | |
| Rear axles loading capacity | 2 x 16000 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 9.726L | |
| Bore x Stroke | 126x130mm | |
| Horse Power (HP) | 371 | |
| Emission standard | Euro II | |
| Max Speed | 102 km/h | |
| Tire | 12.00-20, 12.00R20 | |
| Transmission | HW19710 transmission,10 forward & 2 reverse,with PTO | |
| Steering | ZF8098 | |
| Oil Tank | 300L | |
| Tank Volume | 25CBM-30 CBM | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2×12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Option | Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm,Traveling Data Recorder,Metal Pipeline,Engine Protective Board | |
