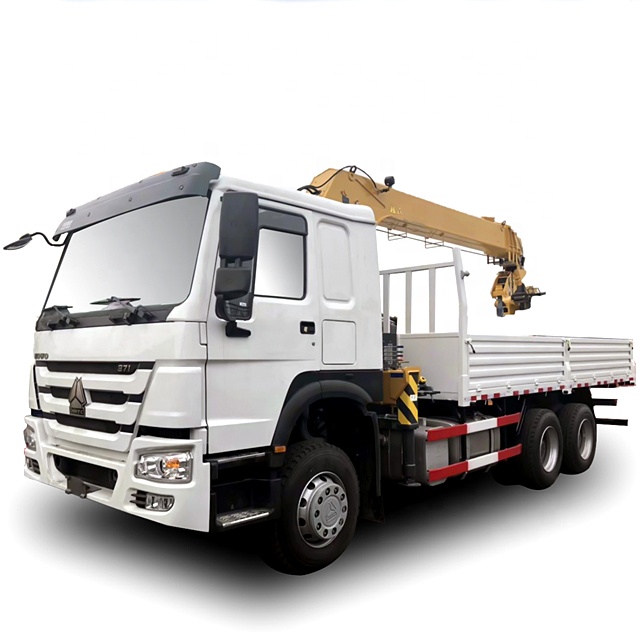

HOWO 10ton to 12ton truck and crane

HOWO 10ton to 12ton truck and crane Adopt HOWO A7 luxury cab, heavy truck 336 horsepower engine, eight-speed gearbox, 10 tons rear axle, 1100 tires, wheelbase 4500 + 1350mm, standard cargo box can be made into 8.2 meters manual telescopic or hydraulic telescopic cargo box, The rear can be equipped with ladders, automatic unloading elevators, aerial work and other multi-function trucks.

Send Inquiry

Description
HOWO 10ton to 12ton truck and crane Video

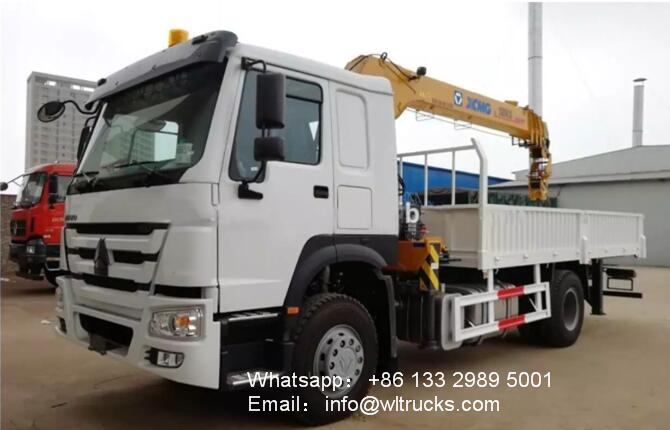

HOWO 10ton to 12ton truck and crane

Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.

1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.

2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.

3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer

4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.

5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.

HOWO 10ton to 12ton truck and crane specification:

General Technical Parameters
Overall Dimension				11900x2500x3850 (mm)
Gross Vehicle Weight				25000kg
Curb Weight				15000kg
Chassis Specification
Chassis Parameters	Chassis Brand			Sinotruk
	Cabin			Left Hand Driving, Remote front door lock, with A/C, Cruise system
	ABS System			Equipped
	Engine		Model	6 Cylinders
			Power	180KW/245HP
			Emission standard	EURO V
			Displacement	6.7L
			Fuel type	Diesel
	Gearbox			9 Forward & 1 Reverse Gear
	Front and Rear Axle load			7T/10T
	Wheel base			5700+1300(mm)
	Overhang( Front/Rear)			1460/2350(mm)
	Angle(Approach/departure)			20/16(°)
	Brake System			Air Brake
	Steering Gear			Power Assistant
	Tire			11.00R20, 10 Pieces with 1 Spare Tire
	Maximum speed			90(km/h)
Superstructure
Flatbed	Flatbed dimensions			8450x2300x550(mm)
Working System	Crane	Brand		Chinese Famous Brand
		Boom Type		Telescopic Boom
		Max lifting weight		12,000(kg)
		Max lifting height		15(m)
		Max working range		13(m)
		Rotation angle		360 degree full rotation

		Crane Weight	4361kg
		Installation space	1150(mm)
	Outrigger		2 pcs, Front leg
	Operation		Hydraulic control, with Aerial Seat
Optional Parts	1. Remote control 2. Rear leg

HOWO 10ton to 12ton truck and crane Working parameter:

HOWO 10ton to 12ton truck and crane crane New craft:

HOWO 10ton to 12ton truck and crane Optional configuration:

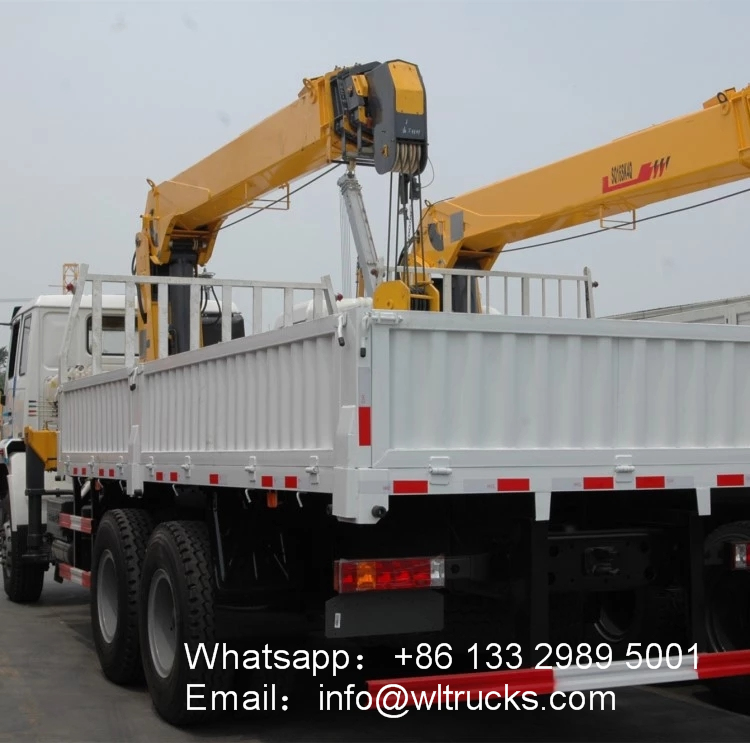

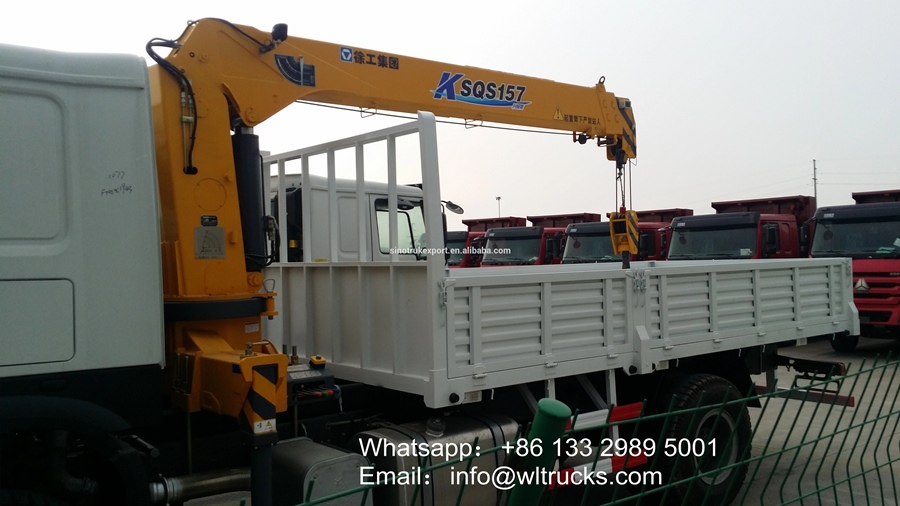

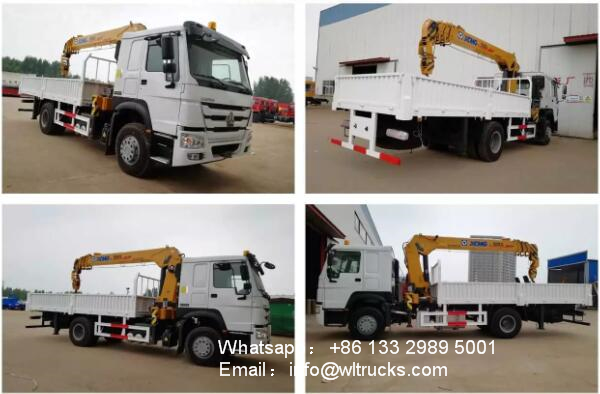

HOWO 10ton to 12ton truck and crane details:

Dongfeng 2 ton truck crane type exhibition:

Chengli truck-mounted crane can choose 3 or 4 booms, and can choose straight arm or folding arm crane. Cargo boxes or cranes with different lengths and tonnages can be selected according to user requirements.

The design of different forms of truck-mounted cranes is similar to truck-mounted crane models, such as railway truck-mounted cranes, fixed ship cranes, truck-mounted strap claws, truck-mounted strap dumpers, truck-mounted strap drills, etc.
