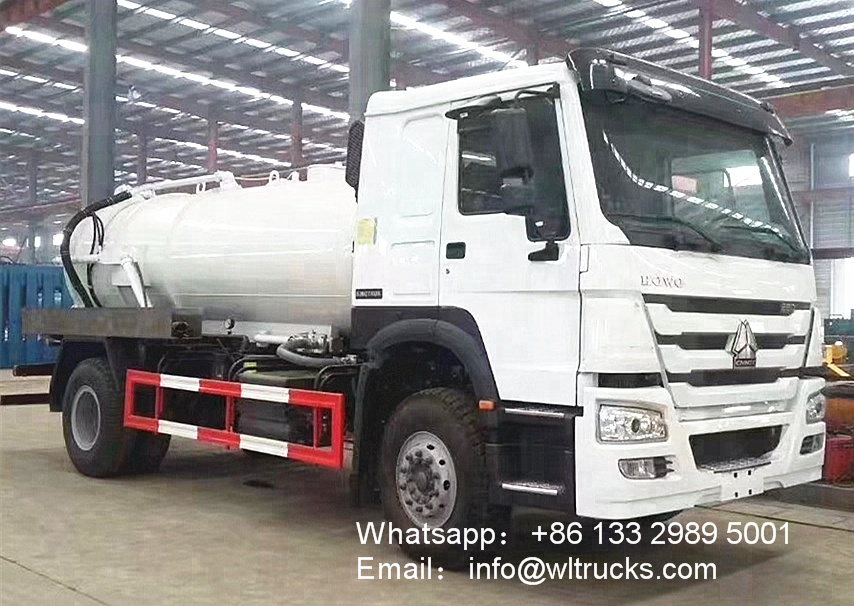

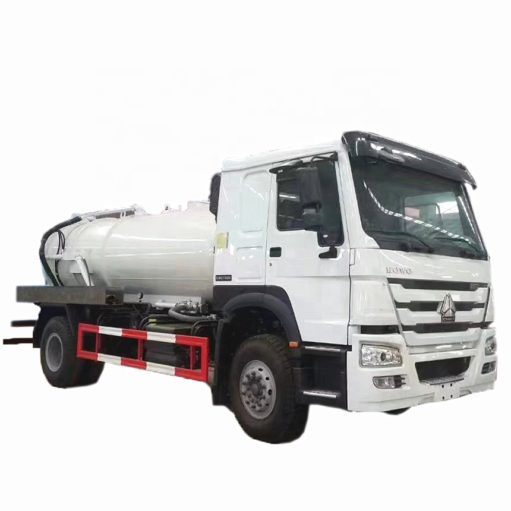

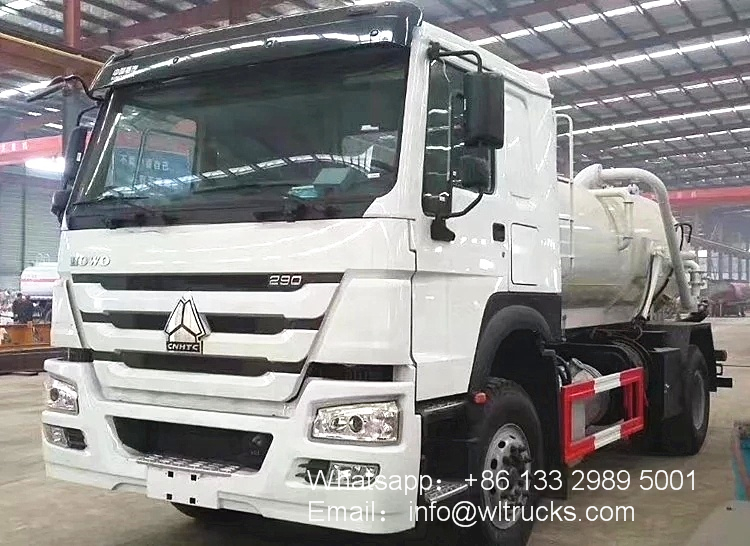

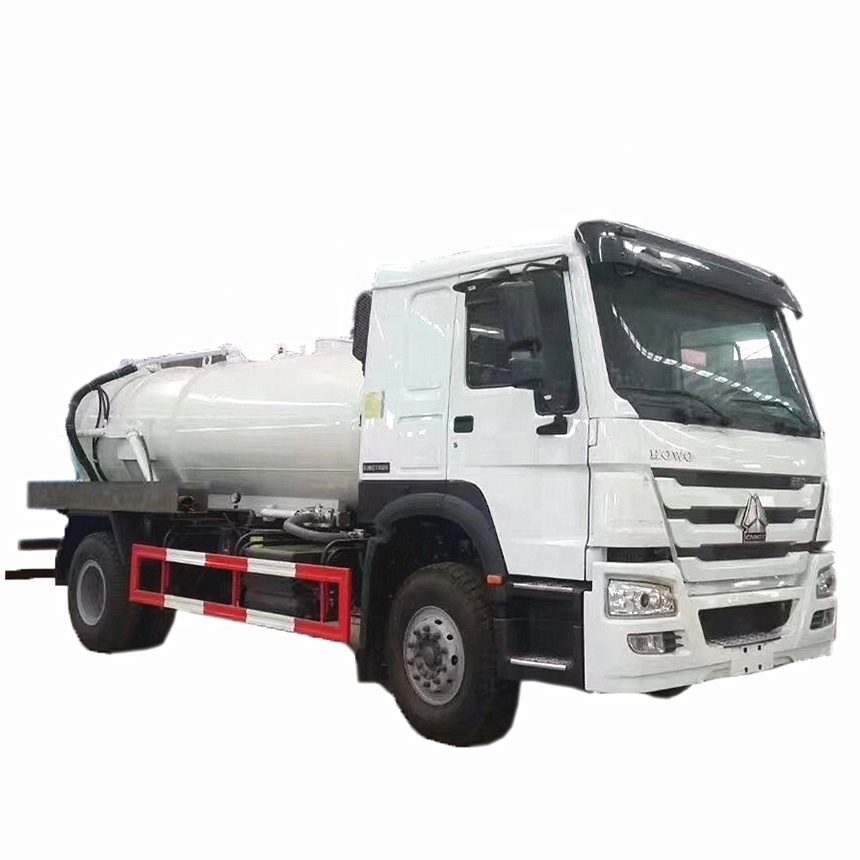

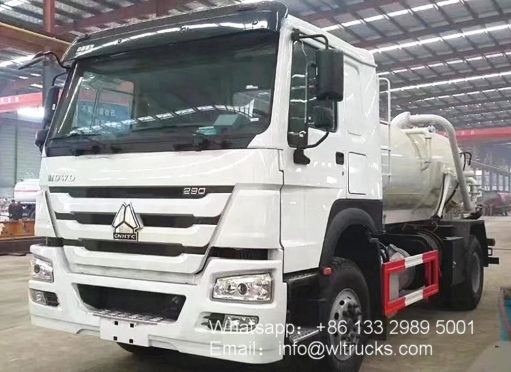

HOWO 10cbm to 12cbm vacuum sewage suction truck

HOWO 10cbm to 12cbm vacuum sewage suction truck Chassis configuration: made by Sinotruk Howo chassis, 4X2 drive, Sinotruk Howo cab, Sinotruk 180 hp engine or Sinotruk 210hp engine, 10-speed gearbox with power take-off, 10-ton rear axle, 9.00 R20 steel tire, 200L fuel tank, with air conditioner, ABS.

HOWO 10cbm to 12cbm vacuum sewage suction truck Bodywork configuration:

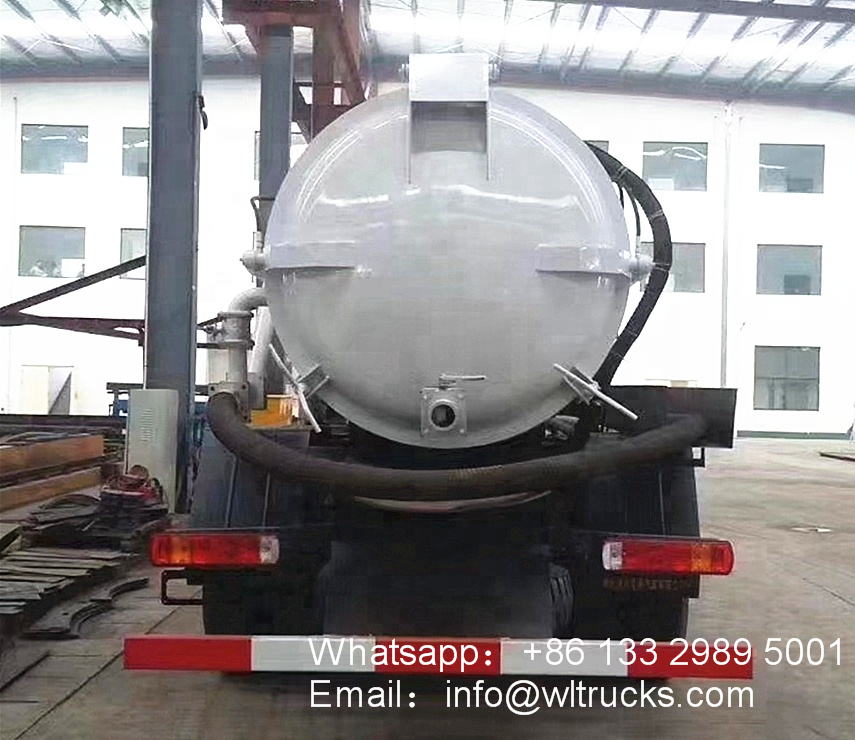

The tank volume is 10-12m3, the tank body is made of carbon steel plate, the tank body is 6mm thick, and the color of the tank body is painted in white and blue under the announcement. Install high-quality 12-ton vacuum sewage suction pump, tank color can be customized, with sight window, sewage pipe, sewage suction pipe 6 meters, with oil-water separator, anti-overflow valve, with hand washing device, hydraulic pressure is installed on both sides The cylinder has a lifting function, the rear cover is circular and can be opened hydraulically, and the self-flow valve installed on the rear cover can directly flow.

product name	HOWO 10000 to 12000 liters sewage suction truck	Chassis model	CLW5204GSSD3
Actual volume ( cubic )	16-18	Total mass (kg)	19800
Engine horsepower	180 210hp	Rated load mass (Kg)	1133
Engine name	HOWO	Emission Standards	Euro 3
Dimensions (MM)	10220×2400×2950	Fuel type	Diesel
Number of tires	10	Tire specifications	1000-20
Wheelbase (MM)	3450-1430	Maximum speed (km/h)	90
Front track	1503,1485,1519,1595	Rear track	1494, 1516, 1540
Performance profile	sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments.
Dedicated configuration	sewage Suction truck body can be: carbon steel, stainless steel. The special part of the suction truck consists of a power take-off, a drive shaft, a special vacuum suction pump, a high-pressure forming manure tank, a water-gas separator, an oil and gas separation, a multi-way reversing valve, a boom, a suction gun, and a pipe network system. It is equipped with a vacuum pressure gauge, a stained window (tube), and a hand washing device .
