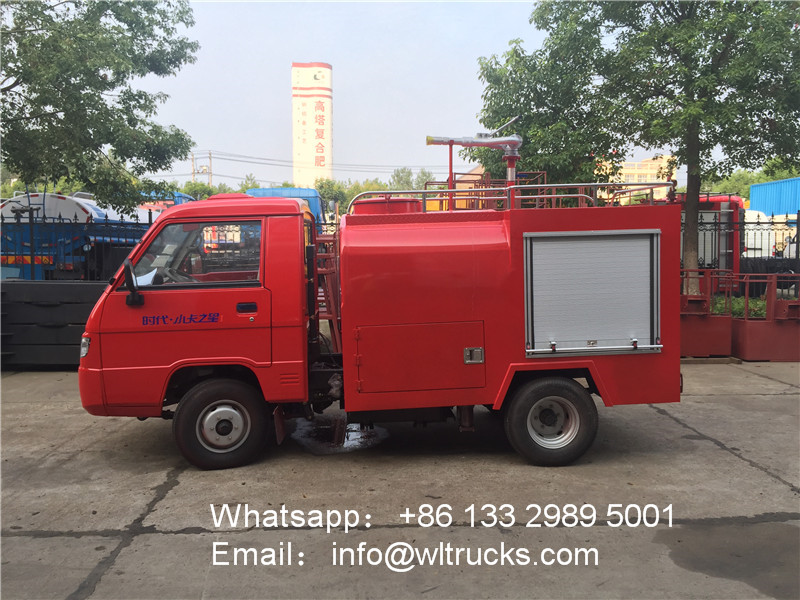

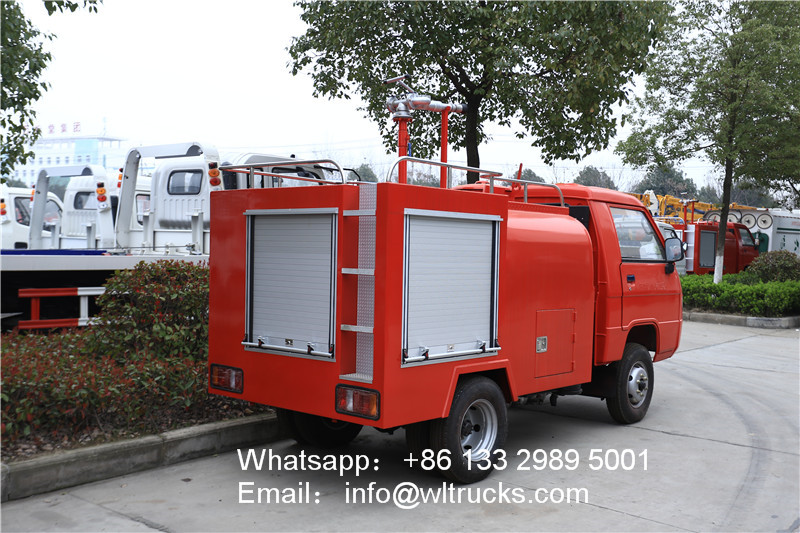

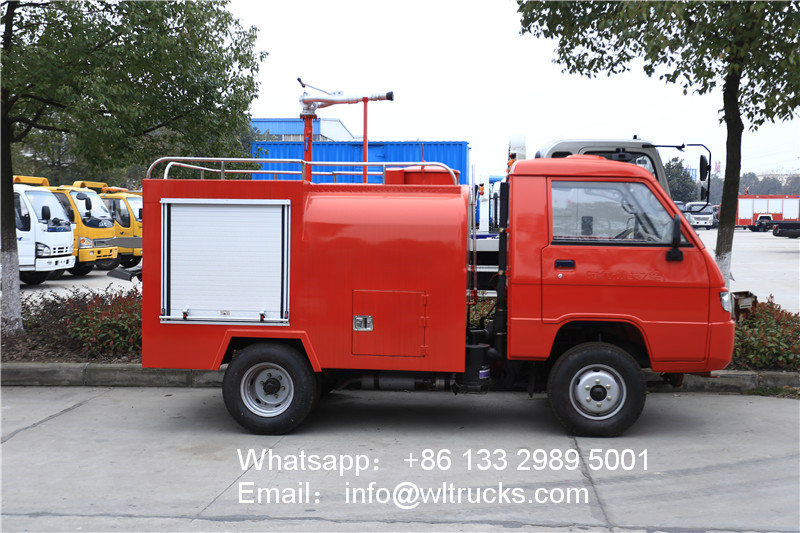

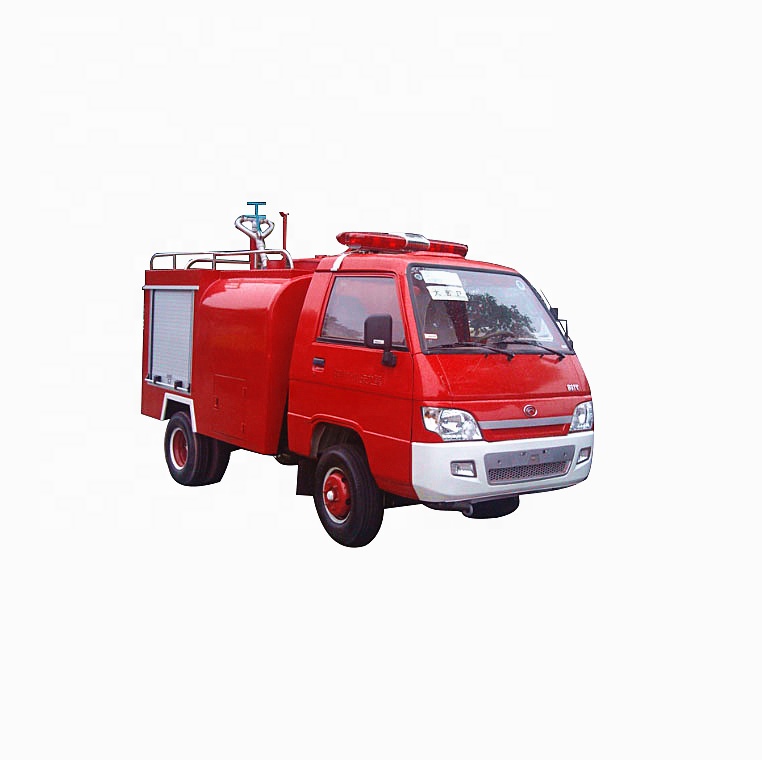

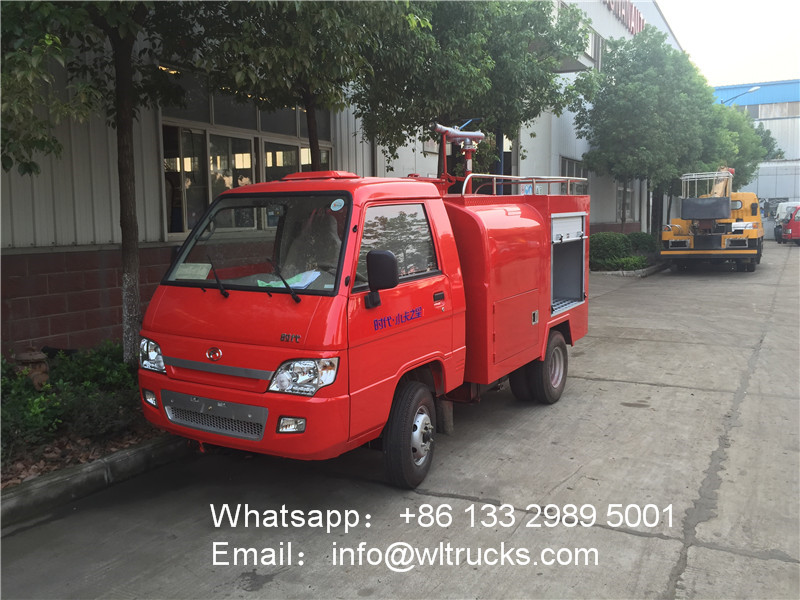

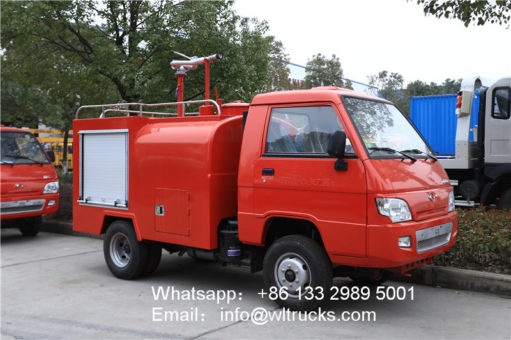

Foton small remote control fire truck Adopts Low pressure of fire pump: Flow:JBQ5.3/9 Manual pump, pressure: 0.6 MPa Water
intake time ≤ 35 Maximum suction depth is 7m, flow rate: 55t/h, pressure: 0.6MPa
Fire cannon Model: PS 18W , flow: 55t/h, range: ≥ 30m, pressure: ≤ 0.6MPa, pitch angle -22 ° ~ +81 °, angle of rotation 360 °
intake time ≤ 35 Maximum suction depth is 7m, flow rate: 55t/h, pressure: 0.6MPa
Fire cannon Model: PS 18W , flow: 55t/h, range: ≥ 30m, pressure: ≤ 0.6MPa, pitch angle -22 ° ~ +81 °, angle of rotation 360 °
Product Specifications:
|
Vehicle name:
|
Foton small remote control fire truck
|
Vehicle model:
|
CLW5330GSSD3
|
Dimensions:
|
4415×1785×1980
|
||||
|
Chassis model:
|
BJ1043JXD3
|
Engine:
|
quanchai 68 hp / 50kw
|
Tank volume:
|
1.2 cubic meters
|
||||
|
Drive type:
|
4wheel
|
Emission Standards:
|
Eruo 3
|
Number of passengers in the cab:
|
2 people
|
||||
|
Number of axes:
|
2
|
Front track:
|
560mm
|
Tire specifications:
|
6.00-16LT
|
||||
|
Wheelbase:
|
2600mm
|
Rear track:
|
1060mm
|
Number of leaf springs:
|
7/5+6
|
||||
|
Axle load:
|
900kg
|
Maximum speed:
|
99km/h
|
Anti-lock system:
|
Have
|
||||
|
Front overhang / rear overhang
|
560/1060mm
|
Number of tires:
|
6
|
Close to the departure angle:
|
34/27°
|
||||
|
Total quality:
|
2150kg
|
Rated quality:
|
1480kg
|
Curb quality:
|
600kg
|
||||
|
Other:
|
Low pressure of fire pump: Flow:JBQ5.3/9 Manual pump, pressure: 0.6 MPa Water
intake time ≤ 35 Maximum suction depth is 7m, flow rate: 55t/h, pressure: 0.6MPa Fire cannon Model: PS 18W , flow: 55t/h, range: ≥ 30m, pressure: ≤ 0.6MPa, pitch angle -22 ° ~ +81 °, angle of rotation 360 ° |
||||||||
Changan mini pumper fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | KD100×2 meters | 4 | root | Threaded |
| 2 | Water filter | FLF100 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 8 | plate | Low pressure; |
| 6 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 7 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 8 | Hose hook | 4 | Piece | ||
| 9 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 10 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 11 | Suction pipe wrench | FS100 | 2 | Piece | |
| 12 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 13 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | Fire bucket | 1 | Pc | ||
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
Fire truck equipment diagram:
