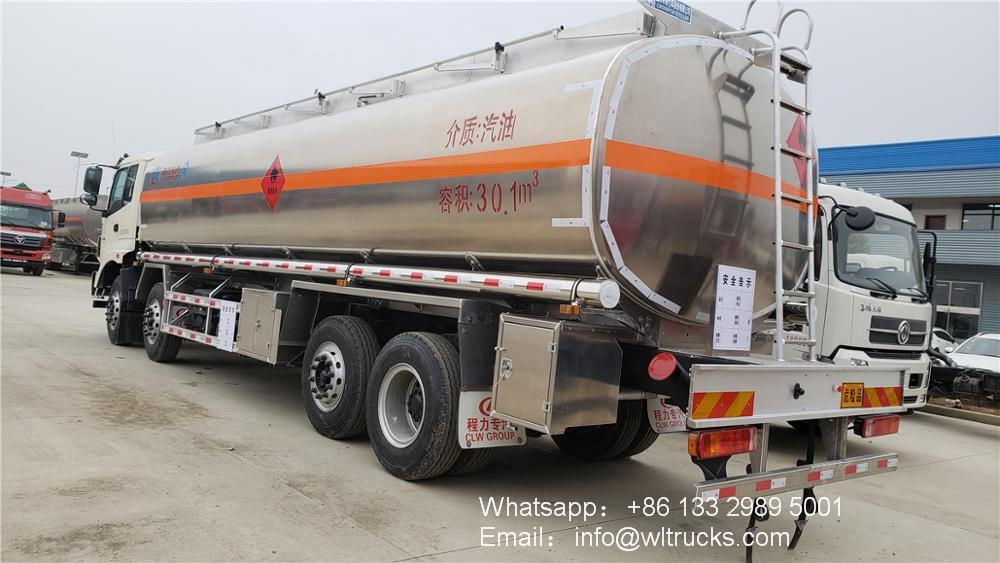

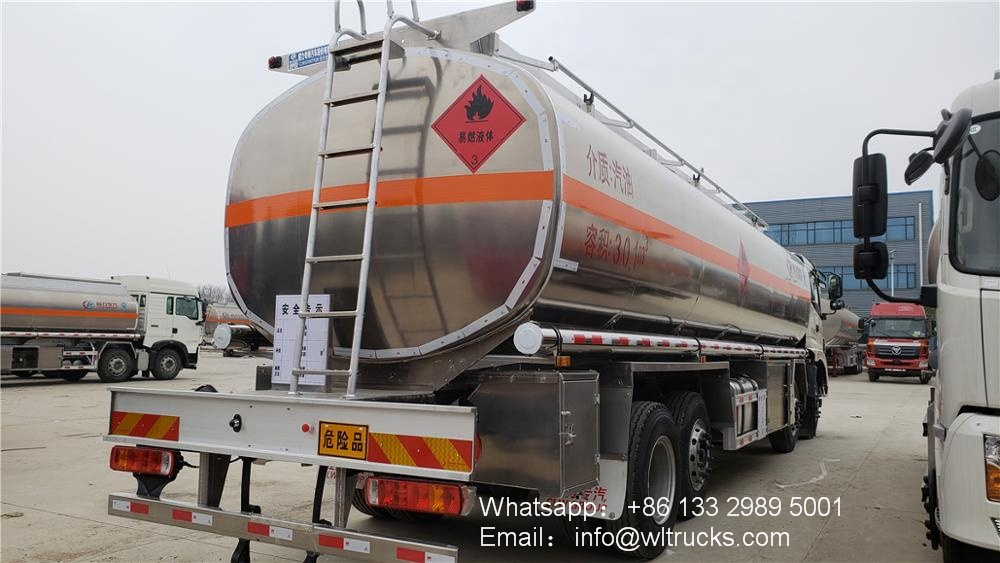

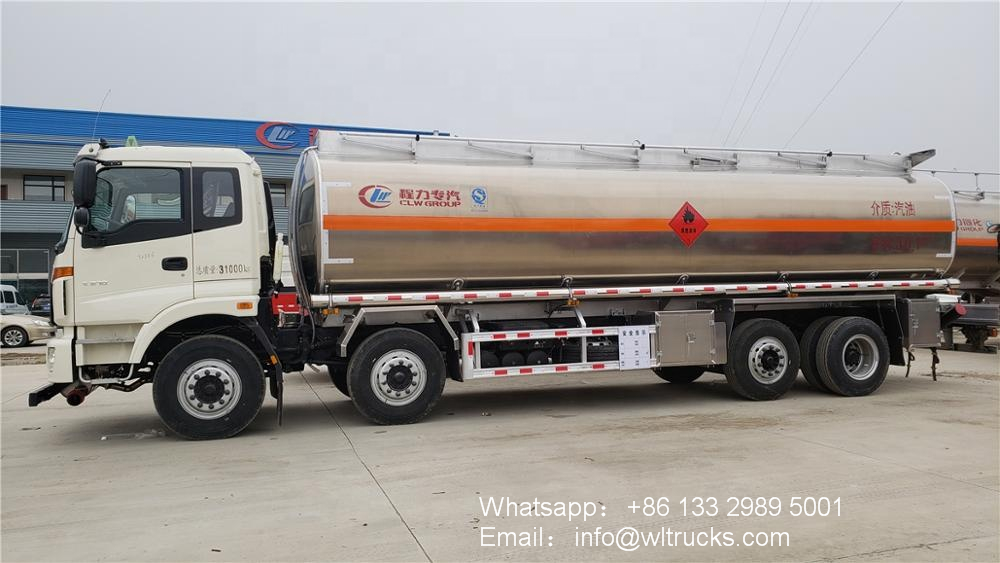

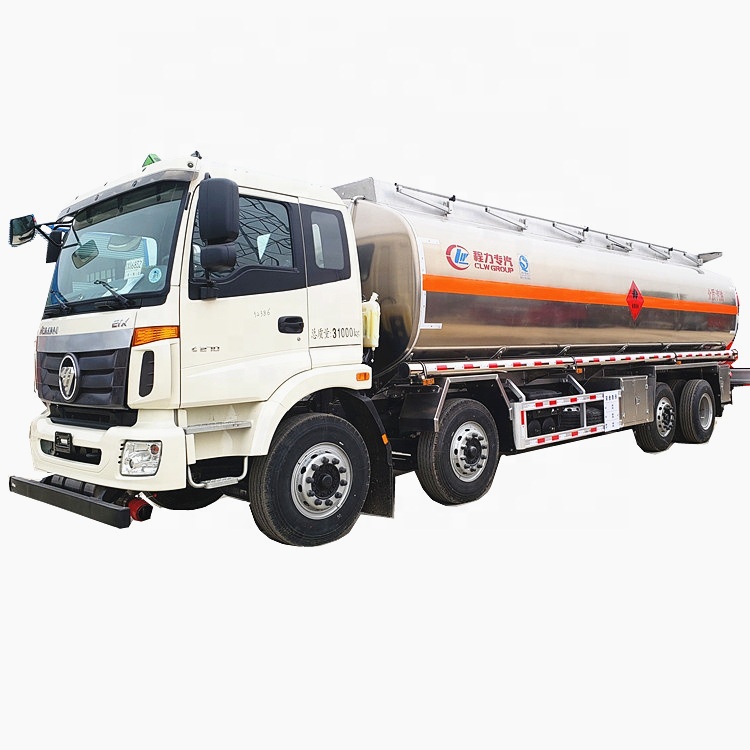

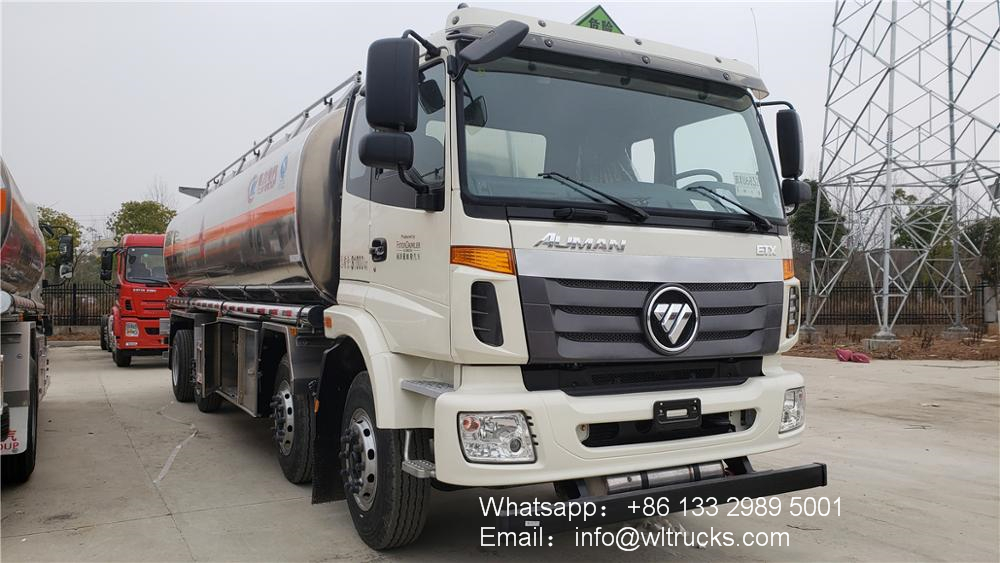

Foton auman 30000liters Aluminum alloy fuel oil tanker
Foton auman 30000liters Aluminum alloy fuel oil tanker uses the new ETX2490MM high-roof cab, Foton Cummins 320 horsepower, Fast 12-speed gearbox, with power take-off, 440 rear axle, 12R22.5 vacuum tire, airbag seat, electric flip , Electric doors and windows, automatic air conditioning, 350-liter aluminum alloy fuel tank, 2000 + 4500 + 1350MM wheelbase, front disc, speed limit, exhaust pipe front, ABS, driving recorder, brake self-adjusting arm, adjustable headlights.
Foton auman 30000liters Aluminum alloy fuel oil tanker tank material: aluminum alloy 5083H111, frame material is aluminum profile 6005, head 7MM thick, barrel 6MM thick, 2 domestic European standard manhole covers, domestic oil and gas recovery system belt One set of bottom loading, one subsea valve, the subsea valve is made of domestic aluminum alloy. Tank structure: straight oval tank, bolted to the frame, with aluminum alloy pump, can be pumped in and out, with aluminum rails and a tool box.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Cabin
|
Foton 30000 to 35000 liters Aluminium alloy/Stainless steel fuel tanker truck,heavy oil tanker truck
|
|
Drive Model
|
8X4
|
|
Vehicle Main Dimensions
|
(L x W x H)mm
|
11995×2500×3269
|
Wheel base (mm)
|
1950+4250+1300
|
|
Wheel track (front/rear) (mm)
|
1460/3035
|
|
Approach/Departure angle(°)
|
10/16
|
|
Weight in KGS
|
Tare Weight
|
31000
|
Loading Capacity
|
13400
|
|
Max. driving speed(km/h)
|
90
|
|
Engine
|
Brand
|
Dongfeng Cummins
|
Model
|
ISLe315 30
|
|
Type
|
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Horse Power(HP)
|
320
|
|
Emission standard
|
Euro Ⅲ
|
|
Gearbox
|
10forwards& 2 reverse
|
|
Clutch
|
Reinforced diaphragm clutch, diameter 430mm
|
|
Tire
|
13 10.00R20 All steel radial tire, 1pc including 1 spare tire
|
|
Brakes
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
|
|
Steering Gear
|
ZF 8098,power steering, hydraulic steering with power assistance
|
|
Fuel tank (L)
|
350
|
