Foton 6.3 ton truck mounted crane

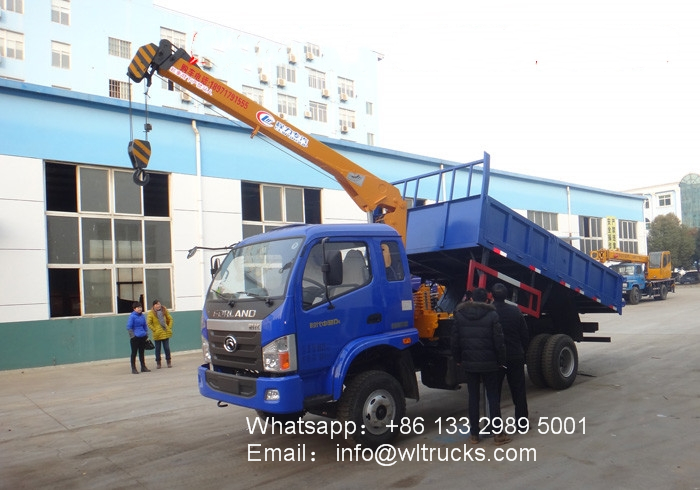

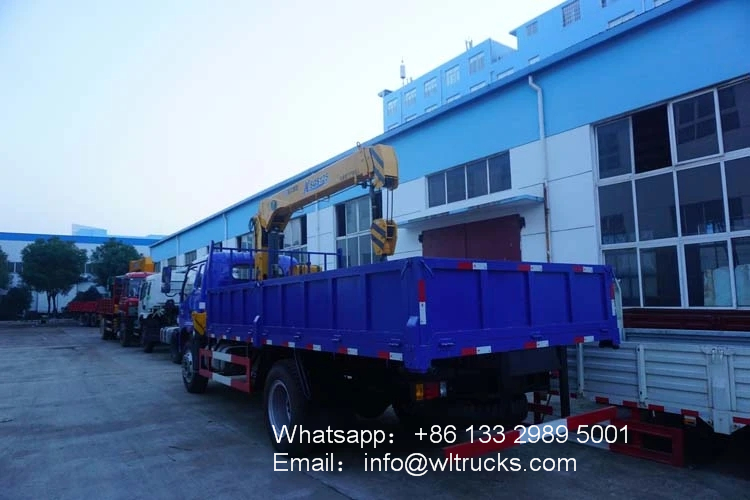

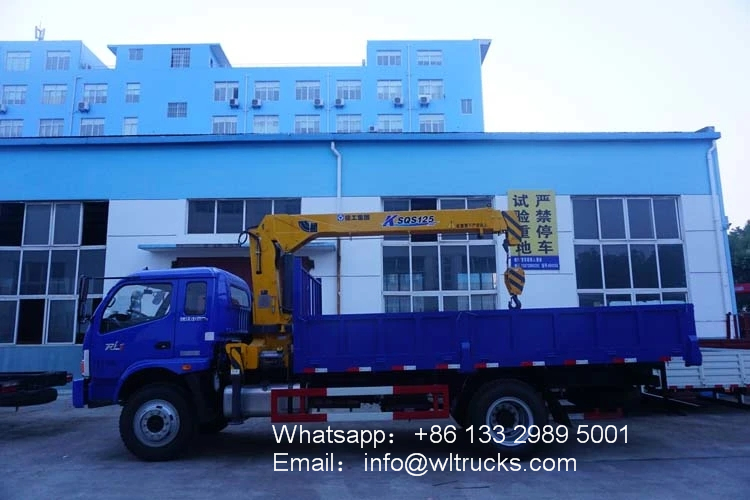

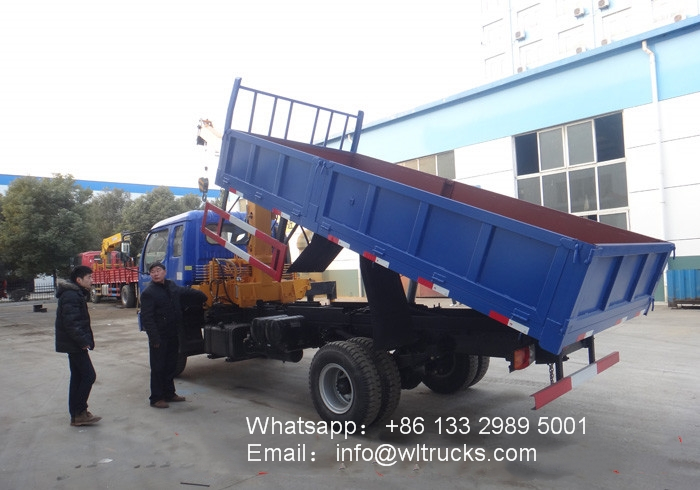

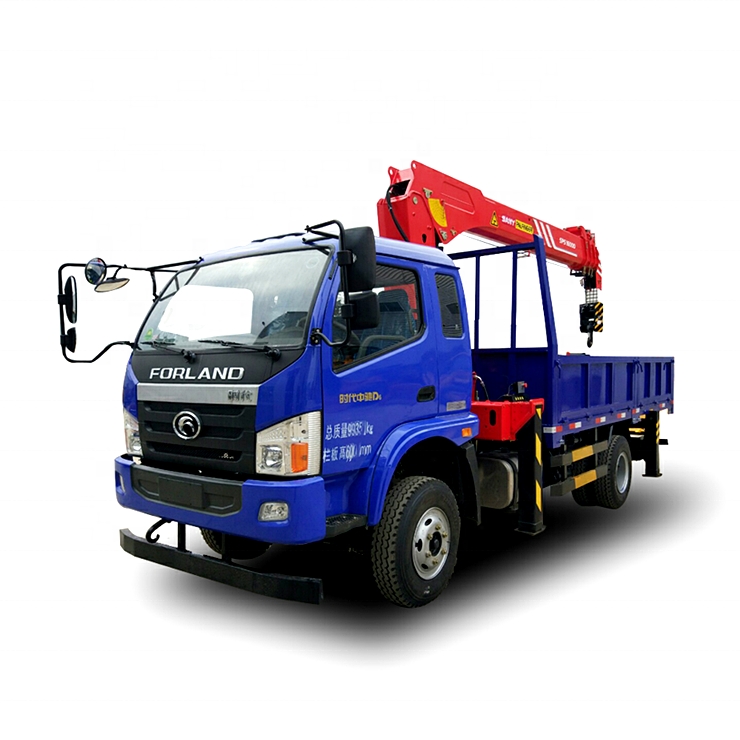

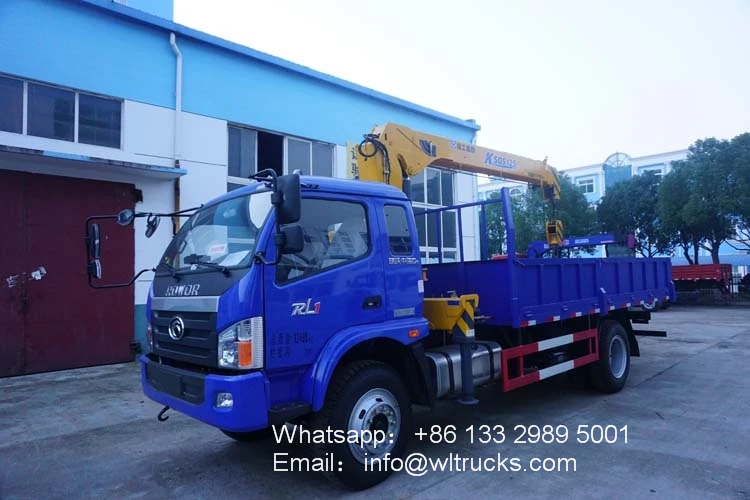

Foton 6.3 ton truck mounted crane Adopt Yuchai 130 horsepower (95KW) engine, 1860 row and a half cab (Time Zhongchi), 8 tons rear axle, with auxiliary transmission (high and low gear), wheelbase 3900mm. Dimensions (length × width × height) mm 7215 × 2350 × 3580 \ Inner dimensions of cargo railing (length × width × height) mm 4300 × 2100 × 600, suitable for 3.5 tons, 4 tons, 5 tons, 6.3 tons of straight folding arm cranes of various brands.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Foton 6.3 ton truck mounted crane specification:
Chassis model | FOTON | ||
Driving Type | 4*2 Left hand driving | ||
Max Speed (km/h) | 99 | ||
GVW( kg) | 11600 | ||
Wheelbase(mm) | 4200 | ||
Tire | 7.50R16 (6+1) | ||
Gear box | 6-speed | ||
Bridge | Front axle | 3.6T | |
Rear axle | 8T | ||
Engine | Model | 120HP(Euro 3) | |
Fuel Type | Diesel fuel | ||
Max output power/rotate speed (hp ) | 120 | ||
Electric system | 24v | ||
Upper-Body specification | |||
Model | SQ5SA2 | ||
Match the truck | 5 tons loading truck | ||
Assembling space (mm) | 900 | ||
Mass working weight (kgs) | 2350 | ||
Max lifting weight (t) | 5 | ||
Max lifting torque(t.m) | 12.5 | ||
Max lifting height (m) | 11.1 | ||
Slewing mechanism | Rotating speed (r/min) | 2 | |
Rotating range (°) | 360 | ||
Leg | Type | H | |
Span(m) | 2.28-5.3 | ||
Hydraulic system | Pressure (mpa) | 20 | |
Capacity(l) | 100 | ||
Safety device | Overwind alarm |
