Foton 5m3 small Fecal suction truck Specification:
Top configuration: tank volume 5000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-6 water ring vacuum pump, optional 5 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and 1 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
| Foton 5m3 small Fecal suction truck Chassis parameters | |||||
| Chassis model | BJ1073VEJEA-A | Chassis brand | FOTON | ||
| Overall dimensions | 5875x1915x2150mm | Wheel base | 3360mm | ||
| Front/rear wheel track | 1415/1485mm | Front/rear suspension | 1085/1430mm | ||
| Approach/departure angle | 23/19° | Maximum speed | 95km/h | ||
| Chassis Manufacturer | BEIQI FOTON MOTOR CO.,LTD | ||||
| Cab | Configuration | D1695 single row cab,allowable 2 passengers,with warm air,all English signs in car body, English instruction ,international general accessories,double front windshield,power switch | |||
| Color | White,other color is optional | ||||
| Engine | Model | 4DW91-63NG2 | |||
| Emission | Euro 2 | ||||
| Type | 4 cylinders,in-line,turbo charger,diesel engine | ||||
| Rated power | 90hp | ||||
| Displacement | 2545ml | ||||
| Bore x stroke | 90x100mm | ||||
| Manufacturer | Wuxi Diesel Engine Branch | ||||
| Tire | Size | 6.50-16 Double star nylon tire | |||
| Number | 6+1 nos | ||||
| Fuel tank | 70L iron oil tank | ||||
| Rear axle | 4.0 tons | ||||
| Drive form | 4X2 | ||||
| Rated voltage | Camel brand,24V,DC | ||||
| Transmissions | 5 speed forward 1 reverse | ||||
| Steering device | Steering wheel | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | Steel wire tire,air conditioner | ||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard
Chassis,sub frame,5mm carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve Φ200mm. |
|||||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

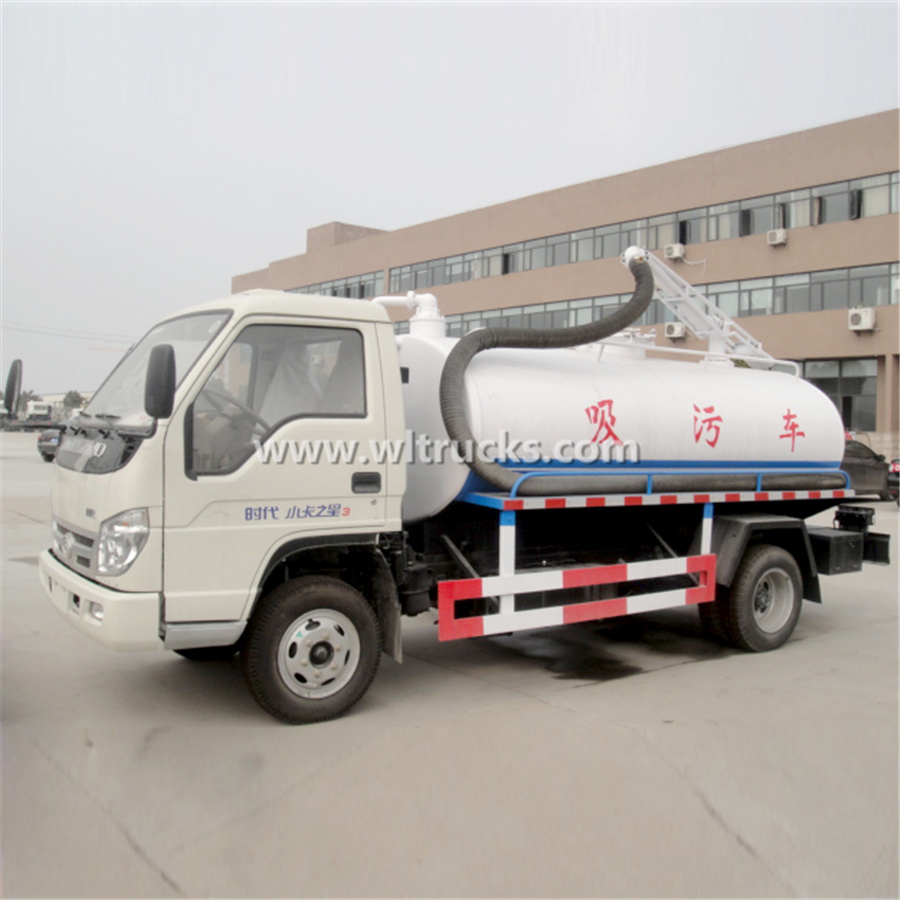

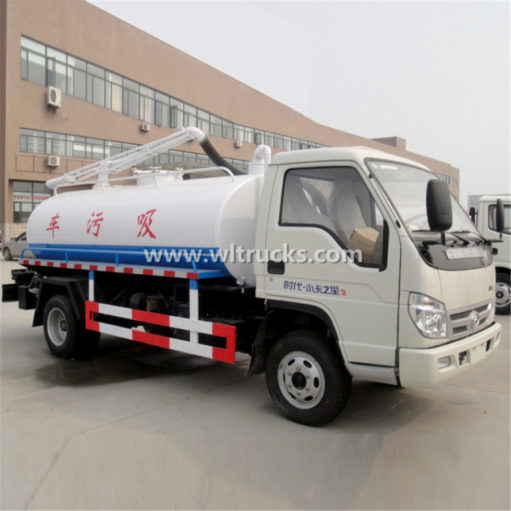

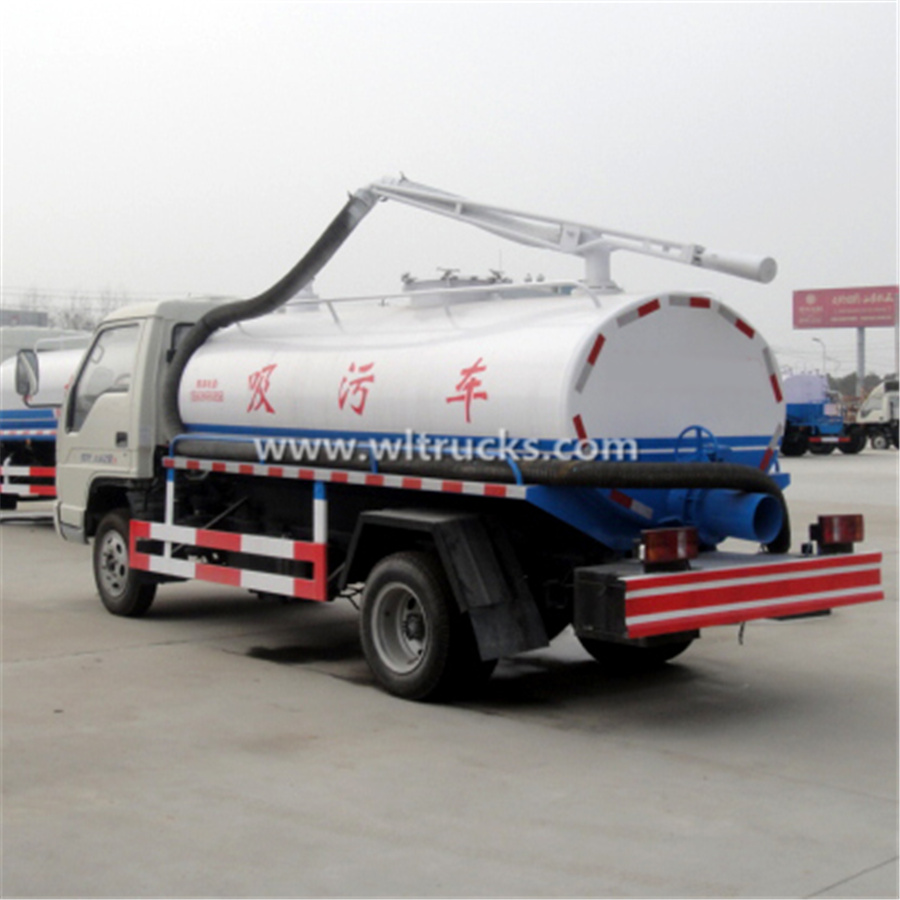

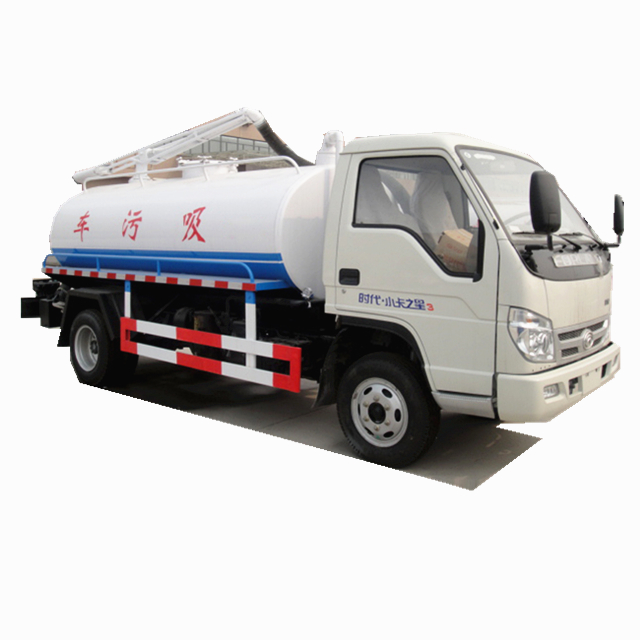

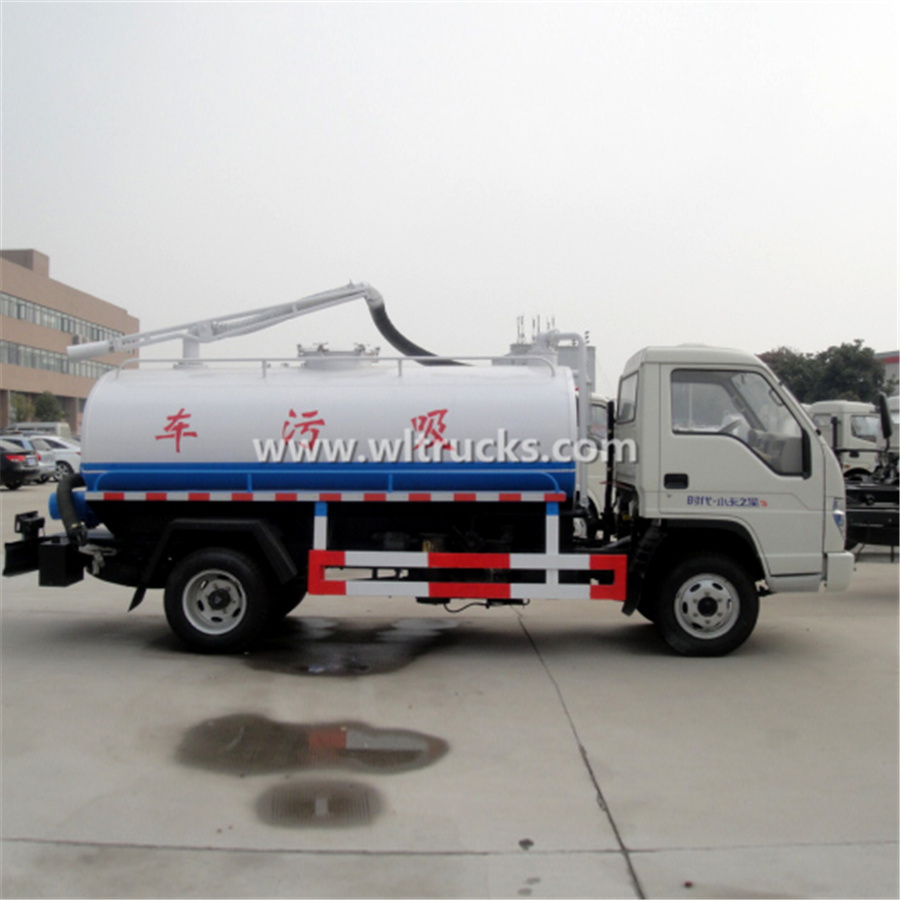

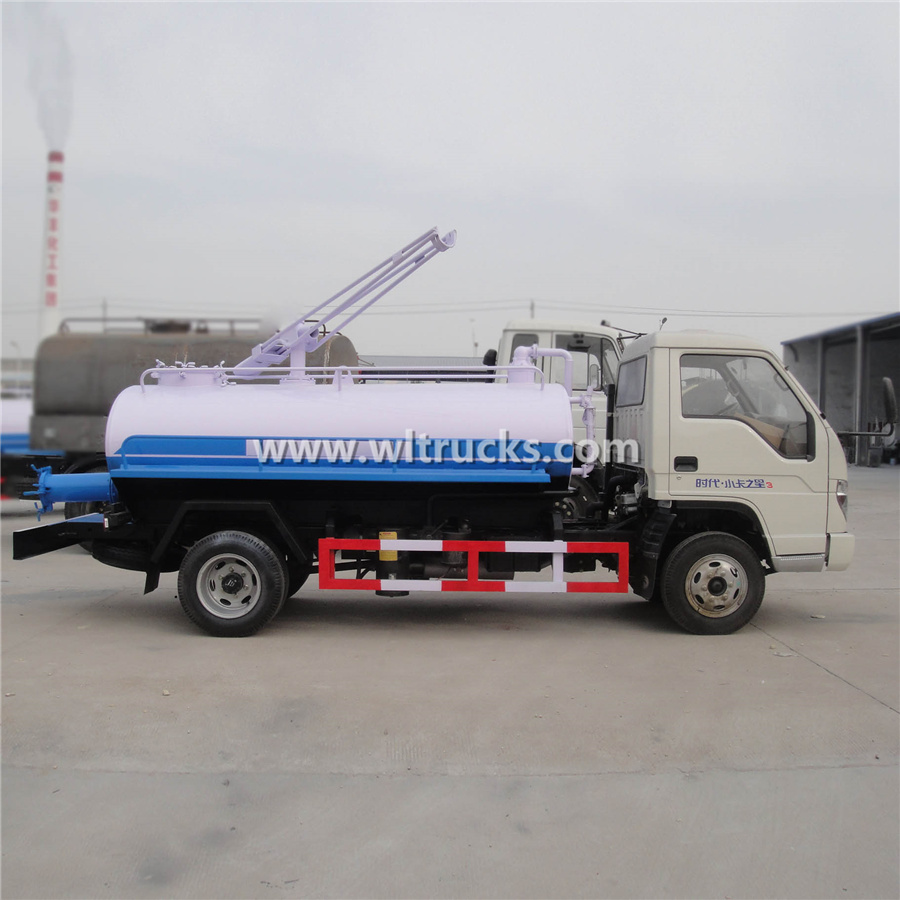

Toilet suction truck Detailed image
