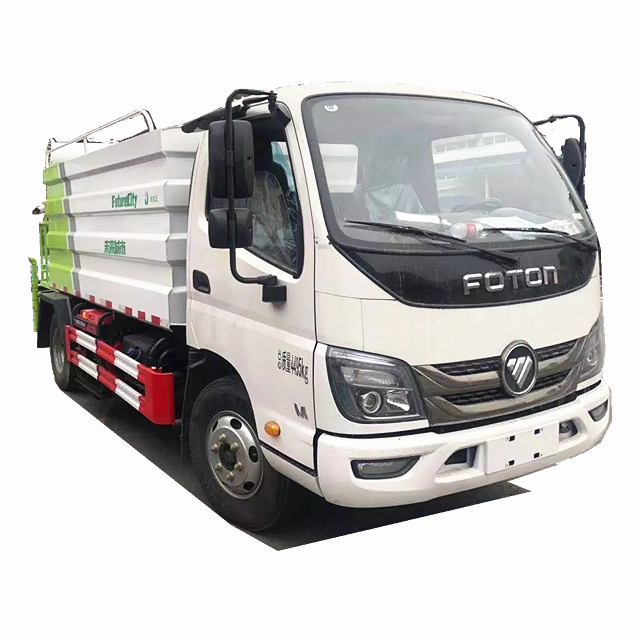

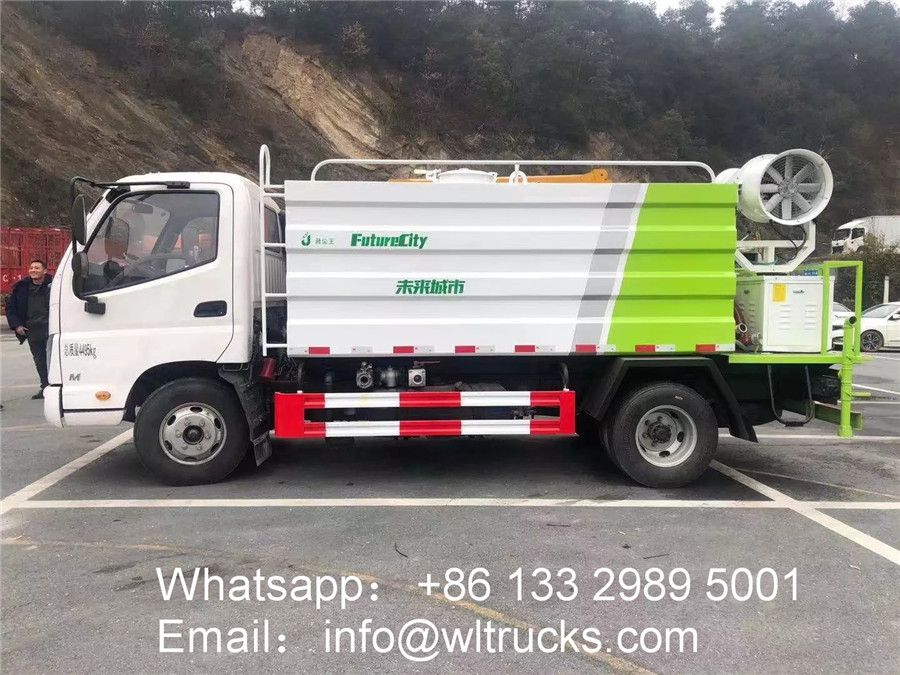

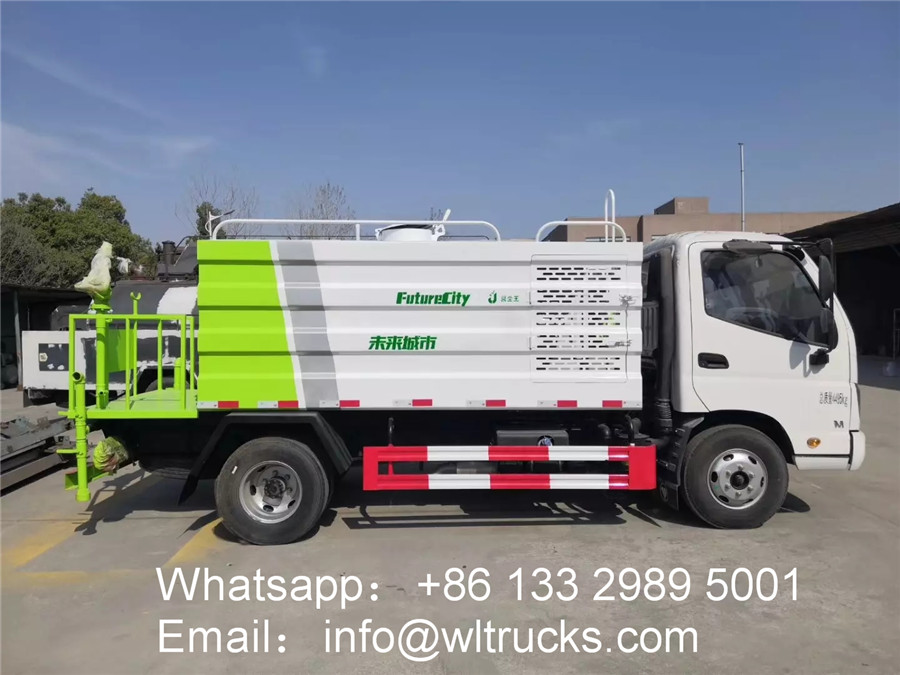

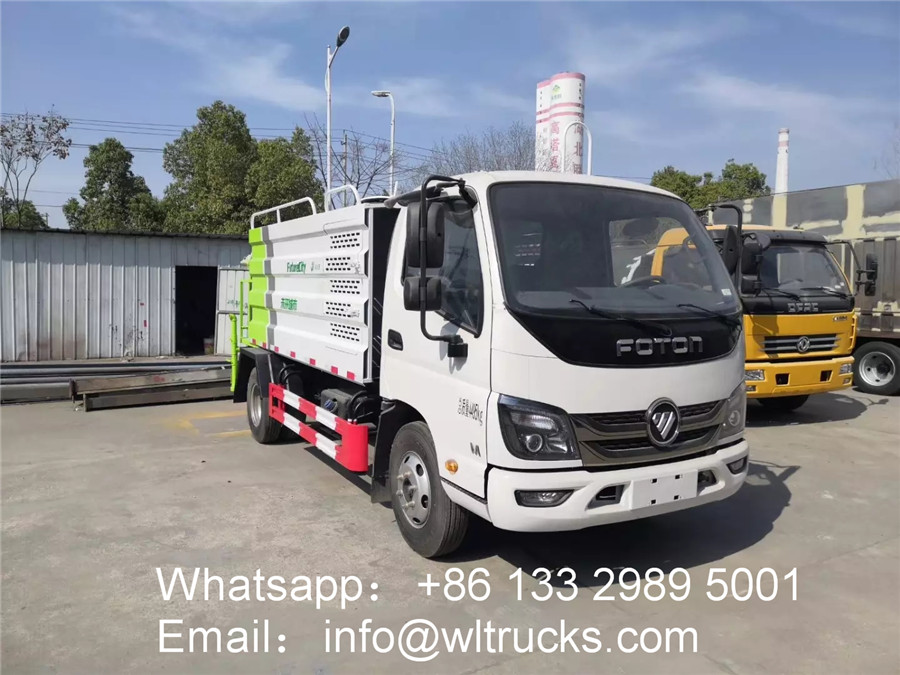

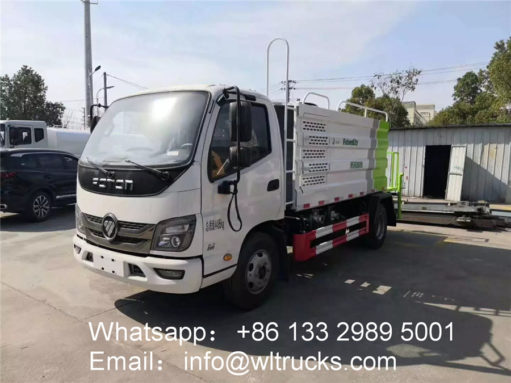

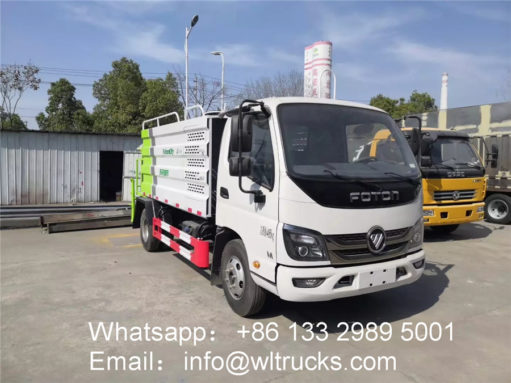

Foton 5000 liter mobile Disinfection truck Adopt Foton Aoling white cab, wheelbase 3.3 meters, Eruo 3 95 horsepower engine, 5-speed gearbox, 700 steel tires, air brake, ABS.

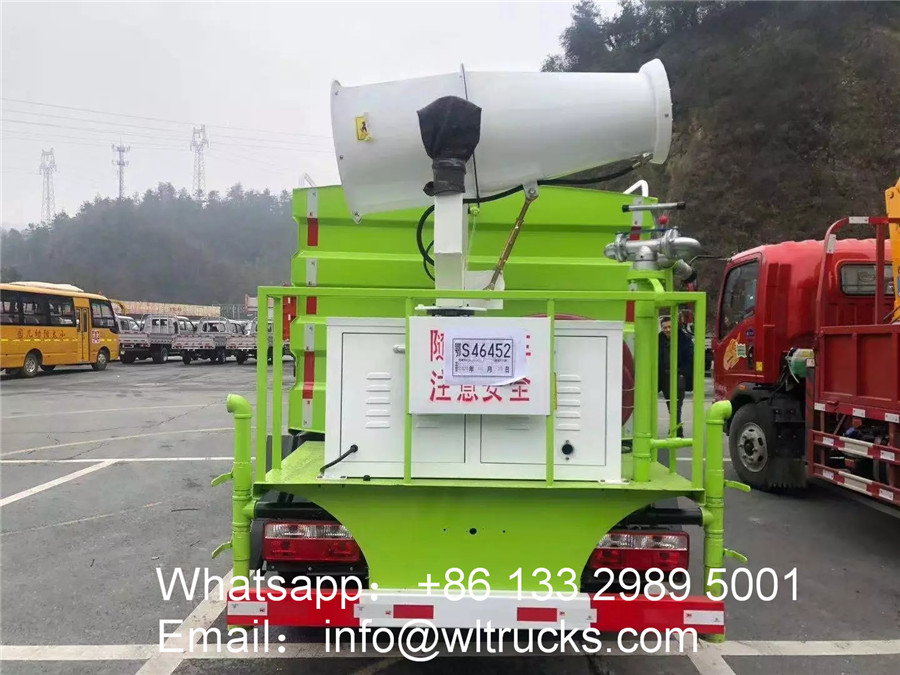

Top-loading configuration: the volume of the new square tank is 5 cubic meters, the interior of the tank is anti-corrosion and anti-rust, equipped with a high-power sprinkler pump, a high-power auxiliary engine, and a fog gun unit at the rear (according to customer requirements). Function, perfectly achieve the effect of dual use of one car.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M

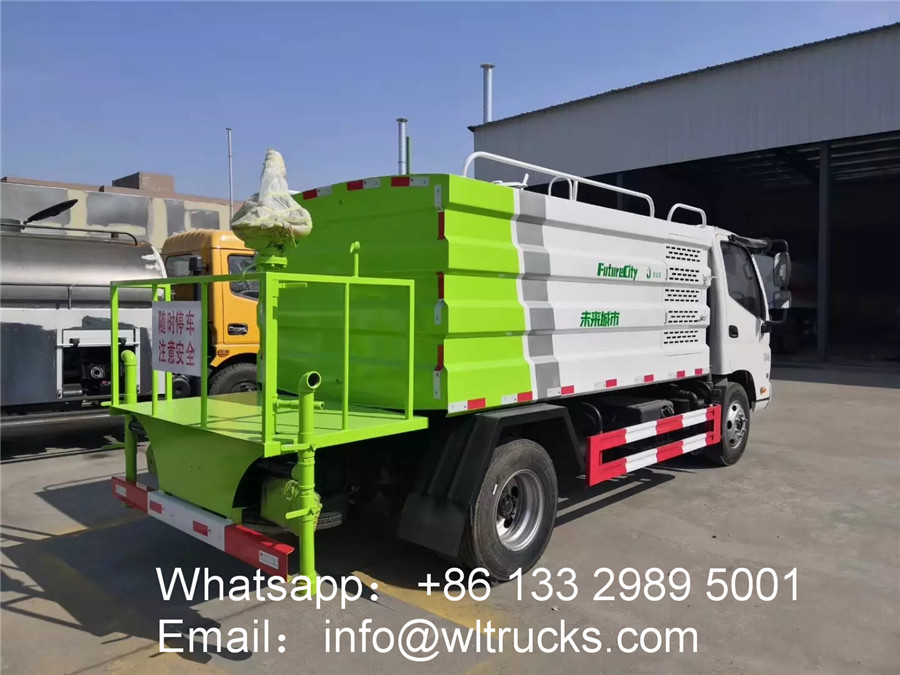

4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
Spray unit | 30m-120m optional | Water pump brand | China pump |
way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing |
Foton 5000 liter mobile Disinfection truck Specification:
【Vehicle technical parameters】 | |||||
product name | Multifunctional dust suppression car | batch | 325 | ||
Total mass (Kg) | 4495 | Rated load mass (Kg) | 500 | ||
Curb weight (Kg) | 3800 | Total mass of quasi-trailer (Kg) | |||
Front passenger (person) | 3 | Rated passenger (person) | |||
Dimensions (mm) | 5995 x 2100, 2240 x 2800, 2400 | ||||
Cargo compartment size (mm) | xx | ||||
Approach angle/departure angle (°) | 21/13 | Front overhang/rear overhang (mm) | 1120/1515 | ||
Axle load (Kg) | 1800/2695 | Maximum speed (Km/h) | 95 | ||
Remarks | Optional cab; optional rear platform structure; optional rolling shutter door structure on both sides and no window structure on both sides; side protective material Q235B, bolted connection; rear protective material Q235B, welded connection, rear protective section size ( mm): 120×50, ground height (mm): 400; ABS system control mode is 4S/4M, ABS model is CM4XL-4S/4M, the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; the car is mainly The device is a water tank and a sprayer, used to reduce dust, smog and other phenomena in the air. | ||||
【Other parameters of the whole vehicle】 | |||||
Chassis model | BJ1043V9JDA-01 | Brand name | |||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3360 | ||||
Tire specifications | 7.00R16LT 8PR, 7.50R16LT 8PR | ||||
Front track (mm) | 1715 | Rear track (mm) | 1590,1800 | ||
Fuel type | Diesel | Emission standard | Eruo 3 | ||
engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 2800 | 95 |
Disinfection truck structure composition:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
