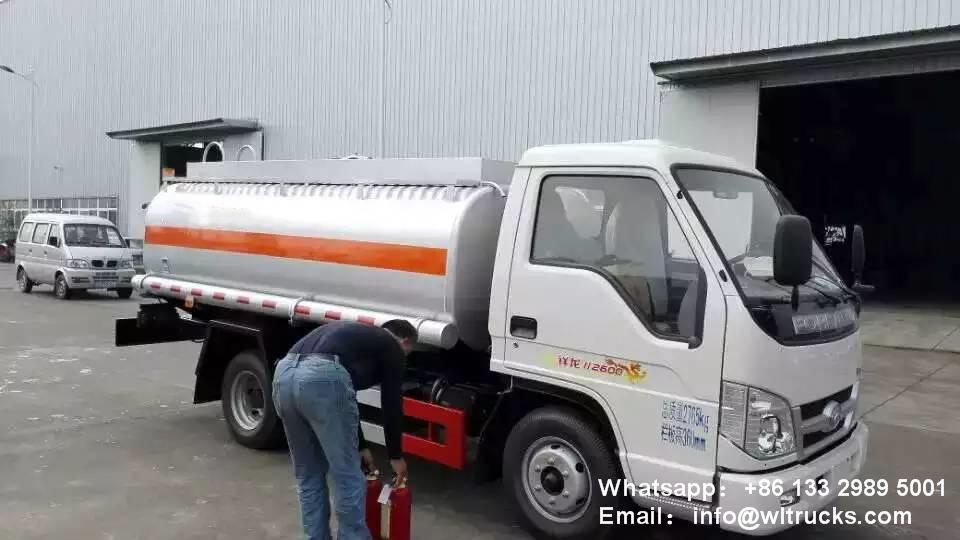

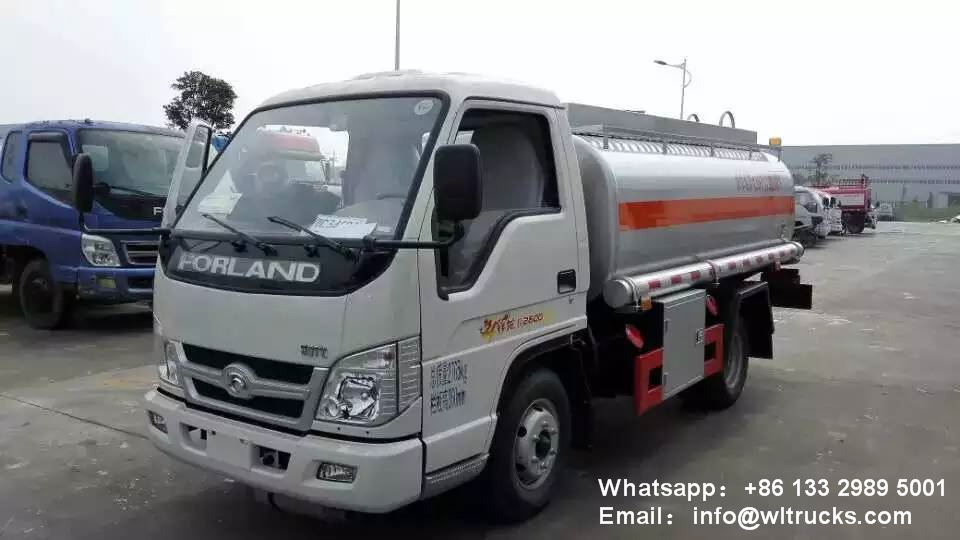

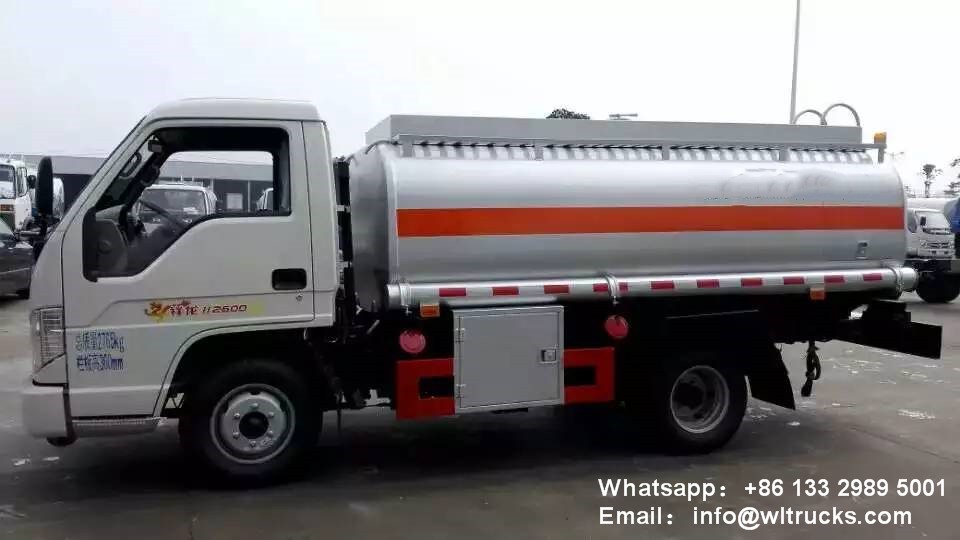

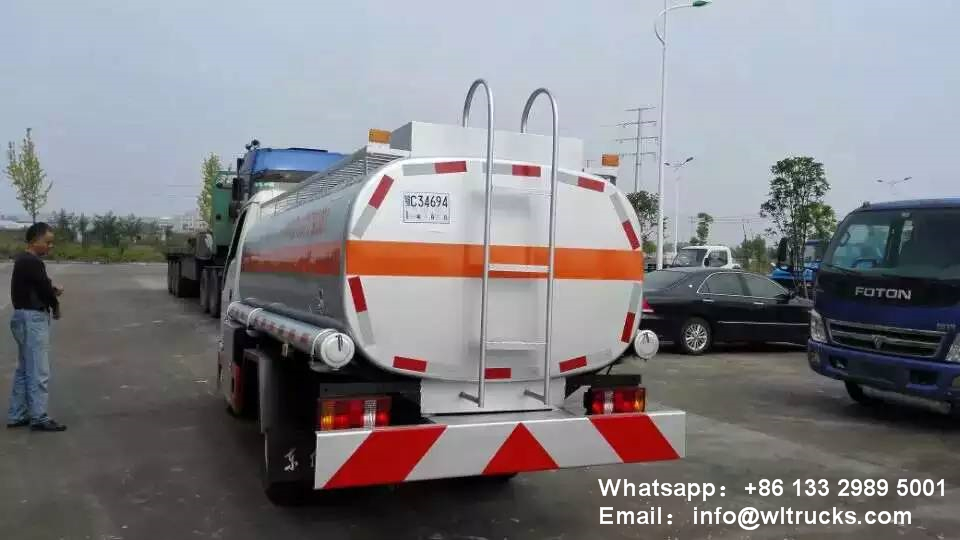

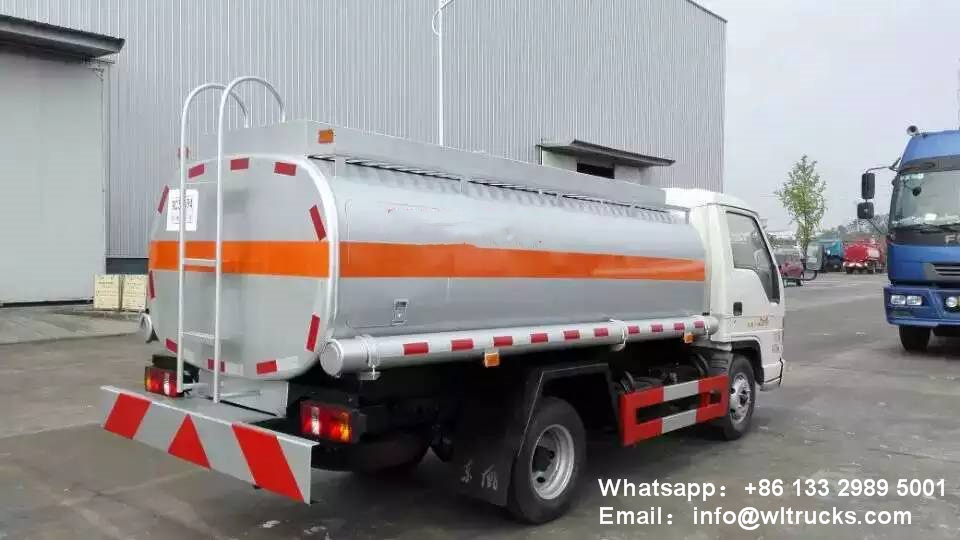

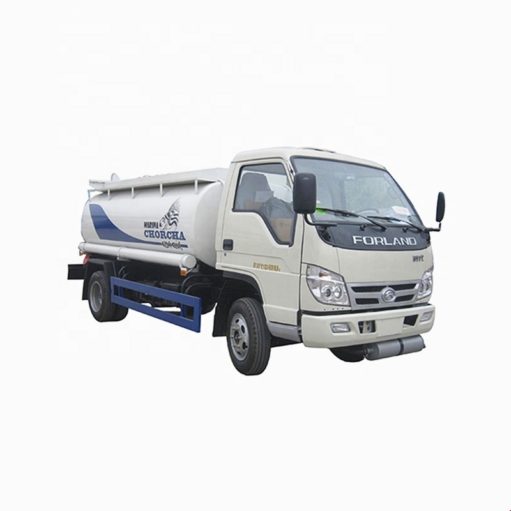

Foton 3000 liter small fuel tank truck
Foton 3000 liter small fuel tank truck Bodywork configuration:
With European standard aluminum alloy down button manhole cover, emergency cut-off valve, tank and head thickness 5mm, standard equipped with computer tax control oiler, reel 15 meters reel, refueling gun, other requirements can be based on user Request for modification.
Foton 3000 liter small fuel tank truck Chassis configuration:
It adopts Foton Euro III chassis restructuring and flat head forward cab. The vehicle is equipped with a 68-horsepower diesel engine, a 5-speed gearbox, a 2.2-ton front axle, a 3-ton rear axle, 600 tires, and an oil brake.
| PetroleumTanker Forland (3,000 Litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Foton, Forland | |
| Overall Dimension | 5200 * 1860 * 2090 mm | |
| GVW / Kerb Weight | 4,495 kg / 2,375 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Quanchai engine | |
| Power | 88 Ps (65 KW) | |
| Displacement | 2270 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 2600 mm / 2 | |
| Tyre Specification | 6.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 3,000 Litres (About 800 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire suggested hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, inlet, discharge…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…
** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite…. ** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
| Equipment | |||
| Oil pump | Model | 60 YHCB-30 | |
| Pressure | 0.4MPa | ||
| Flow | 30m3/h | ||
| Rated power | 6KW | ||
| Rotate speed | 970r/min | ||
| Standard | JB/T6434-92 | ||
