Forland TOANO 3 ton minibus refrigerated truck
Adopt Cummins ISF2.8S5F148 horsepower diesel engine! The unified configuration is: displacement 2.8, 5-speed manual transmission, front McPherson independent suspension, leaf spring 3 tons rear axle, wheelbase 3750mm, air conditioning, central control door lock, remote control key, electric doors and windows, rear Electric adjustment of sight glass, oil brake, ABS+EBD, 4 tires, 215/75R16LT vacuum tire.
The total mass is 3550kg, the rated load mass is 730kg, and the curb weight is 2690kg! The internal dimensions of the cabin are 2.92X1.64X1.54mm: the volume is 7.5 cubic meters.
The wheelbase is 2933mm and it is equipped with Foton Isuzu 4J28TC3 Euro III 110 horsepower diesel engine. Other configurations are the same as above. The internal dimensions of the car body are 1.92X1.64X1.54: the volume is 4.8 cubic meters. Optional refrigeration unit of -5 degrees to -18 degrees.
Forland TOANO 3 ton minibus refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Forland TOANO 3 ton minibus refrigerated truck specification:
| Product parameters | |
| Product name : | Foton TOANO Business Refrigerator Truck |
| Cab : | Business bread |
| Engine model / manufacturer : | 1. Futian Isuzu China V 110 horsepower diesel engine. 2. Foton Cummins Country Five 150 horsepower diesel engine. |
| Gearbox : | 5- speed manual |
| Overall vehicle size ( mm ) : | 5065X2000X2670 ; 5990X2000X2595 |
| Cabinet size ( mm ) : | 1920X1640X1540 ; 2920X1640X1540 |
| Internal volume of the cabinet : | 1 , 4.8 cubic meters 2 , 7.5 cubic meters |
| Total quality : | 1 , 3850kg 2 , 3550kg |
| Loading tonnage : | . 1 , 1360kg 2 , 730 kg |
| Curb quality : | 1 , 2360kg 2 , 2690kg |
| Refrigeration unit optional: | -5 ℃, -10 ℃, -15 ℃, -18 ℃ |
| Wheelbase : | 2933mm 3750mm |
| Number of tires : | 4 |
| Tire size : | 195R15C vacuum tire |
| Other configuration: business luxury cab, 2.8 displacement, with direction assistance, with ABS+EBD , with central control door lock, electric doors and windows, with remote control key, rearview mirror electric adjustment, rearview mirror heating, with air conditioning, 195R15C vacuum Tire, oil brake! Get a blue card! highly recommended! ! | |
Forland TOANO 3 ton minibus refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Forland TOANO 3 ton minibus refrigerated truck New craft:
Forland TOANO 3 ton minibus refrigerated truck Optional configuration:
Forland TOANO 3 ton minibus refrigerated truck Bodywork details:

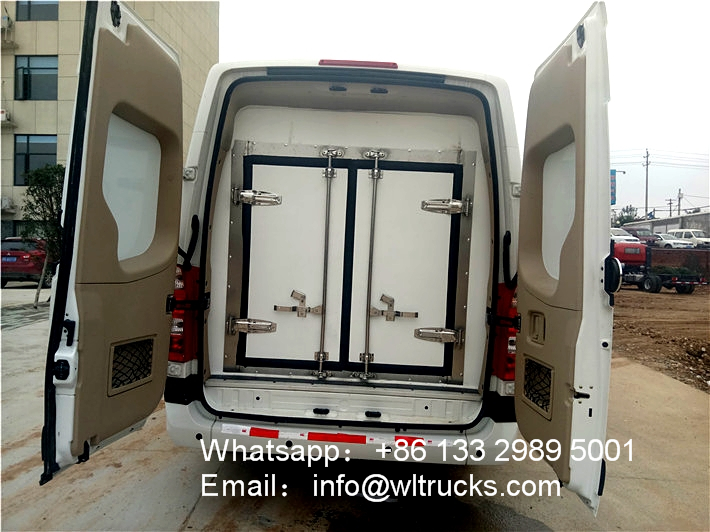

Forland TOANO 3 ton minibus refrigerated truck Internal details:
Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
