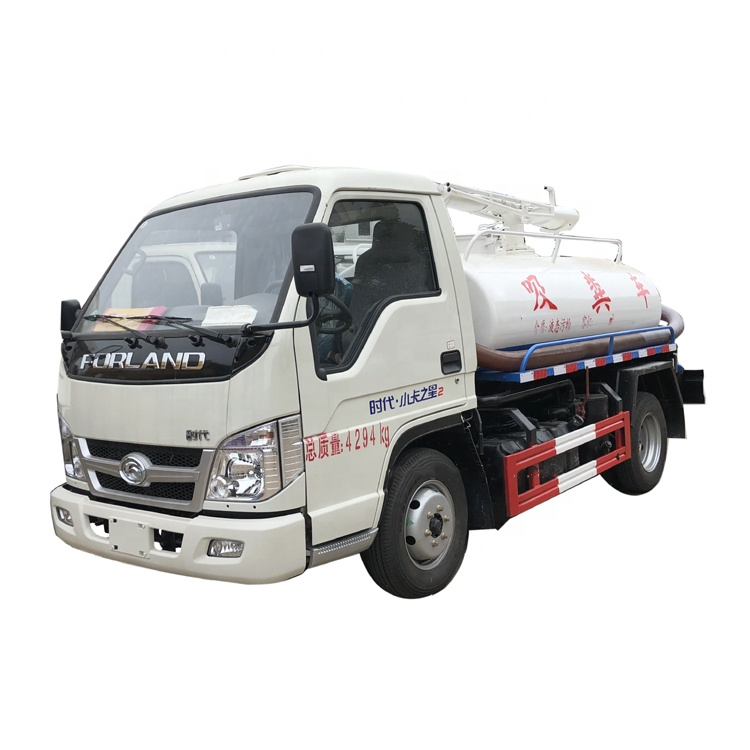

Forland 3000 liters fecal suction truck Specification:
Top configuration: tank volume 3m3, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-6 water ring vacuum pump, optional 5 tons oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and 1 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
Main specification | |||||||
Product model and name | CLW5044GXEB Fecal sucking truck | ||||||
Gross weight(Kg) | 4155 | Drive type | 4X2,LHD,RHD | ||||
Curb weight(Kg) | 2225 | Overall dimension(mm) | 5000X1720X2080 | ||||
Approach/departure angle(°) | 18/20 | Cab seats | 2 | ||||
Axle No. | 2 | Front/rear hang(mm) | 1100/1300 | ||||
Axle load(Kg) | 1580/2575 | Wheelbase(mm) | 2600 | ||||
Max speed(Km/h) | 90 | ||||||
Chassis specification | |||||||
Chassis model | BJ1042V9JB4-X1 | Manufacturer | Foton Motor Co., Ltd | ||||
Brand name | Forland | Dimension(mm) | 4820×1690×2080 | ||||
Tyre specification | 6.00-15 | Tire No. | 6+1(One spare tire) | ||||
Steel spring number | 7/5+3 | Front track base(mm) | 1345 | ||||
Fuel type | Diesel | Rear track base(mm) | 1240 | ||||
Emission standard | Euro IV | Transmission | 5 forward gear | ||||
Cab | Single row,2 person allowed with power steering, with hot wind | ||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||
4A1-68C40 | Anhui Quanchai Engine Co.,Ltd | 1809 | 50(68HP) | ||||
Tank body | |||||||
Tank capacity(m³) | 3 | Tank material | QB235 Carbon steel | ||||
Main feature | |||||||
1,The truck Equipped with special vacuum suction pump, which is applied to suck faces, sewage, sludge and other liquid mixed with small suspended granules. 2,Fecal suction pipe can rotate with 360 degrees. Full tank pumping time:≤ 5min, suction depth: ≥ 6m, two discharge ways: pressurized discharge and self-flowing discharge The truck is used for cleaning septic tanks, sewage ditches and sewers etc. |
Fecal suction truck Working parameter
Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft:
Optional configuration

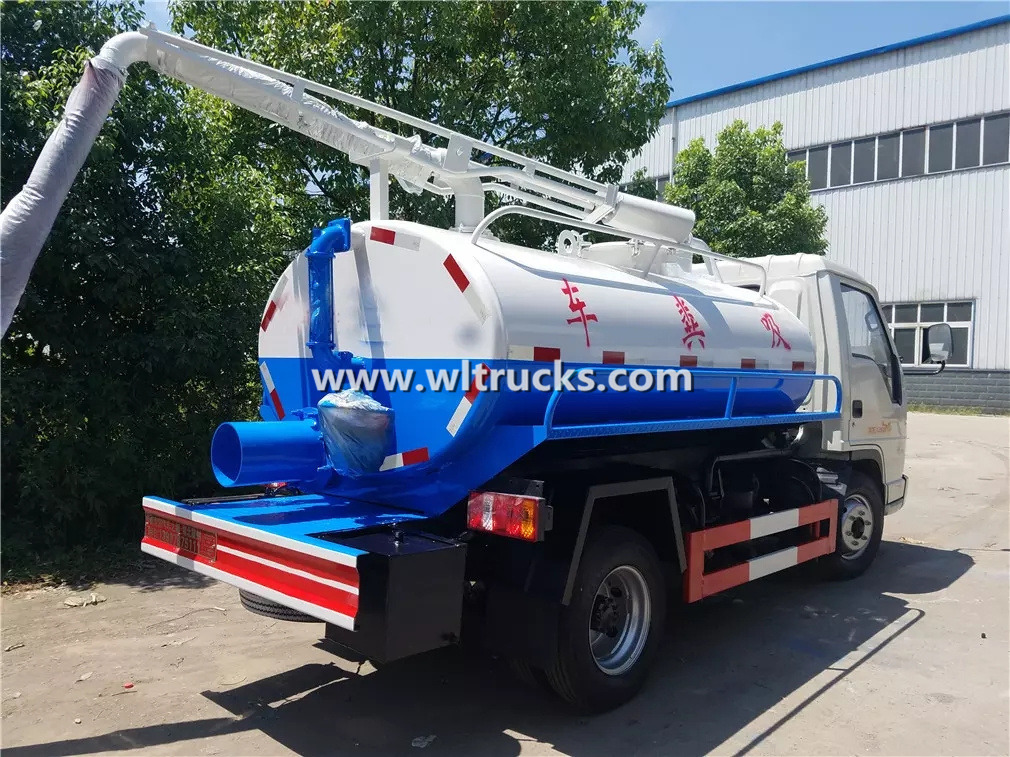

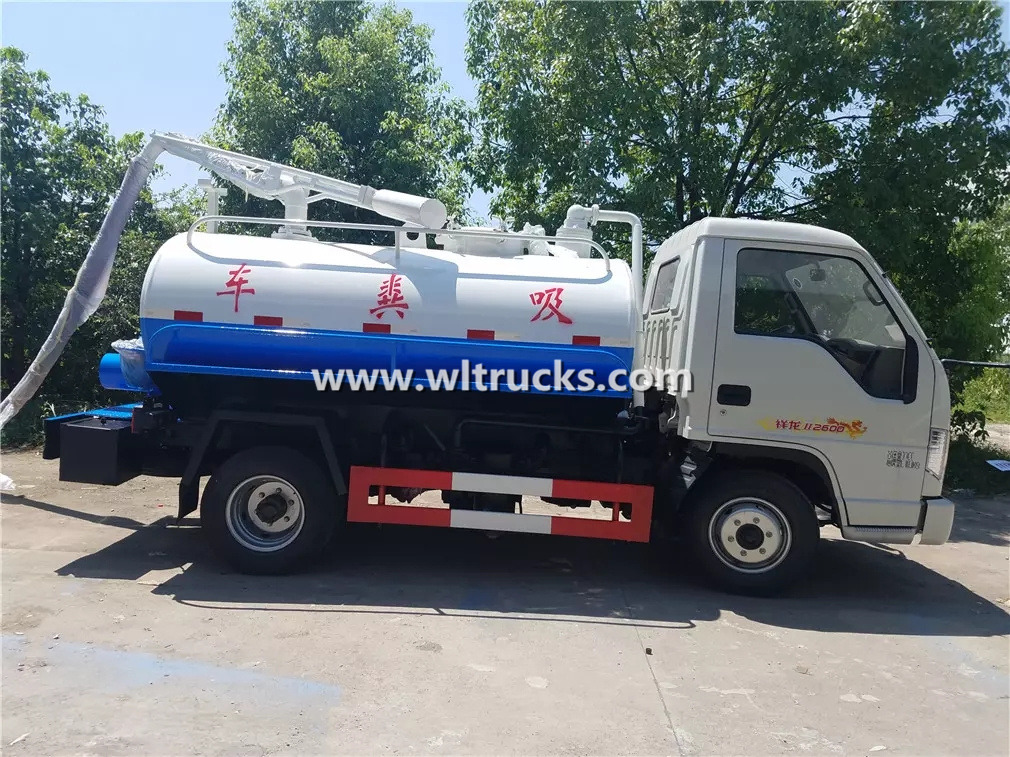

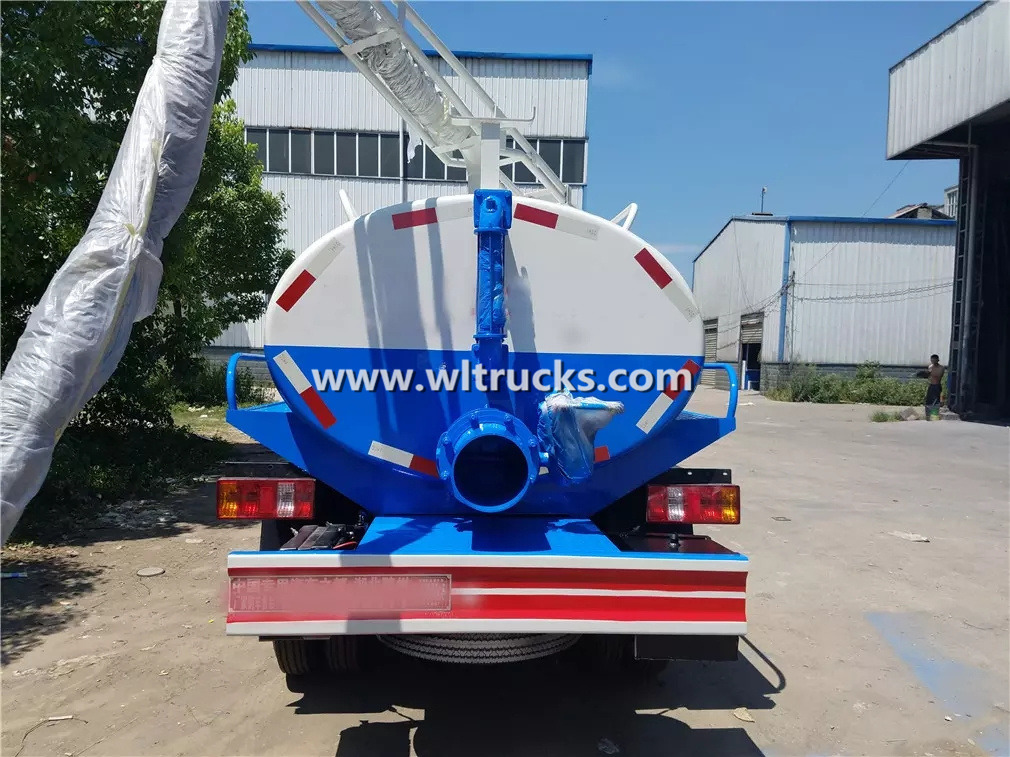

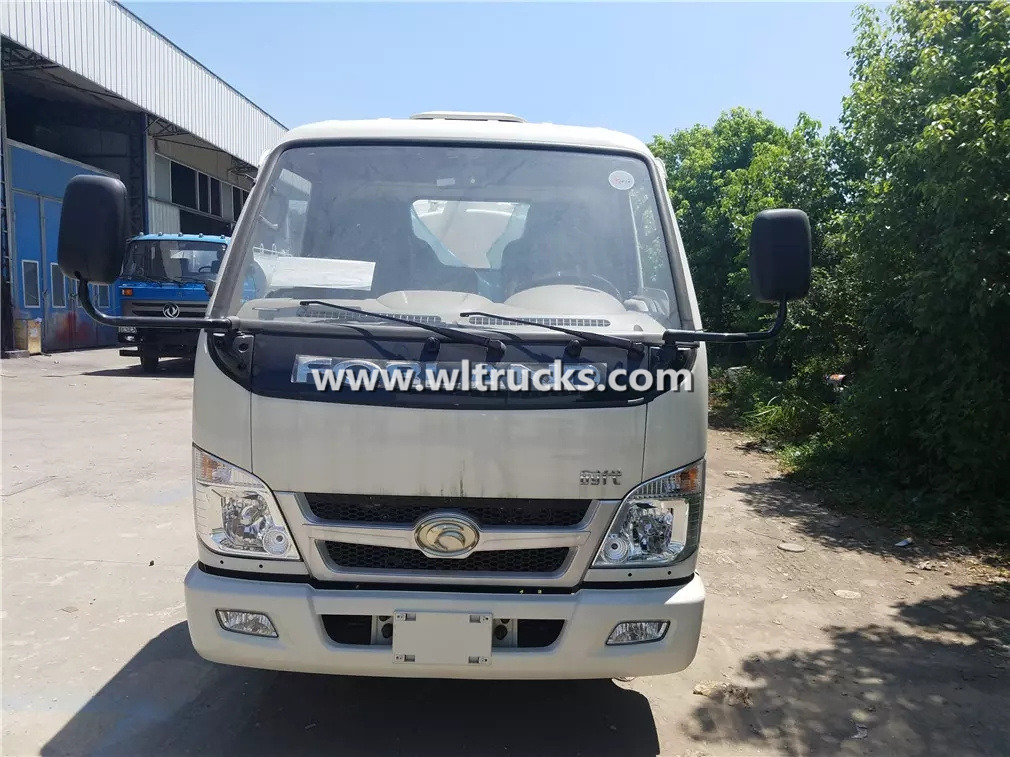

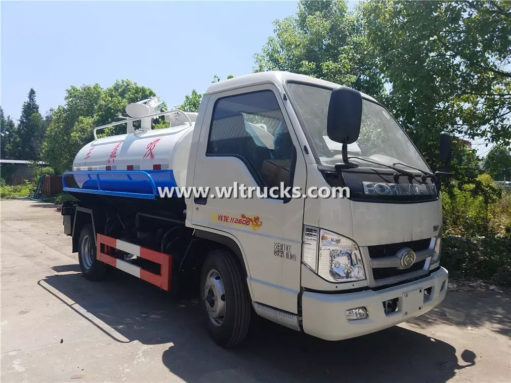

Toilet suction truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
