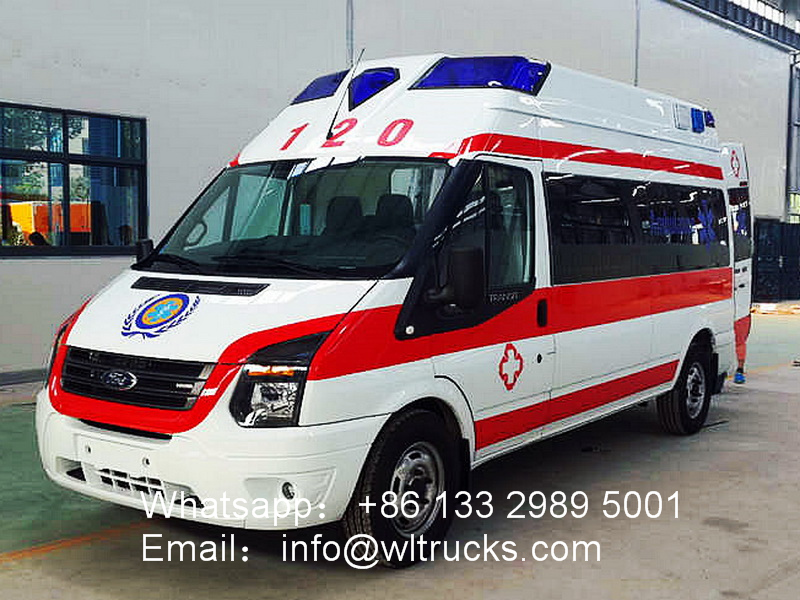

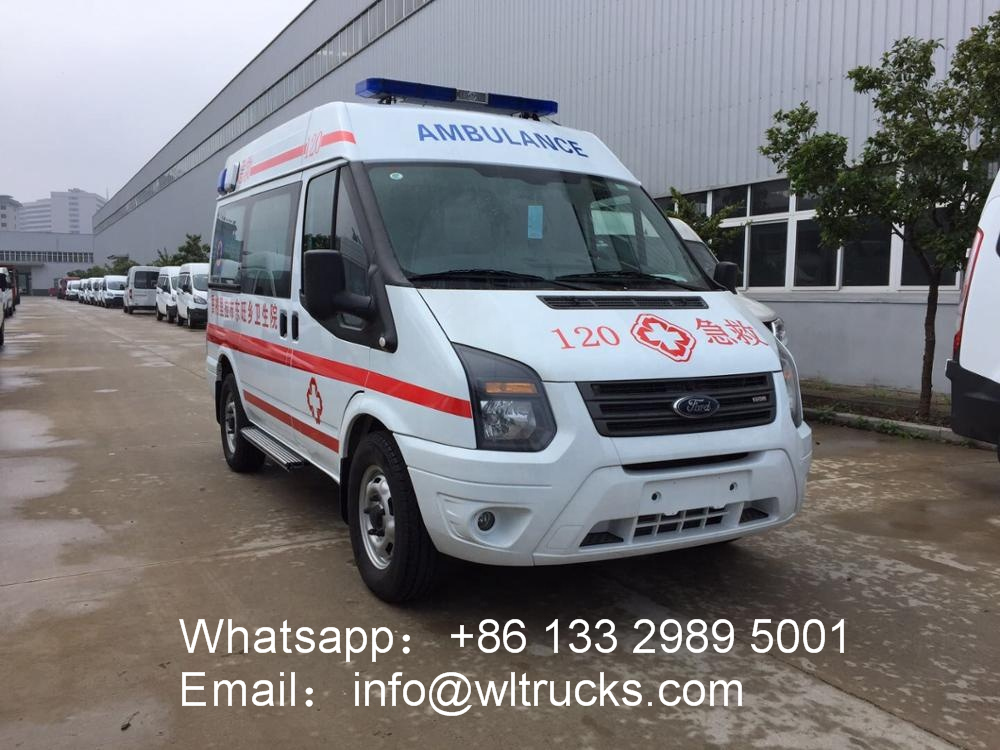

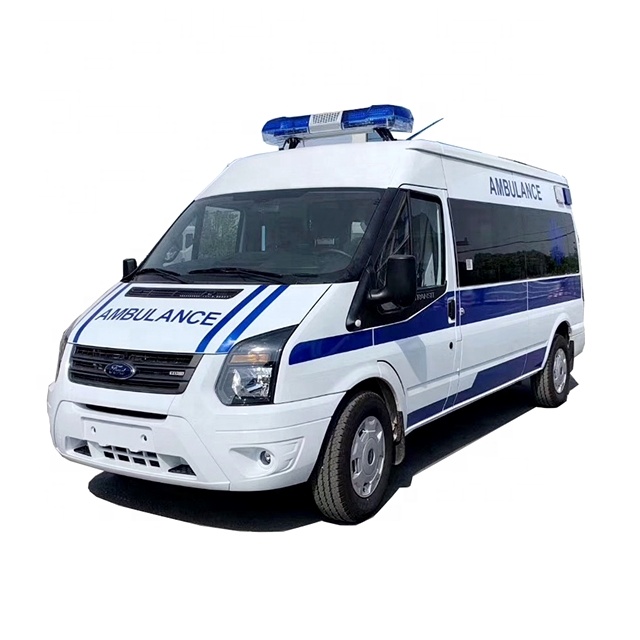

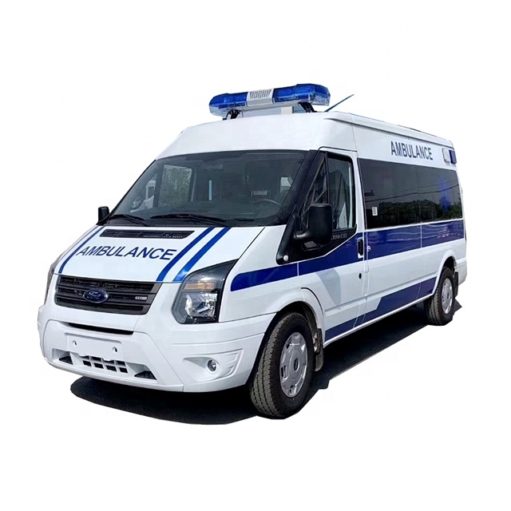

Ford V348 ICU intensive care ambulance vehicle
Ford V348 ambulance long-axis high-roof is the most luxurious ambulance vehicle, modified superman roof.equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| The main technical parameters of Cheng Liwei CLW5041XJHJ5 ambulance vehicle | |||
| Vehicle model | CLW5041XJHJ5 | Emission Standards | Country Five |
| manufacturer | Chengli Special Purpose Vehicle Co., Ltd. | Fuel type | Diesel |
| Total quality | 3700 kg | Curb quality | 2540, 2690, 2860 kg |
| Number of passengers | 3-8 people | Maximum speed | 145 km/h |
| Front track | 1740 mm | Rear track | 1704 mm |
| Wheelbase | 3750 mm | Tire specifications | 215/75R16LT |
| Dimensions | 5780×2000×2580, 2360, 2590, 2690, 2810 mm | ||
| other | Different tops are optional, and the position of the warning light and forehead boss is changed, and the LED screen is optional for the forehead boss. The corresponding heights are mm: 2580, 2810, 2590, 2360, 2690. Optional single or multiple strobe lights around the roof. Optional special equipment such as ventilating fan, side pedal, equipped medical equipment cabinet, oxygen bottle, stretcher, infusion holder, disinfection lamp, etc. Optional ordinary headlights. According to the requirements of the user industry, spray or paste the exterior signs and decorative strips. The optional manufacturer and model of the ABS system are Bosch Automotive Parts (Suzhou) Co., Ltd. and 6C11 2M110 A*. | ||
| Cheng Liwei CLW5041XJHJ5 ambulance engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| DURATORQ4D225H | Jiangling Motors Co., Ltd. | 2198 | 100 |
Intensive care ambulance configuration:
| basic configuration | ||||||
| 1 | High-power medical air-conditioning | 1 | ||||
| 2 | Medical cabin high-power heater | 1 | ||||
| Circuits and electrical appliances | ||||||
| Alarm and warning system | 1 | Long row of standard police lights | 1 | |||
| 2 | 100W alarm and handheld control | 1 | ||||
| 3 | Tail blue rectangular flash | 2 | ||||
| 4 | Blue rectangular flashing on the left and right sides | 2 | ||||
| 5 | White rectangular lights on the left and right sides | 2 | ||||
| In-car power system | 1 | 1000W positive spin wave inverter electrical system | 1 | |||
| 2 | Integrated circuit integrated control and protection system | 1 | ||||
| 3 | Medical switch integrated switch control panel | 1 | ||||
| 4 | Medical compartment national standard 220V power port | 3 | ||||
| 5 | Medical compartment national standard 12V power socket | 1 | ||||
| 6 | LED lighting on top of medical cabin | 4 | ||||
| 7 | Time delay function disinfection lamp installed in the medical cabin | 1 | ||||
| 8 | Medical cabin can be installed with positive and negative ventilation fans | 1 | ||||
| 9 | Intercom system before and after medical cabin installation | 1 | ||||
| Oxygen circuit and oxygen | ||||||
| Oxygen supply system | 1 | Two 10 liter medical oxygen cylinders and special shock-absorbing clamps | 2 | |||
| 2 | Hidden oxygen piping system | 1 | ||||
| 3 | Install two oxygen ports of national standard for medical cabin column | 2 | ||||
| 4 | 1 humidification bottle | 1 | ||||
| Medical cabin production | ||||||

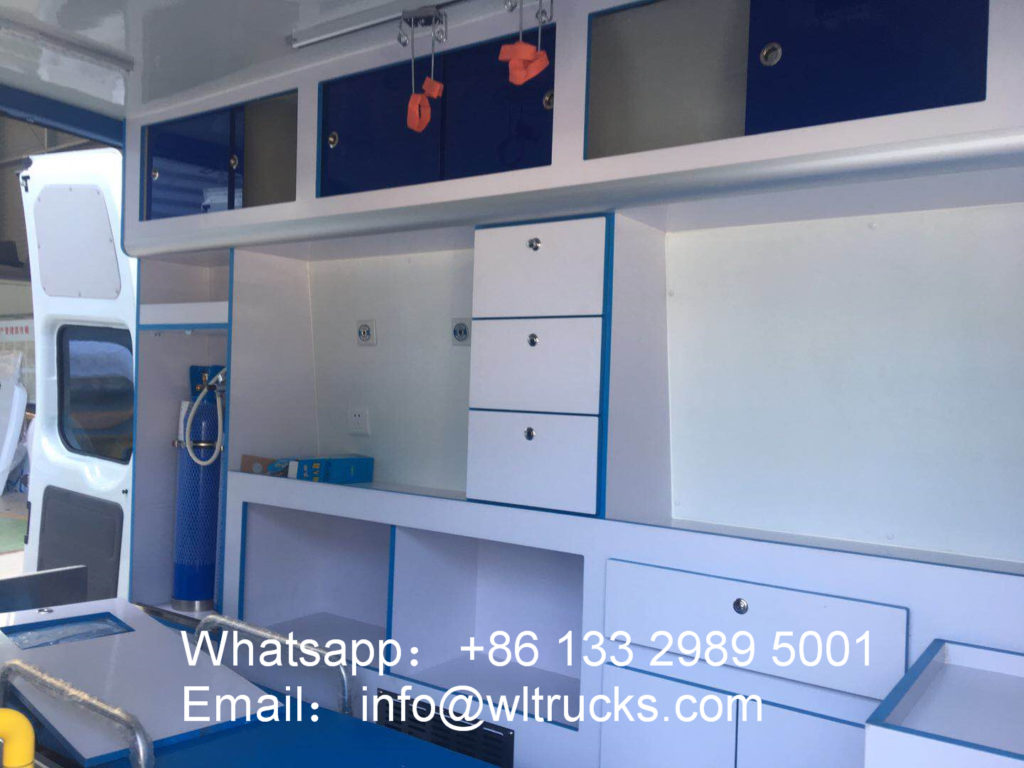

| Inside the medical cabin | 1 | The polymer hardtop interior is easy to clean and disinfect | 1 | |||
| 2 | Polymer material special-shaped partition wall | 1 | ||||
| 3 | Transparent sliding observation window for partition wall | 1 | ||||
| 4 | Left upper walker board medical long hanging cabinet | 1 | ||||
| 5 | Walker Sheet Medical Device Cabinet, Central Left | 1 | ||||
| 6 | Walker sheet vertical oxygen cabinet on the left rear | 1 | ||||
| 7 | Install hidden safety embedded parts for the whole vehicle | 1 | ||||
| 8 | Medical cabin full set of blue anti-collision soft package wall | 1 | ||||
| 9 | Environment-friendly wear-resistant, non-slip blue medical floor and cushion | 1 | ||||
| Seat | ||||||
| Seat system | 1 | Reverse folding soft seat 1 | 1 | |||
| 2 | 1 forward-mounted independent backrest seat on the right side | 1 | ||||
| 3 | Right side 2 people long horizontal soft bag seat and seat belt | 1 | ||||
| First aid | ||||||
| medical system | 1 | Auto stretcher | 1 | |||
| 2 | Stretcher pad and guide plate | 1 | ||||
| 3 | 1 sliding infusion stand | 1 | ||||
| 4 | Fire extinguisher | 1 | ||||
| Exterior | ||||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | |||
| 2 | Translucent matte film on right and rear | 1 | ||||
| 3 | Standard medical appearance customization | 1 | ||||

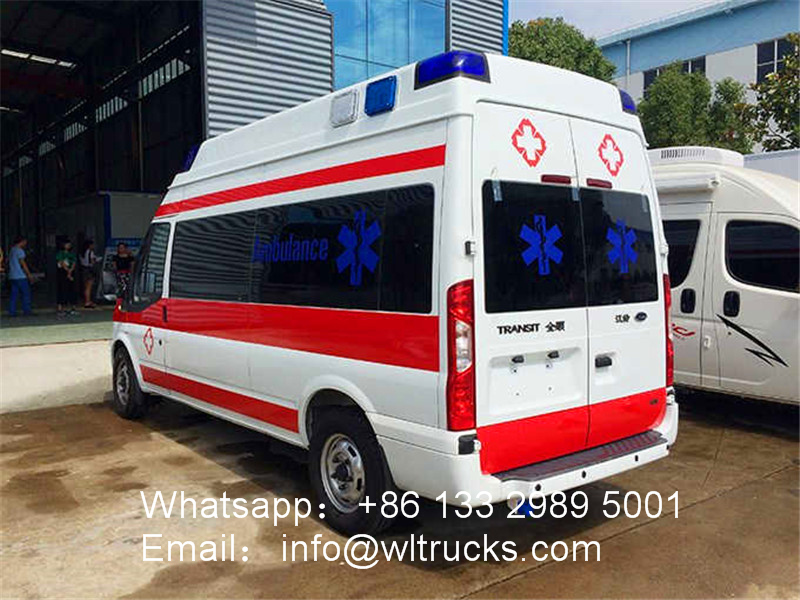

Ambulance car details:

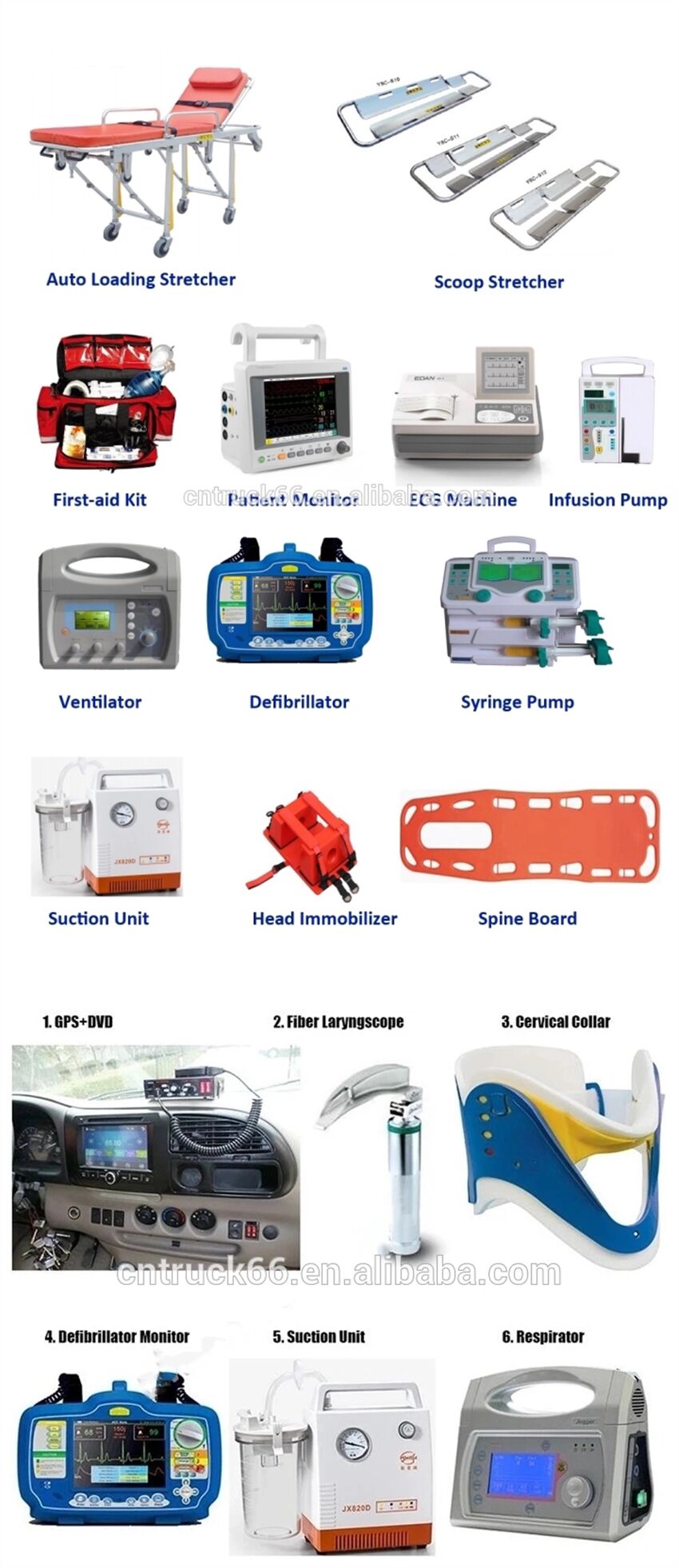

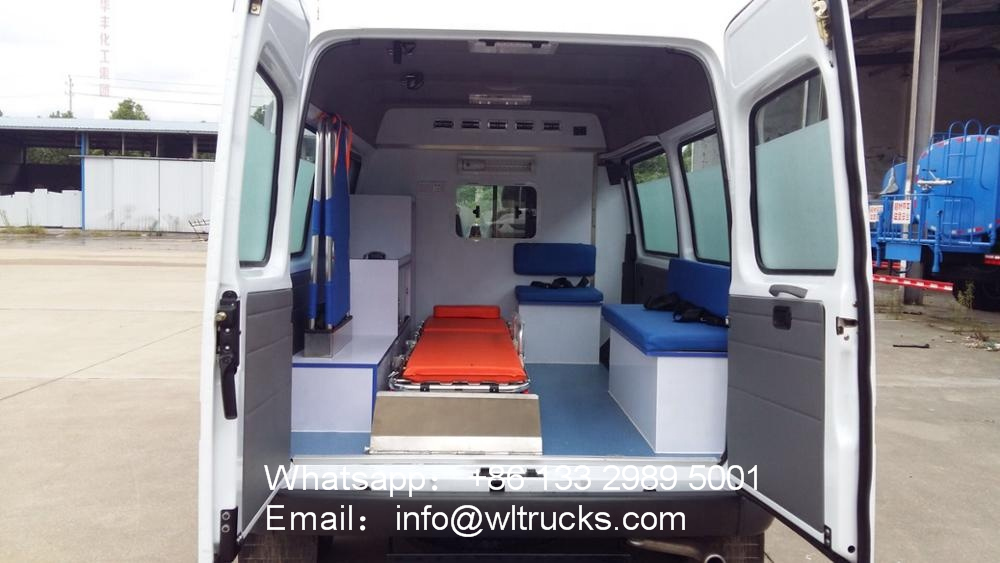

Ford V348 ICU intensive care ambulance vehicle equipment：
